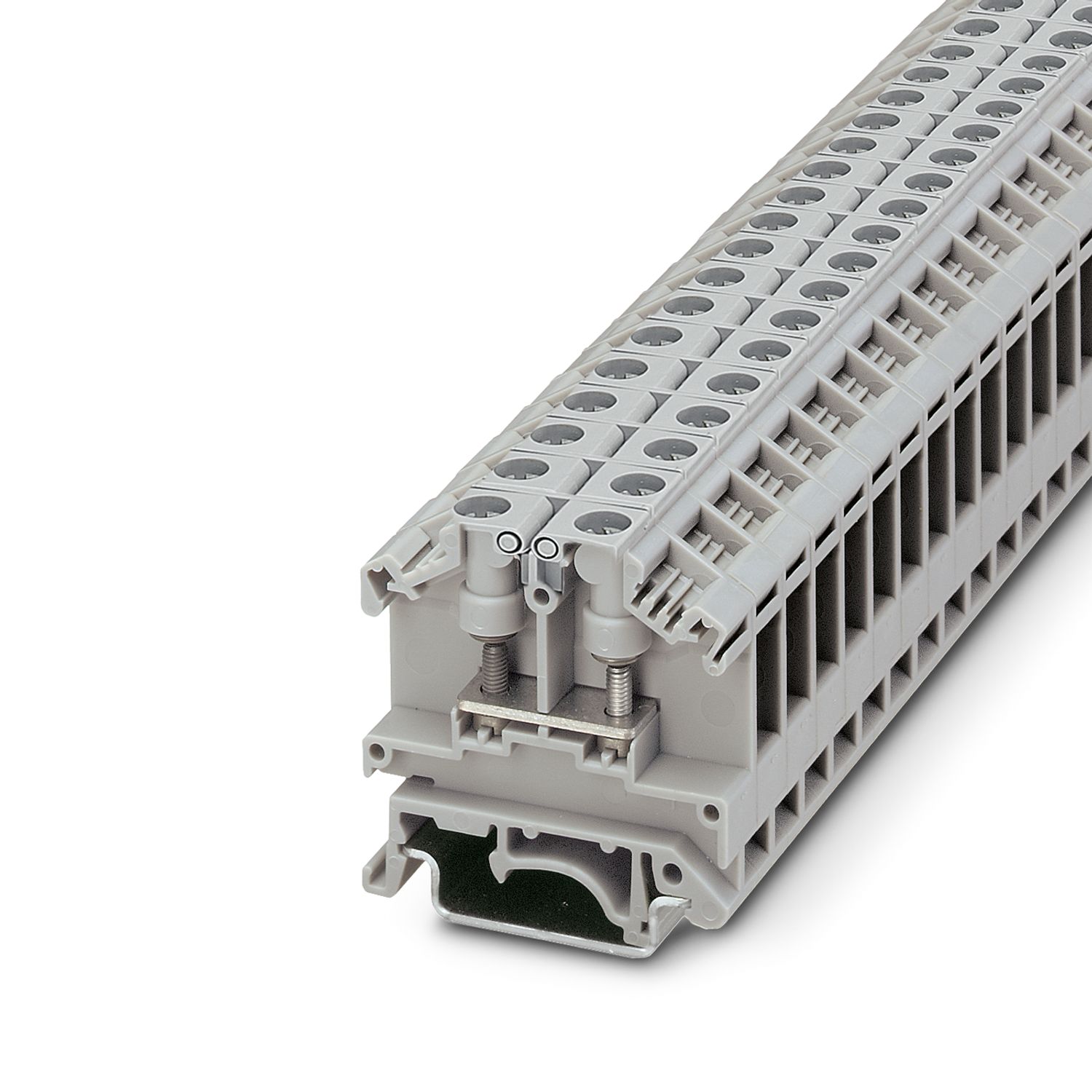

OTTA 2,5 - Bolt connection terminal block

0790530

Universal terminal block with bolt connection, cross section: 0.1 - 2.5 mm², width: 9 mm, color: Gray

Product details

General
Note	The rated insulation voltage applies to insulated cable lugs acc. DIN 46237:1970-07 and for uninsulated cable lugs acc. DIN 46234:1980-03 with shrink sleeve.

Product type	Bolt connection terminal block
Product family	OTTA
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	0.77 W

Number of connections per level	2
Nominal cross section	2.5 mm²
Stripping length	The stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standard	IEC 60947-7-1
Nominal current	24 A
Maximum load current	24 A (with a 2.5 mm² conductor cross section)
Nominal voltage	800 V
Nominal cross section	2.5 mm²
Cable lug connection DIN 46234:1980-03
Connection in acc. with standard	DIN 46234:1980-03
Cross section	0.1 mm² ... 2.5 mm²
Cross section range AWG	24 ... 14 (converted acc. to IEC)
Hole diameter	3.2 mm
Width	7.6 mm
Bolt diameter	3 mm
Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Identification color of ring cable lugs : red	1.5 mm²
Identification color of ring cable lugs : blue	2.5 mm²
Connection in acc. with standard	DIN 46237:1970-07
Cross section	0.5 mm² ... 2.5 mm²
Cross section range AWG	20 ... 14 (converted acc. to IEC)
Hole diameter	3.2 mm
Width	7.6 mm
Bolt diameter	3 mm
Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm

Width	9 mm
End cover width	1.5 mm
Height	43.5 mm
Depth on NS 32	50.5 mm
Depth on NS 35/7,5	45.5 mm
Depth on NS 35/15	53 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 (+/- 2) rpm
Revolutions	135
Conductor cross section/weight	2.5 mm² / 0.7 kg
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15
	NS 32

Commercial data

Item number	0790530
Packing unit	50 pc
Minimum order quantity	1 pc
Product key	BE4513
Catalog page	Page 563 (C-1-2019)
GTIN	4017918005641
Weight per piece (including packing)	12.89 g
Weight per piece (excluding packing)	11.54 g
Customs tariff number	85369010
Country of origin	IN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	600 V	20 A	22 - 14

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N
Use group B
	600 V	20 A
Use group C
	600 V	20 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	800 V	24 A		0.2 - 2.5

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	800 V	24 A		0.2 - 2.5

Environmental product compliance

Compatible products

Accessories

ECLASS-13.0	27250101
ECLASS-14.0 ASSET	27250101

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

OTTA 2,5 - Bolt connection terminal block

0790530

Product details

ECLASS

ETIM

UNSPSC

CSA

UL Recognized

IECEE CB Scheme

EAC

LR

VDE Zeichengenehmigung

EAC

DNV

Compatible products

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

OTTA 2,5 - Bolt connection terminal block 0790530

Product details

ECLASS

ETIM

UNSPSC

Compatible products

EB 2-OTTA 2,5 - Insertion bridge 3026065

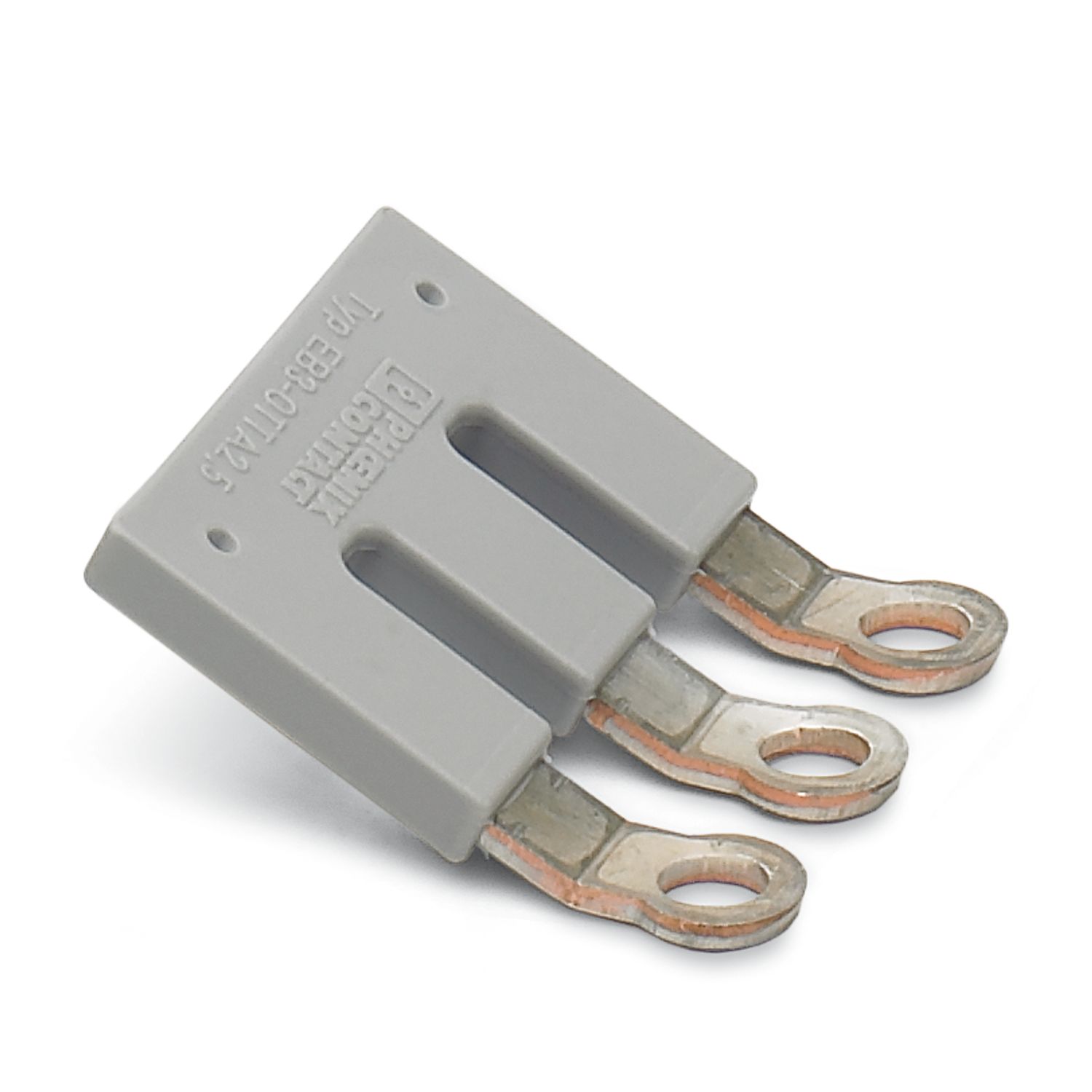

EB 3-OTTA 2,5 - Insertion bridge 3026078

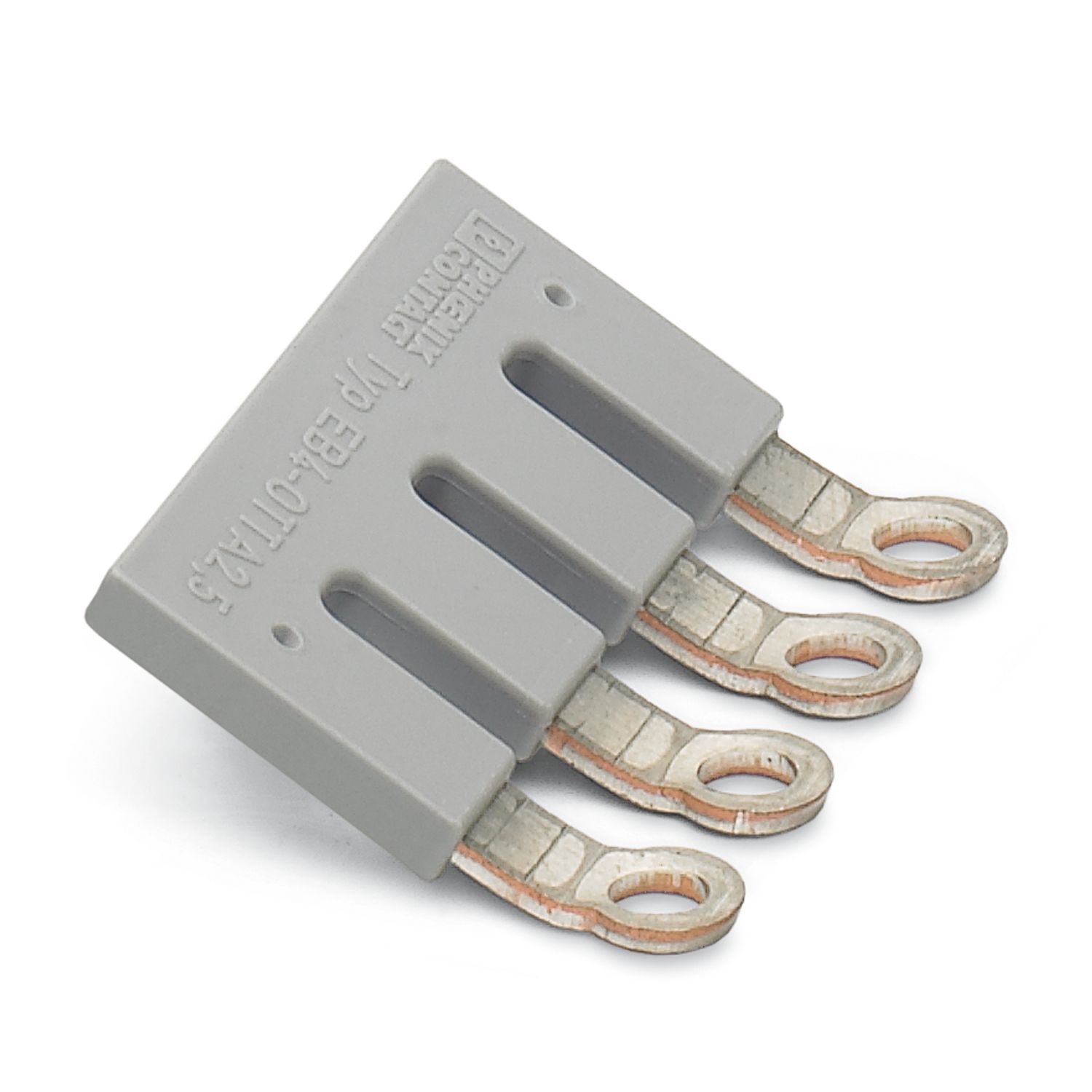

EB 4-OTTA 2,5 - Insertion bridge 3026081

EB 5-OTTA 2,5 - Insertion bridge 3026094

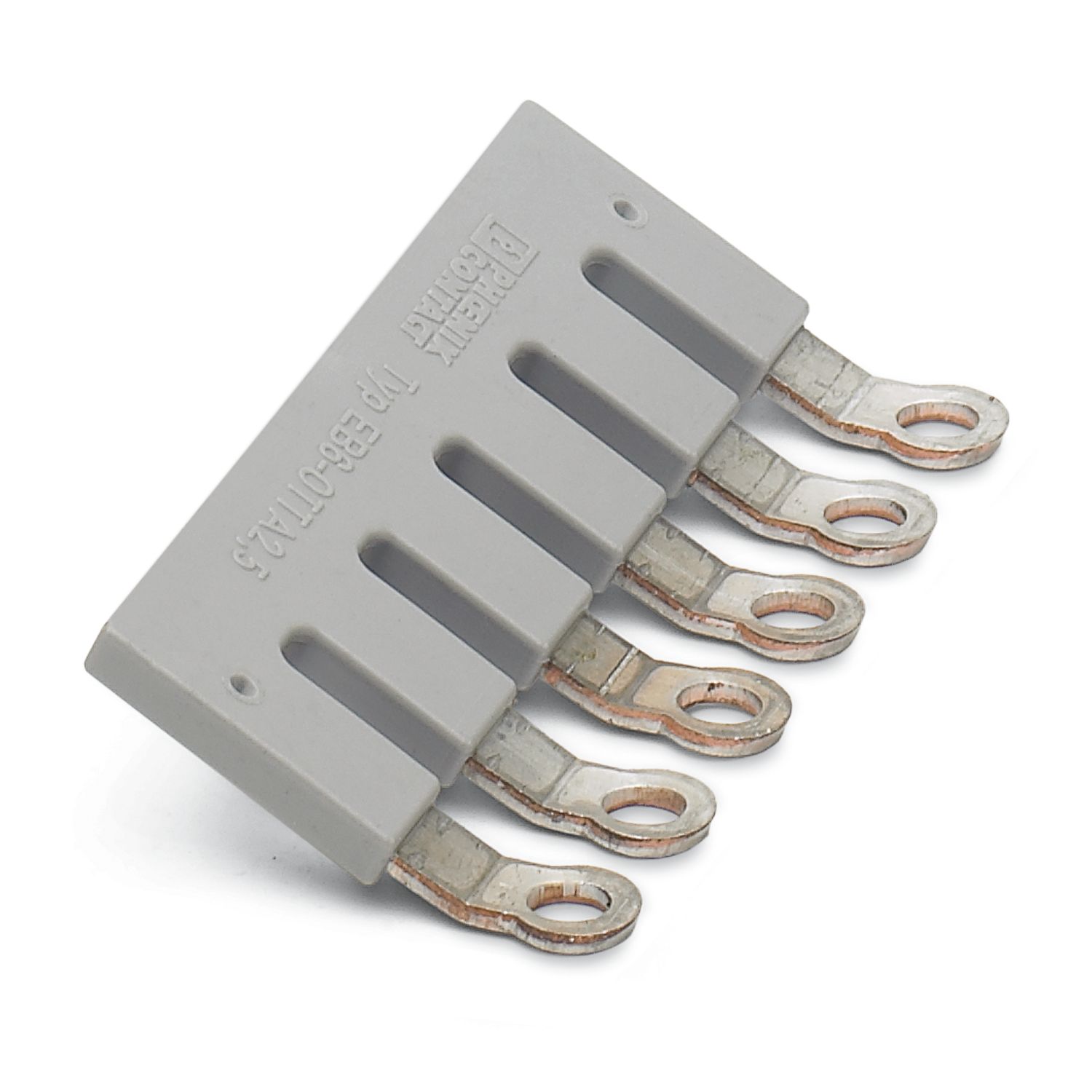

EB 6-OTTA 2,5 - Insertion bridge 3026104

EB 7-OTTA 2,5 - Insertion bridge 3026117

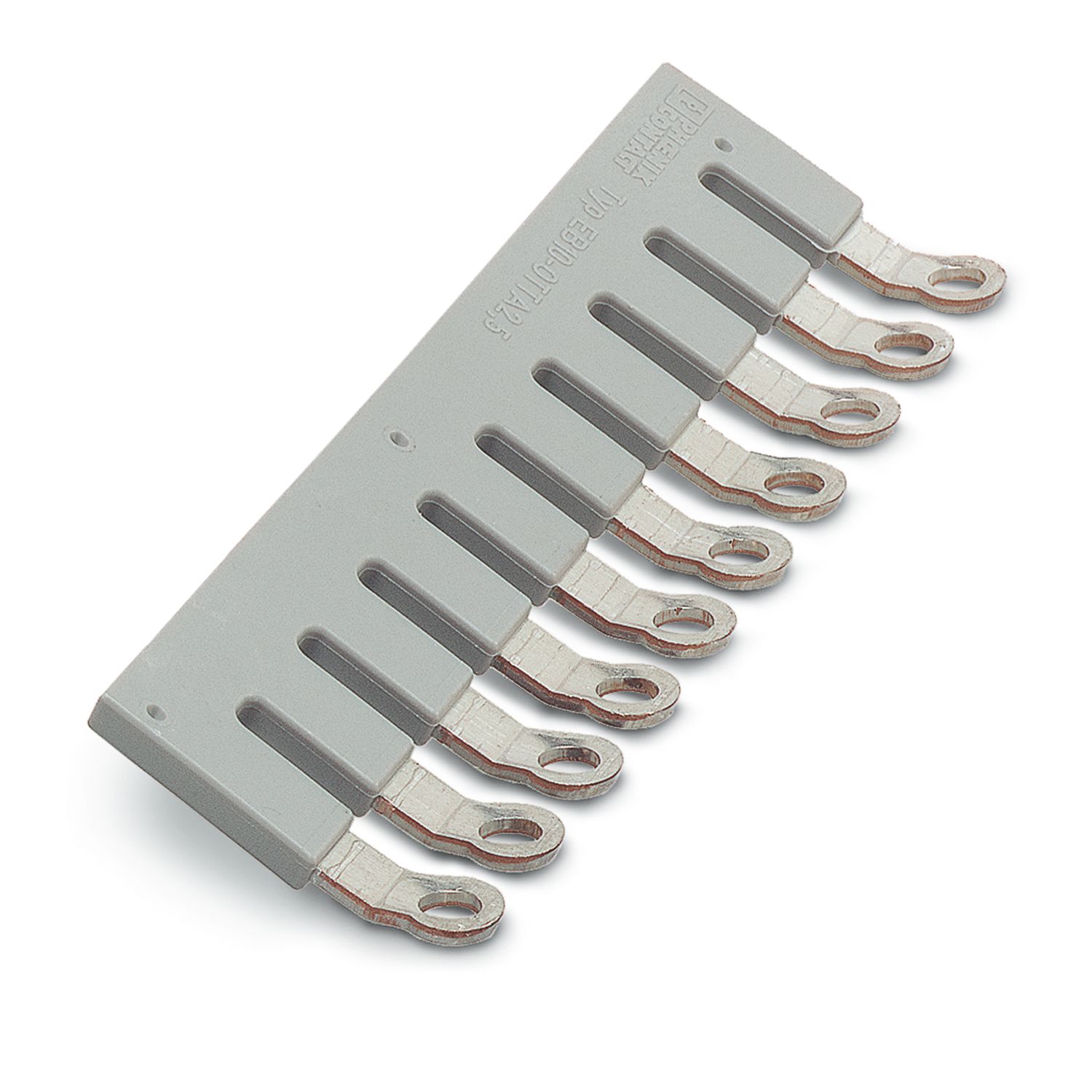

EB 10-OTTA 2,5 - Insertion bridge 3026120

D-OTTA 2,5 - End cover 0790569

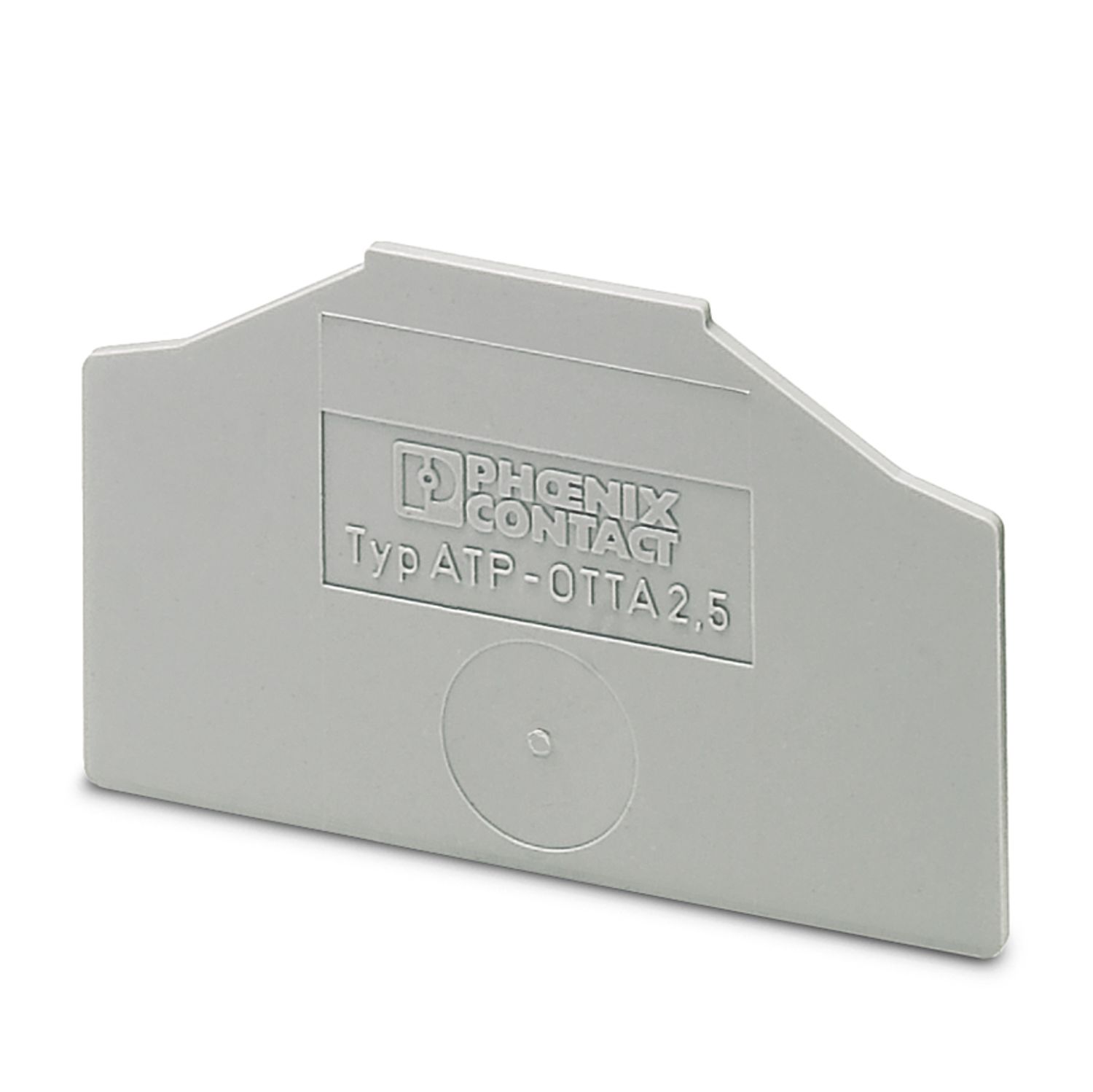

ATP-OTTA 2,5 - Partition plate 0790572
