F-MS 1100/30 ST
-
Type 2 surge protection plug
2800178
Surge protection plug type 2, spark gap with high insulation voltage strength, used only as replacement plug for the corresponding complete item.

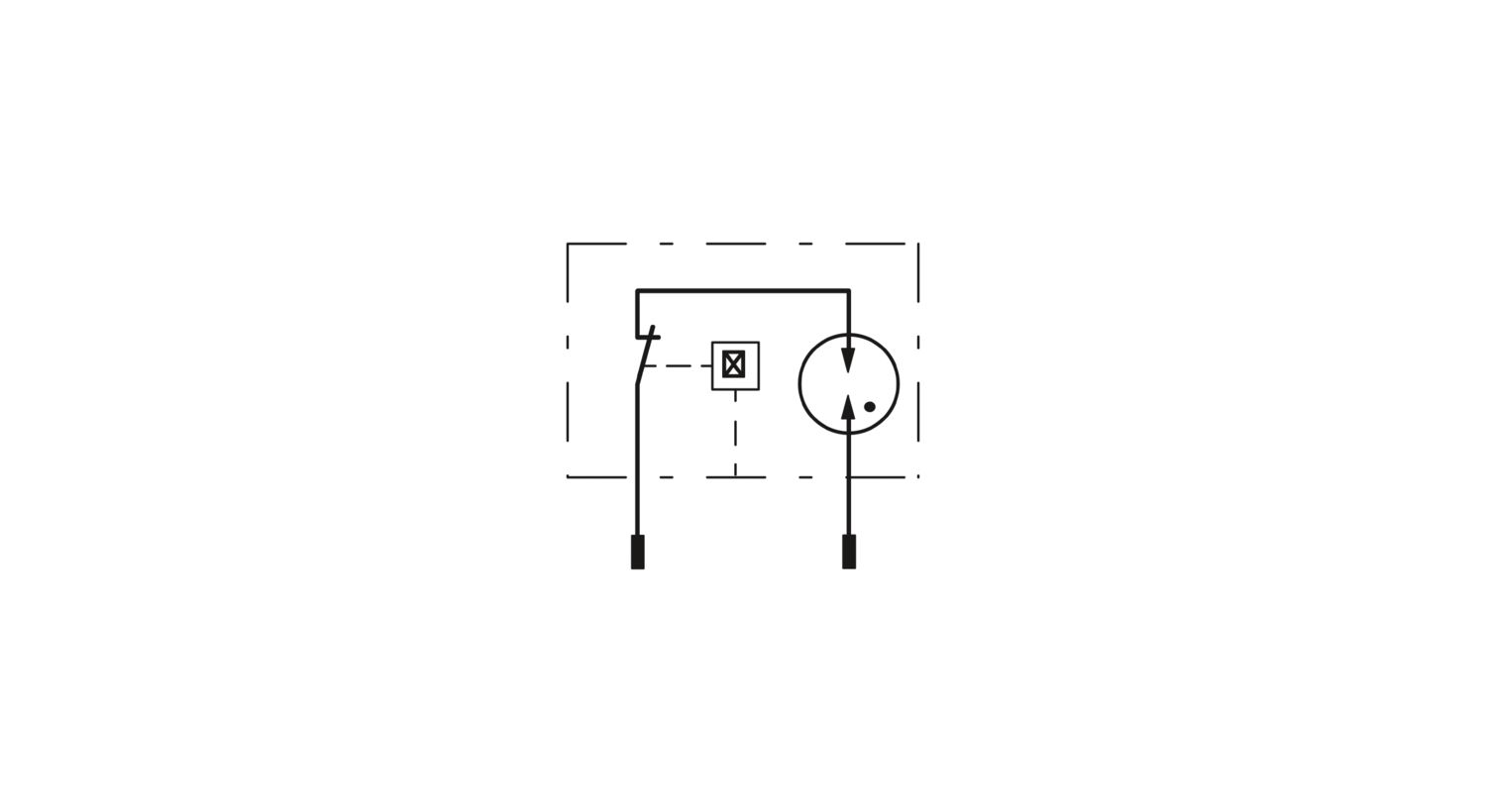

Product details
Product type | Replacement plug |
Product family | VALVETRAB MS |
IEC test classification | II |
T2 | |
EN type | T2 |
Type | DIN rail module, two-section, divisible |
Number of positions | 1 |
Surge protection fault message | optical |
Insulation characteristics | |
Overvoltage category | III |
Pollution degree | 2 |
Nominal voltage UN | only suitable in connecting in series with VAL-MS 580 ST! |
Width | 17.5 mm |
Height | 52.5 mm |
Depth | 52 mm |
Horizontal pitch | 1 Div. |
Flammability rating according to UL 94 | V0 |
Housing material | PA 6.6 |
Direction of action | N-PE |
Maximum continuous voltage UC | 580 V AC |
Nominal discharge current In (8/20) µs | 20 kA |
Maximum discharge current Imax (8/20) µs | 30 kA |
Voltage protection level Up | ≤ 3 kV |
Impulse sparkover voltage at 6 kV (1.2/50) µs | ≤ 3 kV |
Response time tA | ≤ 100 ns |
Protective circuit DC voltage side (DC) | |
Open circuit voltage UOCSTC | Only connected in series with VAL-MS...PV-ST |
Maximum discharge current Imax (8/20) µs | 30 kA |
Impulse sparkover voltage at 6 kV (1.2/50) µs | ≤ 3 kV |
Response time tA | ≤ 100 ns |
Impulse discharge current (10/350) µs, peak value limp | 2.5 kA |
Insulation resistance Riso | > 1 GΩ |
Nominal discharge current In (8/20) µs | 20 kA |
Maximum continuous operating voltage UCPV | Only connected in series with VAL-MS...PV-ST |
Short-circuit current rating ISCPV | Only connected in series with VAL-MS...PV-ST |
Voltage protection level Up | ≤ 3 kV |
Ambient conditions | |
Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 80 °C |
Air clearances and creepage distances | |
Standards/regulations | EN 60664-1 / EN 61643-11 |
Standards | |
Standards/regulations | IEC 61643-1 |
EN 61643-11 | |
EN 61643-11/A11 | |
Standards/specifications | IEC 61643-1 |
Note | 2005 |
Standards/specifications | DIN EN 61643-11 |
Note | 2002 |
Standards/specifications | DIN EN 61643-11/A11 |
Note | 2007 |
Mounting type | on base element |
Item number | 2800178 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Product key | CL1324 |
Catalog page | Page 62 (TT-2011) |
GTIN | 4046356501095 |
Weight per piece (including packing) | 58.9 g |
Weight per piece (excluding packing) | 35.83 g |
Customs tariff number | 85363010 |
Country of origin | DE |
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
