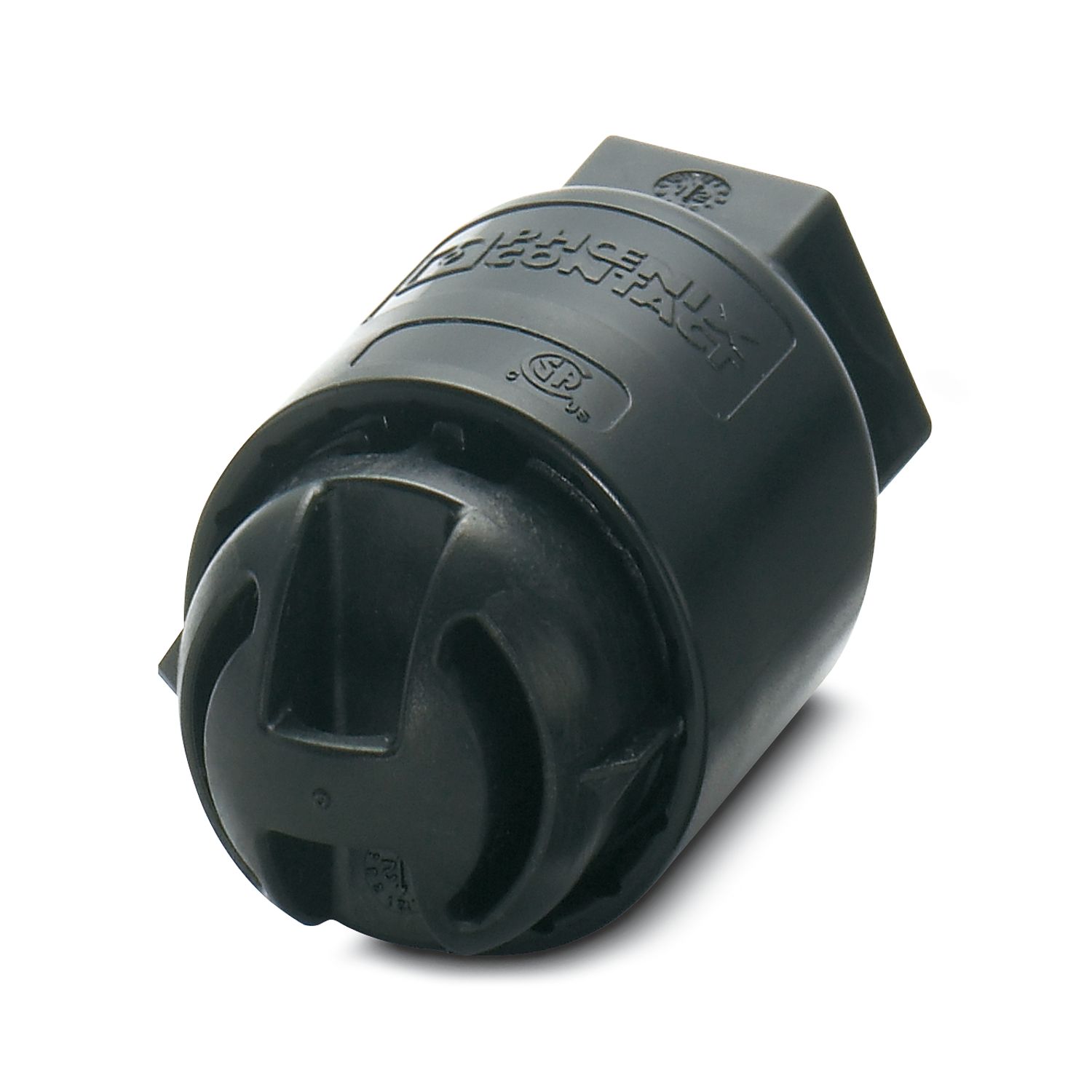

PV-MI-CABLE TERMINATOR 3P - Termination block
PV-MI-CABLE TERMINATOR 3P
-
Termination block
1812416
Terminator to protect the end of a solar panel trunk line.
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Shroud
Number of positions
3
Electrical properties
Rated voltage (III/3)
600 V AC/DC
Dimensions
Wrench size, union nut
22.00 mm
External dimensions
Outside diameter
9.5 mm ... 13 mm (0.37" ... 0.51")
Material specifications
Color
black
Material for screw connection
EPCM
Cable/line
Cable type
TC-ER
External cable diameter
9.5 mm ... 13 mm
Single wire, number of litz wires
3
Wire diameter incl. insulation
4.5 mm (max.)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles
10 (with same cable diameter)
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP67
IP67
Ambient temperature (operation)
-40 °C ... 90 °C
Commercial data
Item number
1812416
Packing unit
1 pc
Minimum order quantity
1 pc
Product key
ABLWZX
GTIN
4046356738699
Weight per piece (including packing)
24.5 g
Weight per piece (excluding packing)
22.22 g
Customs tariff number
39269097
Country of origin
US
Environmental product compliance
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
PV-MI-CABLE SPLICE 3P
-
Housing
1812403
