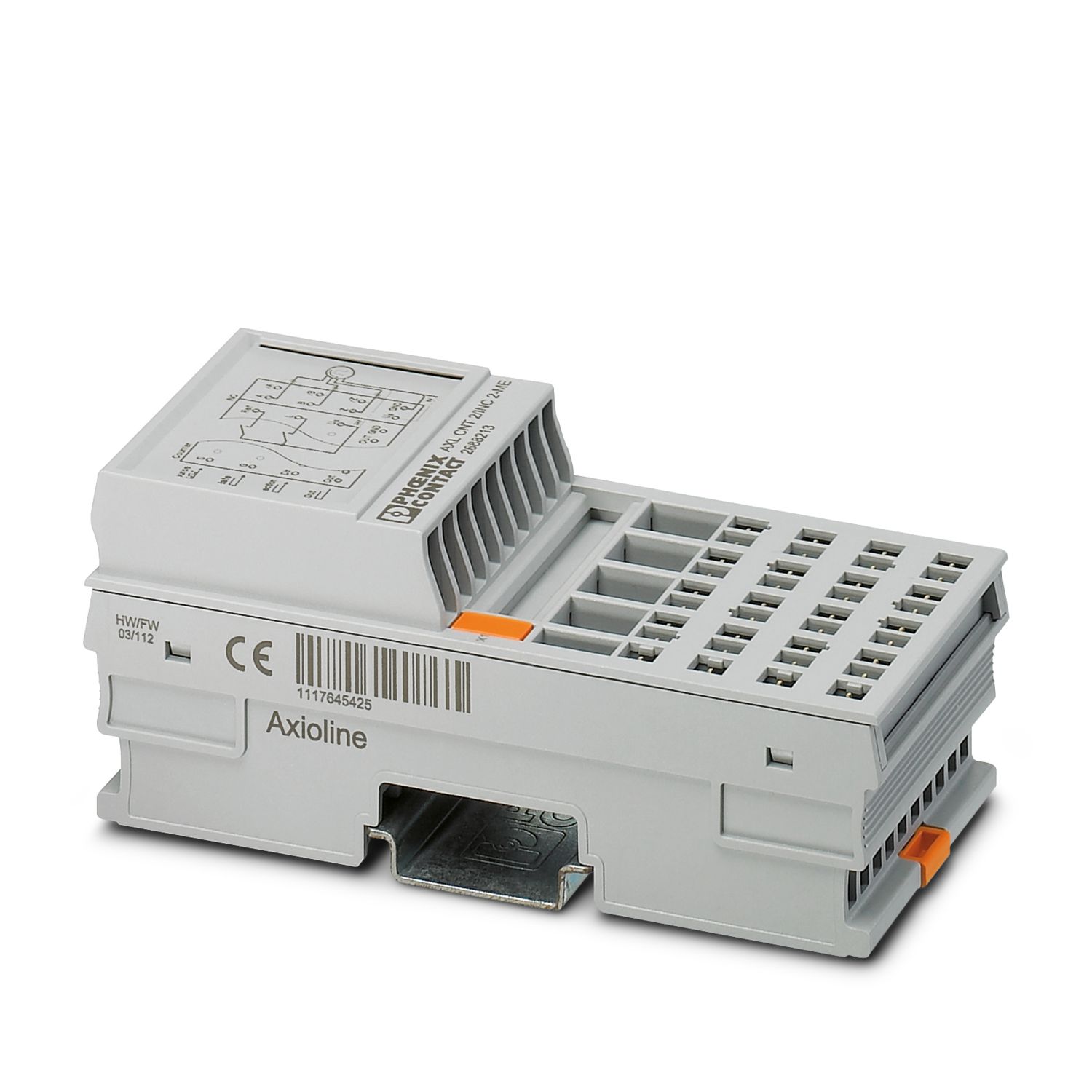

AXL CNT 2/INC 2-ME - Function module

2688213

Axioline special function module, 2 counter inputs, 2 incremental encoder inputs (electronics module as a replacement for article 2688093 AXL CNT 2/INC 2)

Color	gray

Axioline F local bus
Connection method	Bus base module
Transmission speed	100 Mbps

Module
ID code (hex)	none
Required parameter data	115 Byte
Required configuration data	7 Byte

Digital:
Input name	Digital inputs
Description of the input	EN 61131-2, type 3
Number of inputs	8 (CNT: G1, G2, Dir1, Dir2; INC: Ref1, Ref2, L1, L2)
Connection method	Direct plug-in technology
Connection technology	1-conductor (optional 2, 3-conductor)
Input voltage range "0" signal	-3 V DC ... 5 V DC
Input voltage range "1" signal	11 V DC ... 30 V DC
Nominal input voltage U_IN	24 V DC
Nominal input current at U_IN	2.5 mA (per channel)
Encoder
Number of inputs	2 (A1, /A1, B1, /B1, Z1, /Z1; A2, /A2, B2, /B2, Z2, /Z2)
Input name	Incremental encoder input
Encoder signals	symmetrical encoders according to EIA-422 and asymmetrical encoders
Cable length	30 m
Counter:
Description of the input	EN 61131-2, type 3
Connection method	Push-in connection
Number of inputs	2 (S1, S2)
Input voltage	24 V DC
Input voltage range "0" signal	-3 V DC ... 5 V DC
Input voltage range "1" signal	11 V DC ... 30 V DC
Input frequency	max. 300 kHz (1 channel wired)
	max. 100 kHz (more than one channel wired or Z-signal monitoring via the firmware)
Input current	2.5 mA (per channel)
Resolution	32 bits
Permissible cable length	30 m

Digital:
Output name	Digital outputs
Connection method	Push-in connection
Connection technology	1-conductor
Number of outputs	2 (Out1, Out2)
Protective circuit	Short-circuit protection, overload protection of the outputs
Output voltage	24 V DC
Maximum output current per channel	500 mA
Nominal output voltage	24 V DC
Nominal load, inductive	max. 12 VA (1.2 H, 48 Ω, with nominal voltage)
Nominal load, lamp	max. 12 W (at nominal voltage)
Nominal load, ohmic	max. 12 W (48 Ω, with nominal voltage)

Product type	I/O component
Type	block modular
Mounting position	any (no temperature derating)
Diagnostics messages	Short-circuit or overload of the digital outputs yes
	Fault at symmetrical incremental encoder yes

Encoder
Number	2 (U_E1, U_E2)
Nominal output voltage	5 V DC
Voltage range	5 V DC ... 5.5 V DC
Current carrying capacity	max. 250 mA
Protective circuit	Short-circuit protection; Electronic
Number	2 (U_S1, U_S2)
Nominal output voltage	24 V DC
Voltage range	19.2 V DC ... 30 V DC
Current carrying capacity	typ. 500 mA
Protective circuit	Short-circuit protection; Electronic
Number	max. 2 (A, /A, B, /B, (Z, /Z))
Designation	Symmetrical incremental encoders
Type of connection of signals	Push-in connection
Encoder supply voltage	5 V DC
	24 V DC
Signal voltage level	Differential signal (signal – inverted signal) ±0.5 V, minimum; ±6 V, maximum
Common mode voltage range signal - ground	-10 V ... 13.2 V
Input frequency	max. 300 kHz (1 channel wired)
	max. 100 kHz (more than one channel wired or Z-signal monitoring via the firmware)
Number	max. 2 (A, B, (Z))
Designation	Asymmetrical incremental encoder
Type of connection of signals	Push-in connection
Signal voltage level	Low ≤ 2.5 V, high ≥ 3.5 V (up to 27 V, maximum)
Input frequency	max. 300 kHz (1 channel wired)
	max. 100 kHz (more than one channel wired or Z-signal monitoring via the firmware)
Potentials
Protection	max. 8 A (polarity reversal protection up to 5 A)
Protective circuit	Surge protection of the supply voltage; electronic (35 V, 0.5 s)
	Polarity reversal protection of the supply voltage; parallel diode; with external 5 A fuse (only for commissioning)
Potentials: Axioline F local bus supply (U_Bus)
Supply voltage	5 V DC (via bus base module)
Current draw	max. 120 mA
	typ. 100 mA
Potentials: Feed-in of supply voltage (U_I)
Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC including all tolerances, including ripple
Current draw	max. 2.5 A (dependent on the encoder or sensor type used and the load on the digital output.)
Electrical isolation/isolation of the voltage ranges
Test voltage: 5 V supply of the local bus (U_Bus) / 24 V supply (I/Os)	500 V AC, 50 Hz, 1 min
Test voltage: 5 V supply of the local bus (U_Bus) / functional ground	500 V AC, 50 Hz, 1 min
Test voltage: 24 V supply (I/O) / functional ground	500 V AC, 50 Hz, 1 min

Conductor connection
Connection method	Push-in connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16
Connection method	Push-in connection
Conductor cross section, rigid	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16

Ambient conditions
Ambient temperature (operation)	-25 °C ... 60 °C
Degree of protection	IP20
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	5 % ... 95 % (non-condensing)

Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Mounting type	DIN rail mounting
Mounting position	any (no temperature derating)

Item number	2688213
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DRI263
GTIN	4046356582193
Weight per piece (including packing)	167.8 g
Weight per piece (excluding packing)	167.8 g
Customs tariff number	85389091
Country of origin	DE

Compatible products

Accessories

Your advantages

2 counter inputs

2 incremental encoder inputs

Incremental encoder acquisition: evaluation of linear or rotary axes

Device rating plate stored

Diagnostic and status indicators

Counter: single or periodic counting

Counter: counting (source) is controlled via a control input (gate)

Output control according to two limit values

32-bit counter (up and down)

Maximum input frequency: 300 kHz/100 kHz (depending on the wiring)

Incremental encoder acquisition: Acquisition of digital signals from symmetrical and asymmetrical incremental encoders
