SAC-4P-MS SCO RAIL/.../... - Sensor/actuator cable

1412169

General	Further products with fixed cable length can be found in the accessories section

Product type	Sensor/actuator cable
Application	Railway applications
Number of positions	4
No. of cable outlets	1
Shielded	yes
Coding	A
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Flammability rating according to UL 94	V0
Seal material	NBR
Material of grip body	PA 6.6
Contact material	CuSn
Contact surface material	Ni/Au
Contact carrier material	PA 6.6
Material for screw connection	Zinc die-cast, nickel-plated
Standards/regulations	PA 6.6

Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	250 V AC
	250 V DC
Nominal current I_N	4 A

Mechanical data
Insertion/withdrawal cycles	≥ 100

Status display	no
Status display present	no

Conductor connection
Tightening torque	0.4 Nm (M12 connector)

Connection 1
Type	Plug straight M12 SPEEDCON
Number of positions	4
Locking type	SPEEDCON
Coding type	A
Connection 2
Type	free cable end

Cable length	Free input (0.2 ... 40.0 m)
Shielded black RADOX® [28R]
Cable weight	56 kg/km
Number of positions	4
Shielded	yes
Cable type	Shielded black RADOX® [28R]
	Shielded black RADOX® 28R
Conductor structure signal line	19x 0.18 mm
AWG signal line	20
Conductor cross section	4x 0.5 mm²
Wire diameter incl. insulation	1.43 mm
External cable diameter	5.40 mm ±0.3 mm
Outer sheath, material	PE-X
External sheath, color	black RAL 9005
Conductor material	Tin-plated Cu litz wires
Material wire insulation	PE-X

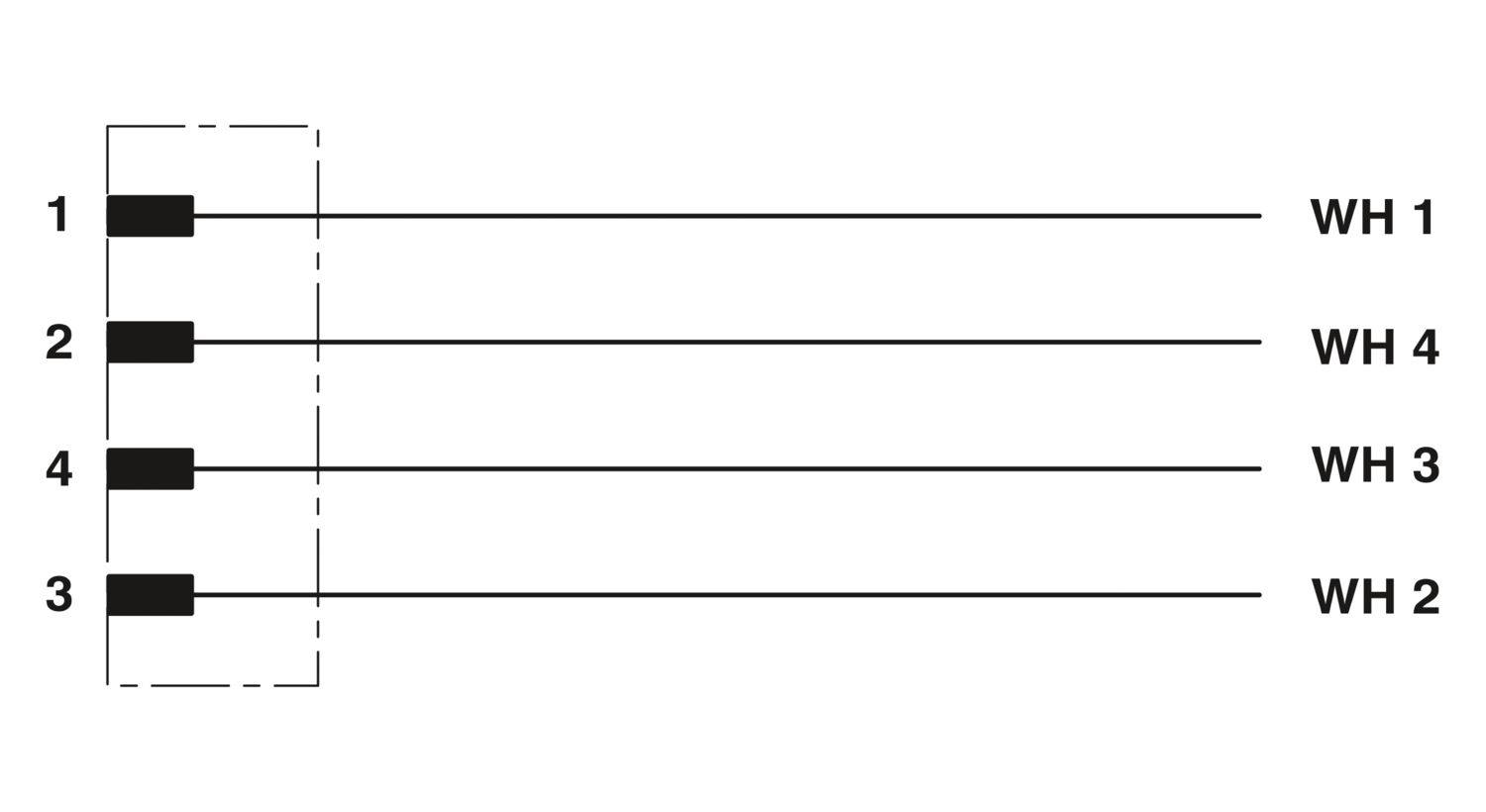

Single wire, color	white 1, white 2, white 3, white 4
Overall twist	4 wires, twisted
Shielding	Tinned copper braided shield
Optical shield covering	85 %
Max. conductor resistance	≤ 40.1 Ω/km
Nominal voltage, cable	600 V AC (Core-ground, U₀)
	1000 V AC (Core-ground, U)
	≤ 720 V AC (core-ground)
	≤ 1200 V AC (Core-ground, U_m)
	≤ 900 V DC (Core-ground, V₀)
	≤ 1500 V DC (Line-line)
Test voltage	3500 V AC (50 Hz, 5 min.)
	8400 V DC (50 Hz, 5 min.)
Minimum bending radius, fixed installation	3 x D
Minimum bending radius, flexible installation	4 x D
Smallest bending radius, fixed installation	17 mm
Smallest bending radius, movable installation	22 mm
Halogen-free	in accordance with EN 50267-2-1
Flame resistance	IEC 60332-1-2
	EN 50266
	EN 50305, 9.1.2
	NF C32-070, 2.1
	NF C32-070, 2.2
	UL 1685, 12 (FT4)
	in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Fume corrosiveness	EN 50267-2-2
Fume toxicity	BS 6853 B.1
	EN 50305, 9.2
Concentration of fumes	BS 6853 D.8.7
	EN 61034-2
	UL 1685, 12 (FT4)
Resistance to oil	according to IRM 902, 72 h at 100 °C
Fire protection in rail vehicles	BS 6853 (Category Ia, Ib, II)
	GM/RT 2130 (Category Ia, Ib, II)
	EN 45545 (Risk level HL1 - HL3)
	DIN 5510 (Fire protection level 1, 2, 3, 4)
	NF F16-101 (Category A1, A2, B)
	NF F16-101 (Class C/F0)
	NFPA 130
	UNI CEI 11170 (Risk level LR1 - LR4)
Other resistance	Resistance to fuels (according to IRM 903, 168 h at 70 °C)
Ambient temperature (operation)	-50 °C ... 120 °C (cable, fixed installation)
	-25 °C ... 90 °C (Cable, flexible installation)
RADOX® black Twisted-Pair [28T]
Cable weight	80 kg/km
Number of positions	4
Shielded	yes
Cable type	RADOX® black Twisted-Pair [28T]
	RADOX® black Twisted-Pair 28T
Conductor structure signal line	19x 0.18 mm
AWG signal line	20
Conductor cross section	2x 2x 0.5 mm²
Wire diameter incl. insulation	1.4 mm
External cable diameter	7.20 mm ±0.3 mm
Outer sheath, material	PE-X
External sheath, color	black
Conductor material	Tin-plated Cu litz wires
Material wire insulation	PE-X
Single wire, color	white 1-white 2, white 3-white 4
Twisted pairs	2 cores to the pair
Overall twist	Two pairs with two fillers to the core
Shielding	Tinned copper braided shield
Max. conductor resistance	≤ 40.1 Ω/km
Nominal voltage, cable	600 V AC (Core-ground, U₀)
	1000 V AC (Core-ground, U)
	≤ 720 V AC (core-ground)
	≤ 1200 V AC (Core-ground, U_m)
	≤ 900 V DC (Core-ground, V₀)
	≤ 1500 V DC (Line-line)
Test voltage	3500 V AC (50 Hz, 5 min.)
	8400 V DC (50 Hz, 5 min.)
Minimum bending radius, fixed installation	3 x D
Minimum bending radius, flexible installation	4 x D
Smallest bending radius, fixed installation	22 mm
Smallest bending radius, movable installation	29 mm
Halogen-free	in accordance with EN 50267-2-1
Flame resistance	IEC 60332-1-2
	EN 50266
	EN 60332-3-25
	NF C32-070, 2.1
	NF C32-070, 2.2
	UL 1685, 12 (FT4)
	in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Fume corrosiveness	EN 50267-2-2
Fume toxicity	BS 6853 B.1
	EN 50305, 9.2
Concentration of fumes	BS 6853 D.8.7
	EN 61034-2
	UL 1685, 12 (FT4)
Resistance to oil	according to IRM 902, 72 h at 100 °C
Fire protection in rail vehicles	BS 6853 (Category Ia, Ib, II)
	GM/RT 2130 (Category Ia, Ib, II)
	EN 45545 (Risk level HL1 - HL3)
	DIN 5510 (Fire protection level 1, 2, 3, 4)
	NF F16-101 (Category A1, A2, B)
	NF F16-101 (Class C/F0)
	NFPA 130
	UNI CEI 11170 (Risk level LR1 - LR4)
Other resistance	Resistance to fuels (according to IRM 903, 168 h at 70 °C)
Ambient temperature (operation)	-50 °C ... 120 °C (cable, fixed installation)
	-25 °C ... 90 °C (Cable, flexible installation)
RADOX® black shielded 0.75 mm² [29R]
Cable weight	72 kg/km
Number of positions	4
Shielded	yes
Cable type	RADOX® black shielded 0.75 mm² [29R]
	RADOX® black shielded 0.75 mm² 29R
Conductor structure signal line	19x 0.22 mm
AWG signal line	18
Conductor cross section	4x 0.75 mm²
Wire diameter incl. insulation	1.63 mm
External cable diameter	6.00 mm ±0.3 mm
Outer sheath, material	PE-X
External sheath, color	black
Conductor material	Tin-plated Cu litz wires
Material wire insulation	PE-X
Single wire, color	white 1, white 2, white 3, white 4
Overall twist	4 wires, twisted
Shielding	Tinned copper braided shield
Max. conductor resistance	≤ 26.7 Ω/km
Nominal voltage, cable	600 V AC (Core-ground, U₀)
	1000 V AC (Core-ground, U)
	≤ 720 V AC (core-ground)
	≤ 1200 V AC (Core-ground, U_m)
	≤ 900 V DC (Core-ground, V₀)
	≤ 1500 V DC (Line-line)
Test voltage	3500 V AC (50 Hz, 5 min.)
	8400 V DC (50 Hz, 5 min.)
Minimum bending radius, fixed installation	3 x D
Minimum bending radius, flexible installation	4 x D
Smallest bending radius, fixed installation	18 mm
Smallest bending radius, movable installation	24 mm
Halogen-free	in accordance with EN 50267-2-1
Flame resistance	IEC 60332-1-2
	EN 50266
	EN 50305, 9.1.2
	NF C32-070, 2.1
	NF C32-070, 2.2
	UL 1685, 12 (FT4)
	in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Fume corrosiveness	EN 50267-2-2
Fume toxicity	BS 6853 B.1
	EN 50305, 9.2
Concentration of fumes	BS 6853 D.8.7
	EN 61034-2
	UL 1685, 12 (FT4)
Resistance to oil	according to IRM 902, 72 h at 100 °C
Fire protection in rail vehicles	BS 6853 (Category Ia, Ib, II)
	GM/RT 2130 (Category Ia, Ib, II)
	EN 45545 (Risk level HL1 - HL3)
	DIN 5510 (Fire protection level 1, 2, 3, 4)
	NF F16-101 (Category A1, A2, B)
	NF F16-101 (Class C/F0)
	NFPA 130
	UNI CEI 11170 (Risk level LR1 - LR4)
Other resistance	Resistance to fuels (according to IRM 903, 168 h at 70 °C)
Ambient temperature (operation)	-50 °C ... 120 °C (cable, fixed installation)
	-25 °C ... 90 °C (Cable, flexible installation)

Ambient conditions
Degree of protection	IP65
Ambient temperature (operation) (male connector/female connector)	-40 °C ... 85 °C (Plug / socket)

M12
Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101
Standard designation	Shock, vibration
Standards/specifications	EN 50155

Item number	1412169
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	AF1CJA
GTIN	4046356993678
Customs tariff number	85444290
Country of origin	PL

Compatible products

Accessories

Your advantages

Easy and safe: 100 % electrically tested plug-in components

Securely locked by special vibration brake

Resistant to temperature influences – tested for an extended temperature range and for resistance to temperature shocks

Reliable signal transmission – 360° shielding in environments with electromagnetic interference

ECLASS-13.0	27060311
ECLASS-15.0	27060311

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS: 119-47-1)

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

SAC-4P-MS SCO RAIL/.../... - Sensor/actuator cable

1412169

Product details

ECLASS

ETIM

UNSPSC

EAC-RoHS

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

SAC-4P-MS SCO RAIL/.../... - Sensor/actuator cable 1412169

Product details

ECLASS

ETIM

UNSPSC

Compatible products

SAC-4P-MS/ 2,0-28R SCO RAIL - Sensor/actuator cable 1407311

SAC-4P-MS/ 5,0-28R SCO RAIL - Sensor/actuator cable 1407312

SAC-4P-MS/10,0-28R SCO RAIL - Sensor/actuator cable 1407313

PROT-M12 FS-PA-CHAIN - Sealing cap 1430873

SAC-M12-EXCLIP-M - Locking clip 1558988

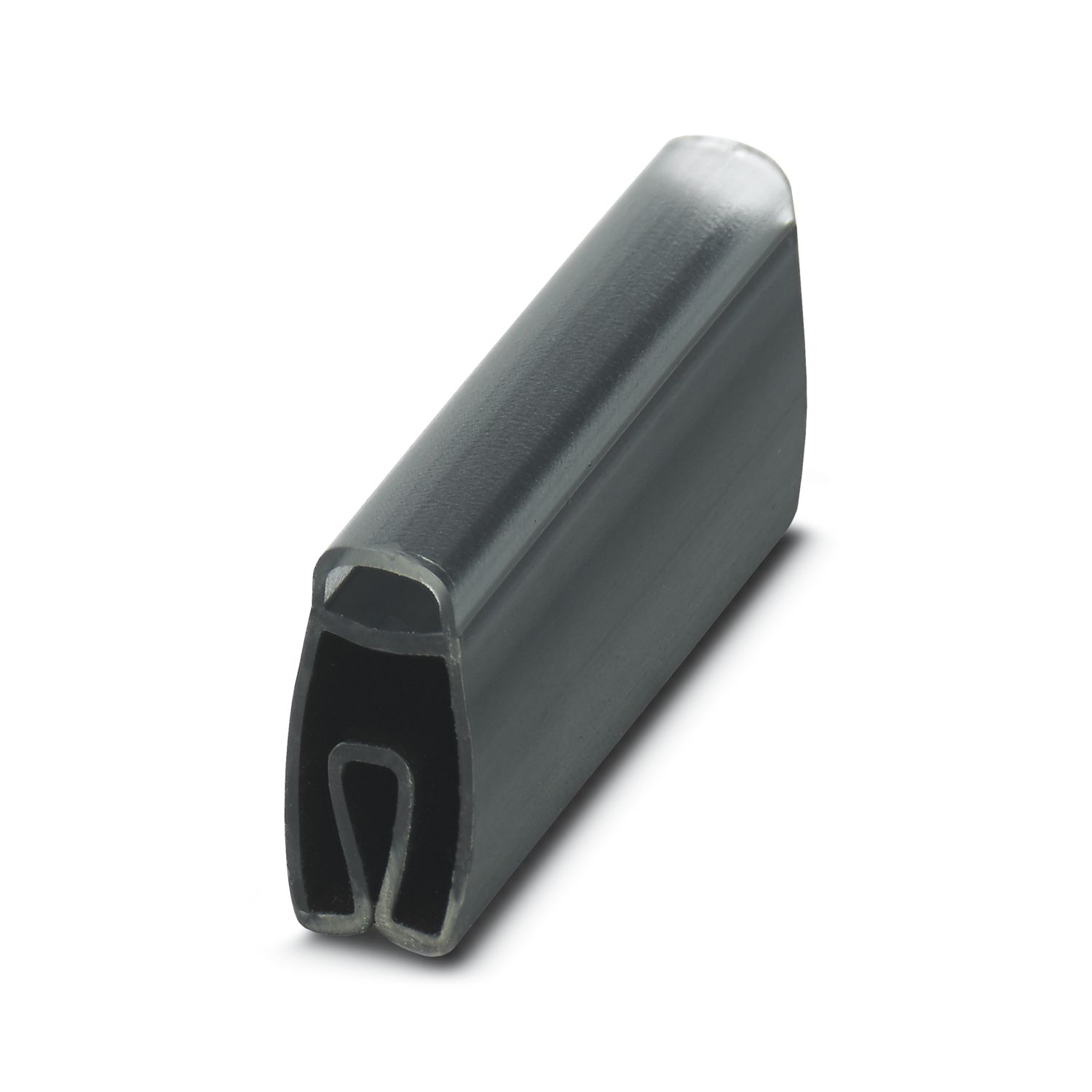

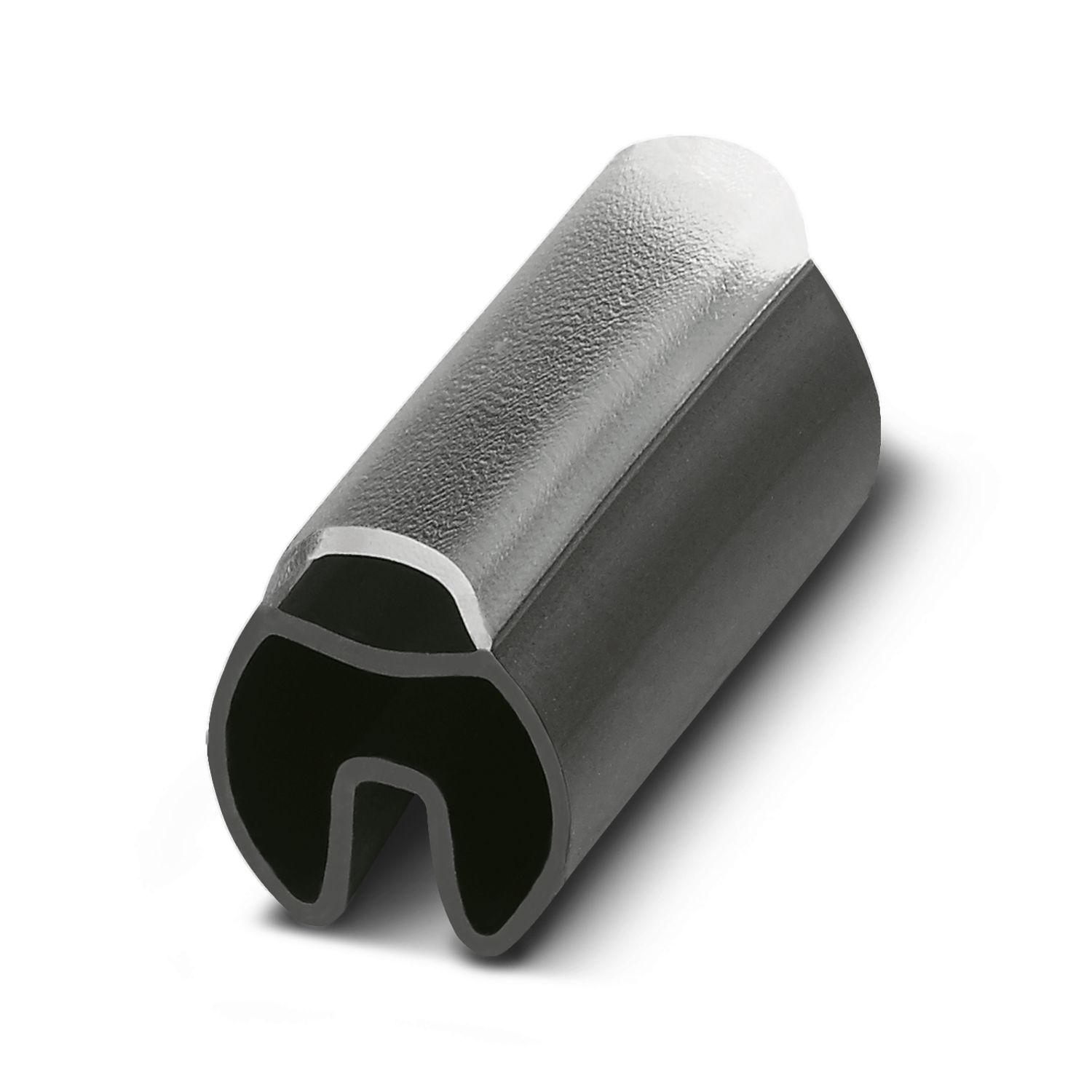

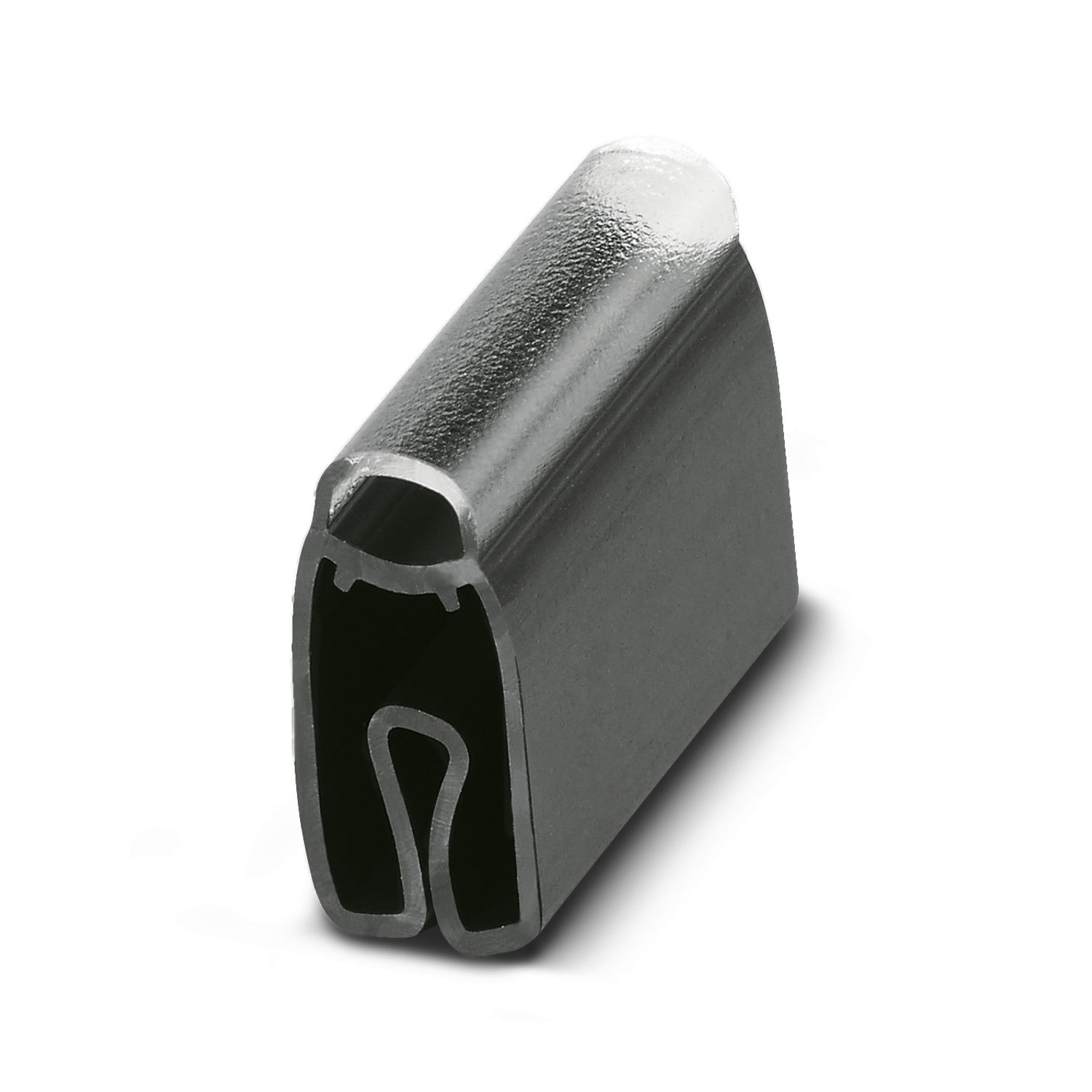

PATG HF 3/18 - Conductor marker carrier 1014059

PATG HF 3/23 - Conductor marker carrier 1014060

PATG HF 3/30 - Conductor marker carrier 1014061

PATG HF 4/18 - Conductor marker carrier 1014065

PATG HF 4/23 - Conductor marker carrier 1014066

PATG HF 4/30 - Conductor marker carrier 1014067

KMK HP (25X6) - Cable marker carrier 0830720

KMK HP (29X8) - Cable marker carrier 0830721

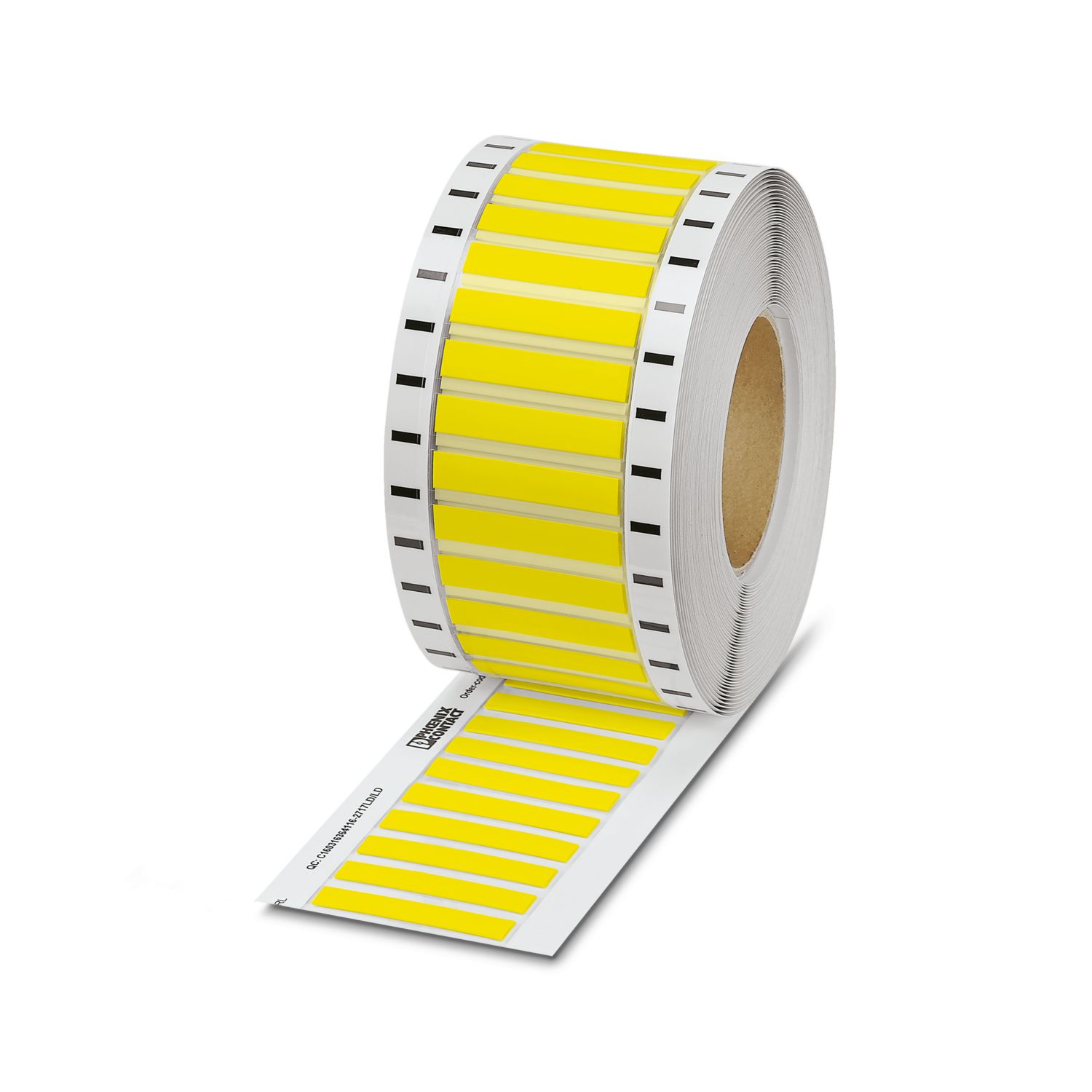

WMTB HF (40X12)R YE - Cable marker 0830408

WMTB HF (55X15)R YE - Cable marker 0830410

WMTB HF (55X25)R YE - Cable marker 0830412

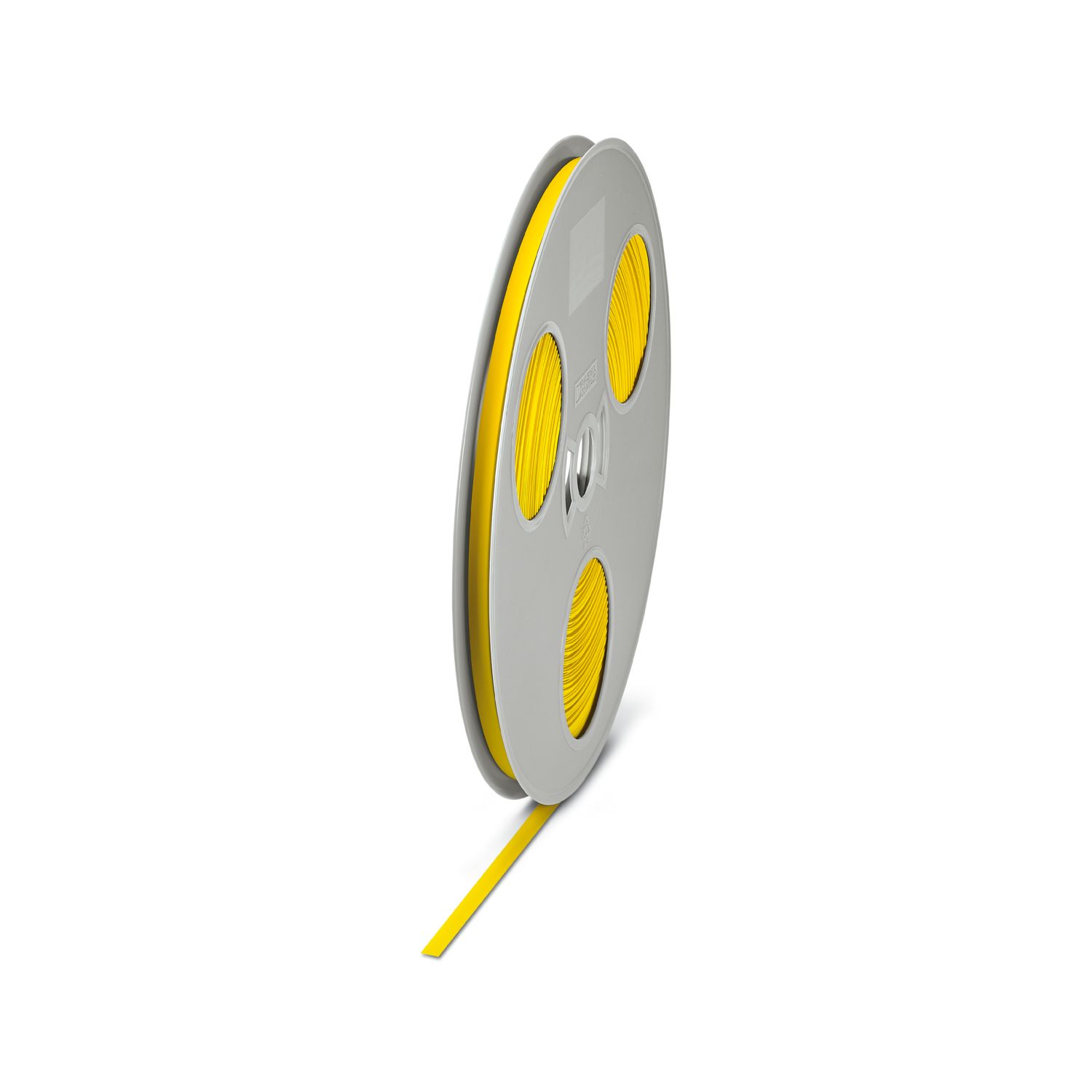

WMS-2 HF 6,4 (60X10)RL YE - Shrink sleeve 0801025

WMS-2 HF 6,4 (EX10)RL YE - Shrink sleeve 0833244

WMS-2 HF 9,5 (60X16)RL YE - Shrink sleeve 0801029

WMS-2 HF 9,5 (EX16)RL YE - Shrink sleeve 0833245

UCT-WMCO 5,4 (23X8) - Wire marking 0832105

UCT-WMCO 6,1 (23X8) - Wire marking 0832106

UCT-WMCO 6,8 (23X8) - Wire marking 0832107

UCT-WMCO 7,5 (23X8) - Wire marking 0832108

WMTB-AL (40X15) - Cable marker 0830524

WMTB-AL (60X15) - Cable marker 0830525

LS-WMTB-AL (40X15) - Cable marker 0831501

LS-WMTB-AL (40X15) BK - Cable marker 0831509

LS-WMTB-AL (60X15) - Cable marker 0831502

LS-WMTB-AL (60X15) BK - Cable marker 0831510

LS-WMTB-AL (100X15) - Cable marker 0831503

LS-WMTB-AL (100X15) BK - Cable marker 0831511

SACC-M12MS-4QO-0,75 SH - Connector 1413993

SACC-M12FS-4QO-0,75 SH - Connector 1413994

SACC-M12MS-4PL SH - Connector 1424666

SACC-M12MR-4PL SH - Connector 1424667

SACC-M12FS-4PL SH - Connector 1424668

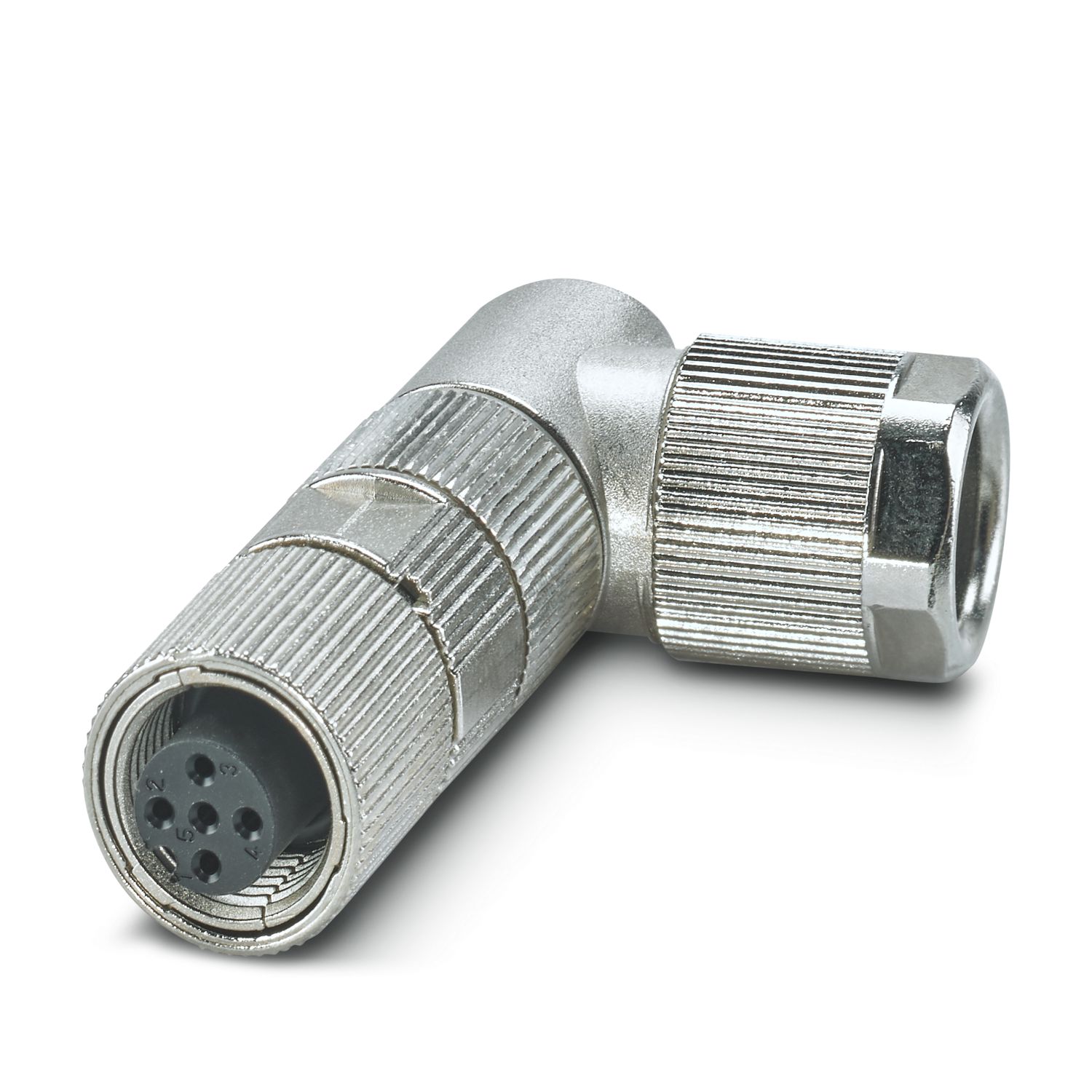

SACC-M12FR-4PL SH - Connector 1424669

SACC-M12MS-5CT-CM SH - Connector 1422850

SACC-M12MR-5CT-CM SH - Connector 1422851

SACC-M12FS-5CT-CM SH - Connector 1422852

SACC-M12FR-5CT-CM SH - Connector 1422853

SACC-PO12MS-5CT-CM SH - Connector 1021815

SACC-PO12MR-5CT-CM SH - Connector 1021816

TSD 04 SAC - Torque screwdriver 1208429

TSD-M 1,2NM - Torque screwdriver 1212224

TSD-M SAC-BIT ADAPTER - Adapter insert 1212600

SAC BIT M12-D15 - Tool 1208432

B-STIFT - Marker pen 1051993

CUTFOX 12 - Cable-cutting tool 1212128

CUTFOX-S VDE - Diagonal cutter 1212207

MICROFOX-SP-1 - Diagonal cutter 1212487

WIREFOX 4 - Stripping tool 1212156

WIREFOX-E 4 - Stripping tool 1212704

WIREFOX 10 - Stripping tool 1212150

Your advantages

Frequently searched

SAC-4P-MS SCO RAIL/.../... - Sensor/actuator cable

1412169
