HC-BS-PG36
-
Screw plug
1674545
Screw plug, connecting thread: Pg36, color: silver-colored
Product details
| Product type | Plug for cable screw gland |
| Pg screw connection | Pg36 |

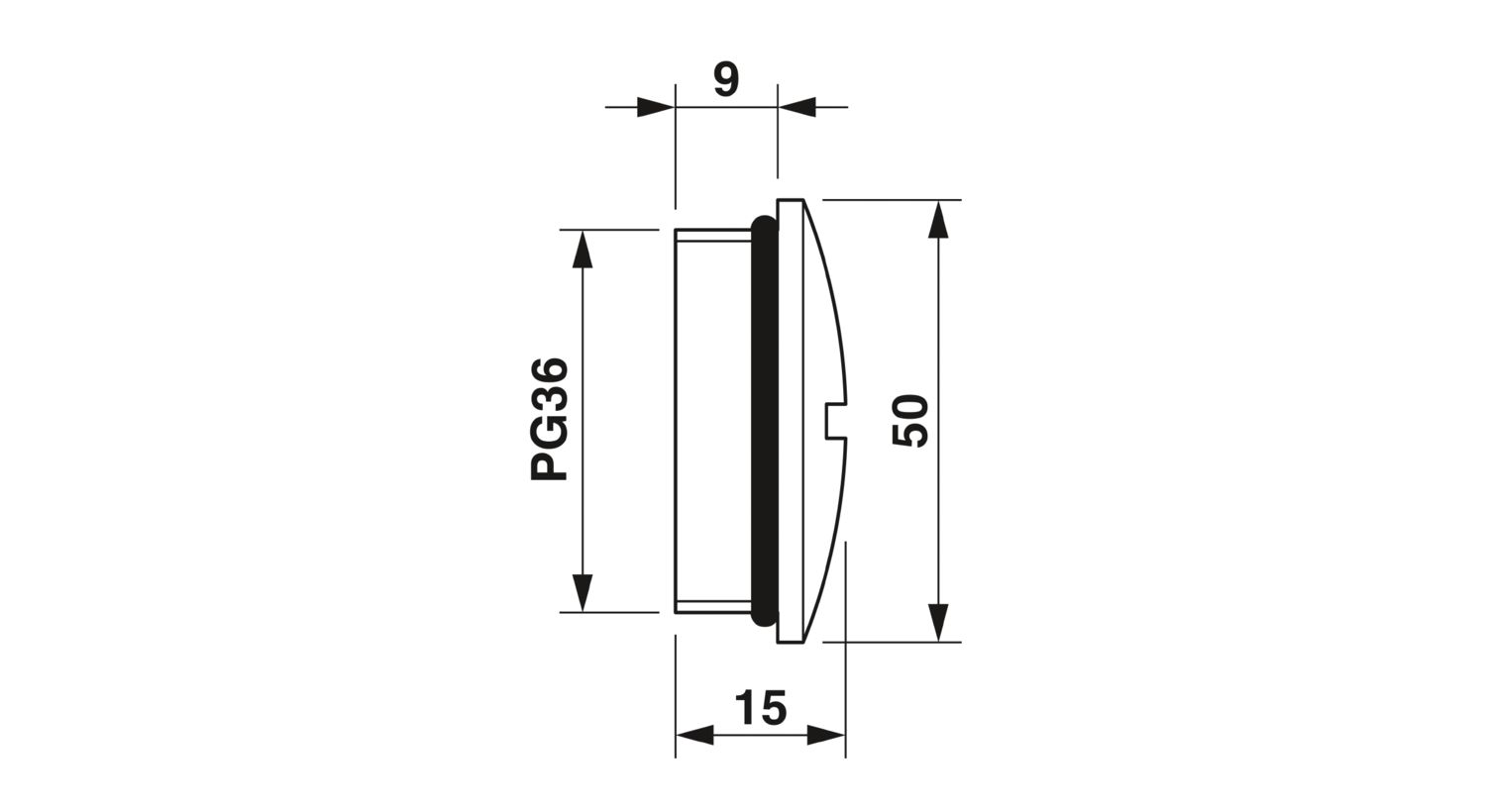

| Dimensional drawing |
|
| Length | 13 mm |
| Length of the connecting thread | 8 mm |
| Diameter | 50 mm |
| 50 mm | |
| Hexagon angular dimension | Diameter (no corners) |
| Thread type connection side | Pg36 |
| Color | brass color |
| Material | Brass, nickel-plated |
| Seal material O-ring | NBR |
| Housing surface material | Ni |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP68 |
| Ambient temperature (operation) | -20 °C ... 80 °C |
