HC-BS-PG21
-
Screw plug
1674529
Screw plug, material for screw connection: Brass, nickel-plated, connecting thread: Pg21, color: silver-colored
Product details
| Product type | Plug for cable screw gland |
| Pg screw connection | Pg21 |

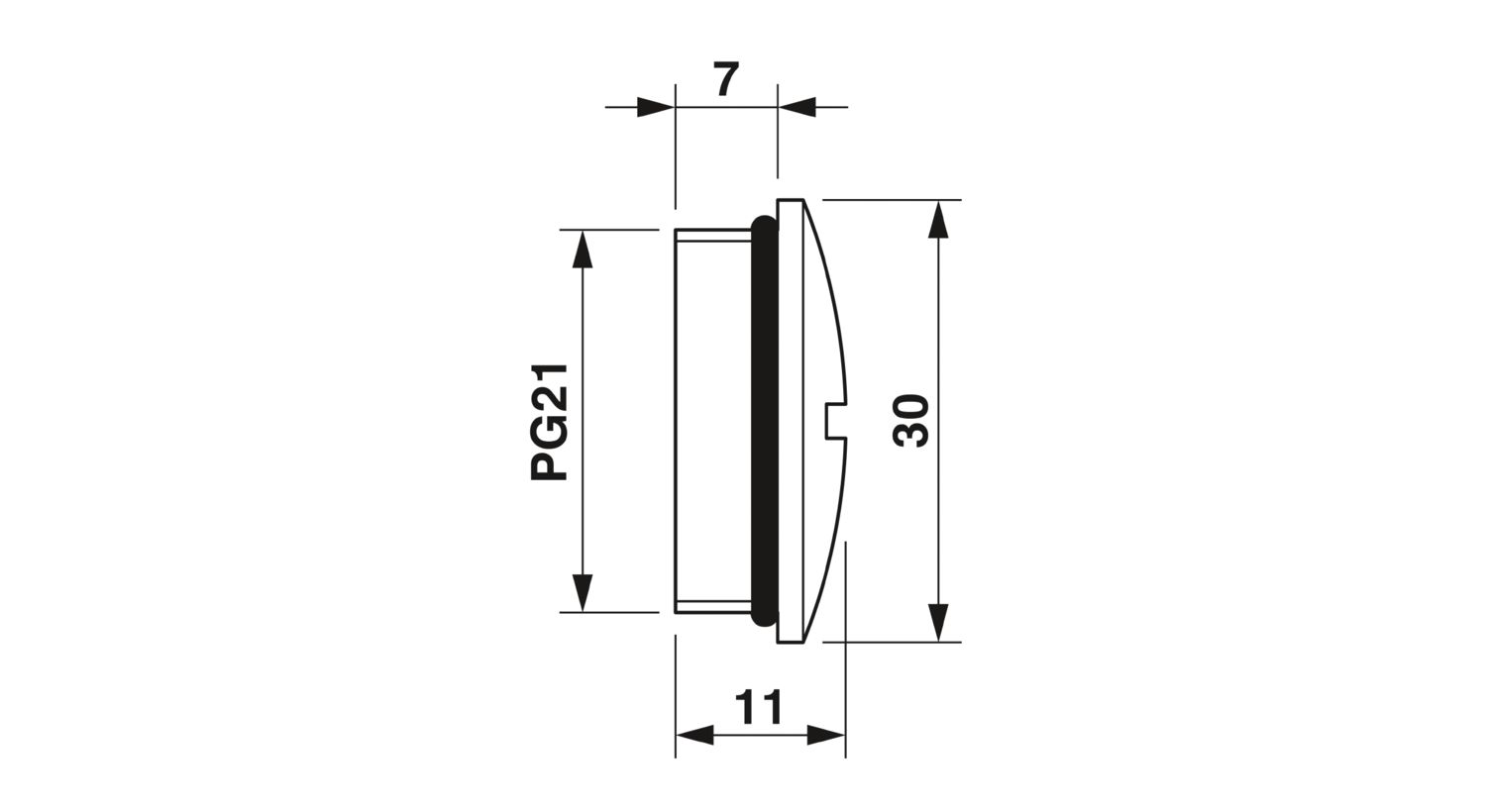

| Dimensional drawing |
|
| Length | 11 mm |
| Length of the connecting thread | 7 mm |
| Diameter | 30 mm |
| 30 mm | |
| Hexagon angular dimension | Diameter (no corners) |
| Thread type connection side | Pg21 |
| Material | Brass, nickel-plated |
| Seal material O-ring | NBR |
| Housing surface material | Ni |
| Material for screw connection | Brass, nickel-plated |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP68 |
| Ambient temperature (operation) | -20 °C ... 80 °C |
