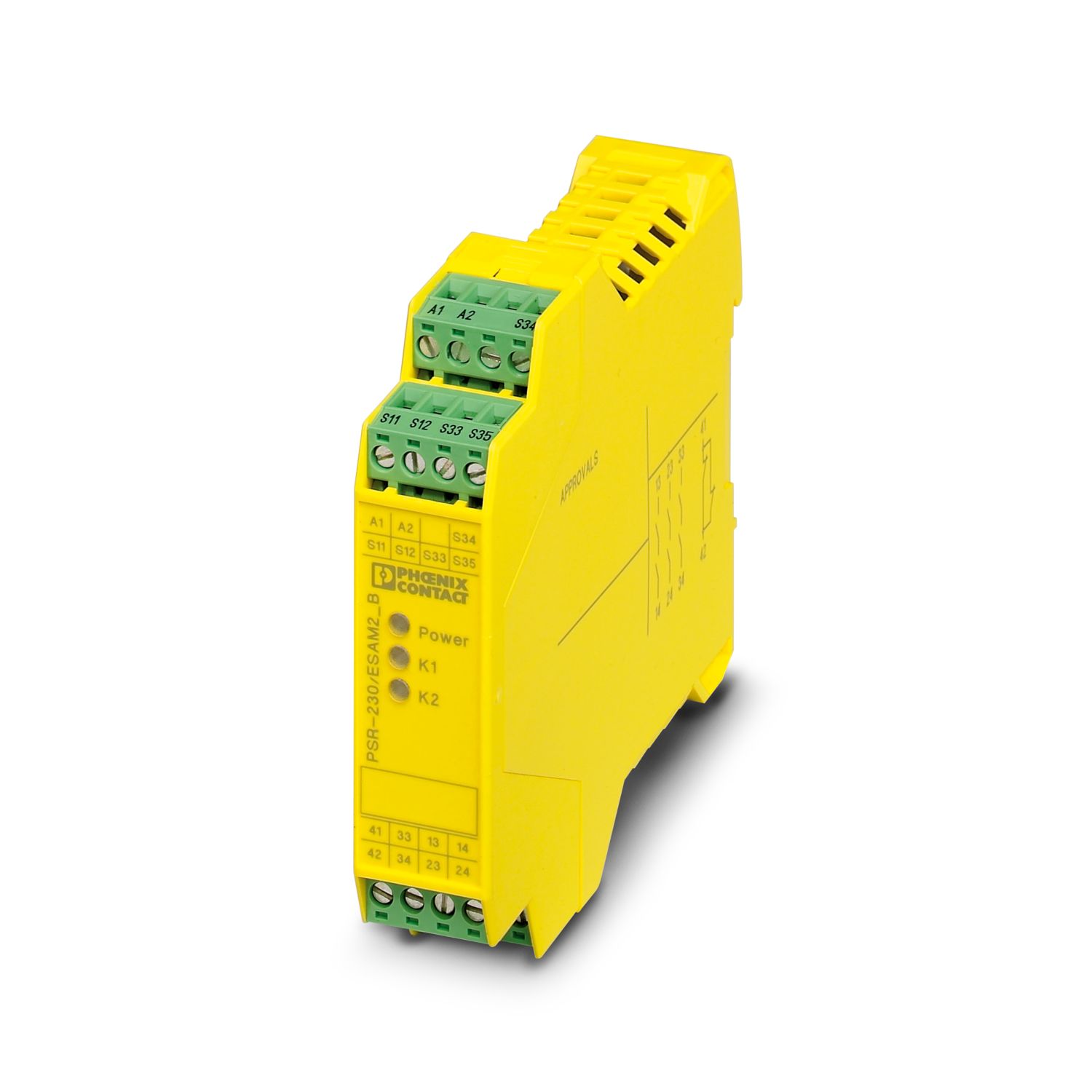

PSR-SPP-230AC/ESAM2/3X1/1X2/B - Safety relays

2901431

Safety relay for emergency stop and safety door up to SIL 1, Cat. 1, PL c, depending on the application up to SIL 3, Cat. 4, PL e, single-channel operation, 3 enabling current paths, nominal input voltage of 230 V AC, pluggable Push-in terminal block

Free download available. Downloads

Note on application
Note on application	Only for industrial use

Product type	Safety relays
Product family	PSRclassic

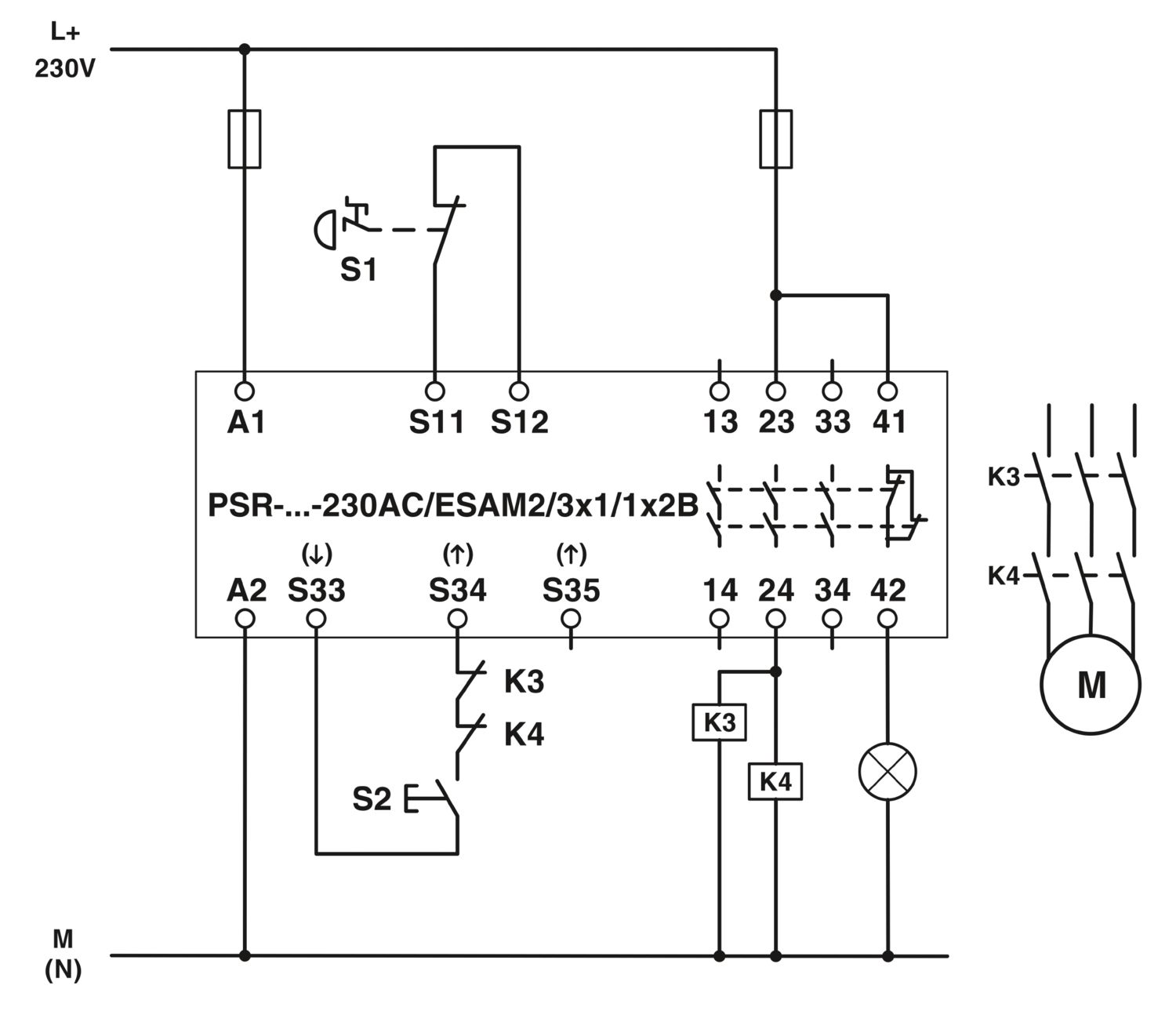

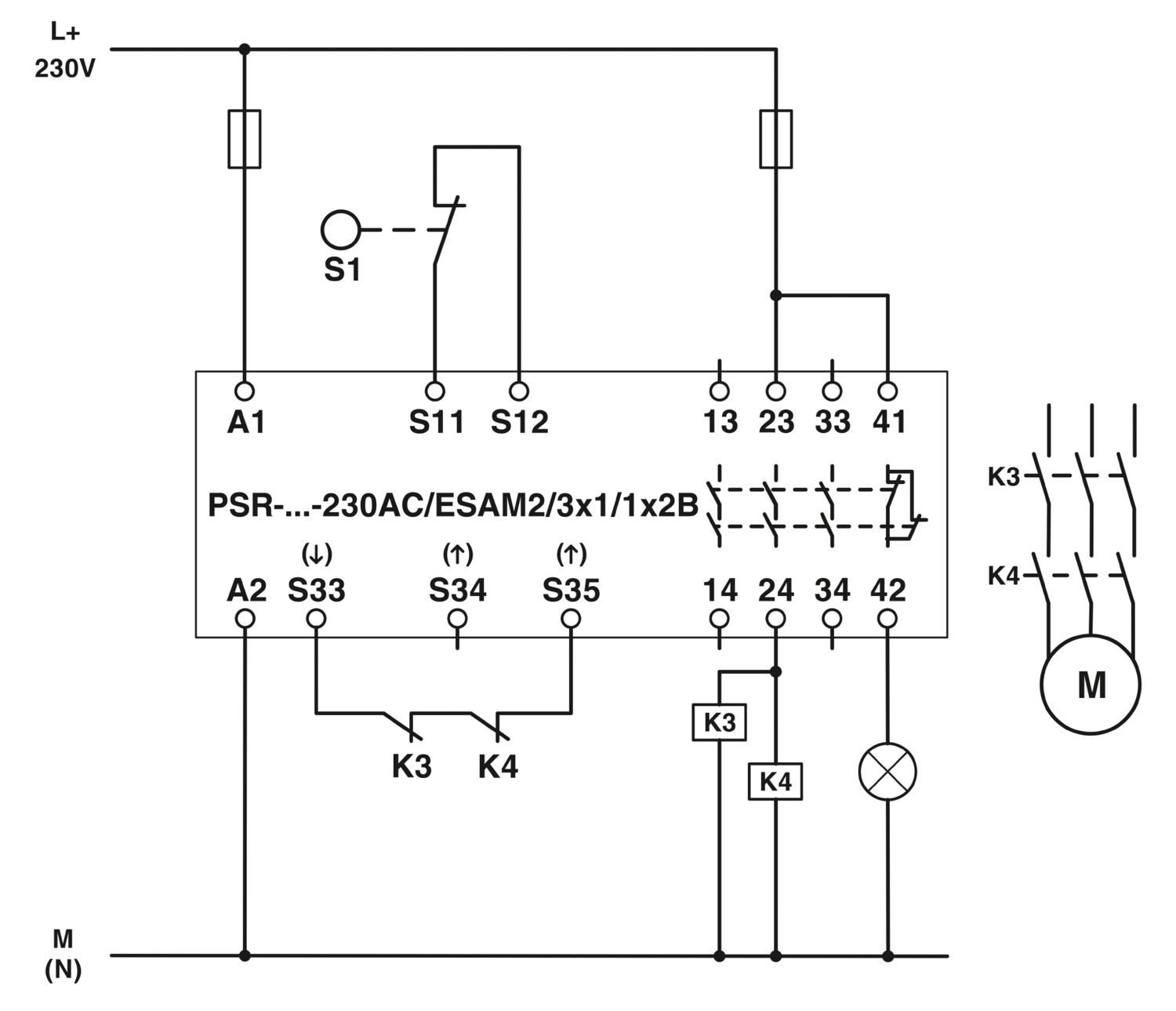

Application	Emergency stop
	Safety door
Control	1-channel
Mechanical service life	approx. 10⁷ cycles
Relay type	Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Insulation characteristics
Overvoltage category	III
Degree of pollution	2
Times
Typical response time	300 ms (automatic start)
	50 ms (manual, monitored start)
Typ. starting time with U_s	300 ms (when controlled via A1 or S11/S12)
Typical release time	20 ms (when controlled via S11/S12)
	150 ms (when controlled via A1)
Recovery time	1 s

Maximum power dissipation for nominal condition	16.4 W (At I_L² = 72 A²,P_Total max = 2 W + 14.4 W)
Nominal operating mode	100% operating factor
Rated insulation voltage	250 V AC
Rated surge voltage/insulation	4 kV / basic insulation (safe isolation, reinforced insulation, and 6 kV between A1-A2/logic/enabling and signaling current paths)
Supply
Rated control supply current I_S	typ. 22 mA (at U_N)
Apparent power	typ. 4.5 VA (at U_N)
Protective circuit	Surge protection; Suppressor diode

Measurement
Max. permissible overall conductor resistance	50 Ω

Relay: Enabling current paths (13/14, 23/24, 33/34)
Number of outputs	3 (undelayed)
Contact switching type	3 enabling current paths
Contact material	AgSnO₂, + 0.2 µm Au
Switching voltage	min. 10 V AC/DC
	max. 250 V AC/DC
Switching capacity	min. 100 mW
Inrush current	min. 10 mA
	max. 6 A
Limiting continuous current	6 A (observe derating)
Sq. Total current	72 A² (observe derating)
Switching frequency	max. 0.5 Hz
Interrupting rating (ohmic load) max.	see load limit curve
Maximum interrupting rating (inductive load)	see load limit curve
Output fuse	10 A gL/gG NEOZED
Relay: Signaling current path (41/42)
Number of outputs	1 (undelayed)
Contact switching type	1 signaling current path
Contact material	AgSnO₂, + 0.2 µm Au
Switching voltage	min. 10 V AC/DC
	max. 250 V AC/DC
Switching capacity	min. 100 mW
Inrush current	min. 10 mA
	max. 6 A
Limiting continuous current	5 A
Sq. Total current	72 A²
Switching frequency	max. 0.5 Hz
Interrupting rating (ohmic load) max.	see load limit curve
Maximum interrupting rating (inductive load)	see load limit curve
Output fuse	6 A gL/gG NEOZED

Connection technology
pluggable	yes
Conductor connection
Connection method	Push-in connection
Conductor cross-section rigid	0.2 mm² ... 1.5 mm²
Conductor cross-section flexible	0.2 mm² ... 1.5 mm²
Conductor cross-section, flexible, with ferrule, with plastic sleeve	0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross-section flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross-section AWG	24 ... 16
Stripping length	8 mm

Status display	2 x LED (green)
Operating voltage display	1 x LED (green)

Width	22.5 mm
Height	112 mm
Depth	114.5 mm

Housing material	PA

Safety data
Stop category	0
Safety data: EN ISO 13849
Category	1 (up to Cat. 4 depending on the application)
Performance level (PL)	c (up to PL e depending on the application)
Safety data
Safety Integrity Level (SIL)	1 (up to SIL 3 depending on the application)
Safety data
Safety Integrity Level (SIL)	1 (up to SIL 3 depending on the application)
Safety data
Safety Integrity Level (SIL)	1 (up to SIL 3 depending on the application)

Ambient conditions
Degree of protection	IP20
Min. degree of protection of inst. location	IP54
Ambient temperature (operation)	-25 °C ... 55 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Maximum altitude	≤ 2000 m (Above sea level)
Max. permissible humidity (storage/transport)	75 % (on average, 85% infrequently, non-condensing)
Max. permissible relative humidity (operation)	75 % (on average, 85% infrequently, non-condensing)
Shock	15g
Vibration (operation)	10 Hz ... 150 Hz, 2g

Conformity/Approvals
Conformance	CE-compliant

Mounting type	DIN rail mounting
Mounting position	any

Item number	2901431
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DNA111
GTIN	4046356592178
Weight per piece (including packing)	235.4 g
Weight per piece (excluding packing)	167.21 g
Customs tariff number	85371098
Country of origin	DE

Compatible products

Accessories

Your advantages

Up to Cat. 1/PL c in accordance with ISO 13849-1, SIL 1 in accordance with EN IEC 62061, SIL 1 in accordance with IEC 61508

Depending on the application, up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508

1-channel control

Basic insulation

ECLASS-13.0	27371819
ECLASS-15.0	27371819

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	811f4e87-2fe0-4d79-a449-8416d728be2b
