PSR-SPP- 24DC/TS/S - Safety module

2986232

Freely configurable safety module with 20 safe inputs and 4 safe outputs, 4 signal, 2 clock, and 2 ground switching outputs, diagnostics possible via bus gateways, up to SIL 3, Cat. 4/PL e, SIL 3, EN 50156, pluggable Push-in terminal block

Free download available. Downloads

Note on application
Note on application	Only for industrial use

Product type	Safety device

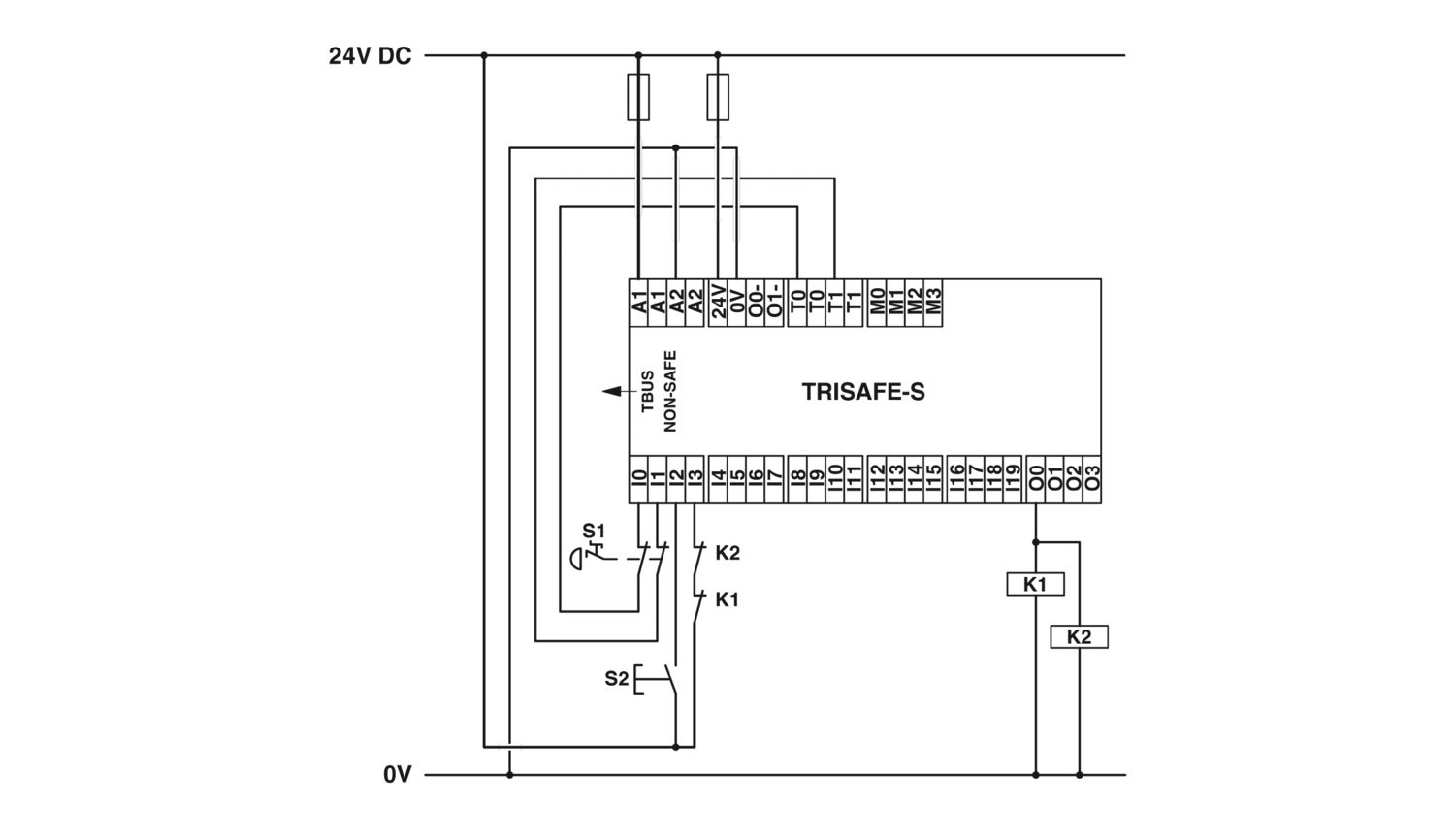

Application	Emergency stop
	Light grid
	Safety door
	Two-hand control
Number of possible extension modules	1 (max. continuous current via PSR-TBUS: 4 A)
Control	1 and 2 channel
Insulation characteristics: Air clearances and creepage distances between the power circuits
Overvoltage category	III
Pollution degree	2
Times
Response time	max. 30 ms (plus response time of PSR-TS-SDOR4)
Recovery time	< 10 s

Maximum power dissipation for nominal condition	6372 mW (at a = 20, b = 2, c = 4, e = 2, I_clock = 100 mA, I_signal = 100 mA, I_Out/GND = 2 A, I_Out/Out = 2 A)
Nominal operating mode	100% operating factor
Interfaces	USB
	DIN rail TBUS for extension modules and bus couplers
Supply
Rated control circuit supply voltage U_S	18 V DC ... 30 V DC (Incl. all tolerances, incl. residual ripple)
Rated control circuit supply voltage U_S	24 V DC (A1/A2)
Rated control supply current I_S	typ. 110 mA
Limiting continuous current	max. 6 A (For looped-through current paths A1/A1 and A2/A2)
Filter time	typ. 20 ms (Load-dependent, in the event of voltage dips at U_S)
Protective circuit	Yes, within the scope of the operating voltage limits
Status display	3 x LED (green), 1 x LED (red)

Digital
Description of the input	Digital, type HTL
Number of inputs	10 (Two-channel, up to SIL 3)
	20 (1-channel, up to SIL 2)
Input voltage range "0" signal	0 V DC ... 5 V DC (for safe Off)
Input voltage range "1" signal	11 V DC ... 30 V DC
Cable length	max. 2000 m
Status display	20 x LED green (1 LED per input)
Current consumption	typ. 4 mA

Digital
Number of outputs	4 (Safe semiconductor outputs, up to Cat. 4 in accordance with EN ISO 13849-1)
	2 (Ground switching outputs)
Note on protection circuit	Yes, within the scope of the operating voltage limits
Short-circuit protection	Yes
Output voltage	< 5 V (Low state)
Leakage current	max. 2 mA
Max. capacitive load	max. 1 µF (Electronic components)
Max. inductive load	See "Protective circuit"

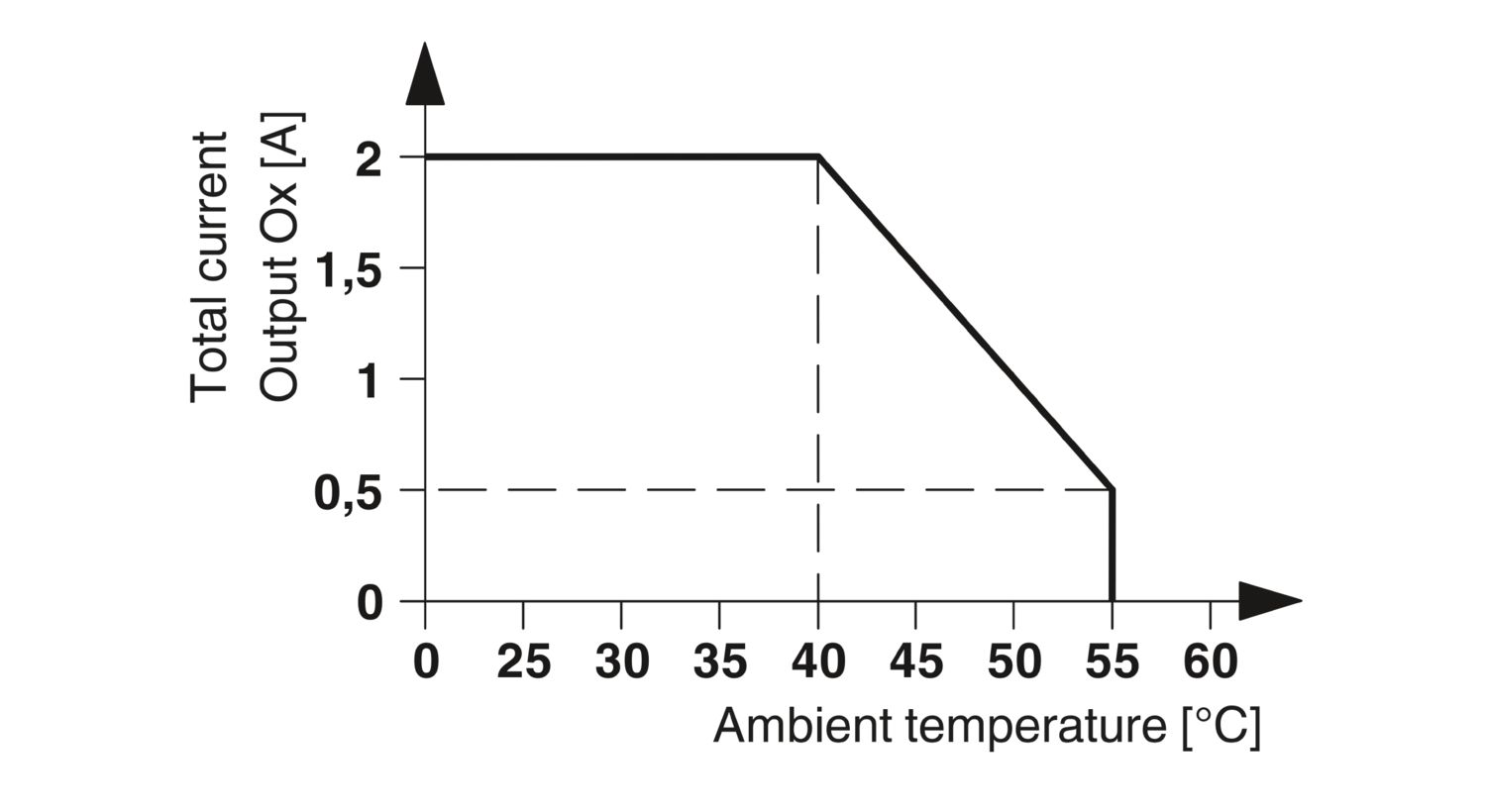

Limiting continuous current	2 A (Per channel, see Derating)
	2 A (Total current of all outputs)
Nominal output voltage	24 V DC (Supply via 24 V/0 V)
Nominal output voltage range	18 V DC ... 30 V DC (Incl. all tolerances, incl. residual ripple)
Status display	4 x LED green (1 LED per output)
Test pulses	< 1 ms
Signal
Output description	Digital
Number of outputs	4
Voltage	24 V DC (Supply via 24 V/0 V)
Limiting continuous current	100 mA
Short-circuit protection	Yes
Clock
Output description	Digital
Number of outputs	2
Voltage	24 V DC (Supply via 24 V/0 V)
Limiting continuous current	100 mA
Test pulses	< 1 ms
Short-circuit protection	Yes

Connection technology
pluggable	yes
Conductor connection
Connection method	Push-in connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve	0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross section flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross-section AWG	24 ... 16
Stripping length	8 mm

Width	67.5 mm
Height	112 mm
Depth	114.5 mm

Color	yellow
Housing material	Polyamide PA non-reinforced

Safety data
Stop category	0
Safety data: EN ISO 13849
Category	2 (1-channel parameterization)
	4 (2-channel parameterization)
Performance level (PL)	d (1-channel parameterization)
	e (2-channel parameterization)
Safety data: EN 50156
Safety Integrity Level (SIL)	max. 3 (Reference IEC 61508)
Safety data: IEC 61508 - High demand
Safety Integrity Level (SIL)	2 (1-channel parameterization)
	3 (2-channel parameterization)
Safety data: IEC 61508 - Low demand
Safety Integrity Level (SIL)	2 (1-channel parameterization)
	3 (2-channel parameterization)
Safety data: EN IEC 62061
Safety Integrity Level (SIL)	2 (1-channel parameterization)
	3 (2-channel parameterization)

Ambient conditions
Degree of protection	IP20
Min. degree of protection of inst. location	IP54
Ambient temperature (operation)	-20 °C ... 55 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Maximum altitude	max. 2000 m (See Appendix "Using PSR-TRISAFE modules at altitudes greater than 2000 m above sea level")
Max. permissible humidity (storage/transport)	75 % (On average, 85 % occasionally)
Max. permissible relative humidity (operation)	75 % (On average, 85 % occasionally)
Shock (operation)	10g (Δt = 11 ms, three shocks in each space direction)
	10g (Δt = 16 ms, continuous shock, 1000 shocks in each space direction)
Vibration (operation)	2g
Air pressure (operation)	70 kPa ... 108 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	66 kPa ... 108 kPa (up to 3500 m above sea level)

Air clearances and creepage distances between the power circuits
Standards/regulations	DIN EN 50178

Mounting type	DIN rail mounting
Mounting position	On horizontal DIN rail

Item number	2986232
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DNA311
Catalog page	Page 261 (C-6-2019)
GTIN	4046356477185
Weight per piece (including packing)	396.4 g
Weight per piece (excluding packing)	300 g
Customs tariff number	85371098
Country of origin	DE

Compatible products

Accessories

Your advantages

Freely configurable safety module for monitoring emergency stops, safety doors, light grids, etc.

Up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508

EN 50156

Option for connecting fieldbus gateways for diagnostics and signaling functions

Quick startup thanks to comprehensive simulation and test functions

Easy graphical configuration instead of complex programming

Easy graphical configuration with the SAFECONF software

Including IFS-CONFSTICK memory stick for easily storing and saving the configuration

Multifunctional use for a wide range of safety functions

With 20 safe inputs, 4 safe outputs, 4 alarm outputs, and 2 clock outputs on a design width of just 67.5 mm

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
		2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS: 79-94-7)
