HC-B10-BCSFD-P-BK
-
Protective cover
1414628
Protective cover B10, for double locking latch, protective cover material: PA, height: 18.5 mm, seal: no
Product details
| General | Protective cover for supporting base element with double locking latch |
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | B10 |
| Seal present | no |

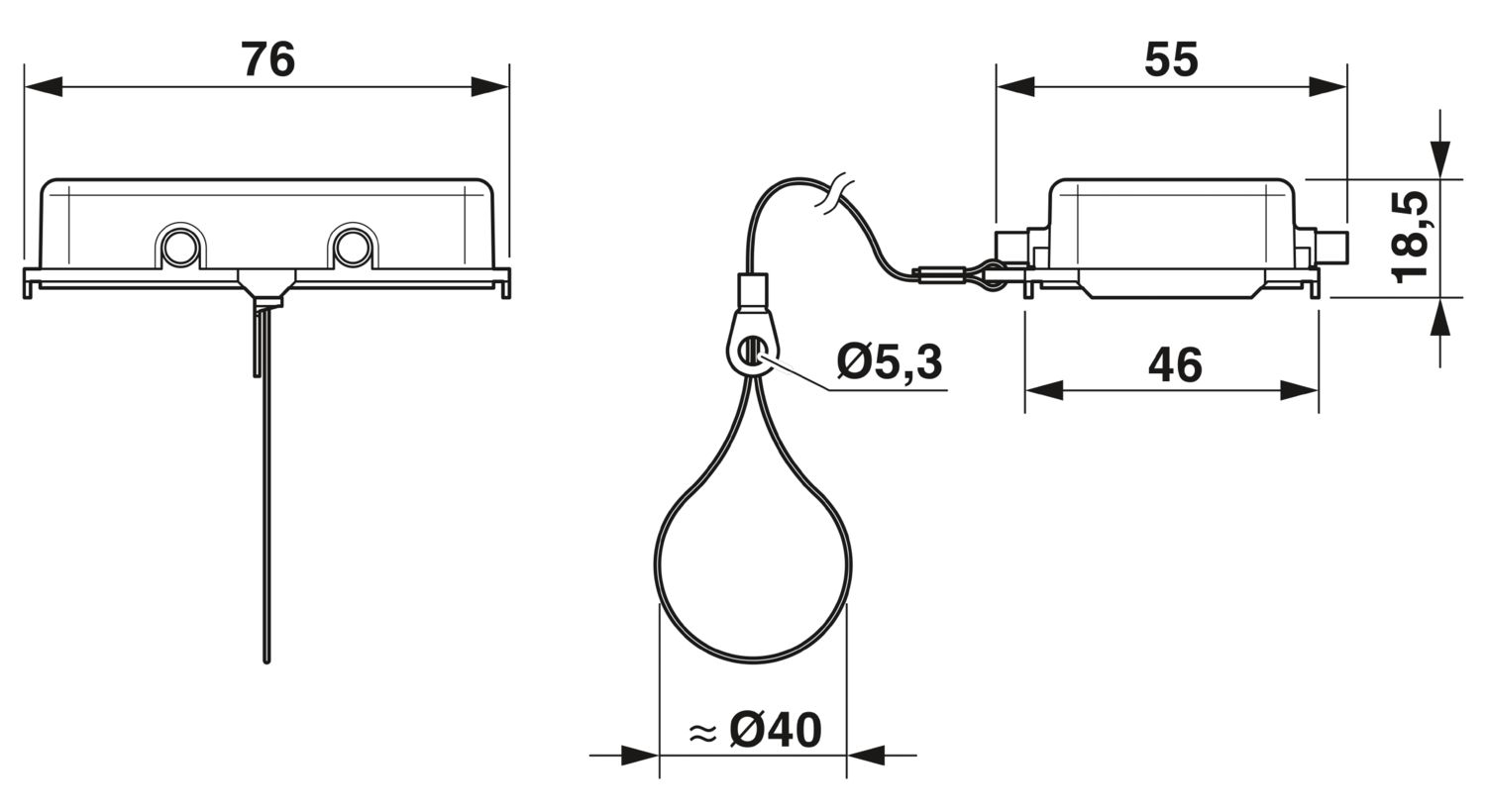

| Dimensional drawing |
|
| Width | 46 mm |
| Height | 18.5 mm |
| Length | 76 mm |
| Diameter | 26 mm |
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Material, protective cover | PA |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
| Assembly note | Plastic protective cover for short-term protection |
