IOA RPSS-I-I/HART/EX - Power/input signal conditioner - 2908452

Product properties

Product type	Repeater power supply
Product family	VIP I/O-Marshalling
No. of channels	1
Insulation characteristics
Overvoltage category	II
Degree of pollution	2

Electrical properties

Electrical isolation	Reinforced insulation in accordance with IEC 61010-1
Limit frequency (3 dB)	1.75 kHz (typ.)
Step response (10-90%)	< 200 µs (typ.)
Maximum temperature coefficient	0.01 %/K
Temperature coefficient, typical	0.01 %/K
Maximum transmission error	< 0.1 % (of final value)

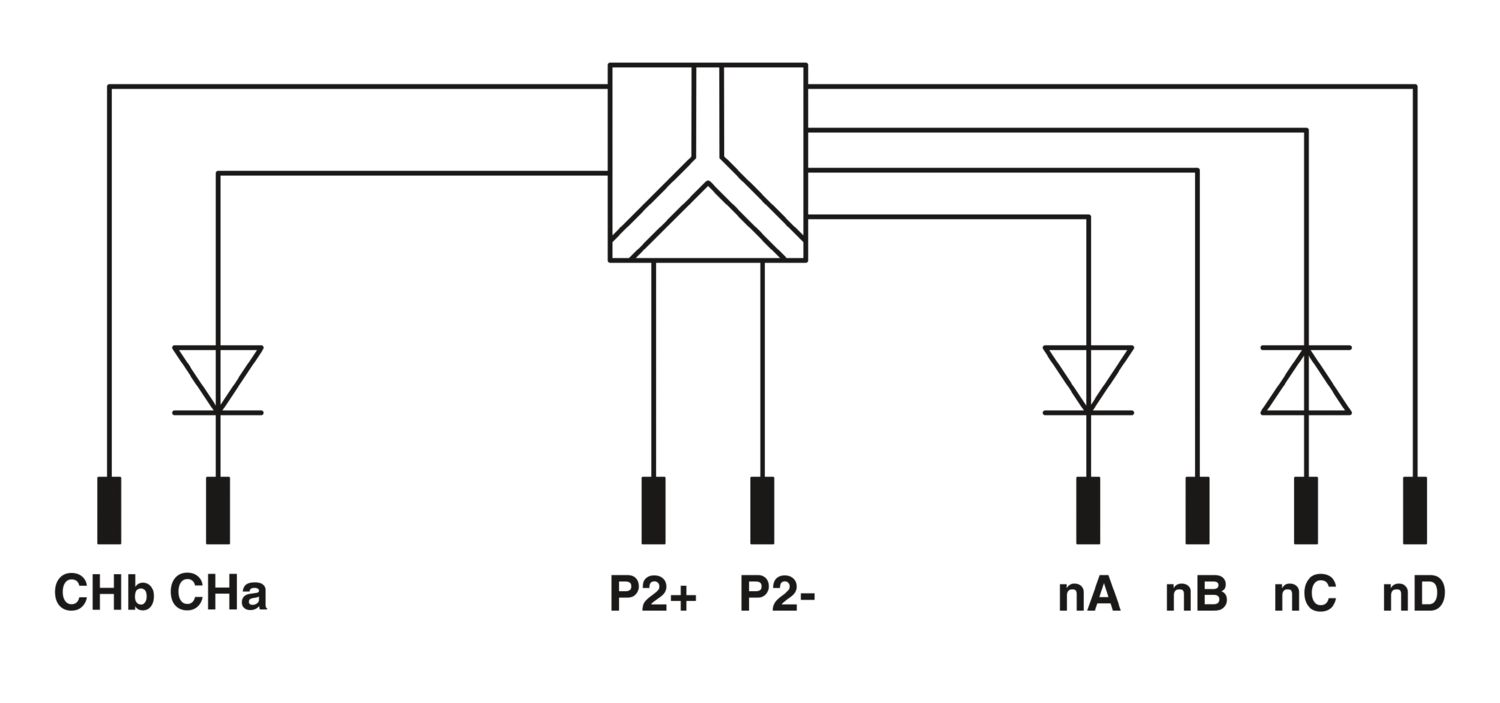

Electrical isolation Input/output/power supply
Electrical isolation	250 V_rms (Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1))
		2.5 kV (50 Hz, 1 min., test voltage)
		60 V (Peak value in accordance with IEC/EN/UL/CSA C22.2 60079-11)
Supply
Nominal supply voltage	24 V DC
Supply voltage range	18 V DC ... 30 V DC
Power consumption	≤ 1600 mW (at I_OUT = 20 mA, 24 V DC, 600 Ω load)

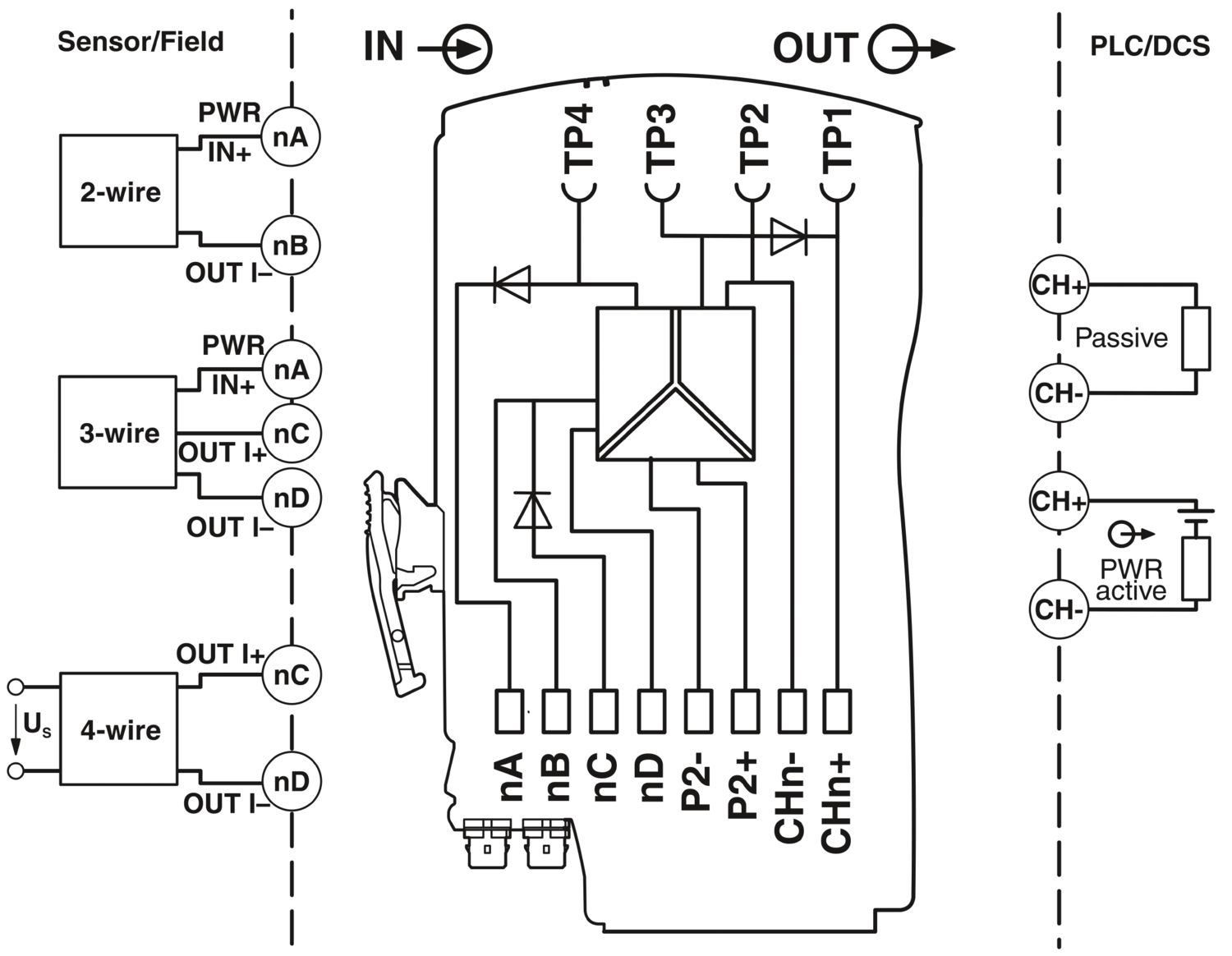

Input data

Signal
Input signal	Current
Current input signal	4 mA ... 20 mA (repeater power supply and isolator operation)
	0 mA ... 20 mA (isolator operation)
Transmitter supply voltage	> 17 V (20 mA)
Step response (10-90%)	typ. 300 µs (4 mA ... 20 mA)
	typ. 1000 µs (0 mA ... 20 mA)

Output data

Signal
Output description	Current output (active and passive)
Current output signal	0 mA ... 20 mA (isolator amplifier)
	4 mA ... 20 mA (repeater power supply and isolator operation)
Max. current output signal	22.5 mA
Transmission Behavior	1:1 to input signal
Load/output load current output	≤ 600 Ω (20 mA)
	525 Ω (22.5 mA)
Residual ripple	< 20 mV_rms (600 Ω)
Output ripple	< 20 mV_rms (at 600 Ω)
Output behavior in the event of an error	0 mA (Cable break in the input)
	≥ 22.5 mA (Cable short-circuit in the input)
Underload/overload signal range	0 mA ... 22.5 mA (According to NE43)

Connection data

Connection method	Screw connection
Stripping length	10 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 1.5 mm² (with ferrule)
	0.2 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 12 (flexible)

Ex data

Safety data
Input voltage U_i	0 V (nA, nB)
		30 V (nC, nD)
		30 V (Controller interface)
Input current I_i	100 mA (Controller interface)
Inductance Li	0 mH
Capacitance Ci	0 nF
Max. output voltage U_o	28 V (nA, nB)
Max. output voltage U_o		0 V (nC, nD)
Max. output current I_o	104 mA
Max. output power P_o	726 mW
Safety-related maximum voltage U_m	60 V AC/DC (Peak)
IIC: Max. external inductivity L_o / Max. external capacitance C_o	/ 0.27 µF
IIB/IIIC/IIIB/IIIA: Max. external inductivity L_o / Max. external capacitance C_o	/ 1.65 µF
IIA: Max. external inductivity L_o / Max. external capacitance C_o	/ 6.6 µF
IIC: Max. external inductivity L_o / Max. external capacitance C_o	7.3 mH
IIB/IIIC/IIIB/IIIA: Max. external inductivity L_o / Max. external capacitance C_o	14.7 mH
IIA: Max. external inductivity L_o / Max. external capacitance C_o	29.5 mH

Interfaces

Data communication (bypass)
HART function	Yes
Protocols supported	HART
Limit frequency (3 dB)	> 1.75 kHz (typical)

Signaling

Status display	Green LED (supply voltage)

Dimensions

Width	9.8 mm
Height	75.2 mm
Depth	113.2 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	2000 m (max. altitude above sea level)
Permissible humidity (operation)	5 % ... 95 %

Approvals

ATEX
Identification	 II 3G Ex ec IIC T4 Gc
		 II 3G Ex ec [ic] IIC T4 Gc
		 II (3)D [Ex ic IIIC Dc]
Certificate	Sira 17ATEX4208X
IECEx
Identification	Ex ec IIC T4 Gc
		Ex ec [ic] IIC T4 Gc
		[Ex ic IIIC Dc]
Certificate	IECEx SIR 17.0047X
CSA, USA/Canada
Identification	Class I, Div. 2 Groups A, B, C, D T4
		ANIFW apparatus for connection to: Class I, II, III, Div. 2 Groups A, B, C, D, F, G
		Class I, Zone 2 AEx ec IIC T4 Gc
		AEx ec [ic] IIC T4 Gc
		Connection to Zone 22, [Ex ic IIIC Dc]
		Connection to: Class I, II, III Div. 2 Groups A, B, C, D, F, G
		Ex ec IIC T4 Gc
		Ex ec [ic] IIC T4 Gc
		[Ex ic IIIC Dc]
UKEX
Identification	 II 3G Ex ec IIC T4 Gc
		 II 3G Ex ec [ic] IIC T4 Gc
		 II (3)D [Ex ic IIIC Dc]
Certificate	PxCIF23UKEX2908452X
Corrosive gas test
Identification	ISA S71.04.2013 G3 Harsh Group A

EMC data

Electromagnetic compatibility	Conformance with EMC directive
Electromagnetic HF field
Designation	Electromagnetic RF field
Standards/regulations	EN 61000-4-3
Typical deviation from the measuring range final value	1 %
Fast transients (burst)
Designation	Fast transients (burst)
Standards/regulations	EN 61000-4-4
Typical deviation from the measuring range final value	1 %
Conducted interference
Designation	Conducted interferences
Standards/regulations	EN 61000-4-6
Typical deviation from the measuring range final value	1 %

Standards and regulations

Electrical isolation	Reinforced insulation in accordance with IEC 61010-1

Mounting

Item number	2908452
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	DK1151
GTIN	4055626446158
Weight per piece (including packing)	95.7 g
Weight per piece (excluding packing)	42.9 g
Customs tariff number	85437090
Country of origin	CN

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
REACH candidate substance (CAS No.)		2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS: 79-94-7)
SCIP	6fc6af25-2b62-46c5-ad0b-7d1ad663cad9
