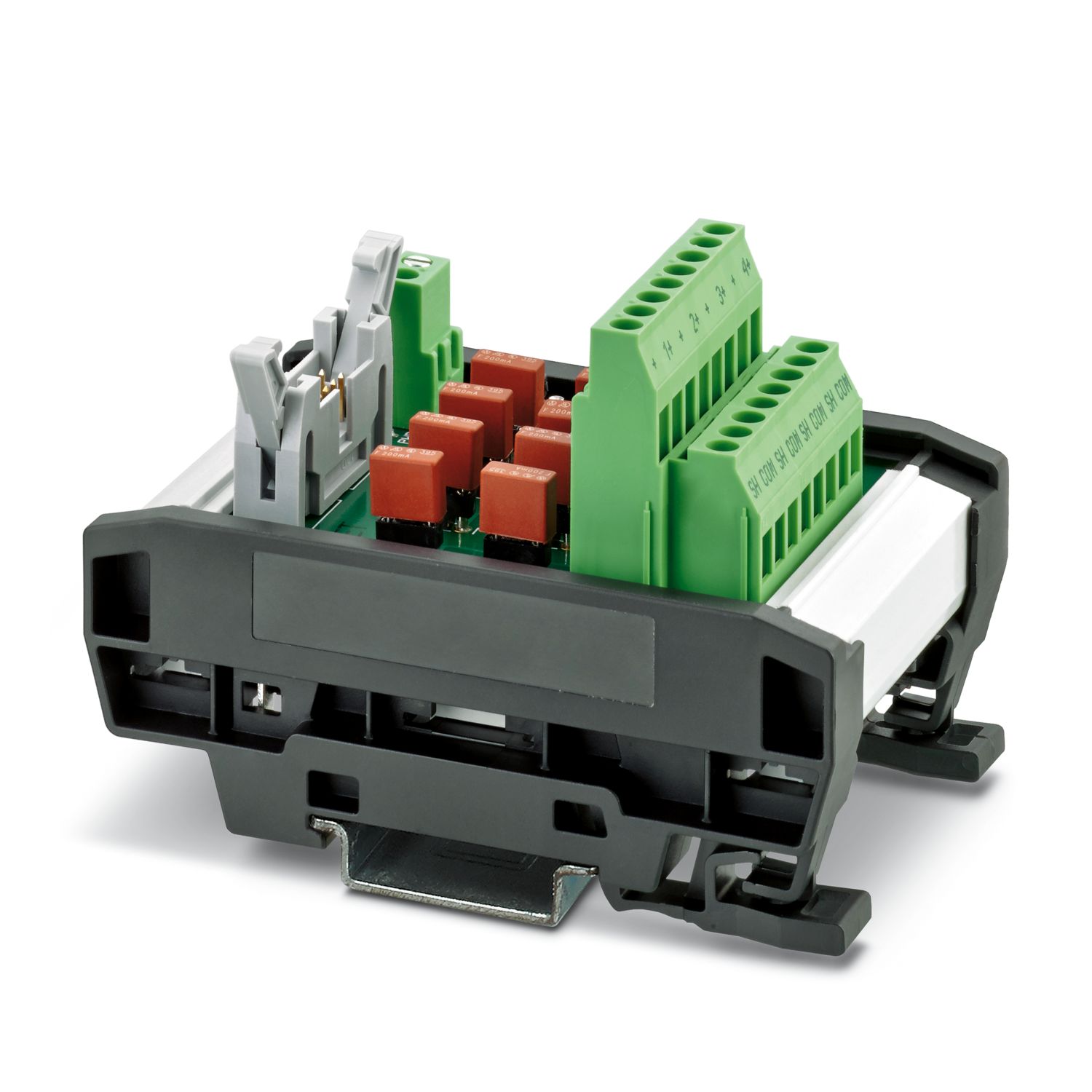

UM-FLK10/AI/FU/ROC800 - Passive module

2905935

VARIOFACE module intended for use with the ROC800 controller analog input cards. UL recognized to Class I, Div. 2.

This product needs further products for operation. Mandatory accessories

Product details

Product type	Interface module
Product family	VARIOFACE
Number of positions	16
No. of channels	8

Nominal voltage U_N	24 V DC
Supported controller EMERSON ROC800
Suitable I/O card	ROC800 AI

Field level
Connection in acc. with standard	IEC / EN
Connection method	Screw connection
Stripping length	7 mm
Screw thread	M3
Number of positions	16
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	IDC/FLK pin strip
Number of connections	1
Number of positions	10
Pitch	2.54 mm

Status display present	yes, if the fuse fails

Item dimensions
Width	69 mm
Height	92.3 mm
Depth	65.5 mm

Housing insulation material	Polyamide PA non-reinforced

Ambient conditions
Ambient temperature (operation)	-40 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 60 °C

Mounting type	DIN rail mounting
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2905935
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	DK2B8K
GTIN	4055626047447
Weight per piece (including packing)	179.2 g
Weight per piece (excluding packing)	179.2 g
Customs tariff number	85369010
Country of origin	US

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	24 V	0.2 A	30 - 12
per branch	24 V	0.2 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	24 V	0.2 A	30 - 12
per branch	24 V	0.2 A	30 - 12

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

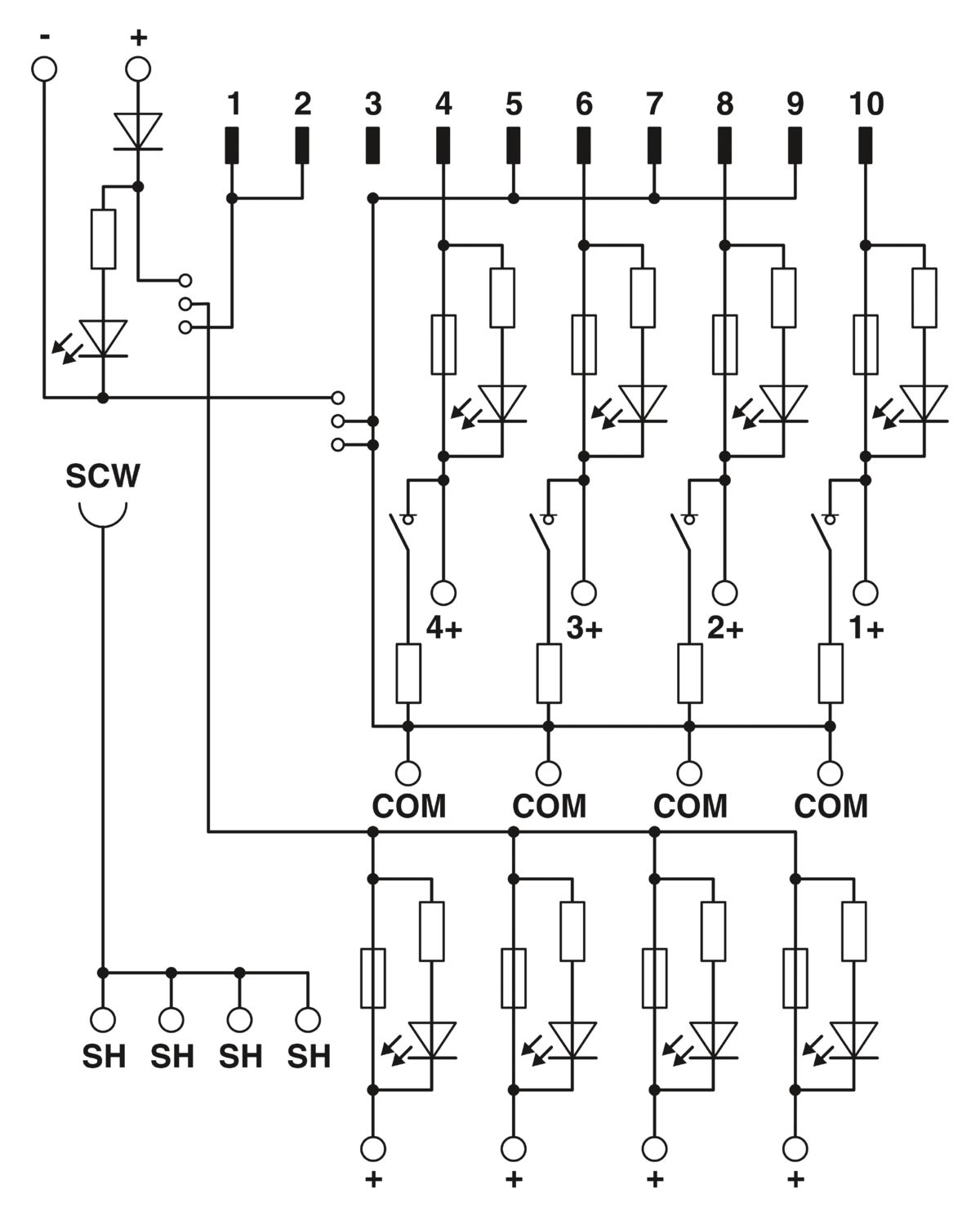

Your advantages

Two-level screw terminals for field wiring

Per channel pluggable fusing, TE5 style, 200 mA

FLK10 connection on the control side

Integrated switching of 250 Ω resistor for current to voltage applications

UM-PRO housing with grounding

Per channel blown fuse indication

Tested for continuity

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	b79f34e3-3de8-42b8-aeb0-686571f001e1

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

UM-FLK10/AI/FU/ROC800 - Passive module

2905935

Product details

ECLASS

ETIM

UNSPSC

cUL Recognized

UL Recognized

cUL Recognized

UL Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

UM-FLK10/AI/FU/ROC800 - Passive module 2905935

Product details

ECLASS

ETIM

UNSPSC

Compatible products

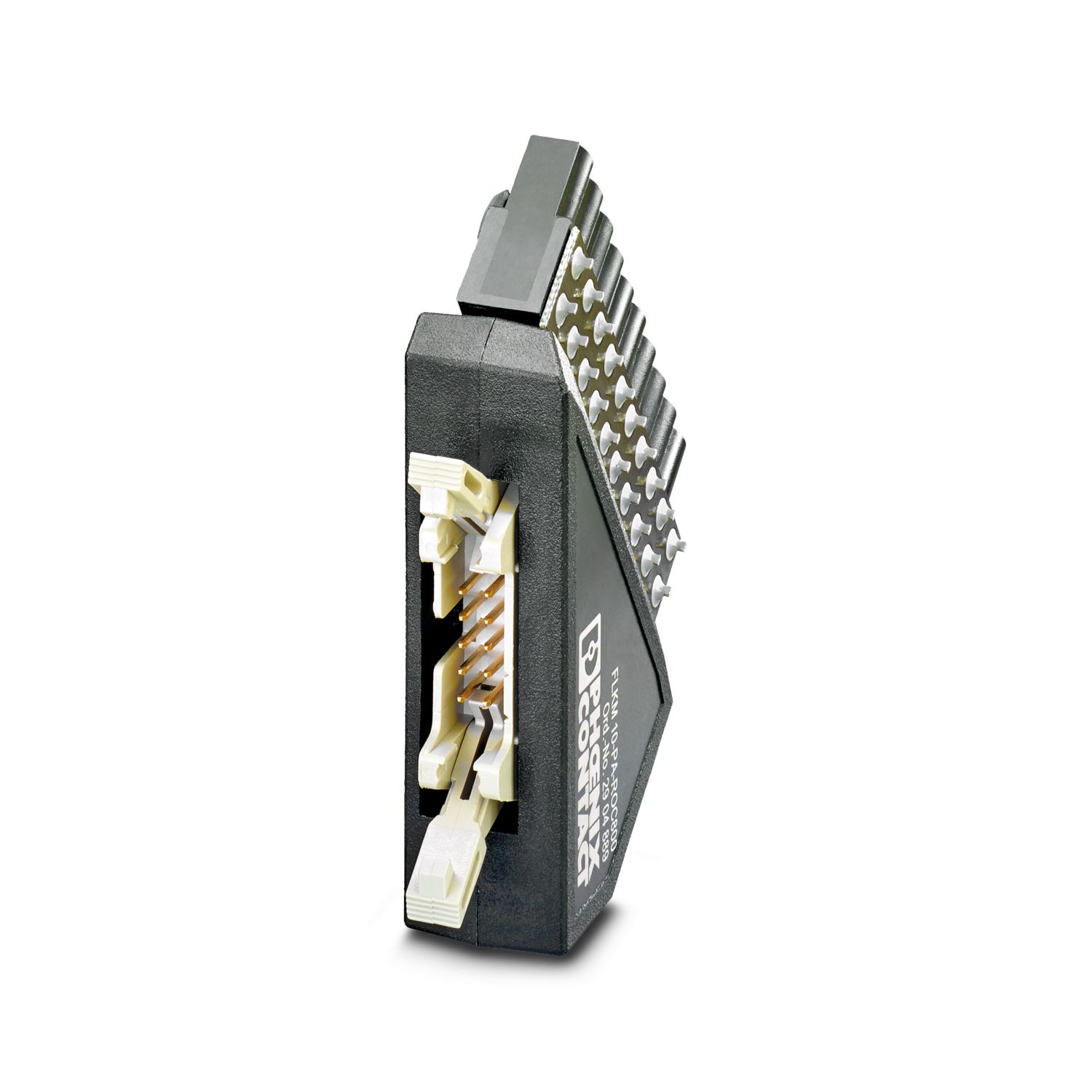

FLKM 10-PA-ROC800 - Front adapter 2904889

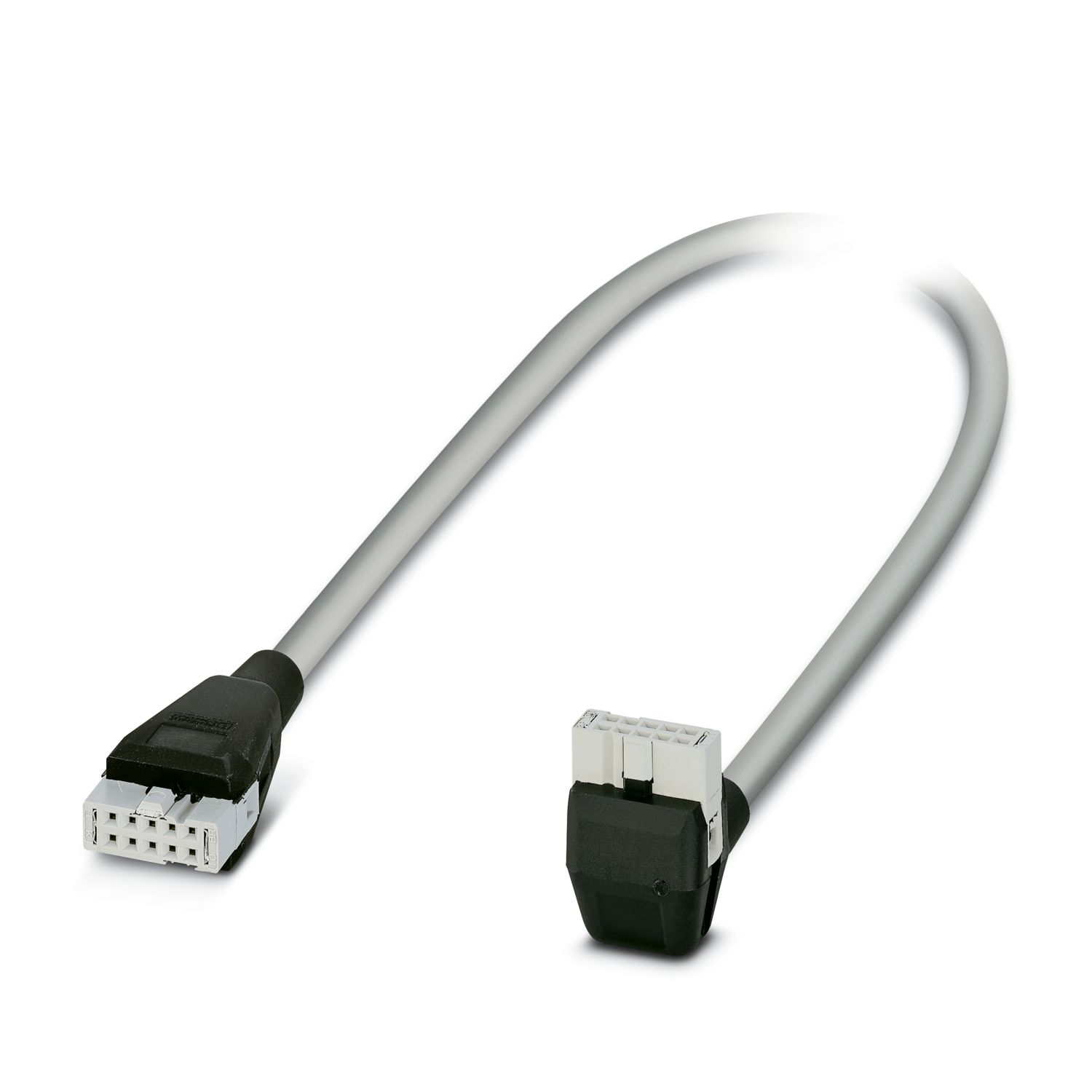

VIP-CAB-FLK10/0,14/1,0M - Cable 2318318
