UM-DELTAV/A/SI - Passive module

5603256

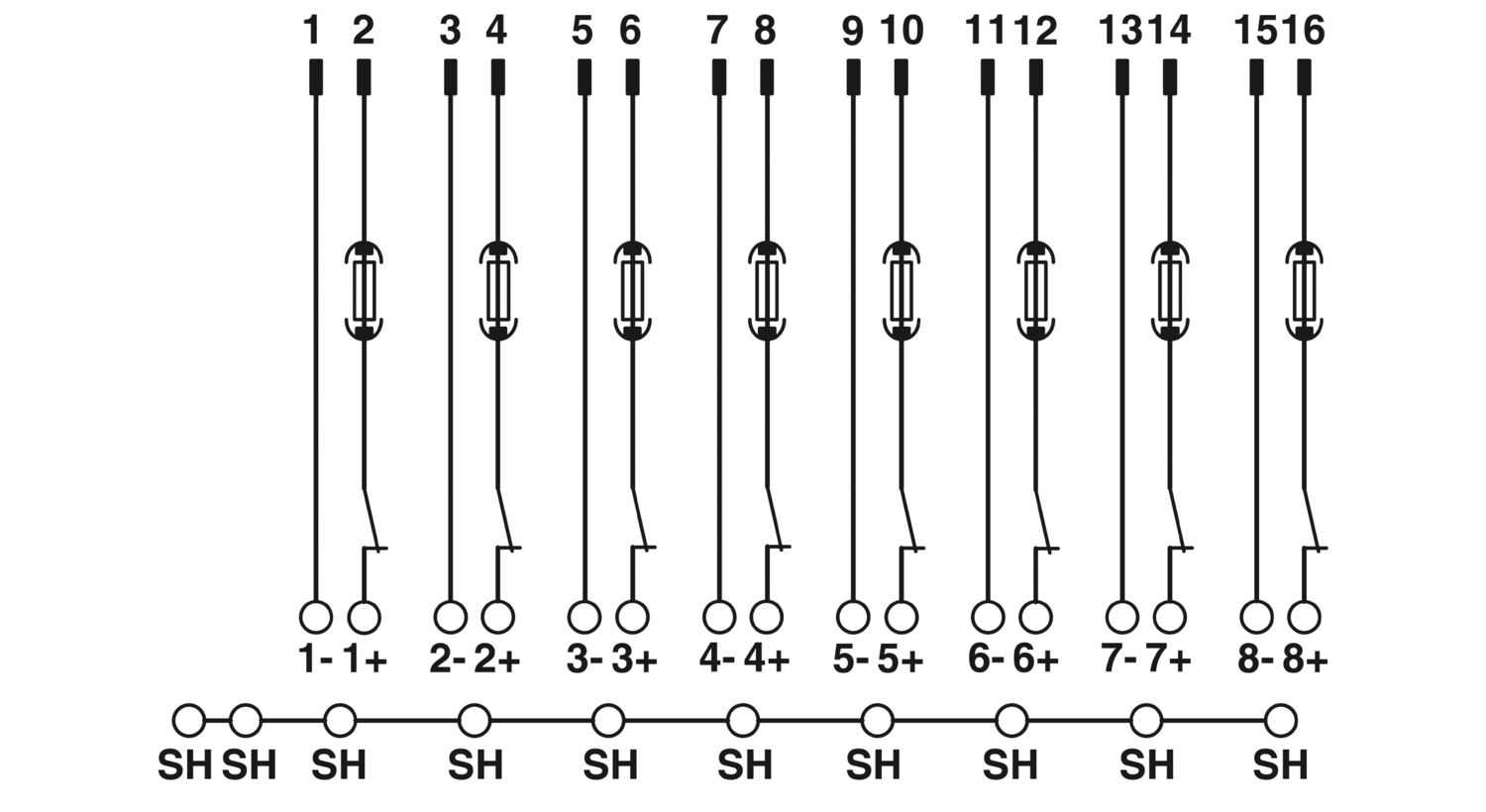

Fuse module with separable test sockets and shield connection terminals (for analog cards of the Delta V control system)

Product details

Nominal voltage U_N	24 V DC
Max. current carrying capacity per branch	50 mA (in as-supplied state, with one 50 mAF fuse, max. 1 A permitted)
Supported controller EMERSON DeltaV
Suitable I/O card	VE4003S2B4
	VE4005S2B3
	VE4003S2B5

Field level
Connection method	Screw connection
Stripping length	7 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	IDC/FLK pin strip
Number of connections	1
Number of positions	16
Pitch	2.54 mm

Status display present	no

Housing insulation material	Polyamide PA non-reinforced

Ambient conditions
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards/regulations	IEC 60664
	DIN EN 50178

Mounting type	DIN rail mounting
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	5603256
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	DK218K
Catalog page	Page 483 (C-5-2017)
GTIN	4017918955021
Weight per piece (including packing)	259 g
Weight per piece (excluding packing)	239.1 g
Customs tariff number	85369010
Country of origin	US

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	24 V	2 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	24 V	2 A

Environmental product compliance

These system-specific interface modules for DeltaV modules are used in combination with the relevant system cables

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	26a21112-3947-415f-8060-ee7a090a4d97
