FLKM 50/4-FLK14/PLC - Passive module

2284594

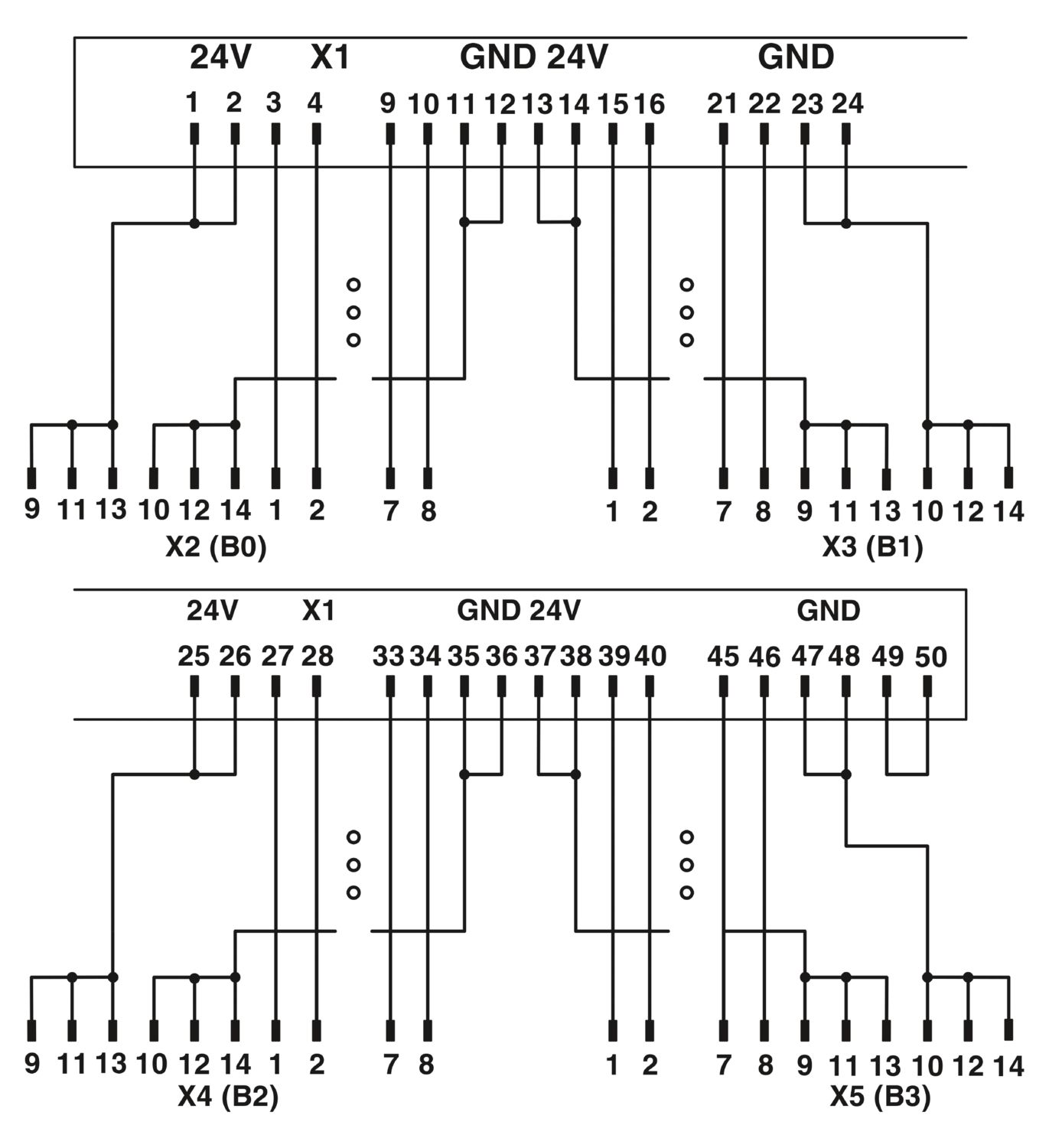

The VARIOFACE distributor module makes it possible to split up 32 I/O signals into 4 x 8 channels byte by byte. The module connects 50-position system cables to four 14-position system cables via male connectors, module width: 90 mm

Product details

Product type	Interface module
Product family	VARIOFACE
Operating mode	100% operating factor
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Operating voltage (AC)	≤ 30 V AC
Operating voltage (DC)	≤ 60 V DC
Current (per branch)	≤ 1 A
Current (Voltage supply)	≤ 2 A
Air clearances and creepage distances
Rated insulation voltage	63 V
Rated surge voltage	0.6 kV (1.2/50 μs)

Connection 1 (control level)
Connection in acc. with standard	IEC 60603-13
Connection method	IDC/FLK pin strip
Number of connections	1
Number of positions	14
Insertion/withdrawal cycles	> 50
Pitch	2.54 mm
Output, 4 x 8 channels
Connection method	IDC/FLK pin strip
Number of connections	4
Number of positions	14
Insertion/withdrawal cycles	> 50
Pitch	2.54 mm

Status display present	no

Item dimensions
Width	89.5 mm
Height	90 mm
Depth	61 mm

Color	green (RAL 6021)
Housing insulation material	Polyamide 6.6 green

Ambient conditions
Degree of protection (Module)	IP00
Degree of protection (Installation location)	≥ IP54
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Altitude	≤ 2000 m

UKCA
Certificate	UKCA-compliant

Air clearances and creepage distances
Standards/regulations	EN IEC 60664-1

Mounting type	DIN rail mounting
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2284594
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	DK2181
Catalog page	Page 186 (IF-2002)
GTIN	4017918055769
Weight per piece (including packing)	139 g
Weight per piece (excluding packing)	103.08 g
Customs tariff number	85369010
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	2 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	2 A

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
