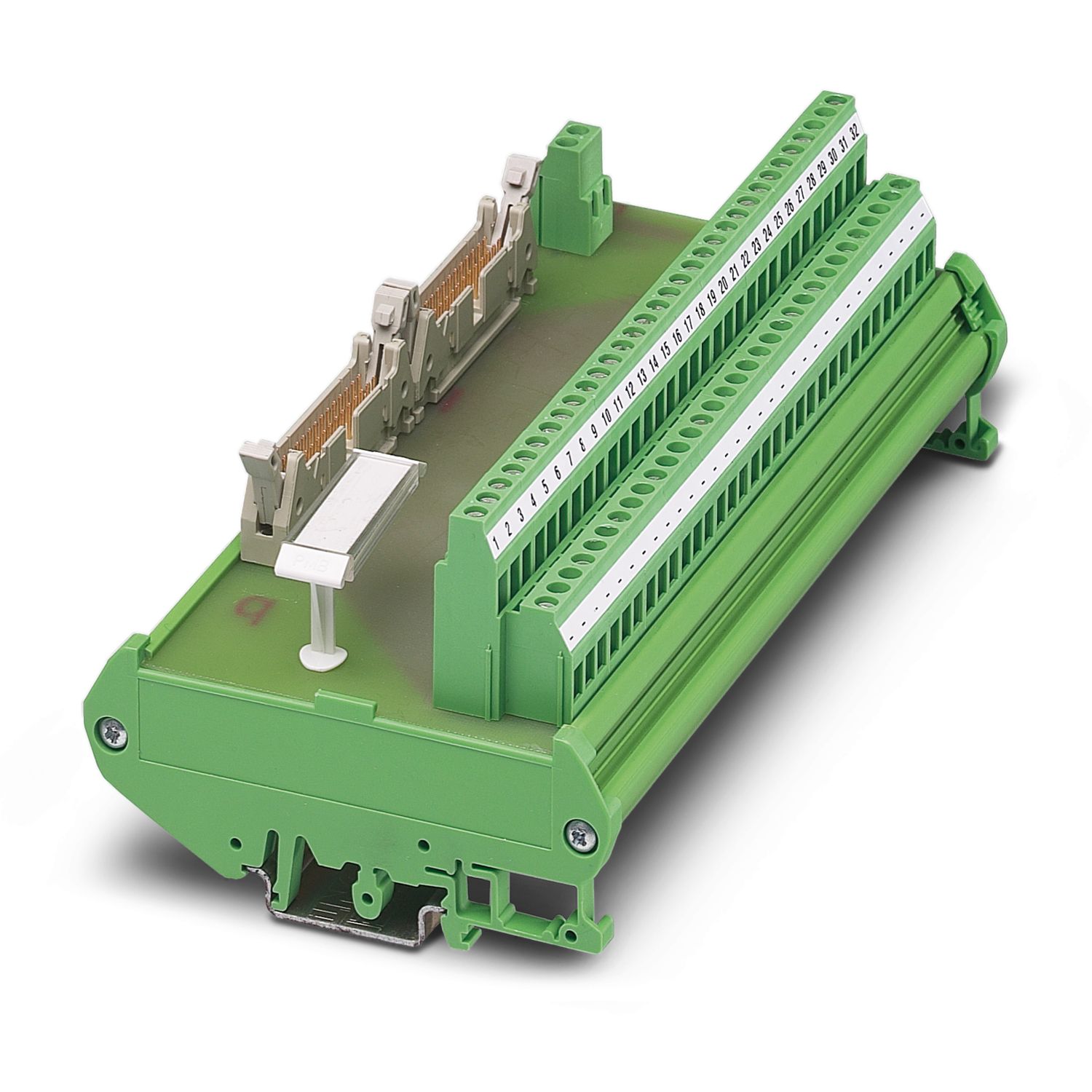

FLKM-2FLK20/32M/OUT/LA/DV
-
Passive module
2304733
Interface modules, for 40-pos. "Mass Termination Blocks" for: -32-channel output with LED per signal, module width: 169 mm
Product details
| Product type | Interface module |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Nominal voltage UN | 30 V DC |
| Max. current carrying capacity per branch | 1 A |
| Max. total current of voltage supply | 5 A (KL/KL) |
| Supported controller EMERSON DeltaV | |
| Suitable I/O card | VE4002S1T2B6 |
| Field level | |
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Controller level | |
| Connection method | IDC/FLK pin strip |
| Number of connections | 2 |
| Number of positions | 20 |
| Pitch | 2.54 mm |
| Status display | yes |
| Status display present | yes |
| Item dimensions | |
| Width | 169 mm |
| Height | 77 mm |
| Depth | 52 mm |
| Color | green (RAL 6021) |
| Housing insulation material | PVC |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | IEC 60664 |
| Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Item number | 2304733 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Product key | DK218K |
| Catalog page | Page 159 (IF-2005) |
| GTIN | 4017918973834 |
| Weight per piece (including packing) | 310.28 g |
| Weight per piece (excluding packing) | 310.28 g |
| Customs tariff number | 85369010 |
| Country of origin | DE |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
