HC-MOD-K-AFS-PE
-
Panel mounting base
1408533

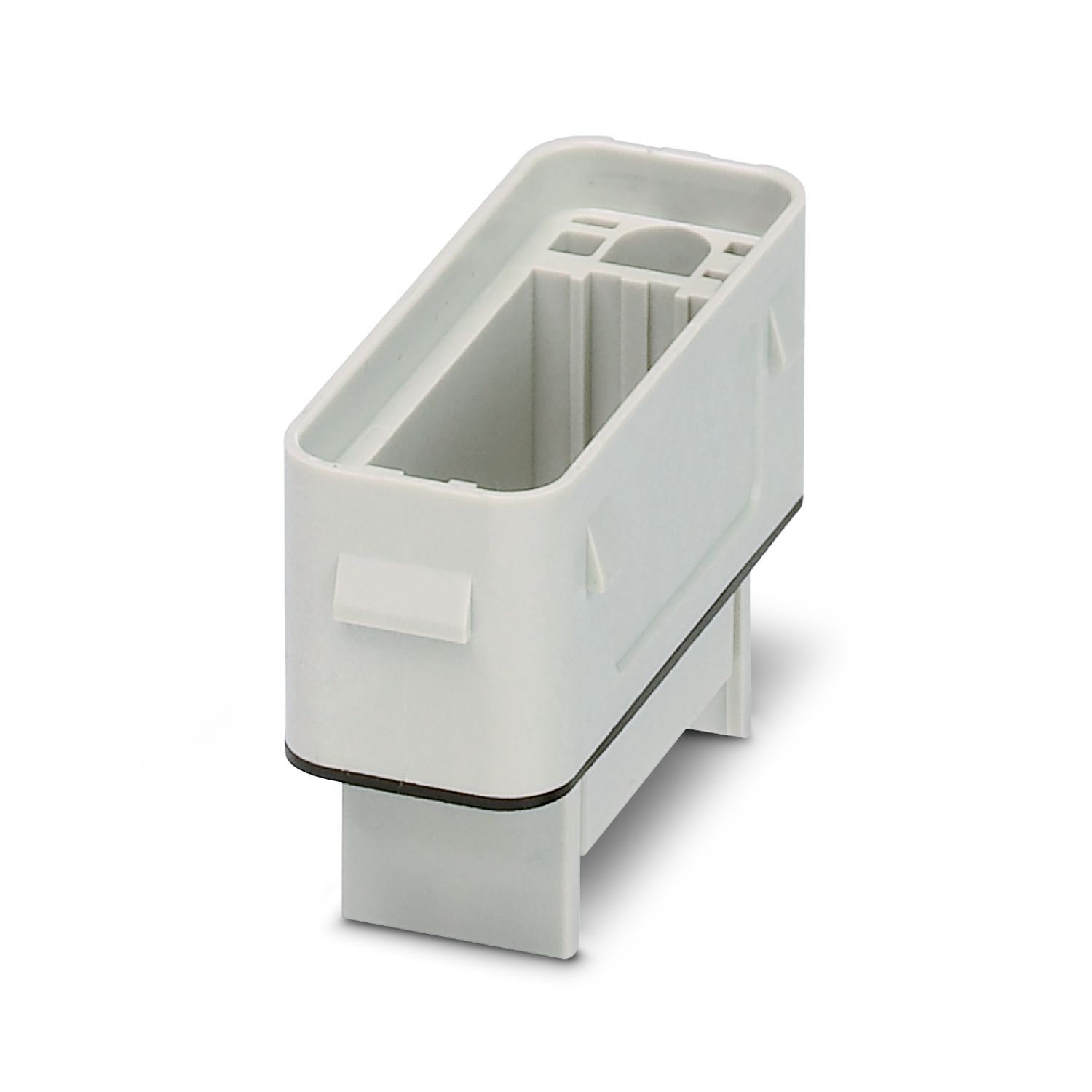

HEAVYCON plastic panel mounting base, for modules for one module slot, with PE marking for pos. 1, for snap locking
Product details
| Pg screw connection | none |

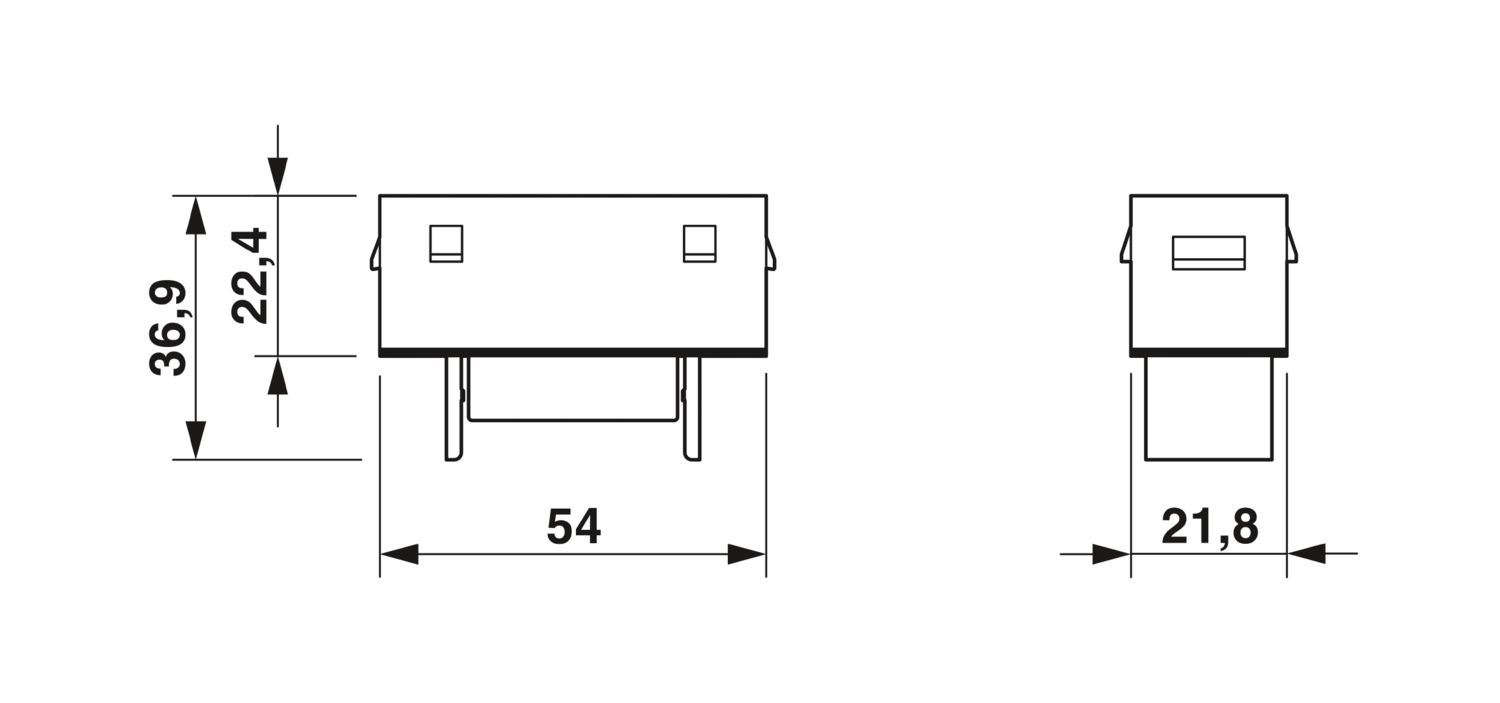

| Dimensional drawing |
|
| Width | 21.8 mm |
| Height | 22.4 mm |
| Length | 54 mm |

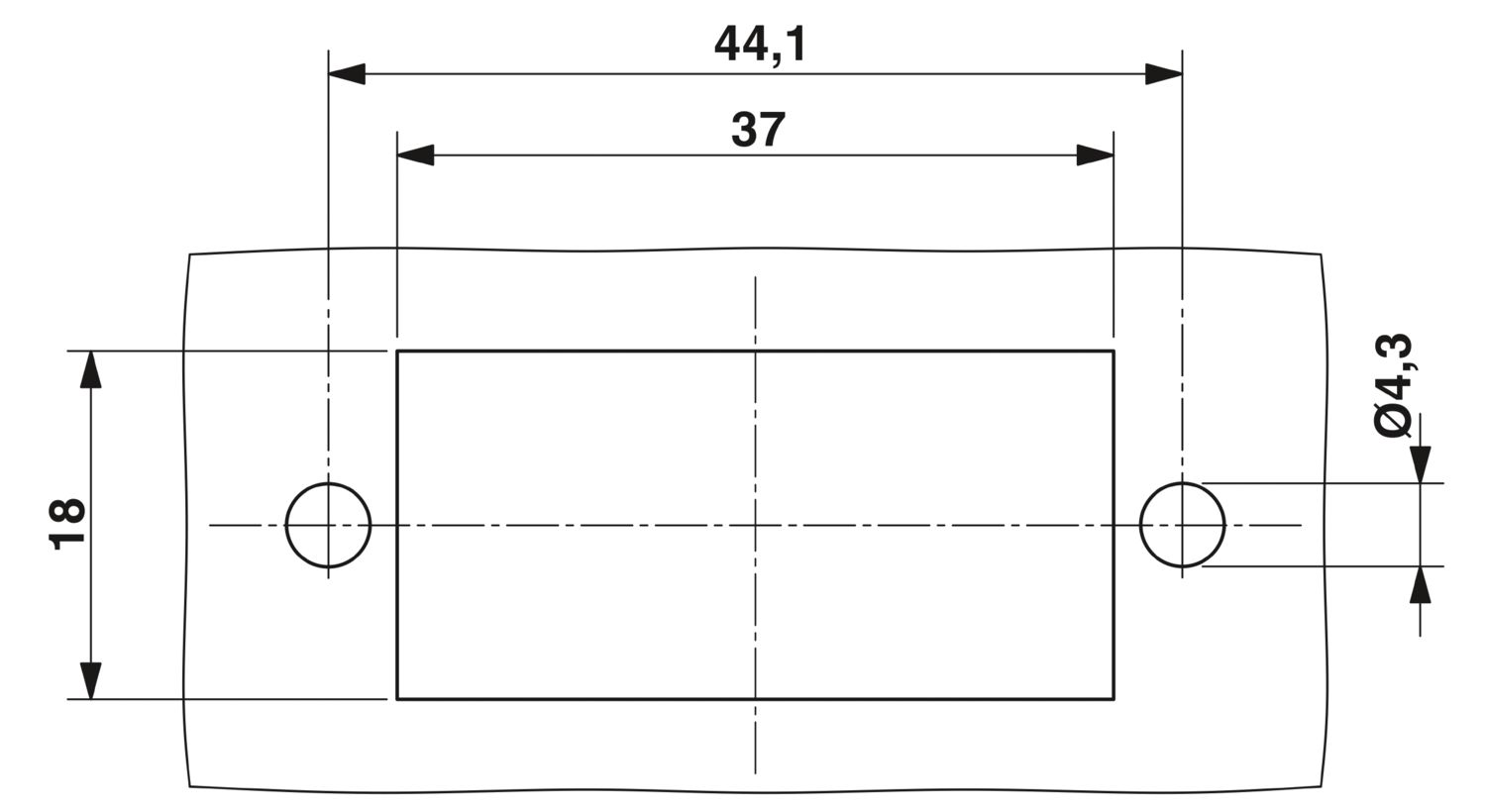

| Installation dimensions | |
| Width of the assembly cutout | 18 mm |
| Length of the assembly cutout | 37 mm |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP65 (When plugged in) |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Assembly note | For housing with PE marking, pos. 1 of the module is used as PE |
