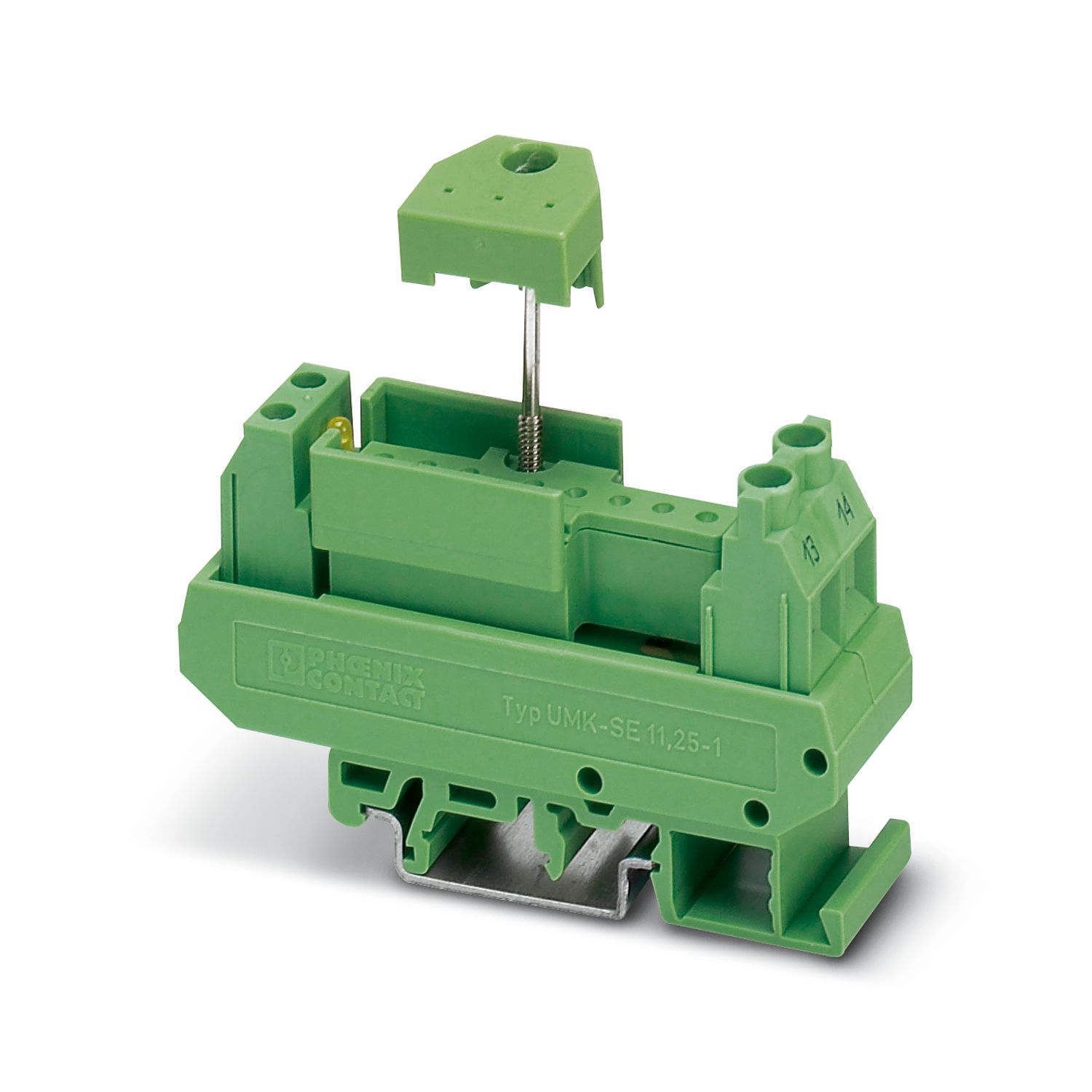

UMK- 1 OM-R/AMS
-
Optocoupler module
2983002
The UMK-1 OM-R/AMS is the wiring interface and coupling level in one unit: Diagnostic and status indicator, polarity and surge protection at the input, assembly option with solid-state relay up to 350 V DC/1 A or 480 V AC/5 A
This product needs further products for operation.
Mandatory accessories
Product details
| Product type | Solid-state relay module |
| Operating mode | 100% operating factor |
| With components | yes |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| Rated surge voltage | 8 kV |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 4 V ... 32 V |
| Typical input current at UN | 2 mA (without plug-in module) |

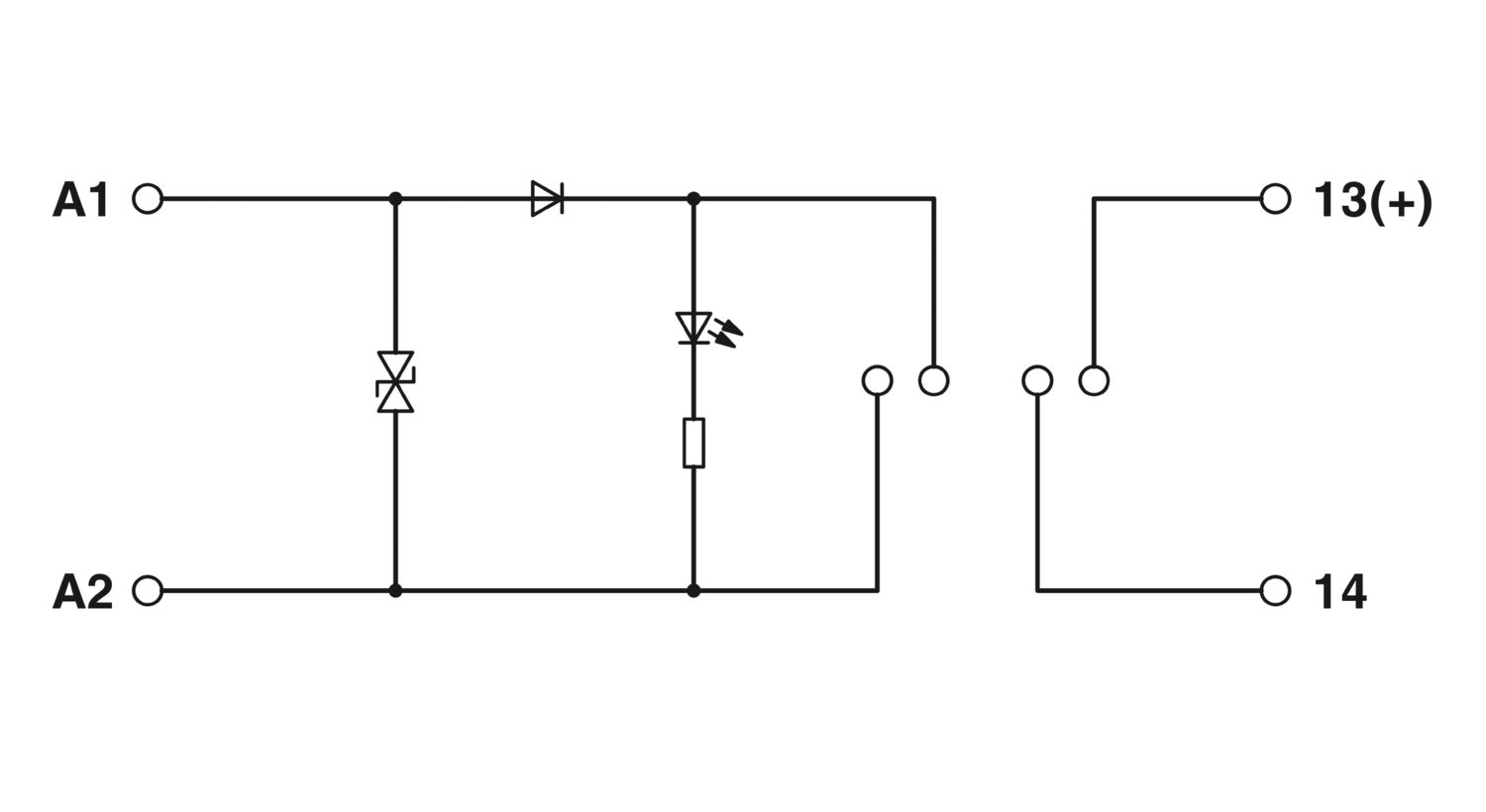

| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Surge protection; Suppressor diode | |
| Status display/channel | Yellow LED |
| Switching | |
| Contact switching type | 1 N/O contact (double contact) |
| Maximum switching voltage | 230 V AC |
| 550 V AC | |
| Minimum switching voltage | 24 V AC |
| Limiting continuous current | 5 A |
| Error detection (line break / short-circuit) | no |
| Input | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of connections | 1 |
| Number of positions | 2 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Output | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of connections | 1 |
| Number of positions | 2 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
| Status display present | yes |
| Dimensional drawing |
|
| Width | 22.5 mm |
| Height | 77 mm |
| Depth | 72 mm |
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | DIN EN 50178 |
| Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
Your advantages
Status indicator
Surge protection in input
Can be fitted with solid-state relays for loads up to 350 V DC/1 A or 480 V AC/5 A
