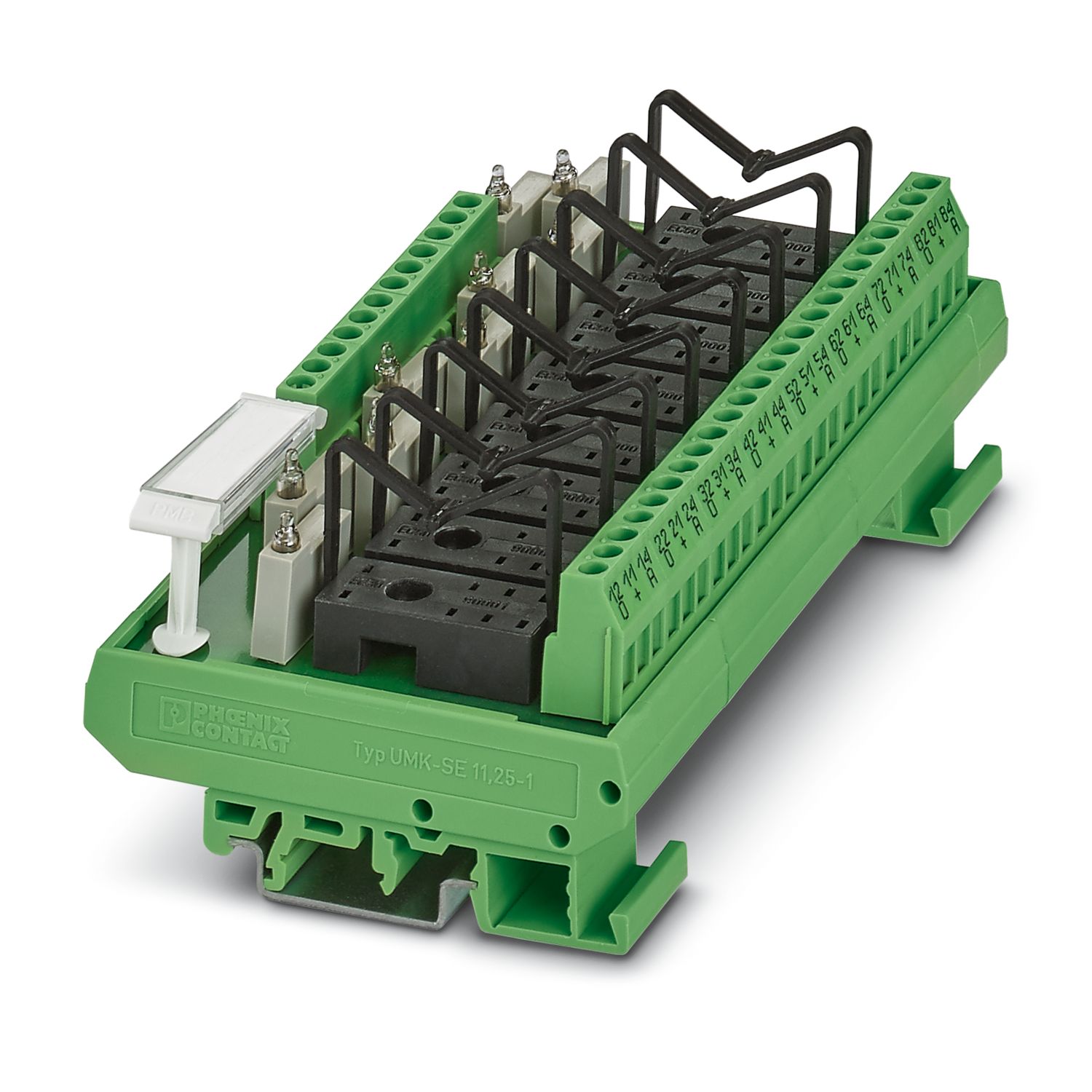

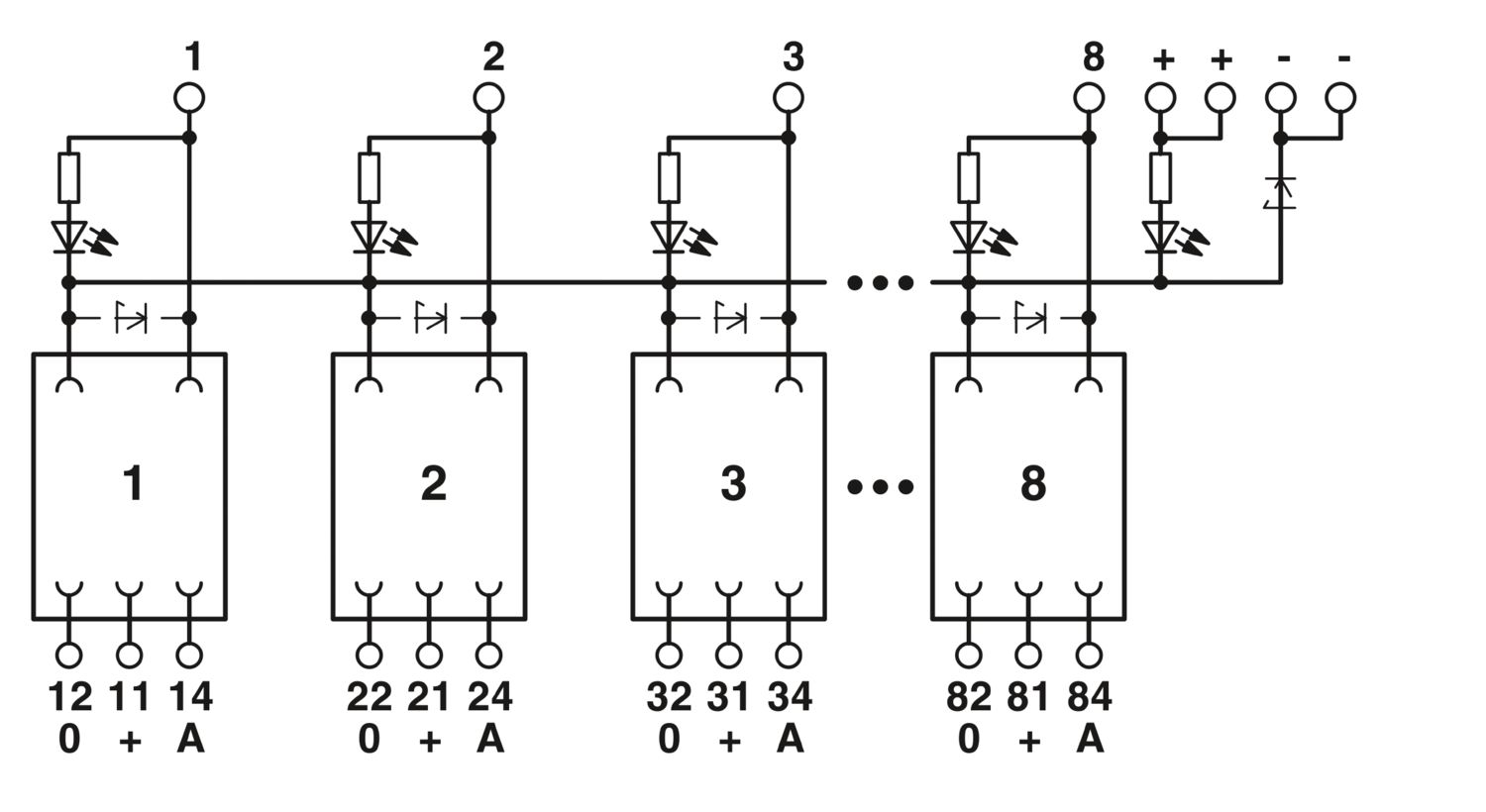

VARIOFACE module, for 8 plug-in miniature relays or miniature optocouplers, with LED, 230 V AC input voltage
Product details
Utilization restriction
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Multi-channel relay module
No. of channels
8
Compatible components
Miniature relays or miniature optocouplers
With components
no
Insulation characteristics
Overvoltage category
III
Pollution degree
2
Rated insulation voltage
260 V AC
Rated surge voltage
4 kV (Basic insulation between output contact current paths)
6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths)
Nominal input voltage UN
230 V AC
Input voltage range in reference to UN
0.4 ... 1.1
Typical input current at UN
0.5 mA (LED display)
Operating voltage display
Glow lamp
Status display/channel
Glow lamp
Compatible components
Miniature relays or miniature optocouplers
Switching
Contact switching type
1 changeover contact
Maximum switching voltage
250 V AC/DC
Limiting continuous current
5 A
Maximum inrush current
8 A
Error detection (line break / short-circuit)
no
Input
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Number of connections
1
Number of positions
12
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Output
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Number of connections
24
Number of positions
3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Status display present
yes
Width
135 mm
Height
77 mm
Depth
59 mm
Color
green (RAL 6021)
Ambient conditions
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
DIN EN 50178
IEC 60664
Mounting type
DIN rail mounting
Mounting position
any
Item number
2972961
Packing unit
1 pc
Minimum order quantity
1 pc
Product key
DK6164
Catalog page
Page 551 (C-7-2013)
GTIN
4017918088880
Weight per piece (including packing)
251.2 g
Weight per piece (excluding packing)
215.28 g
Customs tariff number
85364900
Country of origin
DE
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
