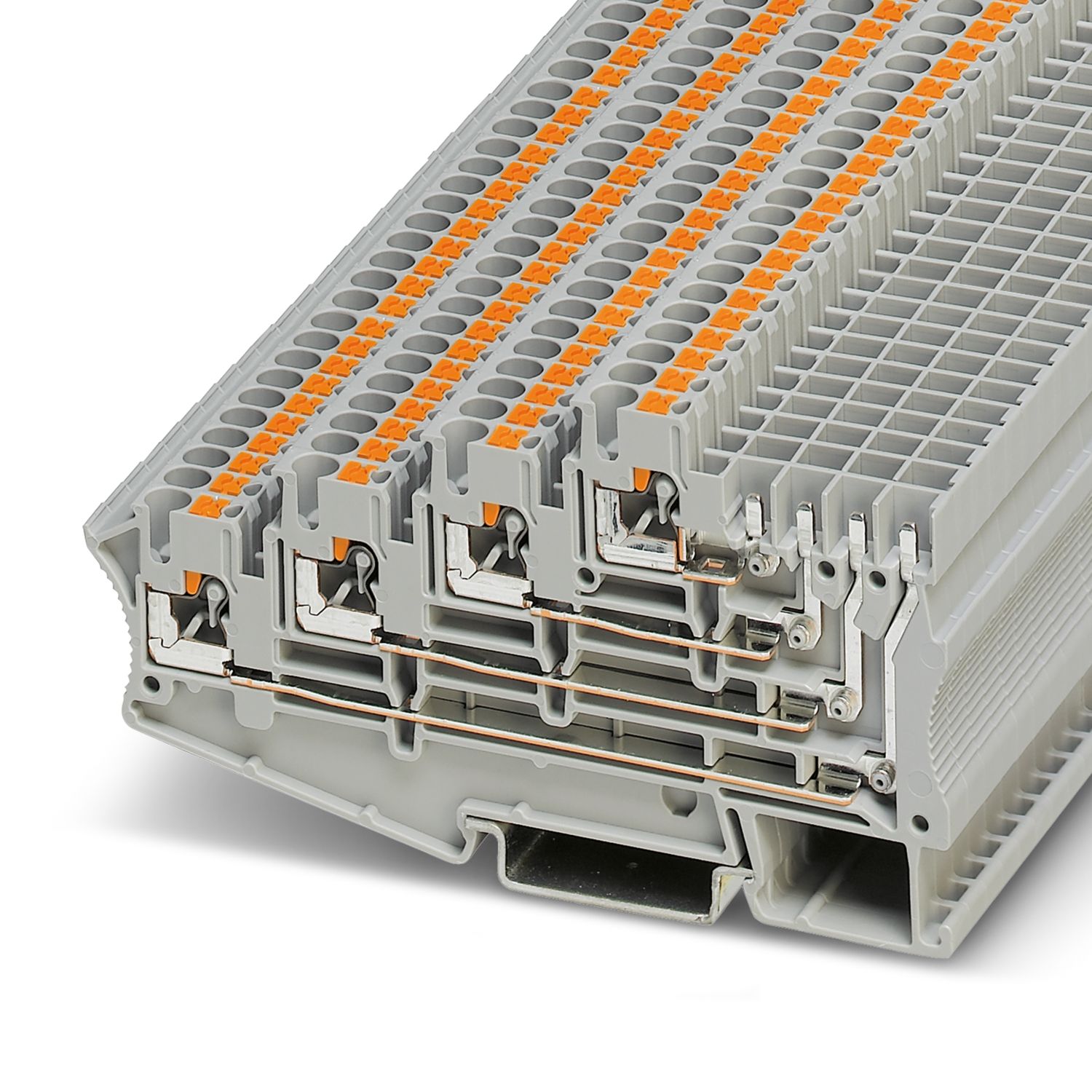

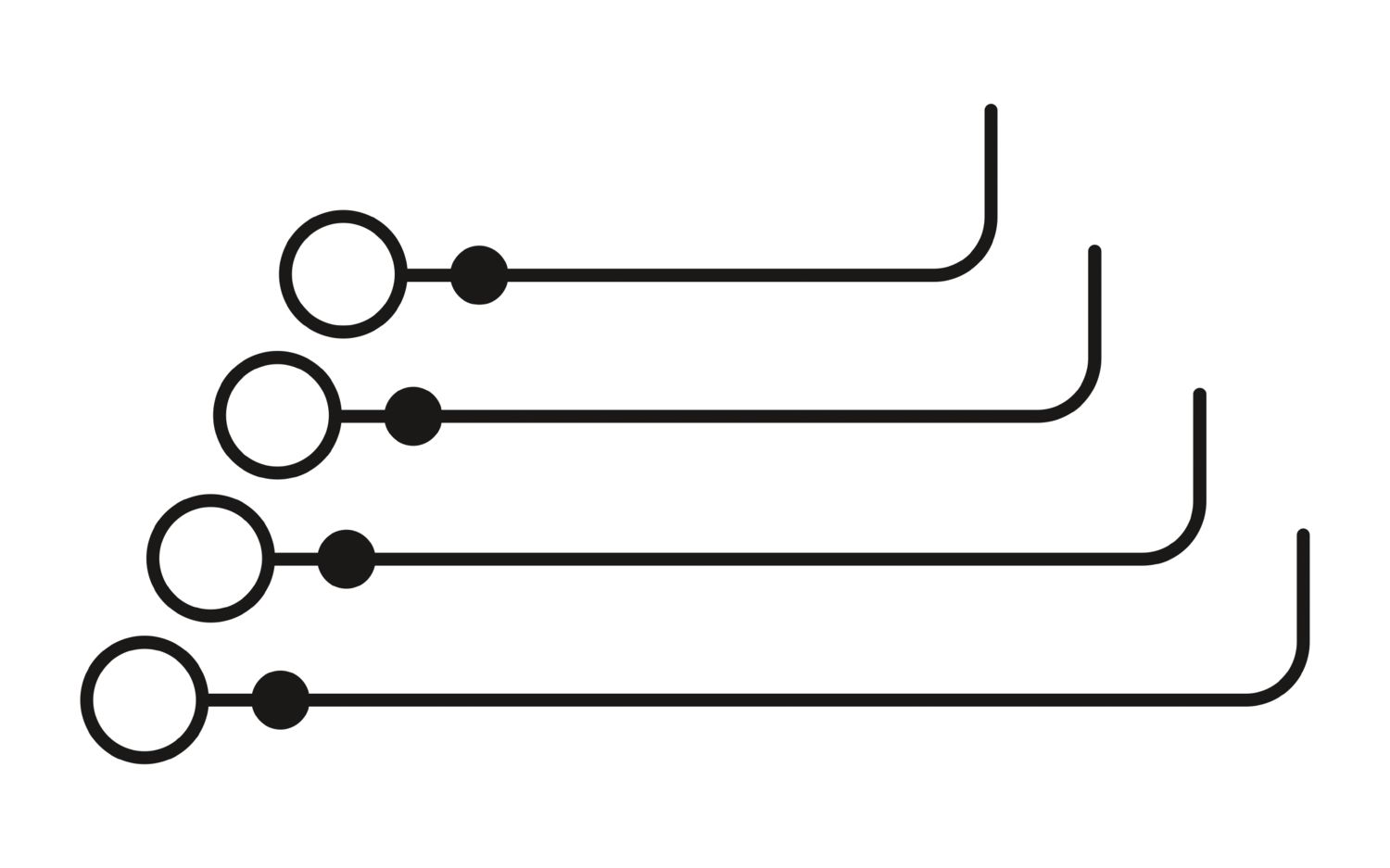

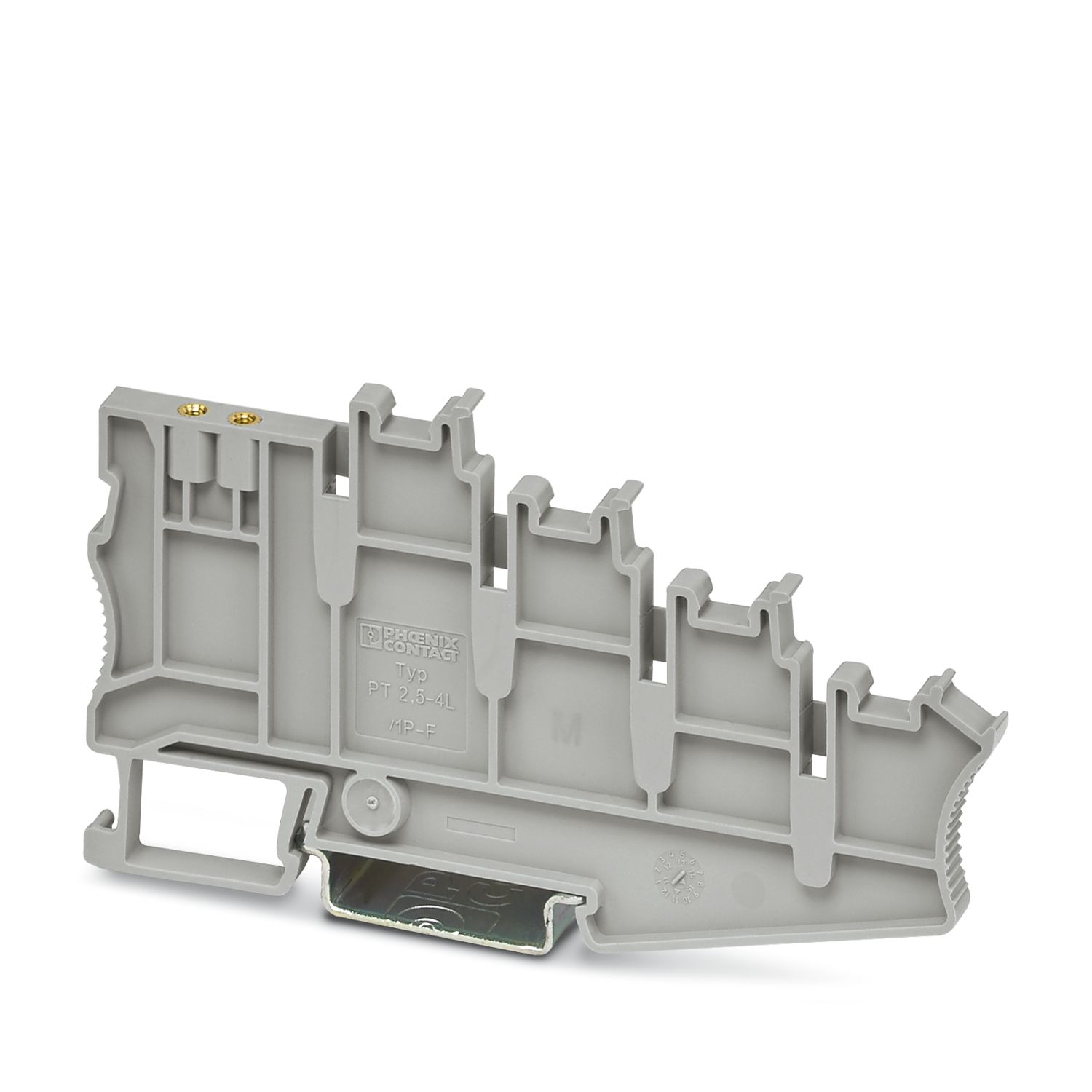

PT 2,5-4L/1P - Multi-level terminal block

3012300

Multi-level terminal block, nom. voltage: 250 V, nominal current: 10 A, number of connections: 8, connection method: Push-in / plug connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Product details

General	Current and voltage are determined by the plug used.
General
Note	The maximum load current of a single clamping unit must not be exceeded.

Product type	Plug-in terminal block
Product family	PT
Number of connections	8
Number of rows	4
Potentials	4
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	4 kV
Maximum power dissipation for nominal condition	0.77 W

Number of connections per level	2
Nominal cross section	2.5 mm²
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm²
Nominal current	10 A
Maximum load current	10 A (with 4 mm² conductor cross section, rigid)
Nominal voltage	250 V
Nominal cross section	2.5 mm²
Connection cross sections directly pluggable
Conductor cross section rigid	0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 2.5 mm²

Width	5.2 mm
End cover width	2.2 mm
Height	105.6 mm
Depth on NS 35/7,5	59 mm
Depth on NS 35/15	66.5 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 2.5 mm²	0.3 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.14 mm² / 0.2 kg
	2.5 mm² / 0.7 kg
	4 mm² / 0.9 kg
Result	Test passed

Aging
Temperature cycles	192
Result	Test passed
Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	0.964 (m/s²)²/Hz
Acceleration	0.58g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 100 °C (max. operating temperature range including self-heating, see derating curve)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 61984

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	3012300
Packing unit	50 pc
Minimum order quantity	50 pc
Product key	BE2241
GTIN	4046356672382
Weight per piece (including packing)	21.5 g
Weight per piece (excluding packing)	20.5 g
Customs tariff number	85369010
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	10 A	26 - 12
Use group C
	300 V	10 A	26 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Only flexible conductors	250 V	10 A		0.14 - 2.5
Only rigid conductors	250 V	10 A		0.14 - 4

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	10 A	26 - 12
Use group C
	300 V	10 A	26 - 12

Environmental product compliance

Compatible products

Accessories

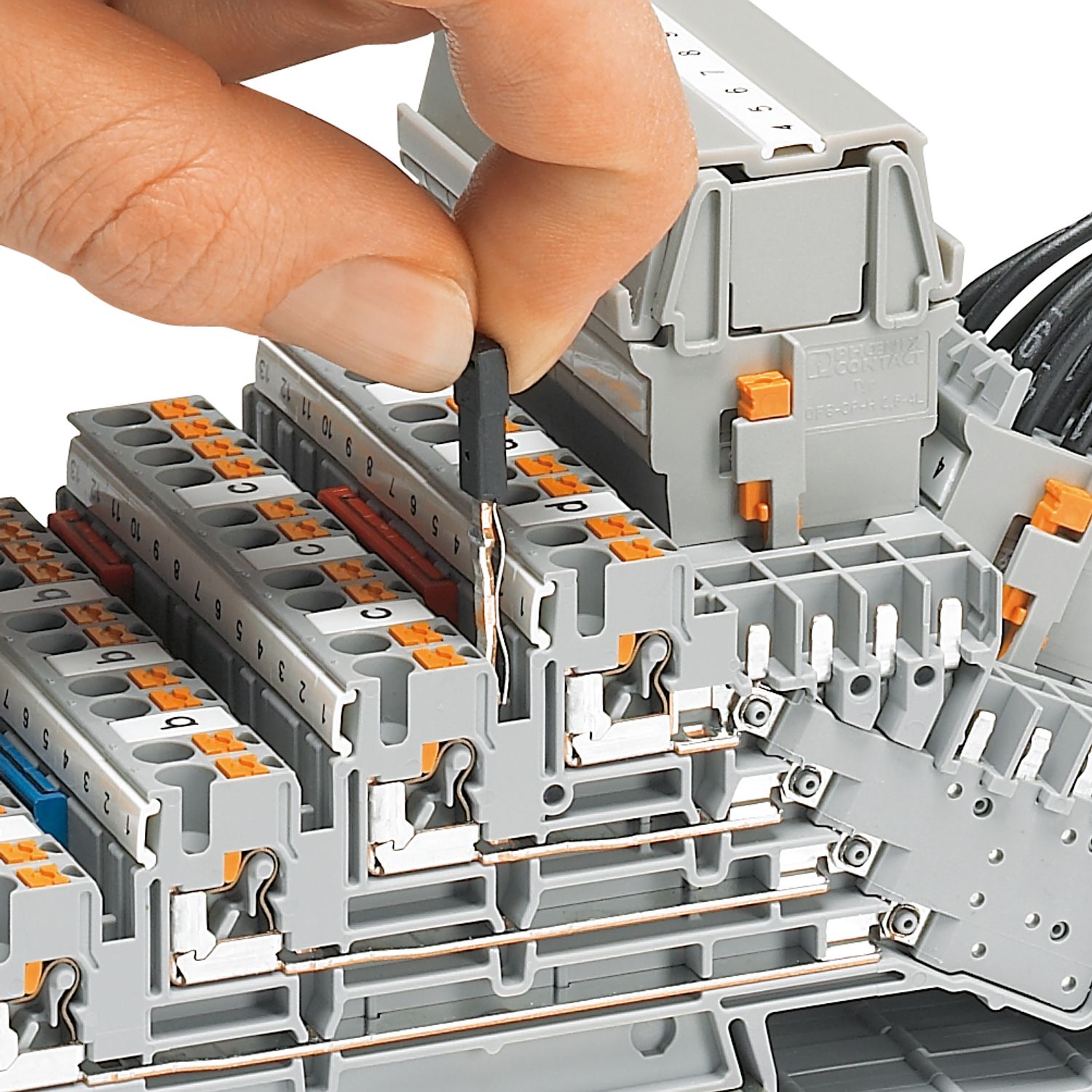

Your advantages

In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off

The compact design and front connection enable wiring in a confined space

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PT 2,5-4L/1P - Multi-level terminal block

3012300

Product details

ECLASS

ETIM

UNSPSC

CSA

EAC

VDE Gutachten mit Fertigungsüberwachung

cULus Recognized

EAC

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PT 2,5-4L/1P - Multi-level terminal block 3012300

Product details

ECLASS

ETIM

UNSPSC

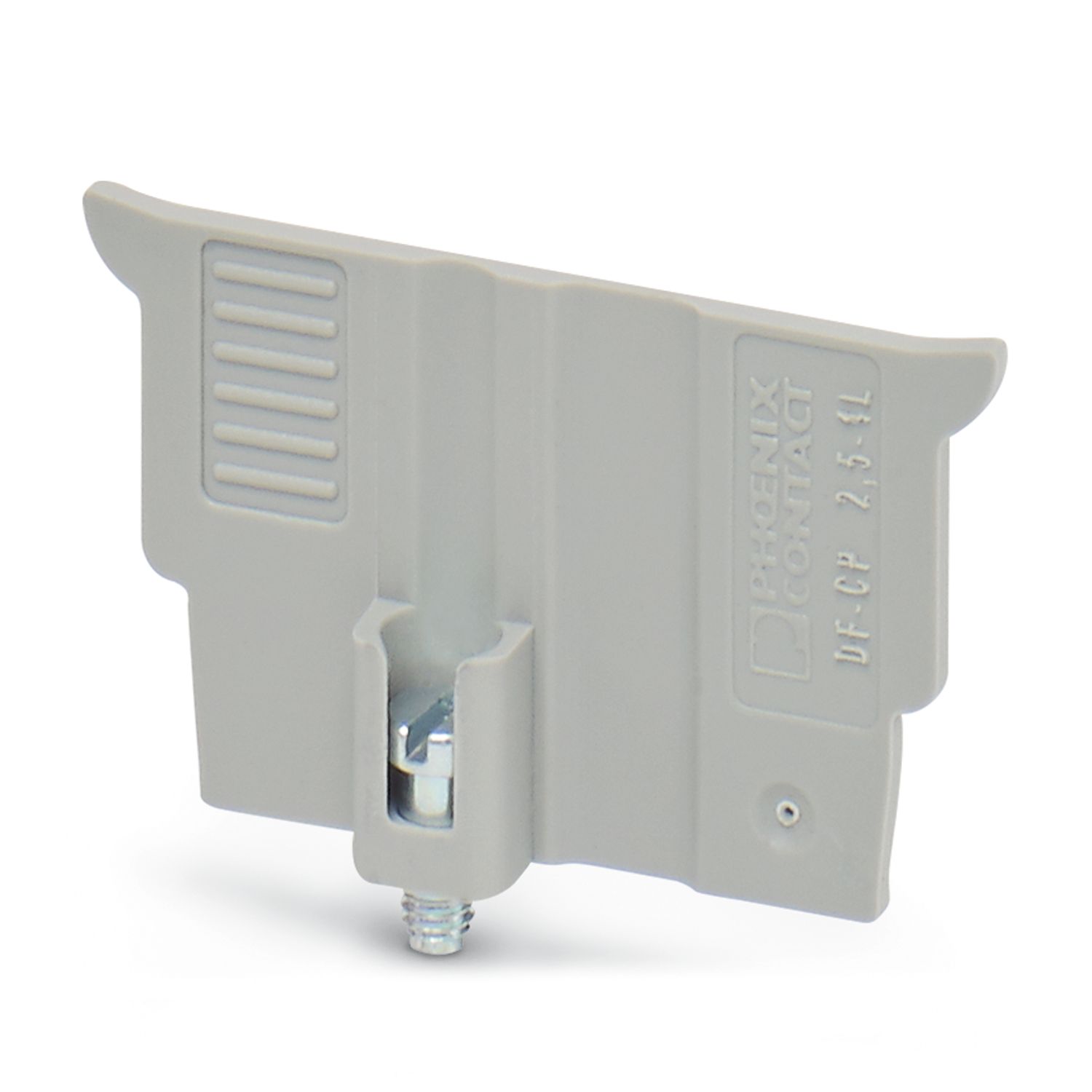

Compatible products

FBS 2-5 - Plug-in bridge 3030161

FBS 3-5 - Plug-in bridge 3030174

FBS 4-5 - Plug-in bridge 3030187

FBS 5-5 - Plug-in bridge 3030190

FBS 10-5 - Plug-in bridge 3030213

FBS 20-5 - Plug-in bridge 3030226

FBS 50-5 - Plug-in bridge 3038930

FBSR 2-5 - Plug-in bridge 3033702

FBSR 3-5 - Plug-in bridge 3001591

FBSR 4-5 - Plug-in bridge 3001592

FBSR 5-5 - Plug-in bridge 3001593

FBSR 10-5 - Plug-in bridge 3033710

FBS 2-5 BU - Plug-in bridge 3036877

FBS 3-5 BU - Plug-in bridge 3036880

FBS 4-5 BU - Plug-in bridge 3036893

FBS 5-5 BU - Plug-in bridge 3036903

FBS 10-5 BU - Plug-in bridge 3036916

FBS 20-5 BU - Plug-in bridge 3036929

FBS 50-5 BU - Plug-in bridge 3032114

RB ST (2,5/4)-1,5/S - Reducing bridge 3214356

RB ST 6-(2,5/4) - Reducing bridge 3030860

RB ST 10-(2,5/4) - Reducing bridge 3030873

RB ST 16-(2,5/4) - Reducing bridge 3030886

RB ST 35-(2,5/4) - Reducing bridge 3030899

RB ST (2,5/4)-1,5 - Reducing bridge 3038943

RB UT 6-ST(2,5/4) - Reducing bridge 3047264

RB UT 35-ST(2,5/4) - Reducing bridge 3047280

RB UT 10-ST(2,5/4) - Reducing bridge 3047086

RB UT 16-ST(2,5/4) - Reducing bridge 3047099

RB PTPOWER 35-ST(2,5/4) - Reducing bridge 3030900

FBS-PV PT 2,5-4L - Potential bridge 3012318

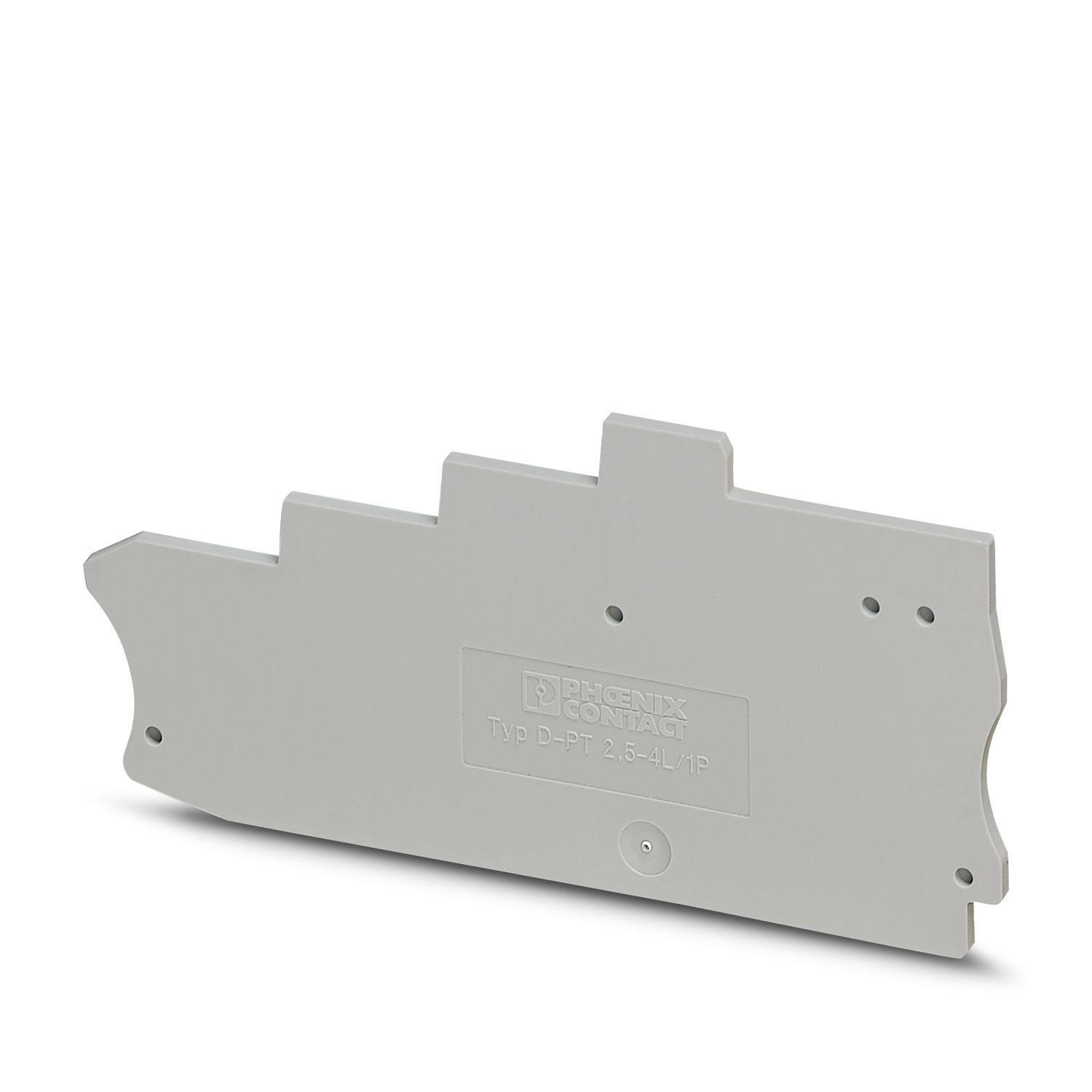

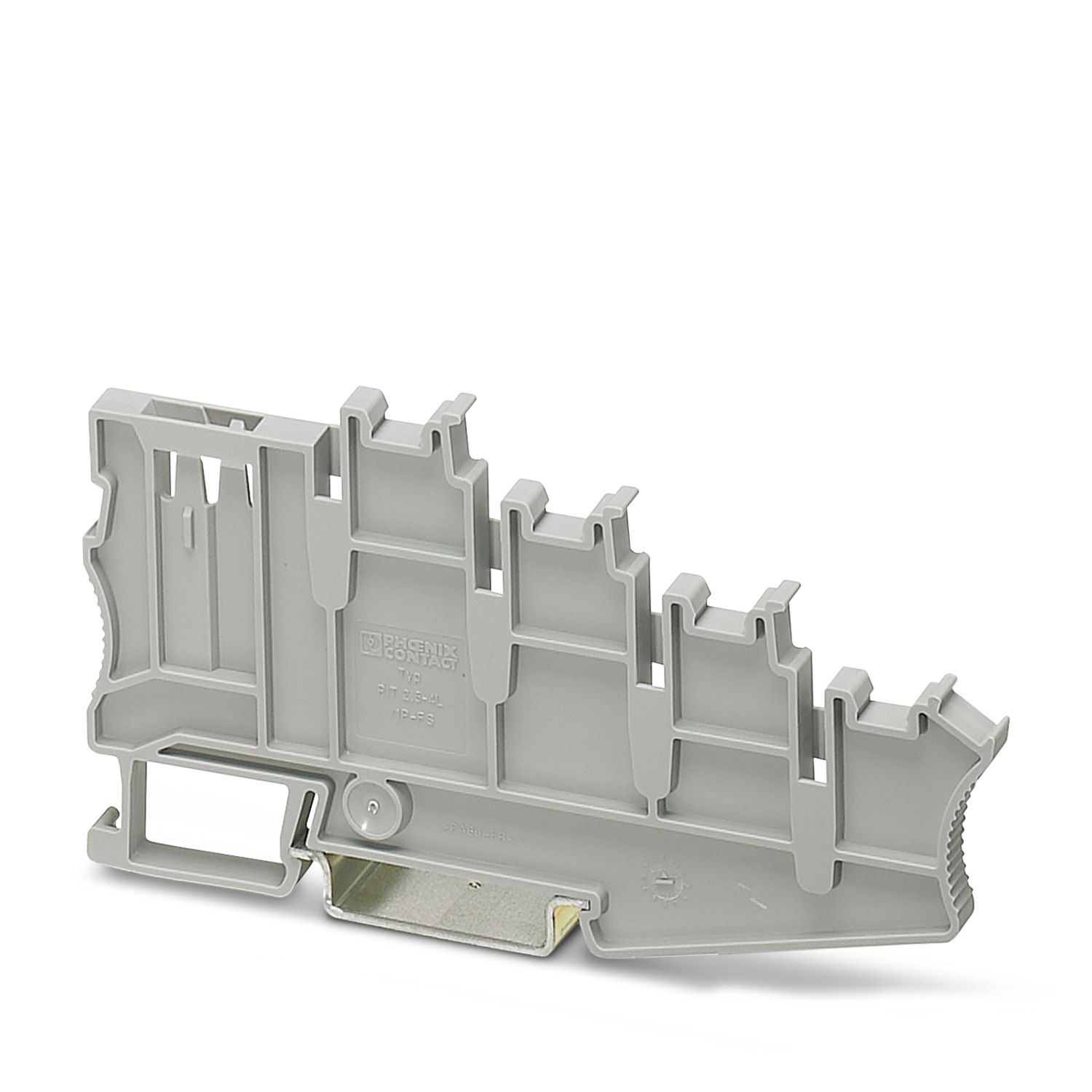

D-PT 2,5-4L/1P - End cover 3012301
