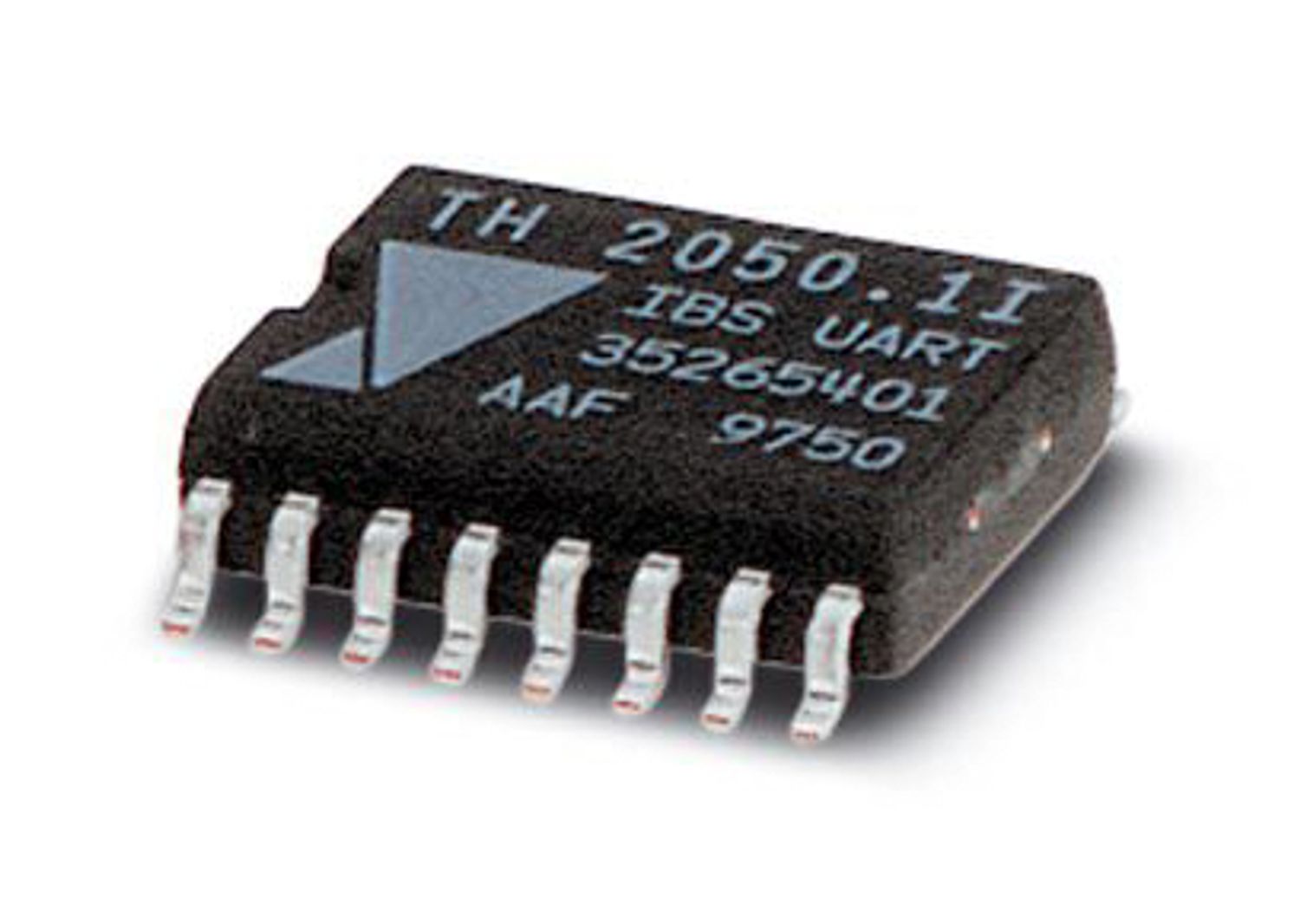

IBS UART - Master protocol chip
IBS UART
-
Master protocol chip
2746391
Protocol chip, in SOP 16 housing
Product details
Expand all
Collapse all
Technical data
Notes
Note on application
Note on application
Only for industrial use
Product properties
Product type
Protocol chip
Electrical properties
IC power supply voltage
5 V DC ±10 % (DC)
Supply
Typical current consumption
10 mA (all inputs static, outputs unused)
Interfaces
INTERBUS
Connection method
Remote bus/local bus
User interface
Connection method
V.24, 1 start bit, 2 stop bits, 8 data bits, even parity
Dimensions
Width
11 mm
Height
10 mm
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP00
Ambient temperature (operation)
-40 °C ... 85 °C
Commercial data
Item number
2746391
Packing unit
45 pc
Minimum order quantity
45 pc
Sales key
13
Product key
DRECAA
GTIN
4017918169336
Weight per piece (including packing)
3.67 g
Weight per piece (excluding packing)
3.365 g
Customs tariff number
85423990
Country of origin
CN
Classifications
ECLASS
ECLASS-13.0
27242605
ETIM
ETIM 9.0
EC001601
UNSPSC
UNSPSC 21.0
32151600
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
IBS UART SDS
-
Driver
2746443
