VIP-3/SC/D37SUB/M/HW/C300 - Termination board

2900675

VARIOFACE module, with screw connection and male D-SUB miniature pin strip, for mounting on NS 35 rails, 37-pos.

This product needs further products for operation. Mandatory accessories

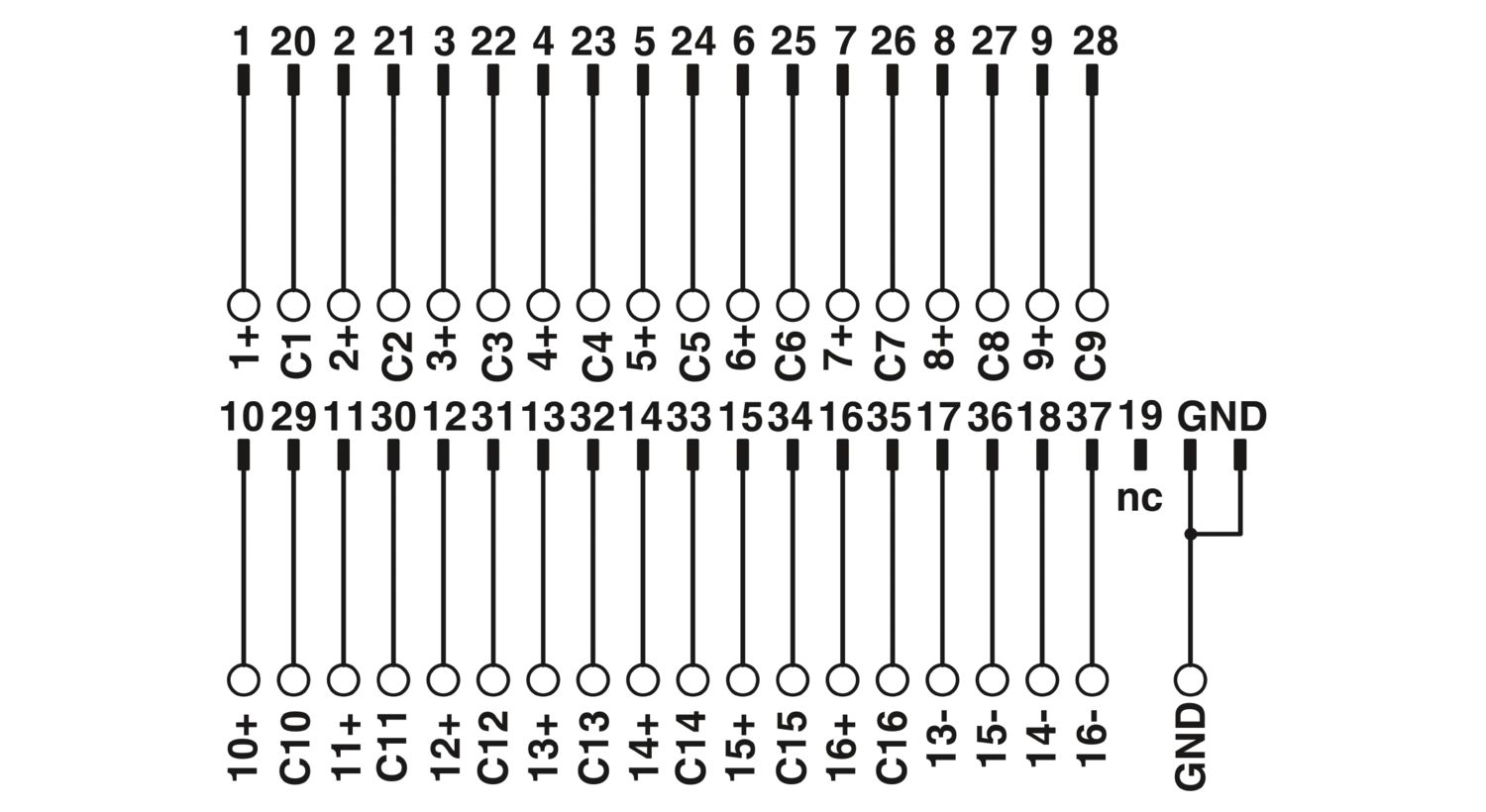

Product details

Product type	Interface module
Product family	VARIOFACE Professional
Number of positions	37
No. of channels	16

Nominal voltage U_N	25 V AC
	60 V DC
Max. current carrying capacity per branch	2 A
Supported controller HONEYWELL Experion PKS C300/C-Series
Suitable I/O card	TAOX01 (non-redundant)
	TAOX11 (redundant)
	TUIO31 (non-redundant)
	TUIO41 (redundant)

Field level
Connection in acc. with standard	IEC / EN
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M 3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	D-SUB pin strip
Number of connections	1
Number of positions	37

Status display	no
Status display present	no

Item dimensions
Width	88 mm
Height	69 mm
Depth	62 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Housing insulation material	Polyamide PA non-reinforced

Ambient conditions
Ambient temperature (operation)	-20 °C ... 70 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards/regulations	DIN EN 50178

Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2900675
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DK211H
Catalog page	Page 481 (C-5-2019)
GTIN	4046356535564
Weight per piece (including packing)	203.6 g
Weight per piece (excluding packing)	203.6 g
Customs tariff number	85366990
Country of origin	US

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	105 V	2 A	28 - 14

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	2 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	2 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	105 V	2 A	28 - 14

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	e896e5af-b3e9-4995-9562-254bdf954963
