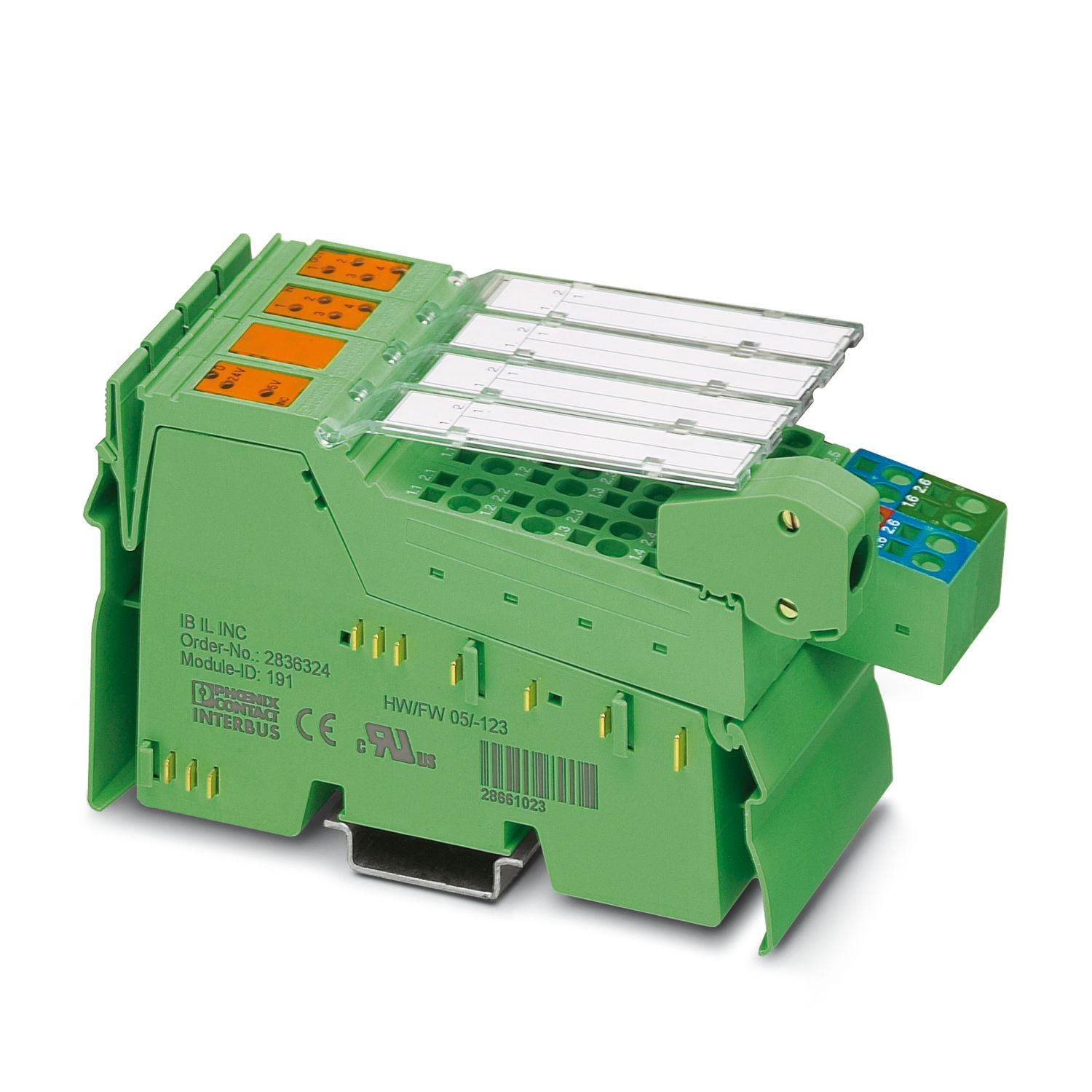

IB IL INC-PAC
-
Inline function terminal
2861849
Inline positioning terminal, complete with accessories (connector and marking field), 1 incremental encoder input, 4 digital inputs 24 V DC, 4 digital outputs 24 V DC, 500 mA, 3-conductor connection technology
Product details
| Dimensional drawing |
|
| Width | 48.8 mm |
| Height | 140.5 mm |
| Depth | 71.5 mm |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Inline local bus | |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Transmission physics | Copper |
| Module | |
| ID code (dec.) | 191 |
| ID code (hex) | BF |
| Length code (hex) | 02 |
| Length code (dec) | 02 |
| Process data channel | 32 bit |
| Input address area | 4 Byte |
| Output address area | 4 Byte |
| Register length | 4 Byte |
| Required parameter data | 6 Byte |
| Required configuration data | 5 Byte |
| Digital | |
| Number of inputs | 3 |
| Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC |
| Connection method | Inline connector |
| Connection technology | 3-conductor |
| Incremental encoder | |
| Number of inputs | 1 |
| Input frequency (5 V) | 0 kHz ... 500 kHz (symmetrical) |
| Input frequency (24 V) | 0 Hz ... 50 kHz (asymmetrical) |
| Encoder signals | symmetrical encoders according to EIA-422 and asymmetrical encoders |
| Counter: | |
| Number of inputs | 3 |
| Digital | |
| Number of outputs | 4 |
| Output voltage | 24 V DC |
| Protective circuit | electronic short-circuit / overload protection |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min |
| 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min | |
| 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min | |
| 7.5 V supply (bus logic)/functional ground of the encoder supply 500 V AC 50 Hz 1 min | |
| 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | |
| 24 V supply (I/O)/functional ground of the encoder supply 500 V AC 50 Hz 1 min | |
| Functional ground of the encoder supply/functional ground 500 V AC 50 Hz 1 min | |
| Supply | |
| Drawing encoder supply voltage | Main circuit UM |
| Encoder supply voltage | 5 V DC (sym./asym.) |
| 24 V DC (Only asymmetrical encoders) | |
| Encoder supply current | 500 mA |
| 500 mA | |
| I/O voltage | 24 V DC |
| I/O voltage range | 19.2 V DC ... 30 V DC |
| Residual ripple | ± 1.2 V |
| Max. current consumption | 110 mA |
| Potentials: Communications power (UL) | |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 110 mA |
| Potentials: Main circuit supply (UM) | |
| Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 1 A |
| Potentials: Segment circuit supply (US) | |
| Supply voltage | 24 V DC (via voltage jumper) |
| Current draw | max. 2 A |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Mounting type | DIN rail mounting |
Your advantages
Startup using hand-held operator panel mode
Integrated monitoring functions
5 V and 24 V encoder supply including monitoring
24 V sensor supply incl. monitoring
Backlash and friction compensation
Gear ratio can be parameterized
3 digital inputs
4 digital outputs
Position detection via symmetrical or asymmetrical incremental encoder with or without Z trace
Software limit switch
