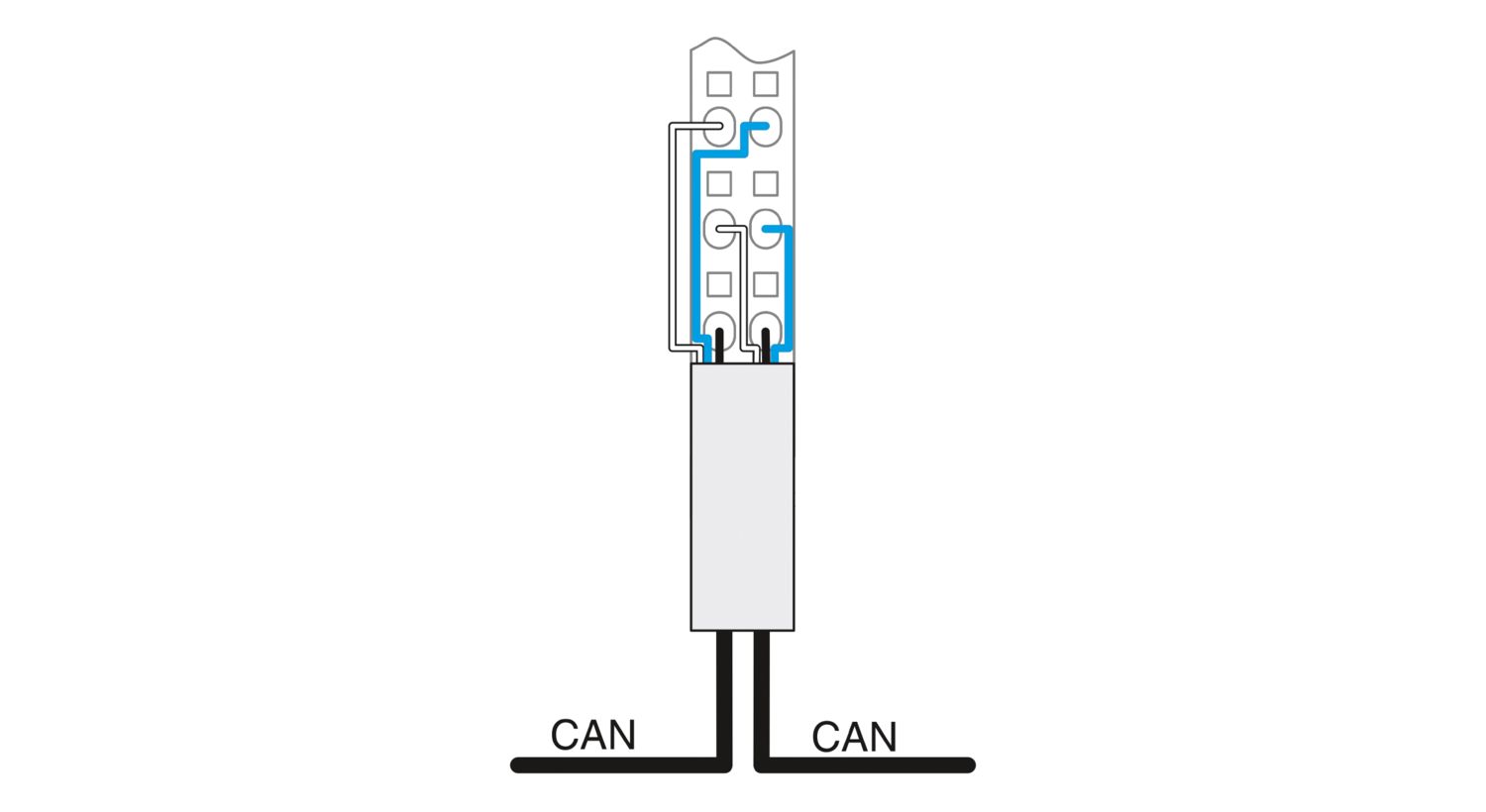

The terminal is designed for use within an Inline station. It can be used to integrate a lower-level CAN bus system into the Inline station and therefore into the bus system used. Within the Inline station, the terminal acts as a CAN master for the lower-level CAN system.
IB IL CAN-MA-PAC
-
Communication module
2700196
Inline CAN master, for connecting a CAN bus system, complete with accessories (connector and marking field)
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 12.2 mm |
| Height | 136.8 mm |
| Depth | 71.5 mm |
| Note on application | |
| Note on application | Only for industrial use |
| Inline local bus | |
| Number of interfaces | 2 |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| CAN bus | |
| Number of interfaces | 1 |
| Connection method | Inline shield connector |
| Transmission speed | 250 kbps |
| Protocols supported | CAN |
| S-PORT | |
| Number of interfaces | 1 (Interface with plugged in memory stick) |
| Local diagnostics | |
| Error messages via the bus | CAN bus voltage faulty |
| Bus stop | |
| Module | |
| ID code (dec.) | 191 |
| ID code (hex) | BF |
| Length code (hex) | 20 |
| Length code (dec) | 32 |
| Process data channel | 64 Byte |
| Input address area | max. 64 Byte |
| Output address area | max. 64 Byte |
| Register length | 64 Byte |
| Required parameter data | 1 Byte |
| Required configuration data | 5 Byte |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| Scope of supply | including Inline connector and labeling field |
| Operating mode | Process data mode with up to 64 words |
| Maximum power dissipation for nominal condition | 1.15 W |
| Power dissipation | 0.9 W (Module) |
| Potentials: Communications power (UL) | |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 115 mA |
| typ. 110 mA | |
| Potentials: Main circuit supply (UM) | |
| Supply voltage | 24 V DC (via voltage jumper) |
| Current draw | max. 12 mA |
| typ. 10 mA | |
| Electrical isolation/isolation of the voltage ranges | |
| Test voltage: 24 V supply UM, bus, logic/CAN interface | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply UM, bus, logic/functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: CAN interface/functional ground | 500 V AC, 50 Hz, 1 min |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
LR
Approval ID: LR23398855TABV
Approval ID: 21595/C0 BVRINA
Approval ID: ELE121121XGABS
Approval ID: 22-2226444-PDADNV
Approval ID: TAA00002CUcULus Listed
Approval ID: E140324
Your advantages
Protocol: Transparent mode
Transmission speed of CAN bus: 250 kbps
Smallest data type: 1 byte
Maximum data width of 2 x 64 bytes (= 128 bytes = 64 words)
DIP switches for setting the data width
