With the robust NEARFI-P… NearFi couplers, you can transmit power (24 V DC / 2 A) without contact across a distance in the centimeter range. You can therefore replace wear-sensitive and maintenance-intensive connections and reduce downtimes in your systems.

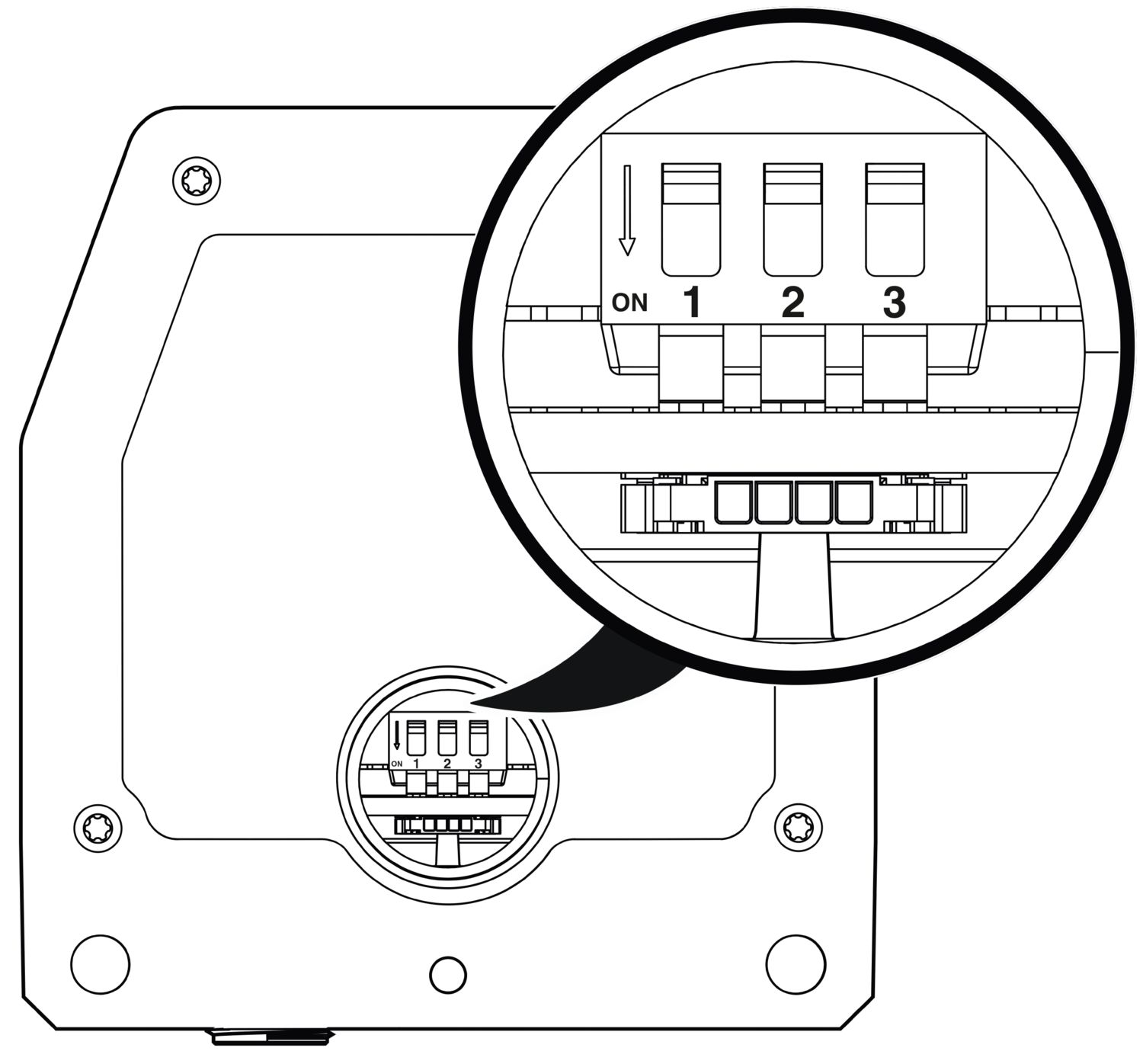

NEARFI P 2A B
-
Inductive coupler
1234226
NearFi base, contactless power coupler, 50 W (US), range ≤10 mm, M12 screw connection, IP65, can be combined with NEARFI P 2A R. Incompatible with NEARFI 200 (new)
This product needs further products for operation.
Mandatory accessories
Product details

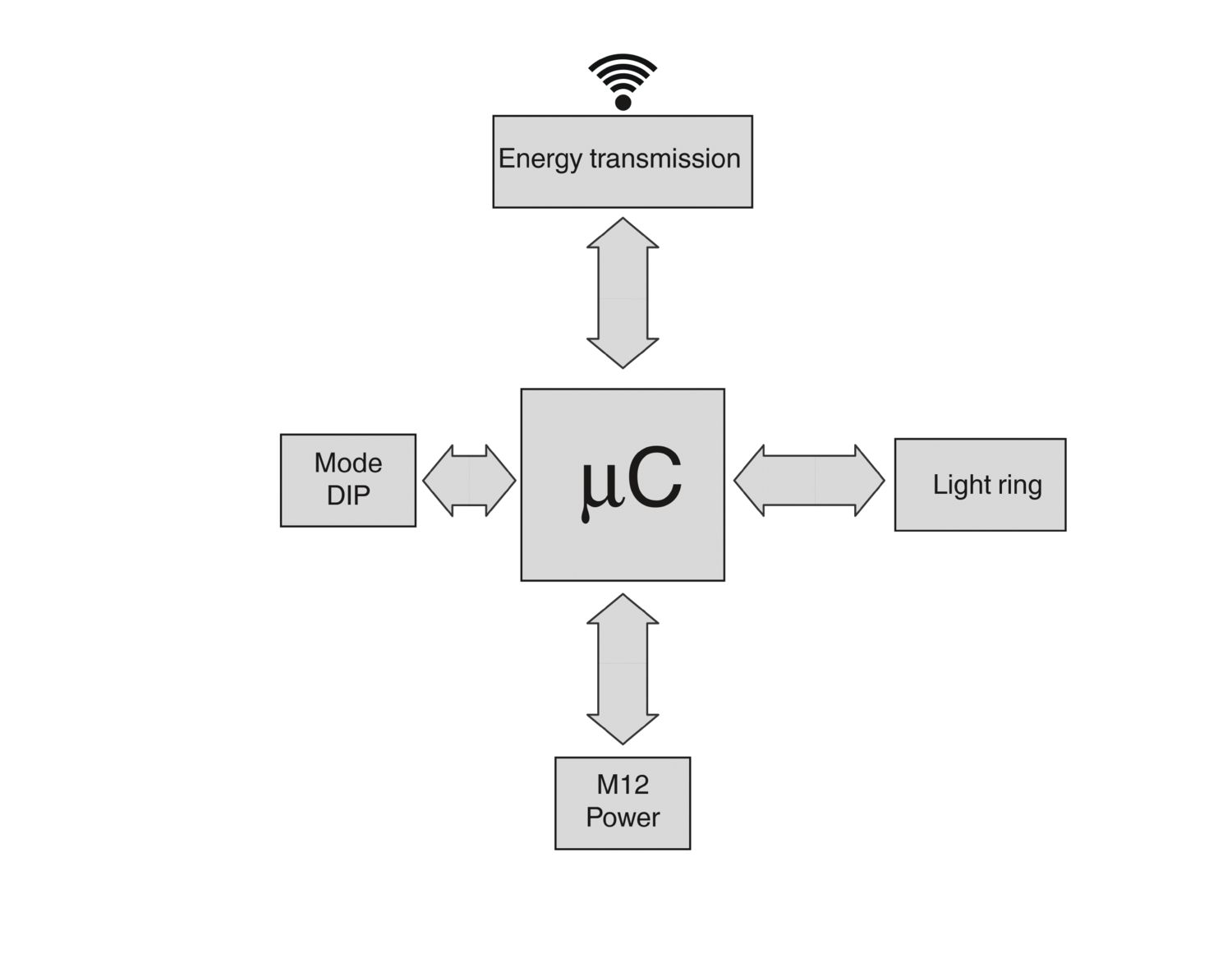

| Product type | Inductive coupler |
| Application | Power |
| MTTF | 331 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| 196 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| 98 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.72 W |
| Supply | |
| Supply voltage range | 19 V DC ... 30 V DC |
| Typical current consumption | 30 mA (without remote coupler, at 24 V DC, at 25°C) |
| 125 mA (with remote coupler, without load, at 24 V DC, at 25°C) | |
| Max. current consumption | ≤ 3.2 A (with remote coupler, 2 A load, input voltage of 19 V DC) |
| Inrush current | ≤ 0.8 A (8 ms at 24 V DC, without remote coupler) |
| ≤ 4.5 A (6 ms at 24 V DC, with remote coupler, without load) | |
| Protective circuit | Transient protection, polarity protection |
| Digital | |
| Description of the input | Digital input |
| Number of inputs | 1 |
| Voltage input signal | 19 V DC ... 30 V DC |
| Switching level "1" signal | 19 V DC ... 30 V DC |
| Signal | |
| Output name | Digital output |
| Number of outputs | 1 |
| Voltage output signal | ≤ 24 V DC |
| Supply | |

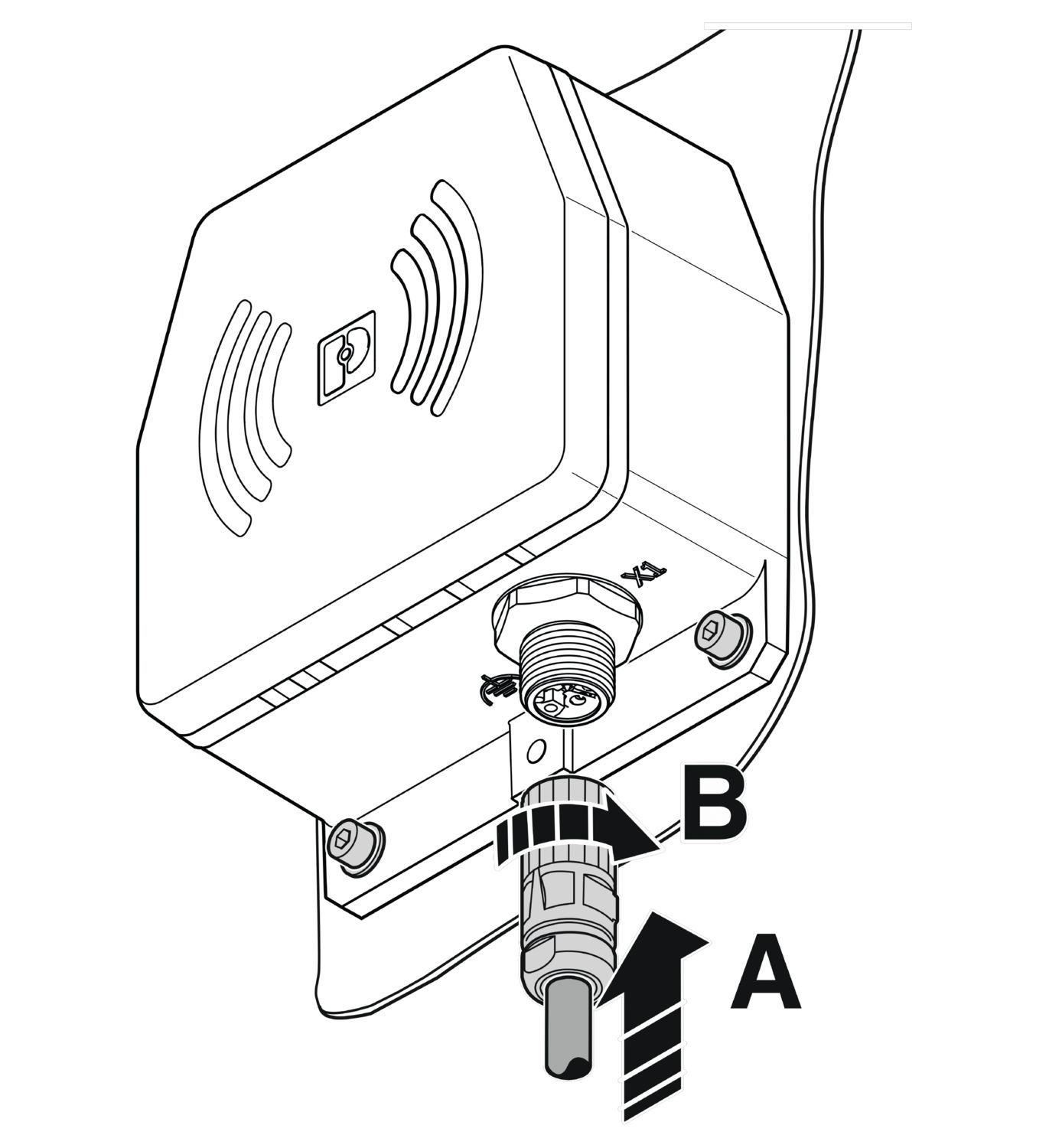

| Connection method | M12 male, A-coded |
| Inductive: Power transmission | |
| Switch-on time | < 50 ms |

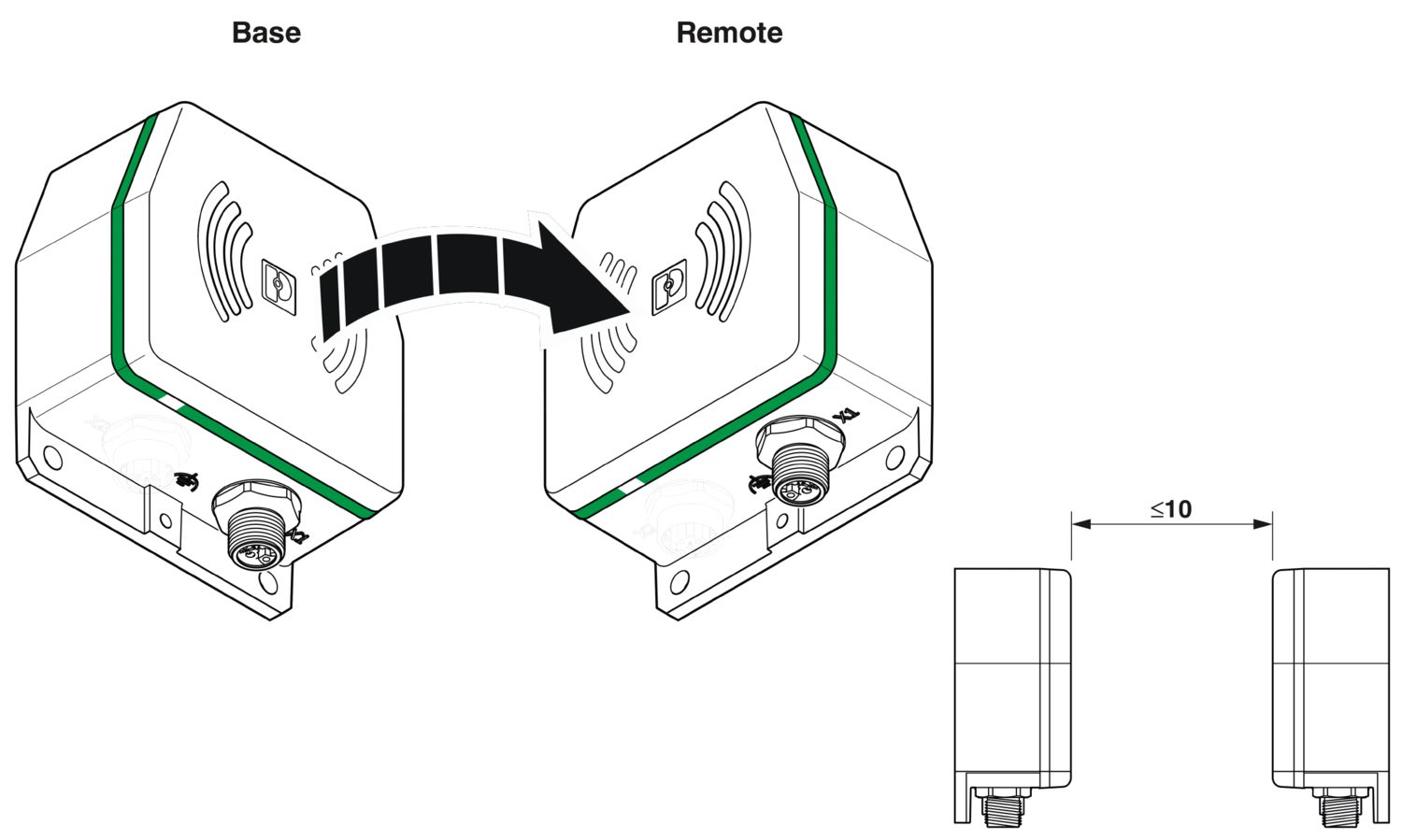

| Range | min. 0 mm |
| ≤ 10 mm (at 60 °C) | |
| ≤ 12 mm (at 25 °C) | |
| Center offset | ± 10 mm |
| Wireless modules that can be connected | 1 (Remote coupler) |
| Frequency range | 100 kHz ... 148.5 kHz (Power transmission) |
| Test field strength | ~ 1.95 µA/m (within 10 m distance) |

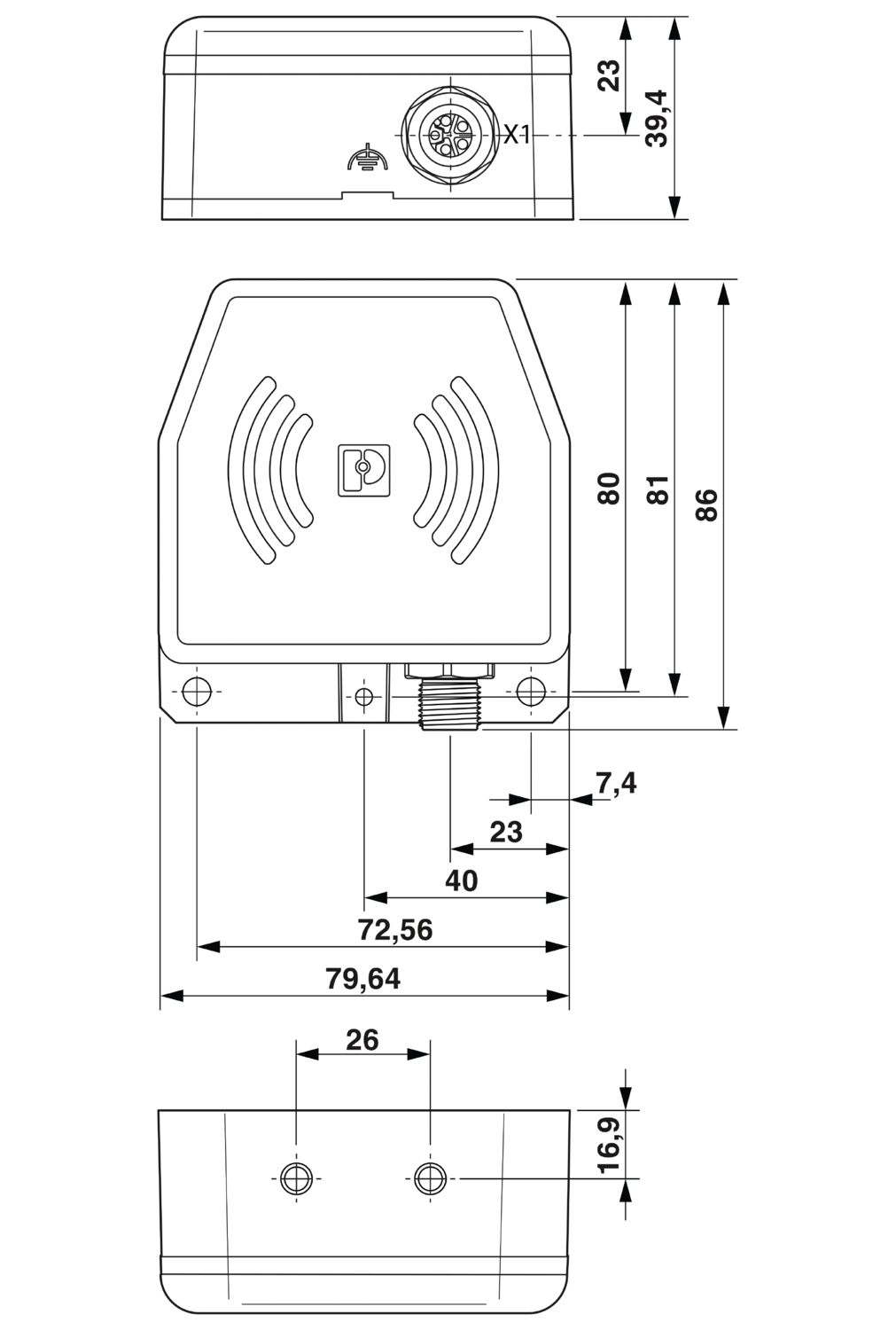

| Dimensional drawing |
|
| Width | 80 mm |
| Height | 86 mm |
| Depth | 39 mm |
| Color (Housing) | black (RAL 9005) |
| Material (Enclosure) | PBT |
| Die-cast zinc | |
| Flammability rating according to UL 94 | V0 |
| Other resistance | Resistant to welding splashes |
| Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6 | : 5 g per spatial direction, 10 Hz ... 150 Hz, amplitude ±0.34 mm |
| Shock in accordance with EN 60068-2-27/IEC 60068-2-27 | : 30 g, 11 ms duration, half-sine shock pulse, three shocks per spatial direction |
| Continuous shock in accordance with EN 60068-2-27/IEC 60068-2-27 | : 10 g, 16 ms duration, half-sine shock pulse, 1,000 shocks per spatial direction |
| Ambient conditions | |
| Degree of protection | IP65 (Manufacturer's declaration) |
| Impact strength | IK06 |
| Ambient temperature (operation) | -20 °C ... 60 °C (observe derating) |
| -20 °C ... 40 °C (in accordance with UL, observe derating) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | 2000 m |
| Permissible humidity (operation) | 10 % ... 95 % |
| Permissible humidity (storage/transport) | 10 % ... 95 % |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| CE | |
| Certificate | CE-compliant |
| Wireless approval, Europe | |
| Note | RED 2014/53/EU |
| UL, USA | |
| Identification | UL 61010 Listed |
| UL 61010-2-201, 2nd Edition | |
| UL 61010-1, 3rd Edition | |
| Certificate | E238705 |
| UL, Canada | |
| Identification | cUL 61010 Listed |
| CSA C22.2 NO. 61010-2-201:18, 2nd Edition | |
| CSA C22.2 NO. 61010-1, 3rd Edition | |
| Certificate | E238705 |
| Wireless approval USA, FCC | |
| Certificate | YG3P2AB |
| KC approval for South Korea | |
| Certificate | R-R-PCK-1234232 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Electrostatic discharge | |
| Standards/regulations | EN 61000-4-2 |
| Electrostatic discharge | |
| Contact discharge | ± 4 kV (Test Level 2) |
| Discharge in air | ± 8 kV (Test Level 3) |
| Comments | Criterion B |
| Electromagnetic HF field | |
| Standards/regulations | EN 61000-4-3 |
| Electromagnetic HF field | |
| Frequency range | 80 MHz ... 1 GHz (Test Level 3) |
| Field intensity | 10 V/m |
| Comments | Criterion A |
| Fast transients (burst) | |
| Standards/regulations | EN 61000-4-4 |
| Fast transients (burst) | |
| Input | ± 2 kV (Test Level 3 - asymmetrical) |
| Output | ± 2 kV (Test Level 3 - asymmetrical) |
| Signal | ± 2 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion B |
| Surge current load (surge) | |
| Standards/regulations | EN 61000-4-5 |
| Surge current load (surge) | |
| Input | ± 0.5 kV (Test Level 1 - symmetrical) |
| ± 1 kV (Test Level 2 - asymmetrical) | |
| Output | ± 1 kV (Test Level 2 - asymmetrical) |
| Signal | ± 1 kV (Test Level 2 - asymmetrical) |
| Comments | Criterion B |
| Conducted interference | |
| Standards/regulations | EN 61000-4-6 |
| Conducted interference | |
| Frequency range | 0.15 MHz ... 80 MHz (Test Level 3 - asymmetrical) |
| Comments | Criterion A |
| Voltage | 10 V (80% amplitude modulation with 1 kHz) |
| Emitted interference | |
| Standards/regulations | EN 55016-2-3 |
| Comments | Class A, industrial applications |
| Criteria | |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Free from substances that could impair the application of coating | VDMA 24364:2018-05 |
| Other resistance | Resistant to welding splashes |
| Standards/regulations | EN 60204-1 (PELV) |
| Standard designation | Protective extra-low voltage |

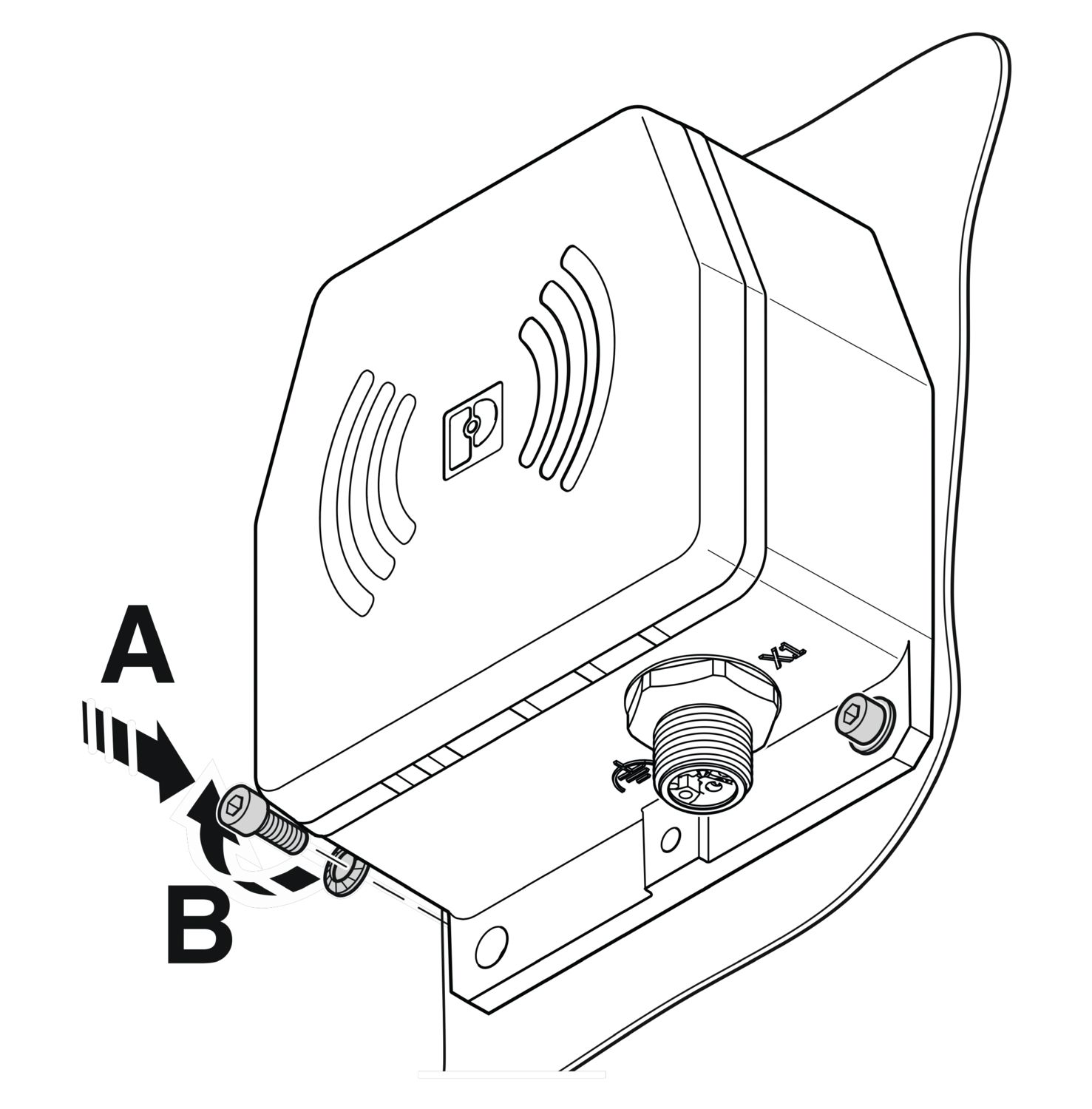

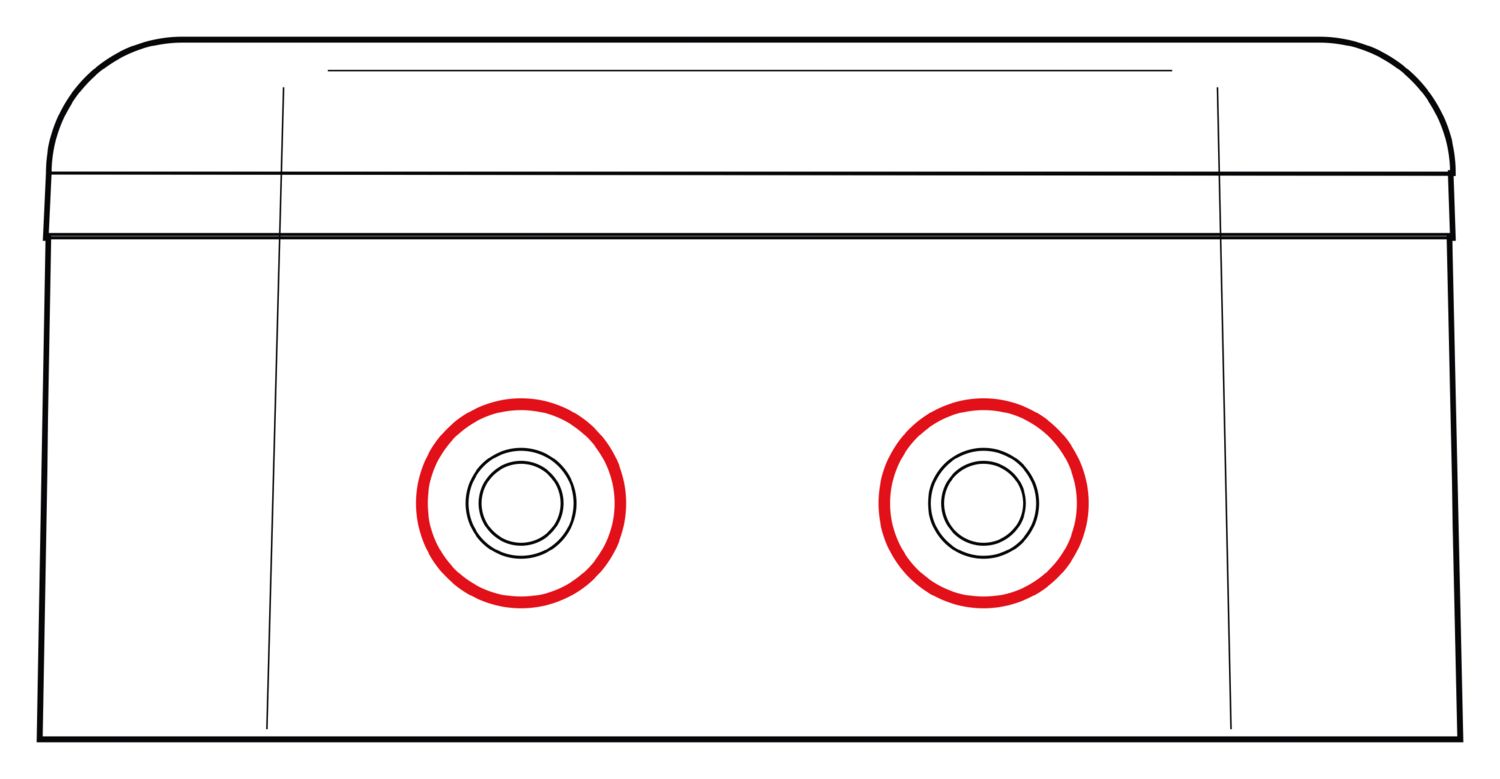

| Mounting type | Panel mounting |
| Assembly note | Observe derating |
| Mounting position | any |
KC
Approval ID: R-R-PCK-1234232cULus Listed
Approval ID: E238705
Your advantages
Contactless - and therefore no wear and no maintenance
High power in a compact housing
All-round visible diagnostics with light ring on the housing

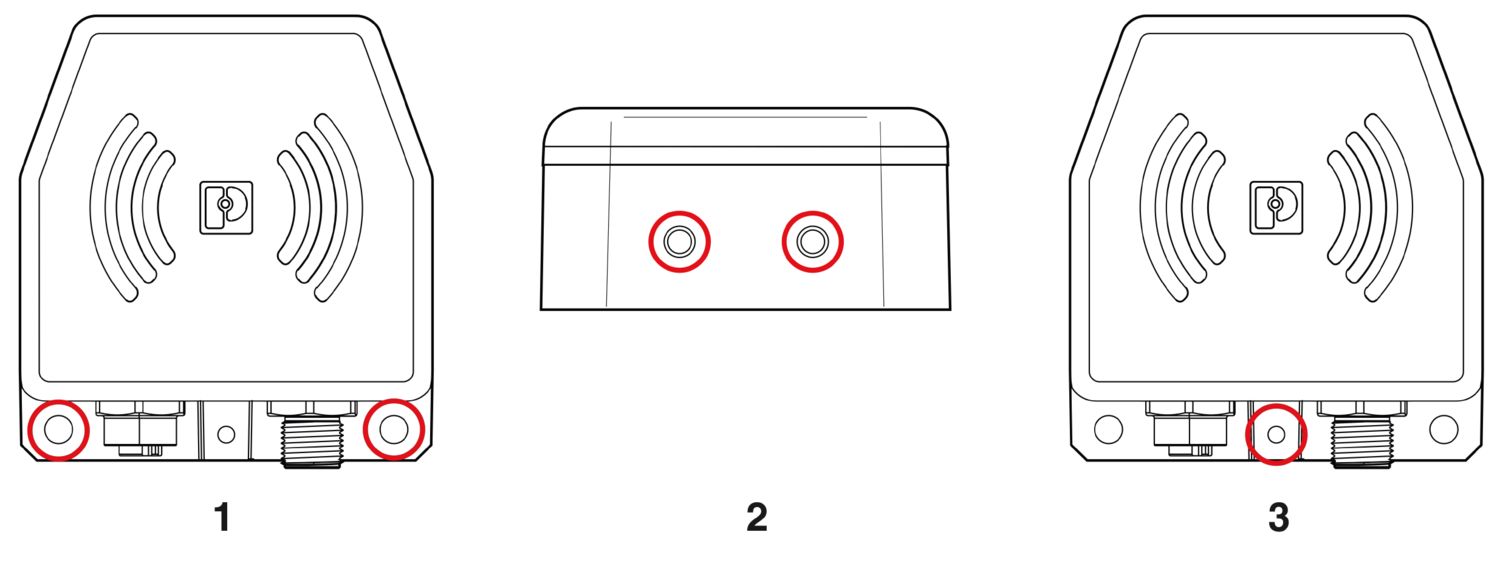

High degree of mounting freedom with flexible proximity options
Plug and Play - as easy as a plug
Degree of protection IP65
Frequently asked questions
When do I use the A-coded device variants (NEARFI PD, NEARFI P, NEARFI D)?
The A-coded device variants can be used as replacements in existing systems and applications. The A-coded devices are incompatible with the L-coded devices (NEARFI 2xxx).
When do I use the L-coded device variants (NEARFI 2000, NEARFI 200/300, NEARFI 2200)?
The L-coded device variants can be used for new projects. The L-coded devices enable doubling of the range during data transmission, power duplication through parallel connection, and other functions. The L-coded devices are incompatible with the A-coded devices.
Do the devices meet the cybersecurity requirements of the Radio Equipment Directive (RED)?
The requirements of Delegated Act 2022/30 of the RED 2014/53/EU with regard to article 3.3 d,e,f do not apply to the product.
Article 3.3, d: The devices do not have active access to network communication They are not able to disrupt network commu...
View more
The requirements of Delegated Act 2022/30 of the RED 2014/53/EU with regard to article 3.3 d,e,f do not apply to the product.
Article 3.3, d: The devices do not have active access to network communication They are not able to disrupt network communication or misuse resources. Therefore, this requirement does not apply to the devices.
Article 3.3, e: Not applicable to the devices, as no personal data is processed and the privacy of end users is not affected
Article 3.3, f: Not applicable, as the devices are not used for financial transactions
