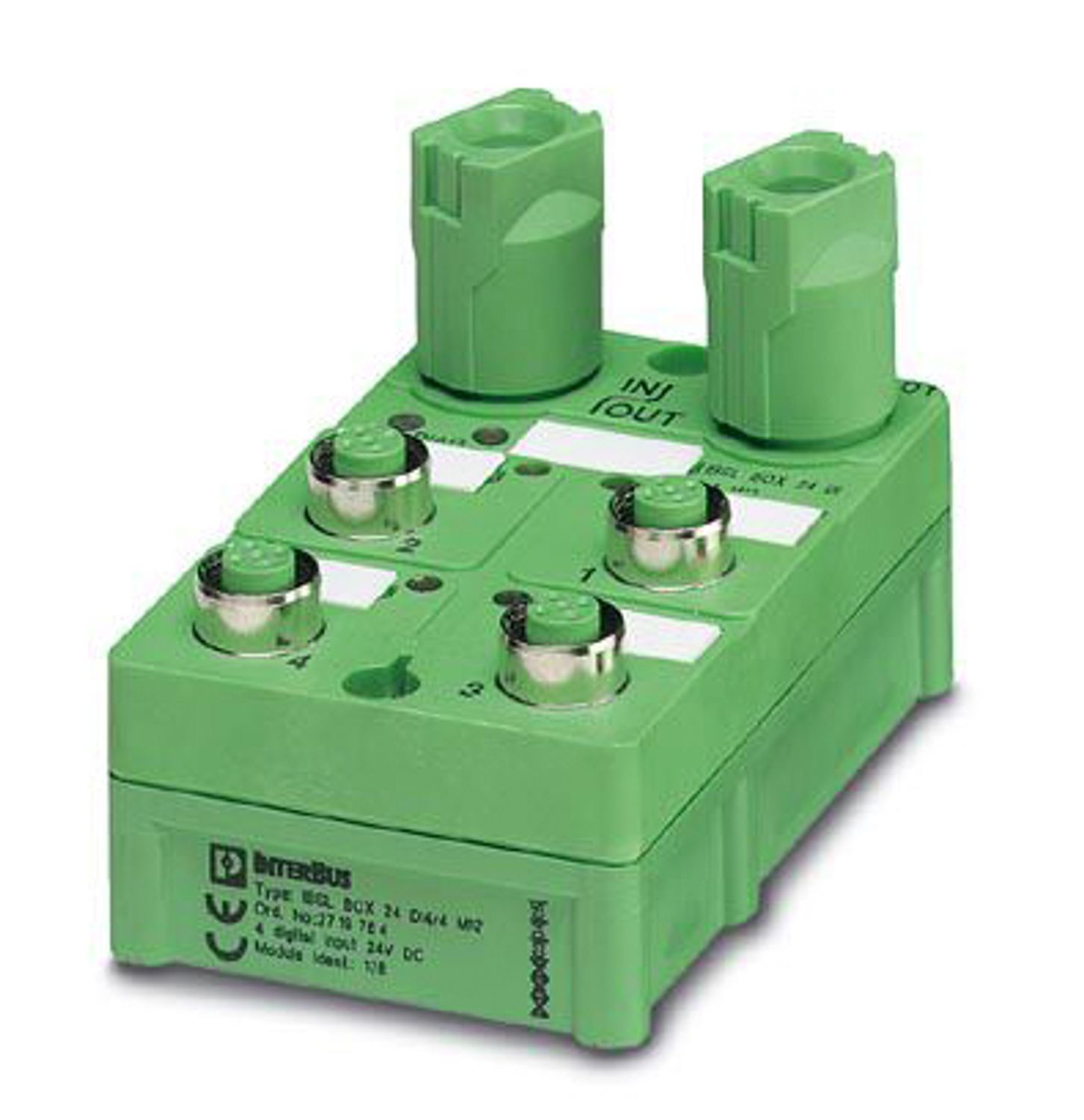

IB L2 BOX 24 DI 4/4 M12
-
I/O module
2731982
Digital input module, 4 digital inputs, 24 V DC, 4-conductor connection technology, IP65/IP67 degree of protection
Product details
| Supply | |
| I/O voltage | 24 V DC (via INTERBUS-Loop 2) |
| I/O voltage range | 19.2 V DC ... 30 V DC |
| Residual ripple | ± 1.2 V DC |
| Typical current consumption | 40 mA (from INTERBUS-Loop 2) |
| Digital | |
| Number of inputs | 4 |
| Input voltage | 24 V DC |
| Input voltage range "0" signal | 0 V ... 5 V |
| Input voltage range "1" signal | 13 V ... 30 V |

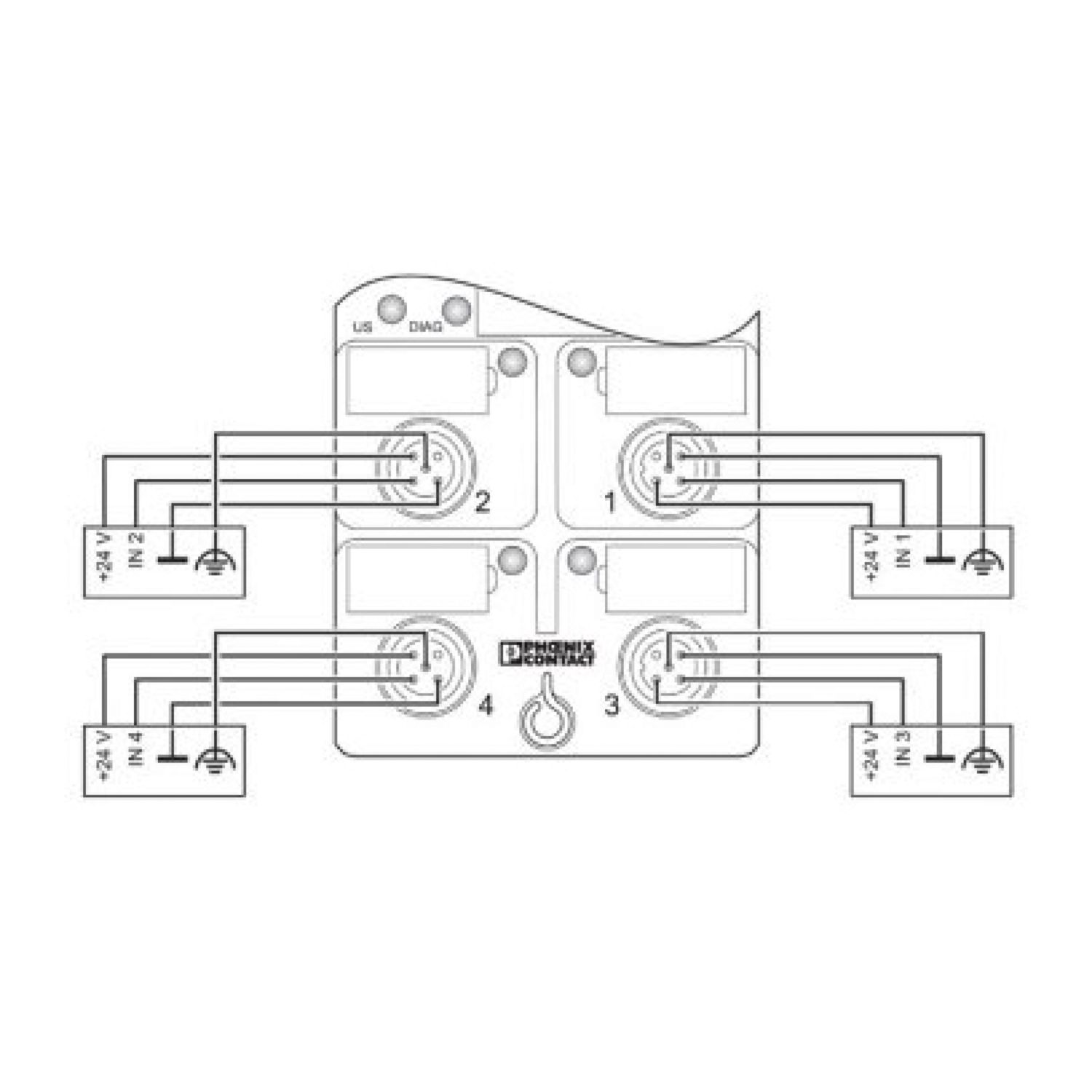

| Connection technology | 4-conductor |
| Typical input current per channel | 3 mA (at 24 V DC) |
| Connection method | QUICKON fast connection |
| Transmission physics | Copper |

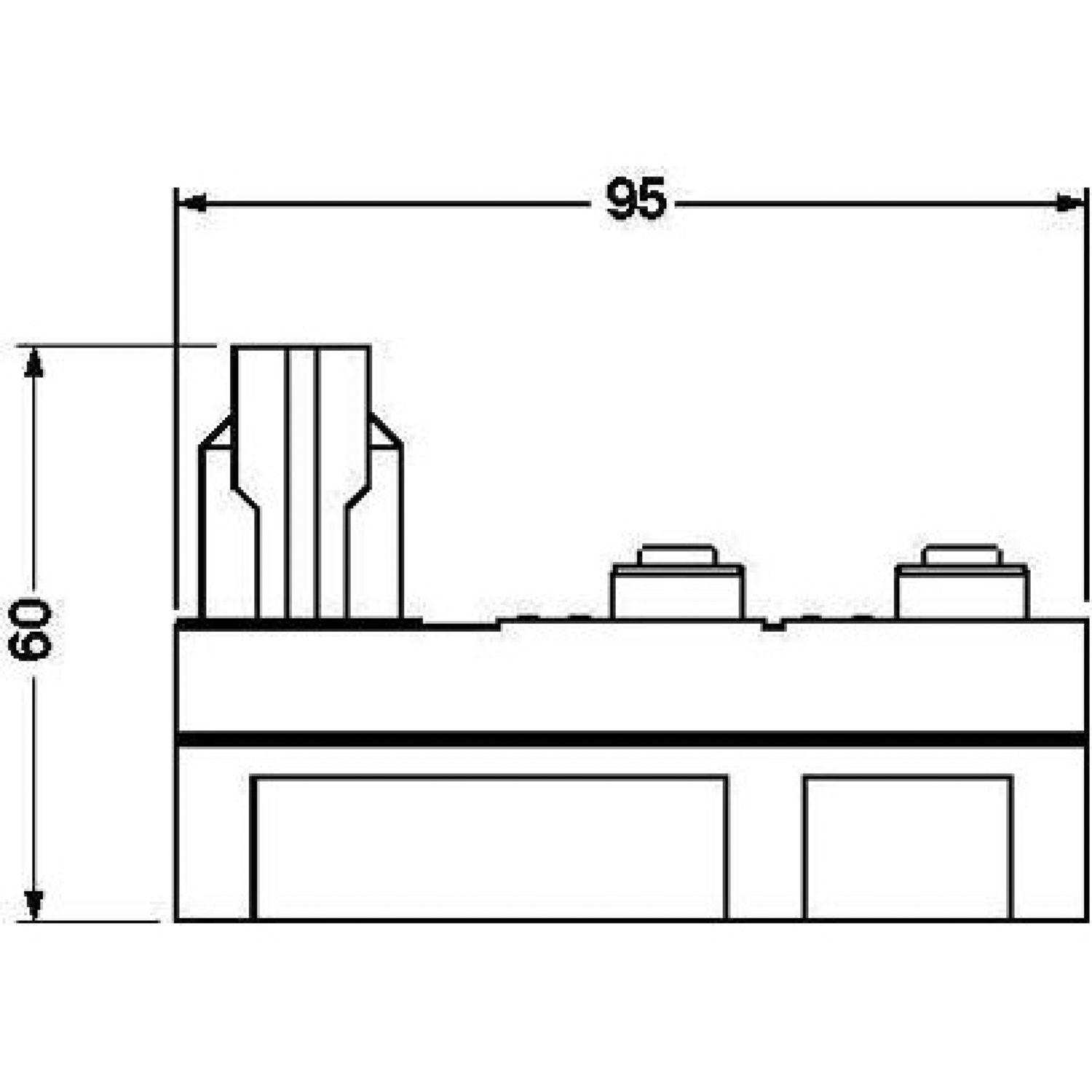

| Dimensional drawing |
|
| Length | 60 mm |
| Color | green |
