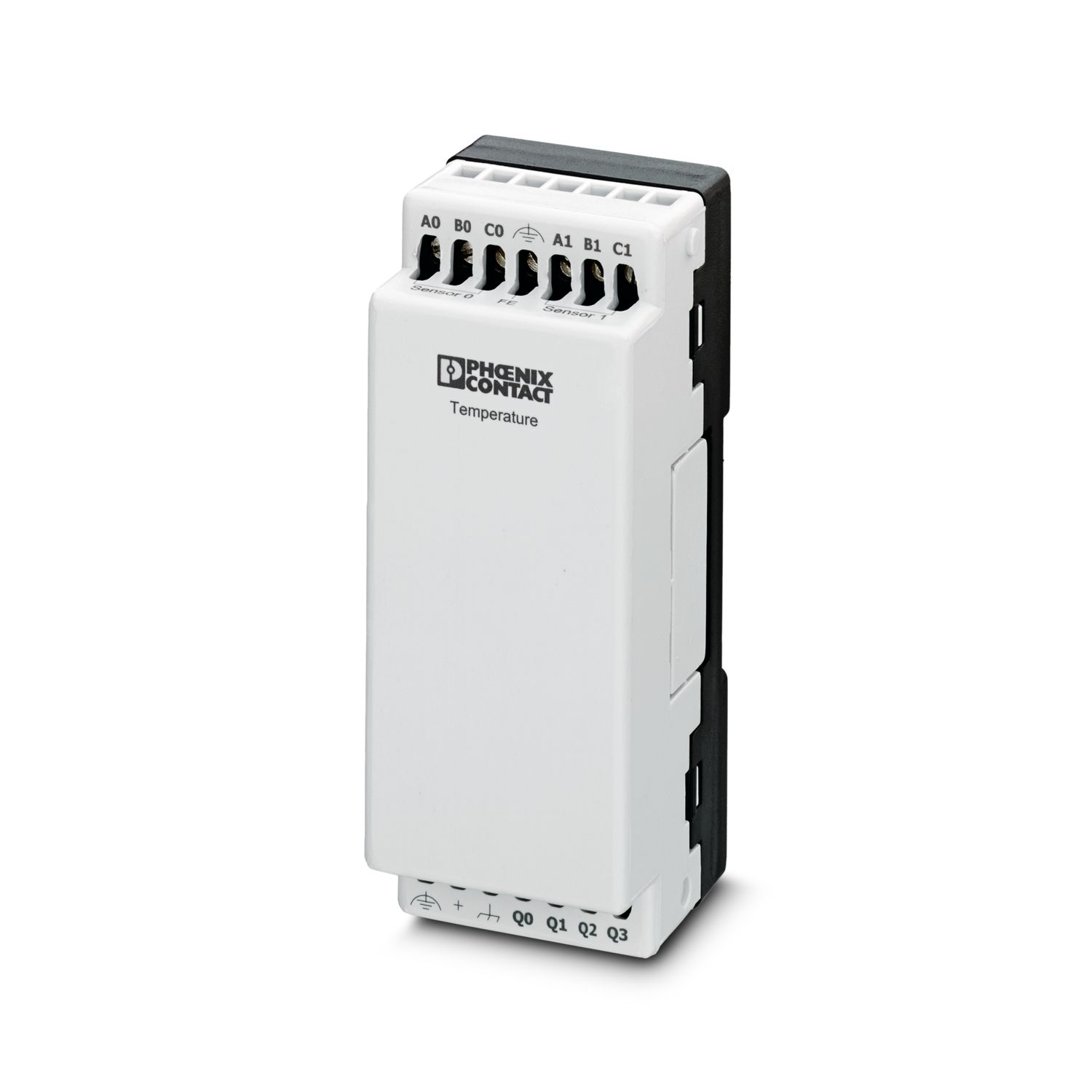

NLC-IO-2RTD/UTH-4QTP-01A
-
I/O extension module
2701671
I/O extension module for use with Nanoline base unit. Equipped with 2 temperature inputs and 4 PNP transistor outputs.
Product details
| Product type | Extension module |
| Mounting position | Attaches to DB-9 connector on right-side of base unit |
| Supply: Module electronics | |
| Supply voltage | 24 V |
| Analog | |
| Description of the input | Inputs for thermocouples or linear voltage |
| Number of inputs | 2 |
| Connection method | Individual wires |
| Connection technology | 2 or 3-wire (shielded) |
| Sensor types (RTD) that can be used | Pt 100, Pt 1000 |
| Sensor types that can be used (TC) | B, E, J, K, N, R, S, T |
| Protective circuit | Thermal fuse |
| Digital: | |
| Output description | PNP outputs |
| Connection method | Screw connection |
| Number of outputs | 4 |
| Protective circuit | Thermal fuse |
| Maximum output current per channel | 0.5 A |
| Maximum output current per module / terminal block | 2 A |
| Nominal output voltage | 24 V DC |
| Nominal load, inductive | 7.2 VA (1.2 H, 80 Ω) |
| Nominal load, lamp | 7.2 W |
| Nominal load, ohmic | 7.2 W (80 Ω) |
| Maximum operating frequency with ohmic nominal load | 100 Hz |
| Connection method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 12 ... 24 |
| Dimensional drawing |
|
| Width | 40 mm |
| Height | 103.5 mm |
| Depth | 43 mm |
| Color | white |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 60 °C |
| Degree of protection | IP20 |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 0 % ... 90 % (at 25 °C) |
| Mounting type | DIN rail mounting |
| Mounting position | Attaches to DB-9 connector on right-side of base unit |
