TG 40 - Housing - 2788896 | Phoenix Contact

The TG 40 aluminum housing is equipped with two Pg13,5 cable screw connections positioned opposite each other on either side. The housing cover is attached to the base using four non-rusting and captive screws.TG 40 is supplied with DIN rail NS 35/7.5. On the DIN rail, five sections of 17.5 mm width each are available for the installation of protection devices. Degree of protection: IP65. IEC 529/EN 60529/DIN VDE 0470-1. Installation width 5 div.

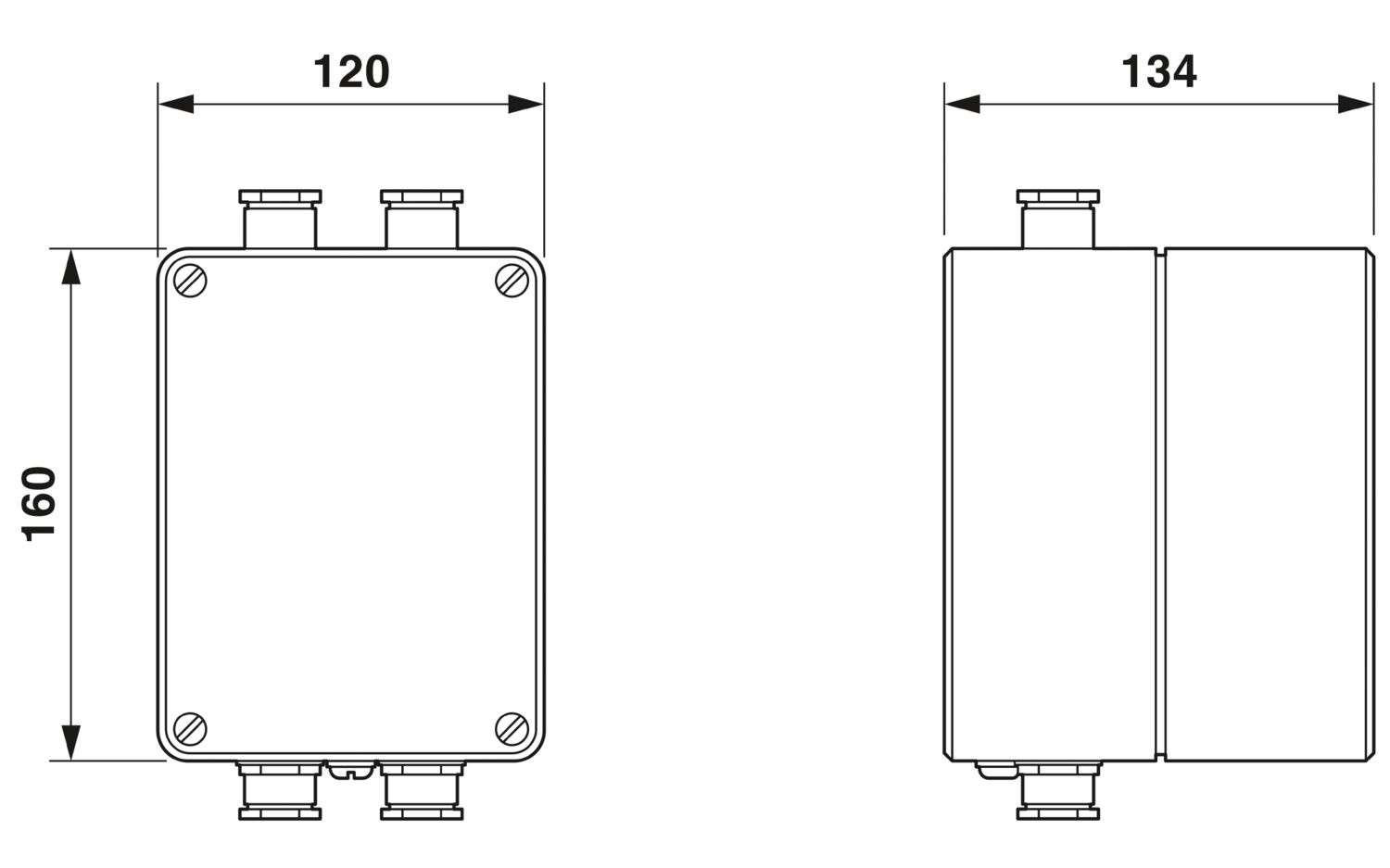

Dimensional drawing
Width	120 mm
Height	160 mm
Depth	134 mm

Item number	2788896
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	CL211Z
GTIN	4017918071950
Weight per piece (including packing)	1,780 g
Weight per piece (excluding packing)	1,704.7 g
Customs tariff number	76169910
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TG 40 - Housing

2788896

Product details

Compatible products

Mechanical data
Open side panel	No

Ambient conditions
Degree of protection	IP65
