C-FCI 6/M6
-
Fork-type cable lug
3240044

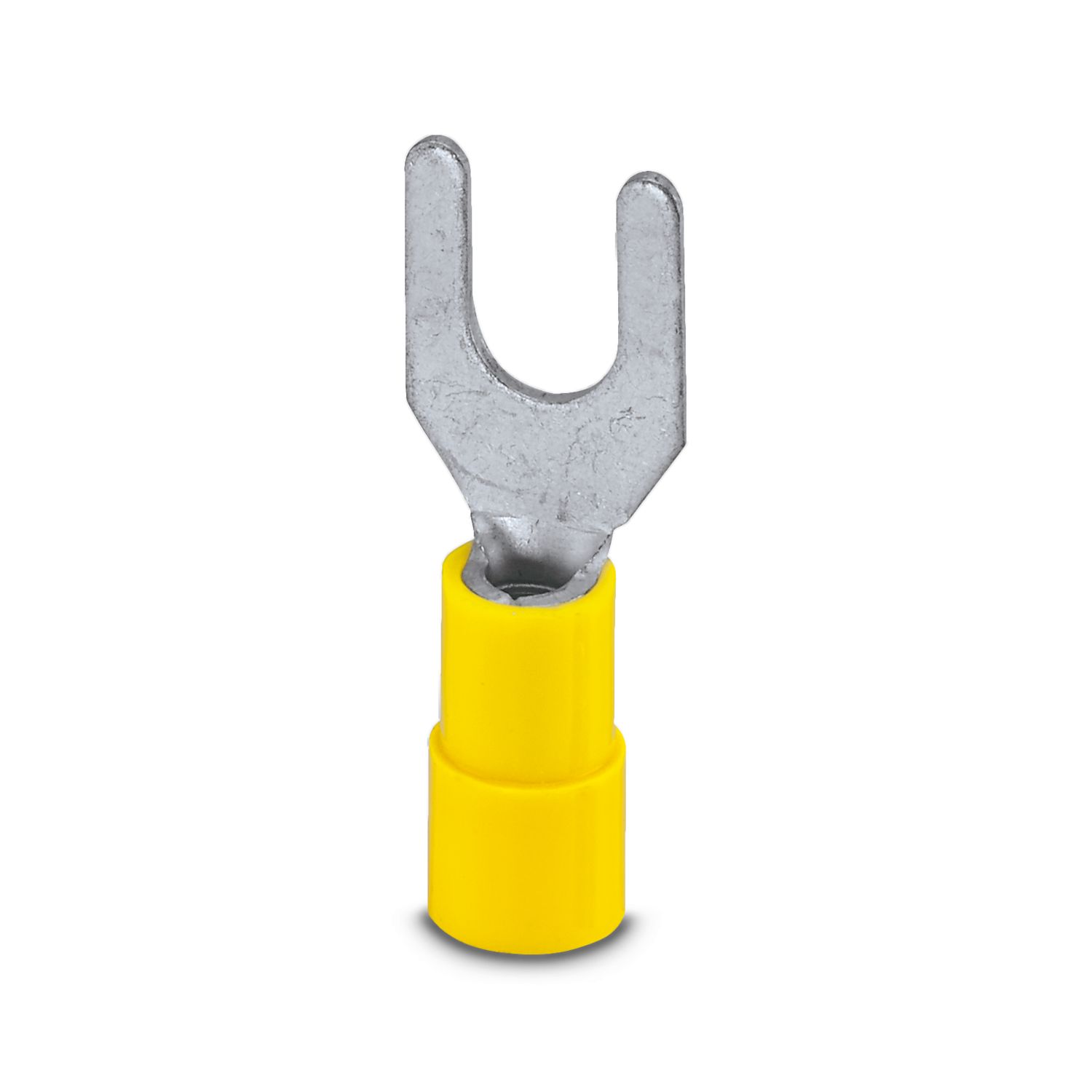

Fork-type cable lug, yellow, 4 - 6 mm2, M6
Product details
| Product type | Connector |
| Product property | With “Easy Entry” system |
| Brazed | |
| PA-insulated |
| Dimensional drawing |
|
| Width | 12 mm |
| Sleeve length | 30.7 mm |
| Length of the insulating material sleeve | 14 mm |
| Maximum stripping length | 9 mm |
| Distance from the center to the insulating material sleeve | 9.9 mm |
| Min. material thickness | 1 mm |
| Inner dimensions of the insulating collar | 6.6 mm |
| Internal dimensions | |
| Internal diameter | 6.5 mm |
| Color | yellow (RAL 1018) |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Coating | tin-plated |
| Insulating material | PA |
| Components | halogen-free |
| Technical data | |
| Sleeve length | 30.7 mm |
Your advantages
The fork-type cable lugs without plastic sleeve feature a hard-soldered neck. In conjunction with the CRIMPFOX‑RC ... and CRIMPFOX‑RCI ... pliers they can be used to achieve maximum conductor pull-out forces
The insulated versions are halogen-free and feature "EASY ENTRY" technology
