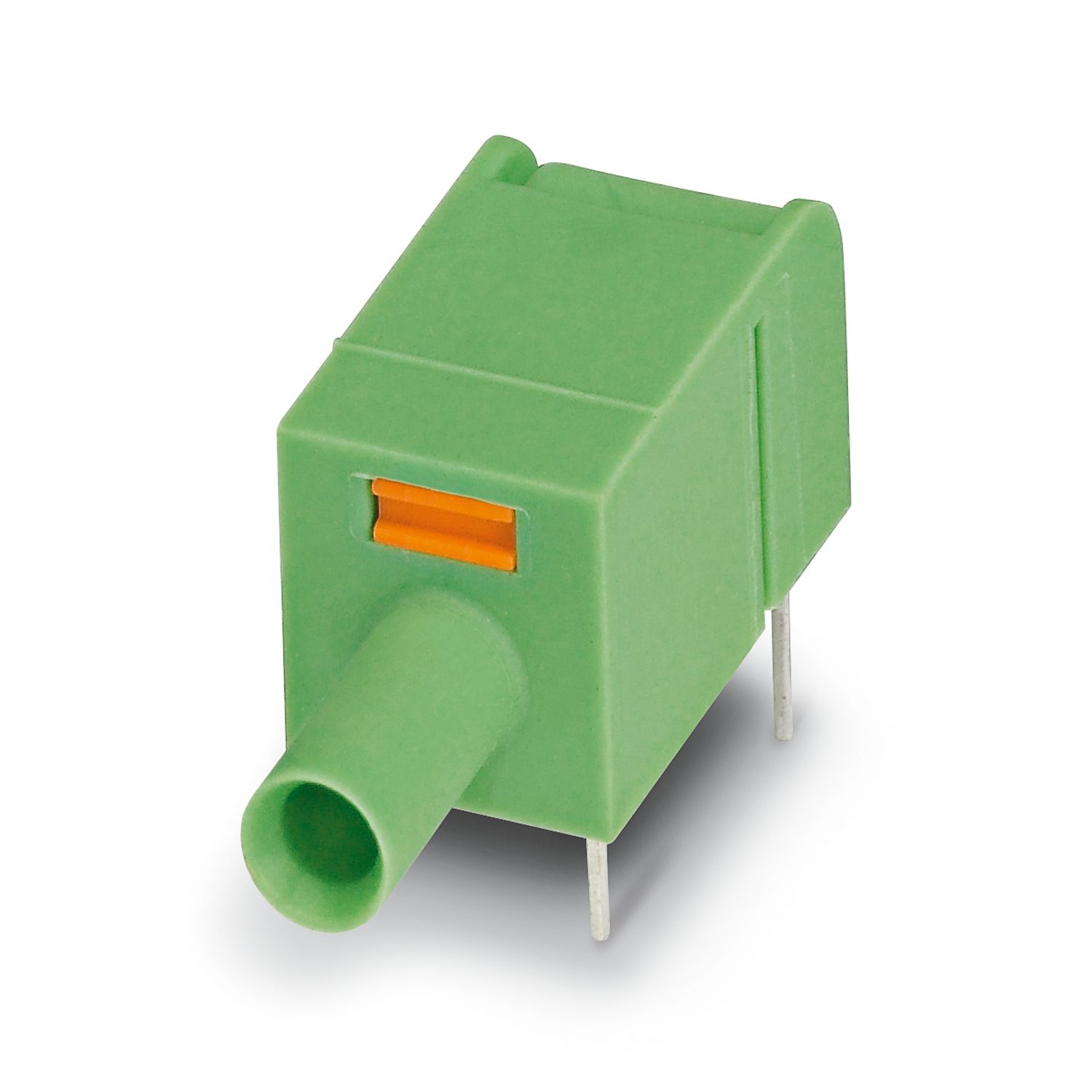

FOPT 2,2-T
-
FO PCB terminal block
1907911
Printed circuit board terminal, nominal cross section: 0 mm2, number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: FOPT, pitch: 10.16 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 6 mm, number of solder pins per potential: 4, type of packaging: packed in cardboard. Green housing with transmit diode/fiber optics that can be connected: polymer fiber (according to IEC 60793-2 type A4a, diameter of outer sheath: 2.2 mm)/data rate: 5 Mbps/transmission distance: max. 50 m/detailed data sheet in download area
Product details
| Product type | Printed circuit board terminal |
| Product family | FOPT |
| Product line | COMBICON Terminals M |
| Type | FO printed circuit terminal block with transmit diode |
| Number of positions | 1 |
| Pitch | 10.16 mm |
| Number of connections | 1 |
| Number of rows | 1 |
| Number of potentials | 1 |
| Pin layout | Linear pinning |
| Solder pins per potential | 4 |
| Conductor connection | |
| Connection method | Push-in spring connection |
| Mounting type | Wave soldering |
| Pin layout | Linear pinning |
| Material data - contact | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy |
| Material data - housing | |
| Color (Housing) | green (6021) |

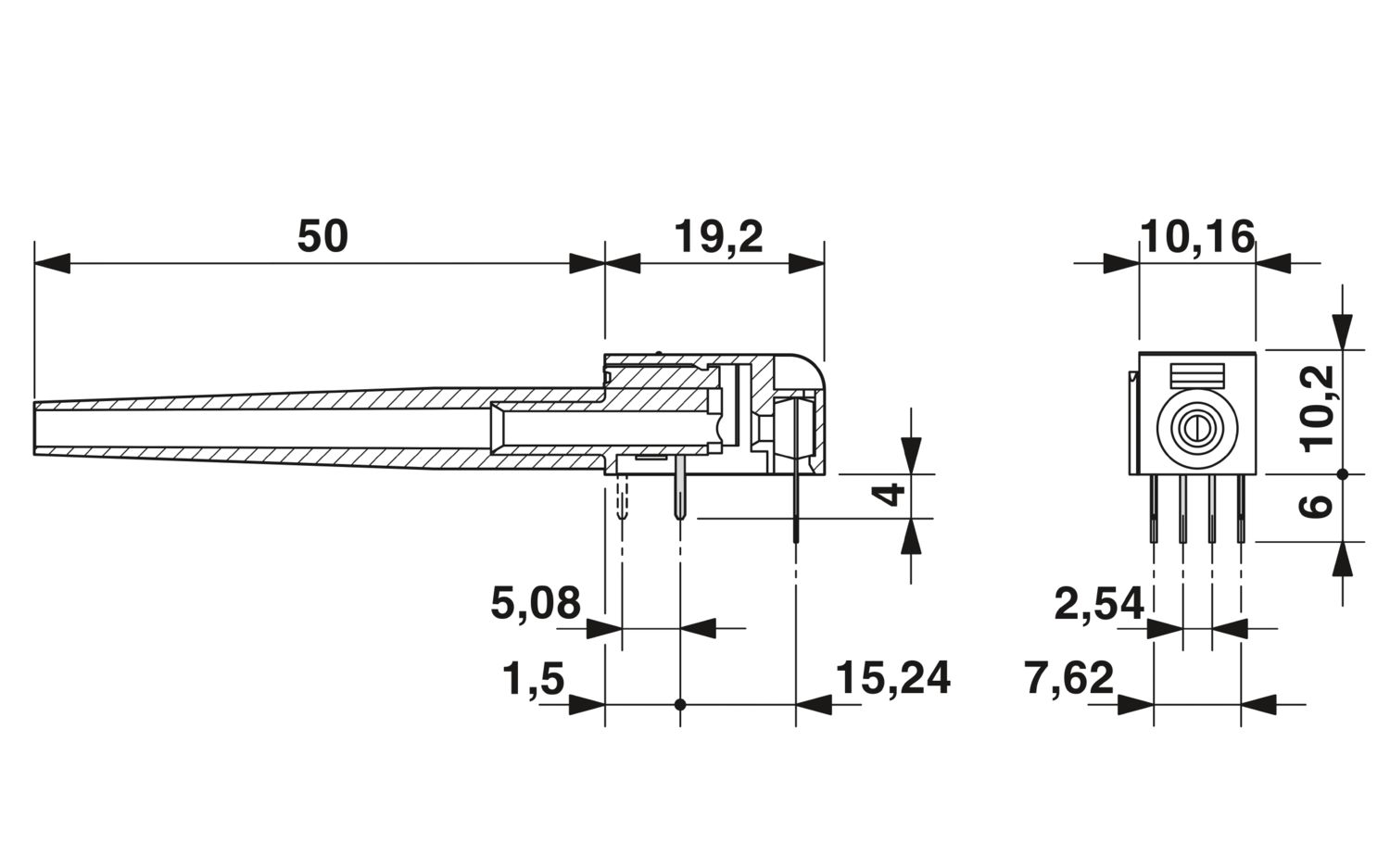

| Dimensional drawing |
|
| Pitch | 10.16 mm |
| Width [w] | 10.97 mm |
| Height [h] | 16.6 mm |
| Length [l] | 29.2 mm |
| Installed height | 10.6 mm |
| Solder pin length [P] | 6 mm |

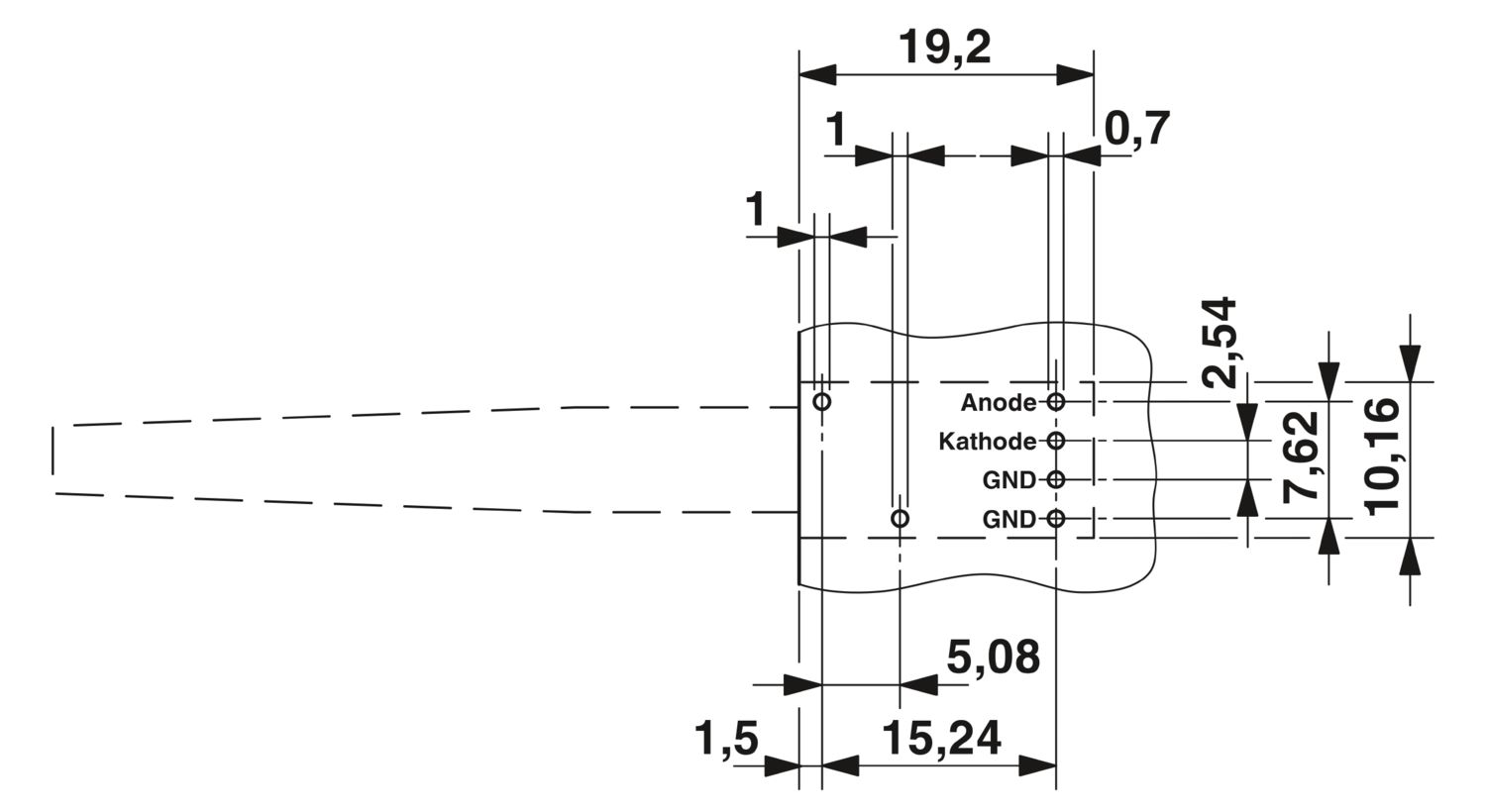

| PCB design | |
| Hole diameter | 0.7 mm |
| Ambient conditions | |
| Ambient temperature (operation) | 0 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Type of packaging | packed in cardboard |
Your advantages
Connection of fiber optics without fiber pretreatment
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
