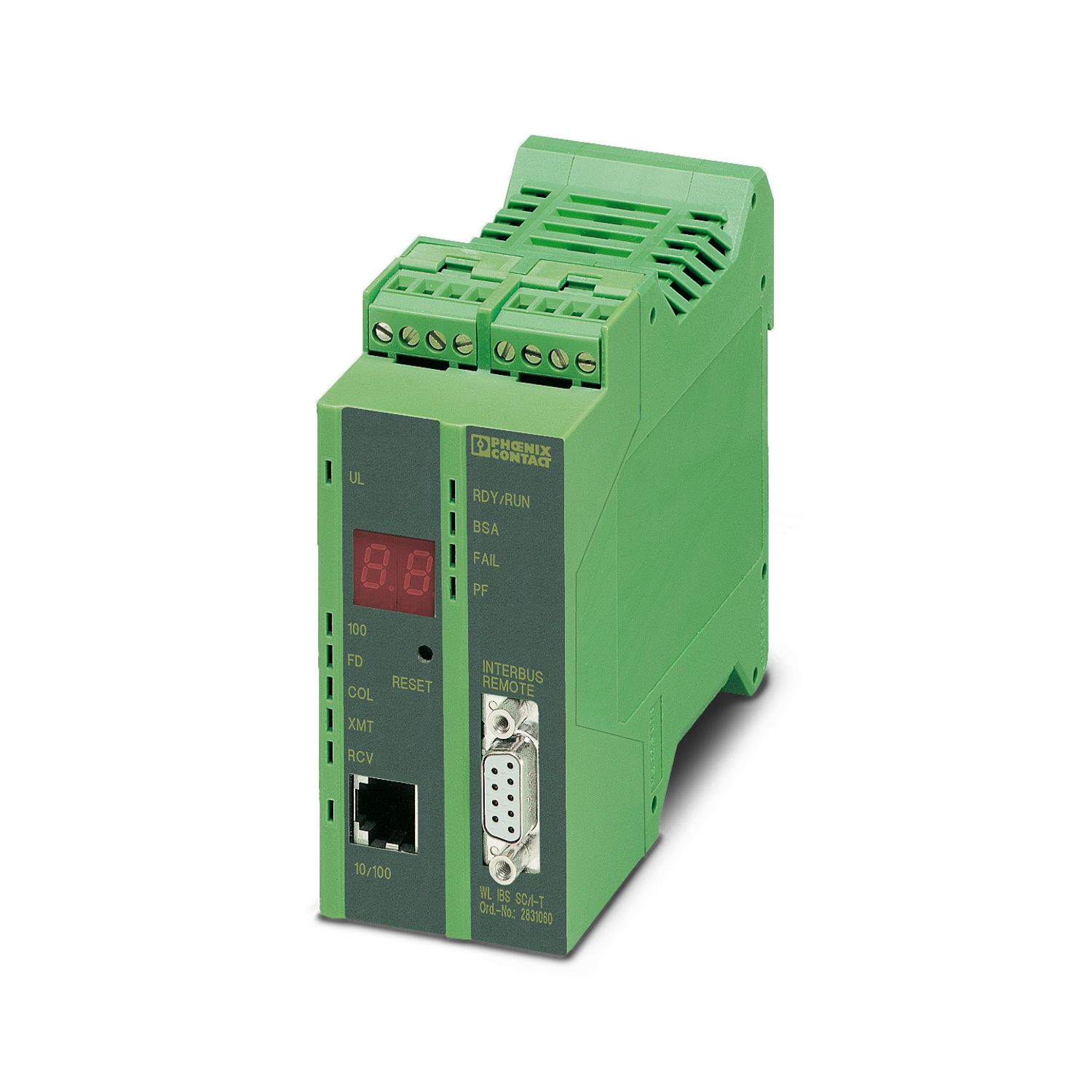

FL IBS SC/I-T - Ethernet gateway
FL IBS SC/I-T
-
Ethernet gateway
2831060
INTERBUS Ethernet gateway, Generation 4
Free download available.
Downloads
Product details
Expand all
Collapse all
Technical data
Product properties
Type
Stand-Alone
Insulation characteristics
Protection class
III (IEC 61140, EN 61140, VDE 0140-1)
System properties
INTERBUS-Master
Amount of process data
256 words (4096 binary inputs/outputs)
Number of supported devices
512 (of which 256 are remote bus devices/segments)
Number of devices with parameter channel
62
INTERBUS-Slave
Amount of process data
256 words (4096 binary inputs/outputs)
Number of PCP words
256 words (4096 binary inputs/outputs)
Functionality
Basic functions
Ethernet: Terminal equipment, complies with IEEE 802.3, TCP/IP protocol, BootP and TFTP-capable
INTERBUS: Generation 4 master
System requirements
Supported browsers
Netscape Communicator versions 4.5 and up or Internet Explorer versions 4.01 and up
Electrical properties
Power consumption
typ. 4.8 W
Maximum power dissipation for nominal condition
4 W
Test section
500 V AC 50 Hz 1 min
Transmission medium
Copper
Supply
Supply voltage
24 V DC (via COMBICON; max. conductor cross section 2.5 mm²)
Supply voltage range
18.5 V DC ... 30.2 V DC
Power supply connection
Via COMBICON, max. conductor cross section 2.5 mm²
Residual ripple
3.6 V
PP
(within the permitted voltage range)
Typical current consumption
200 mA (to U
S
)
Connection data
Connection method
10/100 Base-T(X), auto negotiation
Interfaces
Ethernet
Connection method
1 port 10/100Base-T(X), auto negotiation
Transmission length
100 m
INTERBUS master interface
Connection method
9-pos. D-SUB socket strip
Diagnostics INTERBUS
Connection method
6-pos. MINI-DIN female connector
Signaling
Status display
Two-digit, seven-segment display and LEDs: UL (communications voltage), COL (collision), Link, Receive, Transmit, Full Duplex, 100 Mbps Wirespeed, INTERBUS: RDY/RUN, BSA, FAIL, PF
Dimensions
Width
45 mm
Height
99 mm
Depth
117 mm
Material specifications
Color
green
Mechanical tests
Shock in accordance with EN 60068-2-27/IEC 60068-2-27
: Operation: 25g, 11 ms duration, semi-sinusoidal shock impulse
: Storage/Transport: 50g, 11 ms duration, semi-sinusoidal shock impulse
Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6
: Operation/Storage/Transport: 5g, 150 Hz, Criterion 3
Free fall in accordance with IEC 60068-2-32
: 1 m
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 55 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Permissible humidity (operation)
30 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
30 % ... 95 % (non-condensing)
Air pressure (operation)
86 kPa ... 108 kPa (1500 m above sea level)
Air pressure (storage/transport)
66 kPa ... 108 kPa (3500 m above sea level)
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37
Sulfur dioxide (SO
2
) 10 ±0.3 cm
3
/m
3
, hydrogen sulfide (H
2
S) 1 ±0.3 cm
3
/m
3
, at 25°C and 75% humidity and exposure of four days
EMC data
Electromagnetic compatibility
Conformance with EMC Directive 2004/108/EC
Conformance with EMC directives
IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion B
IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion B
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-6-2 EN 55011 (emitted interference) Class A
Noise immunity
EN 61000-6-2:2005
Noise emission
Standards/regulations
EN 50081-2
Standards and regulations
Free from substances that could impair the application of coating
In acc. with VW specification
Mounting
Mounting type
DIN rail mounting
Commercial data
Item number
2831060
Packing unit
1 pc
Minimum order quantity
1 pc
Product key
DRECAC
GTIN
4017918818531
Weight per piece (including packing)
333.1 g
Weight per piece (excluding packing)
316.4 g
Customs tariff number
85389091
Country of origin
DE
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c), 7(a), 7(c)-I
EU REACH SVHC
REACH candidate substance (CAS No.)
Lead
(CAS: 7439-92-1)
