HEAVYCON ADVANCE EMC sleeve housing B16, with screw locking, height 100 mm, with 1xM32 support, and straight cable outlet
Product details
General
For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K
Product type
Housing with screw locking
Housing type
Sleeve housing
Application
EMC
Type
B16
Type of the screw connection
1x M32
Fixing screws
M6
Cable outlet
straight
Tightening torque
3 Nm (Locking screw)
Width
57 mm
Height
100 mm
Length
126 mm

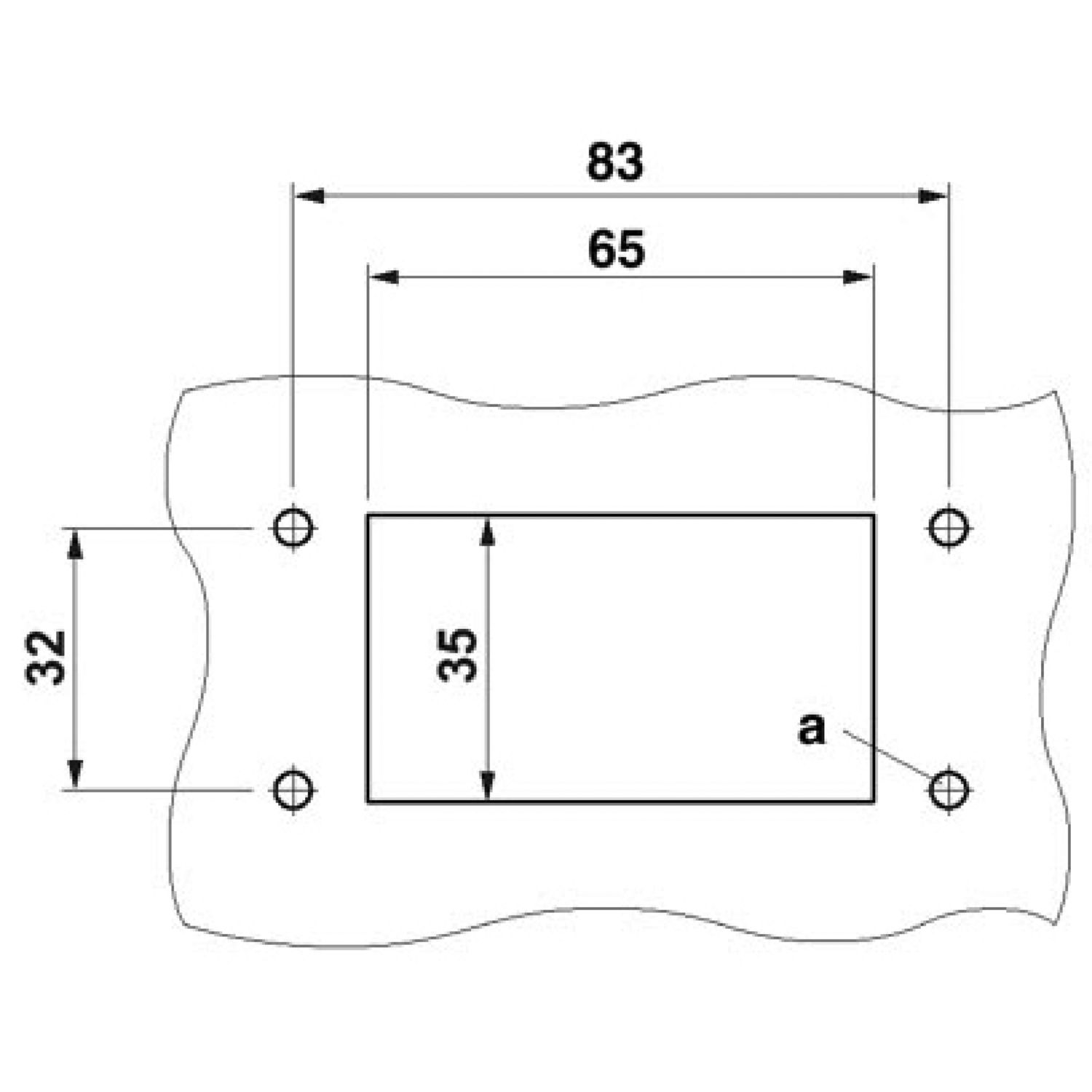

Installation dimensions
Width of the assembly cutout
35 mm
Length of the assembly cutout
86 mm
Seal material
NBR, conductive
Housing material
Die-cast aluminum
Housing surface material
EMC coating, silver
Locking latch material
Stainless steel
Ambient conditions
Degree of protection
IP66
IP68 (0.2 bar/24 h)
IP69K
Enclosure rating (NEMA)
4 (NEMA 250)
4X (NEMA 250)
6P (NEMA 250)
NEMA 250
Ambient temperature (operation)
-40 °C ... 125 °C
Mechanical data
Type of the screw connection
1x M32
Assembly note
In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel.
To ensure optimum shielding, any insulating power coating must be removed from the profile gasket area on the control cabinet panel. Tightening torque of locking screw: 3 Nm.
