UEG-EU-BE
-
Electronics housing
2956819
Electronics housing base element with snap-on foot for mounting on standard DIN rail, 35 mm wide
This product needs further products for operation.
Mandatory accessories
Product details
| Product type | Enclosure bottom part |
| Housing type | Component housing |
| Housing series | UEG |
| Product family | UEG-EU |
| Type | Housing base element, side panels necessary to complete the module |
| Type | Base element |

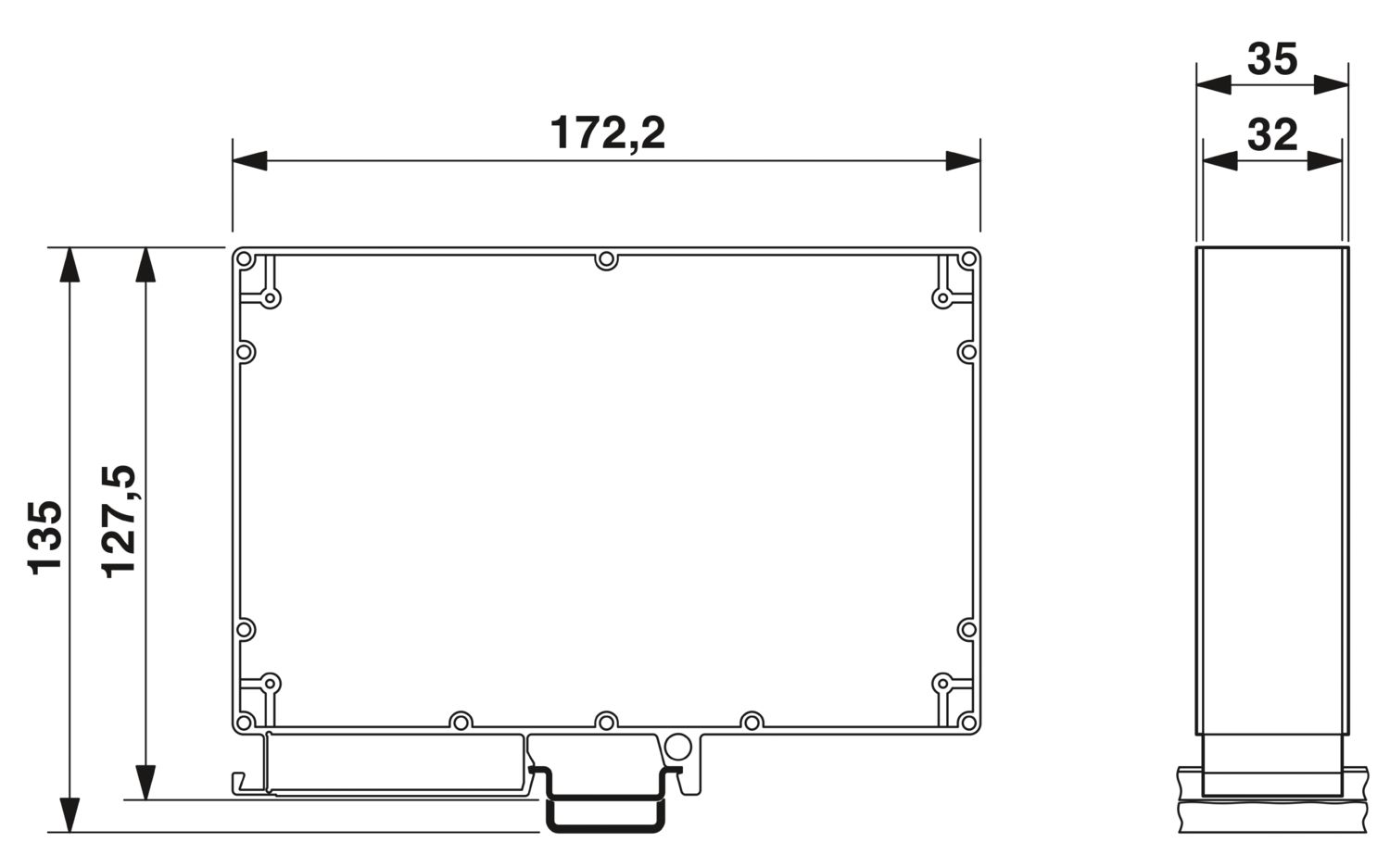

| Dimensional drawing |
|
| Width | 35 mm |
| Depth | 172 mm |
| Length | 172 mm |
| Color (Housing) | green (RAL 6021) |
| Housing material | Polyamide fiber reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C |
