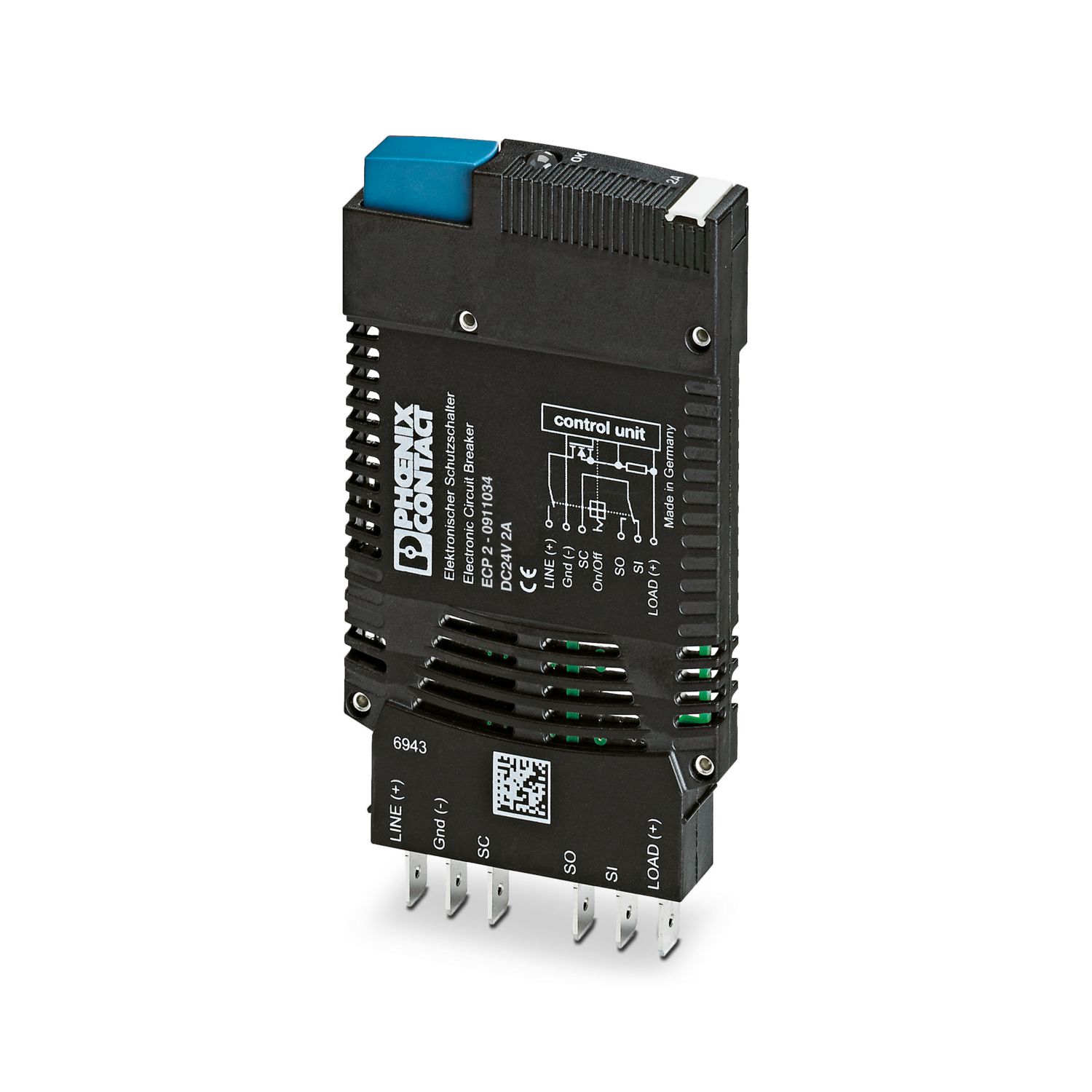

Electronic circuit breaker, 1-position, connection method: pluggable, tripping characteristic: electronic, fuse type: Automatic device, mounting type: on base element

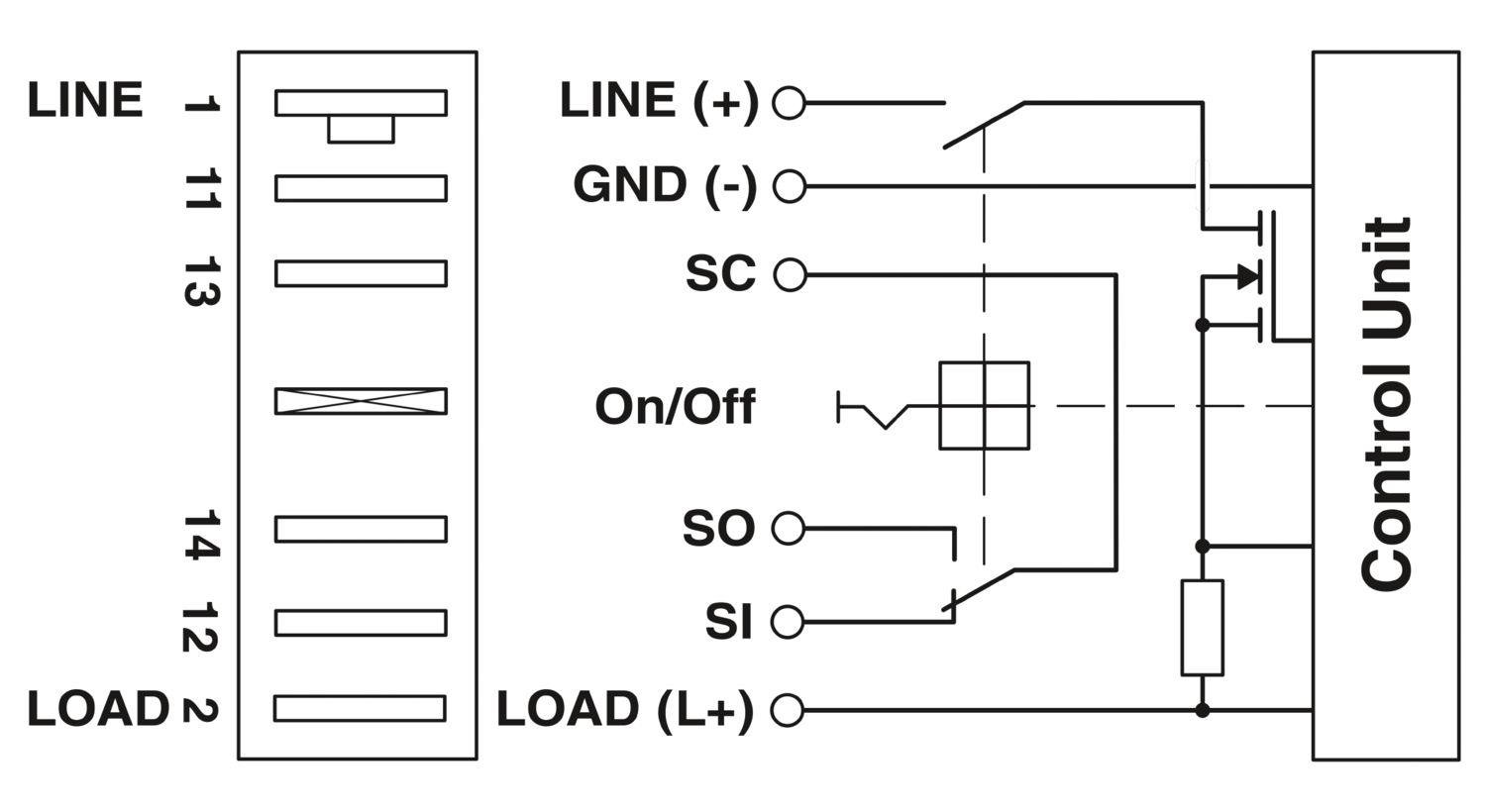

Product details
General
When mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80 % due to the thermal effect during continuous operation (100 % operating factor). Parallel connection of multiple load outputs is not permitted.
Product type
Device circuit breakers
Product family
ECP
Type
Male
Number of positions
1
Number of rows
1
No. of channels
1
Insulation characteristics
Overvoltage category
II
Degree of pollution
2
Fuse type
Automatic device
Switch-on delay
300.00 ms
Short-circuit current
Active current limitation, max. 1.8 x IN
Service life electrical
10000 cycles in the case of 1 x IN
Switching capacity ICN
Active current limitation
Fuse
electronic
General
Operating voltage
24 V DC
18 V DC ... 32 V DC
Nominal current IN
2 A
Rated surge voltage
0.5 kV
Tripping method
E (electronic)
Required backup fuse
not required, integrated failsafe element
Dielectric strength
1000 V AC (Actuation area)
500 V AC (Installation area)
500 V AC (Load circuit signal contact)
Switch off
typ. 1.8 x IN
Active current limitation
active
Fuse
electronic
Closed circuit current I0
typ. 13 mA
Voltage drop
180 mV (at IN)
Contact switching type
With electrical isolation
Load circuit
Shutdown time
typ. 5 s (for electrical insulation when ILoad > 1.1 x IN)
Max. capacitive load
20000 µF
Switch-on delay
typ. 0.3 s
Auxiliary contact
Contact connection type
floating signal contact
Minimum operating voltage Umin DC
10 V DC
Maximum operating voltage Umax DC
30 V DC
Minimum operating current Imin
10 mA
Max. operating current Imax
0.5 A
Width
12.5 mm
Height
60 mm
Height NS 35/15
151.5 mm
Height NS 35/7,5
144 mm
Depth
70 mm
Complete module width
38 mm
Complete module height
115 mm
Complete module depth
147.5 mm
Flammability rating according to UL 94
V0
Insulating material group
IIIa
Insulating material
PPS
Ambient conditions
Degree of protection
IP30 (Actuation area)
Ambient temperature (operation)
0 °C ... 50 °C (non-condensing)
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Humidity test
96 h, 95 % RH, 40 °C
Mounting type
on base element
Item number
0911034
Packing unit
5 pc
Minimum order quantity
5 pc
Product key
CLA132
Catalog page
Page 325 (C-4-2017)
GTIN
4046356116046
Weight per piece (including packing)
73.44 g
Weight per piece (excluding packing)
70.9 g
Customs tariff number
85362010
Country of origin
DE
UNSPSC
UNSPSC 21.0
39121410
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c), 7(a)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
