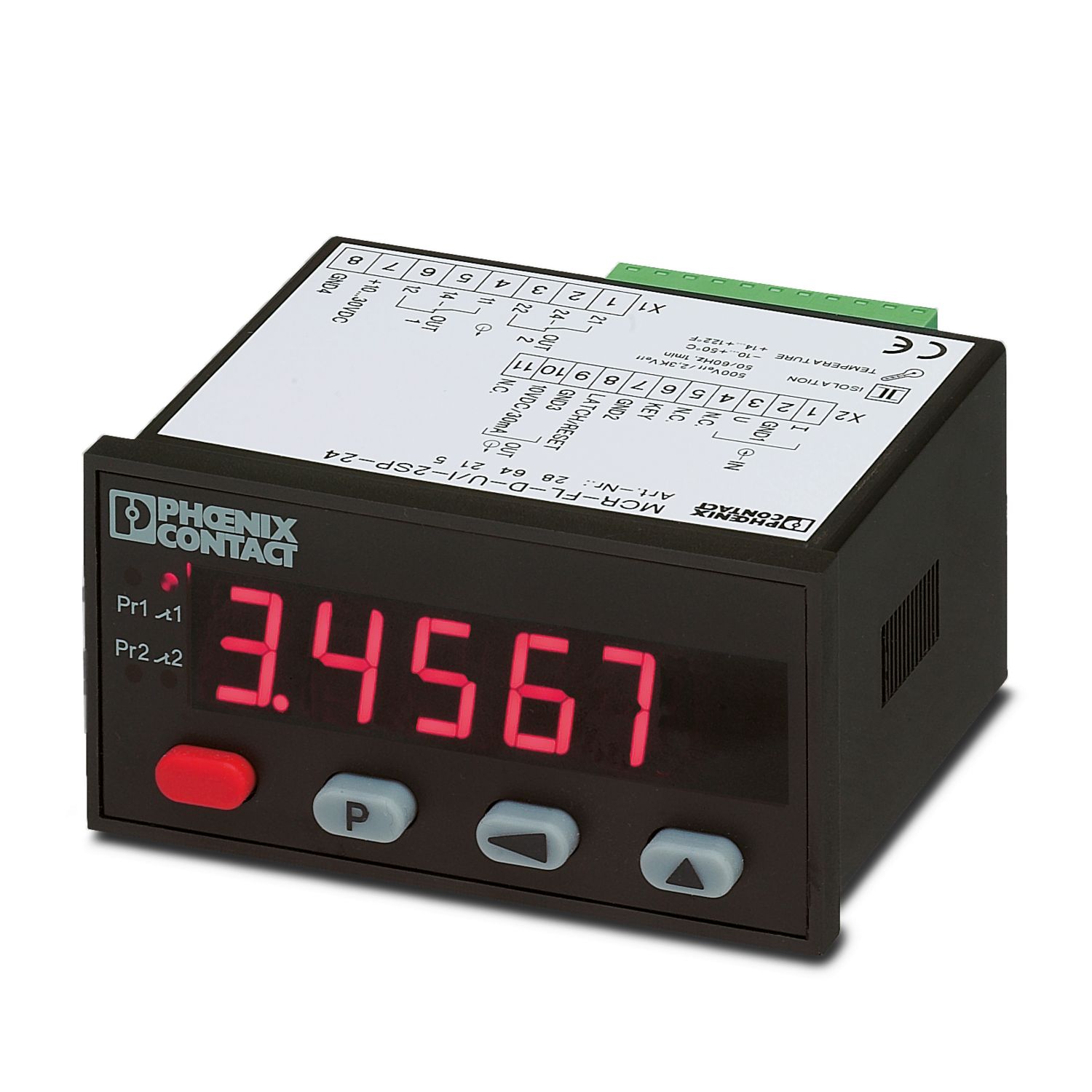

MCR-FL-D-U-I-2SP- 24 - Digital display

2864215

MCR digital display, for measurement and display of standard signals, auxiliary power supply 24 V DC

Product details

Product type	Digital displays

Maximum power dissipation for nominal condition	2 W
Test voltage, input/output/supply	500 V_rms / 2.3 kV_rms, 50/60 Hz, 1 min.
Supply
Supply voltage range	10 V DC ... 30 V DC
Power consumption	max. 2 W

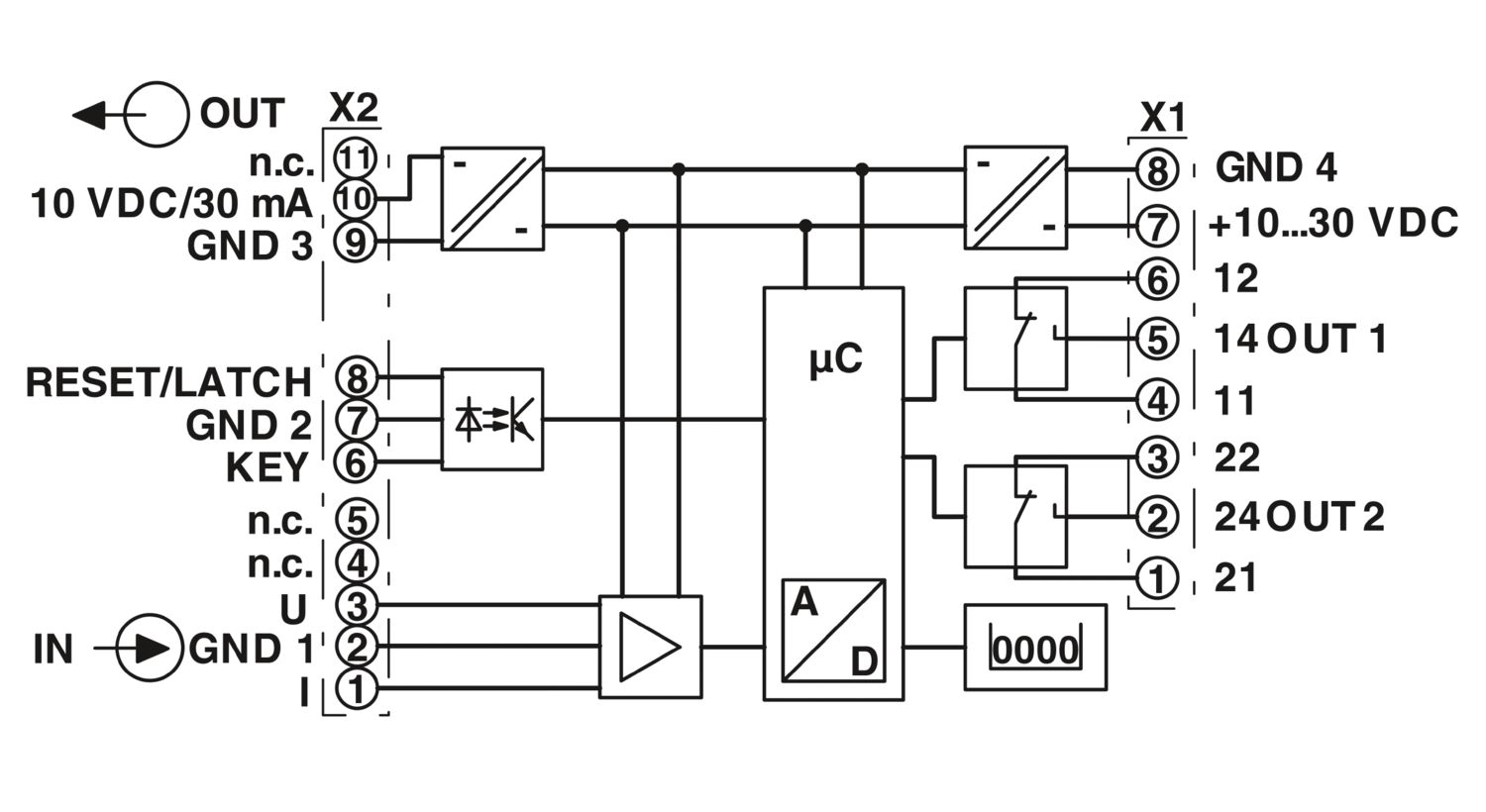

Signal
Voltage input signal	0 V ... 10 V
	-10 V ... 10 V
Max. voltage input signal	± 30 V
Current input signal	0 mA ... 20 mA
	4 mA ... 20 mA
Max. current input signal	50 mA
Switching level "1" signal	4 V DC ... 30 V DC
Switching level "0" signal	0 V DC ... 2 V DC
Input resistance of voltage input	> 1 MΩ
Input resistance current input	< 50 Ω
Resolution inputs (voltage)	1 mV
Resolution inputs (current)	2 µA
System hum suppression	Digital filtering 50/60 Hz
Input latch signal	Display stop
Input reset impulse	> 5 ms to reset the totalizer / the relay outputs
Measuring rate	Approximately 2 measurements/second

Switching: Relay
Contact switching type	2 changeover contacts
Contact material	AgCdO
Maximum switching voltage	300 V DC
	250 V AC
Min. switching current	30 mA DC
Max. switching current	3 A
Interrupting rating (ohmic load) max.	50 W
	2000 VA

Connection method	Pluggable screw connection
Stripping length	8 mm
Screw thread	M2
Conductor cross section rigid	0.14 mm² ... 1 mm²
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section AWG	26 ... 16
Connection method	Pluggable screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 14

Housing material	Macrolon 2405

Ambient conditions
Degree of protection	IP65 (Front)
Ambient temperature (operation)	-20 °C ... 65 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C

Commercial data

Item number	2864215
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DK1141
GTIN	4017918820688
Weight per piece (including packing)	321.4 g
Weight per piece (excluding packing)	301.4 g
Customs tariff number	90303370
Country of origin	DE

Approvals

Environmental product compliance

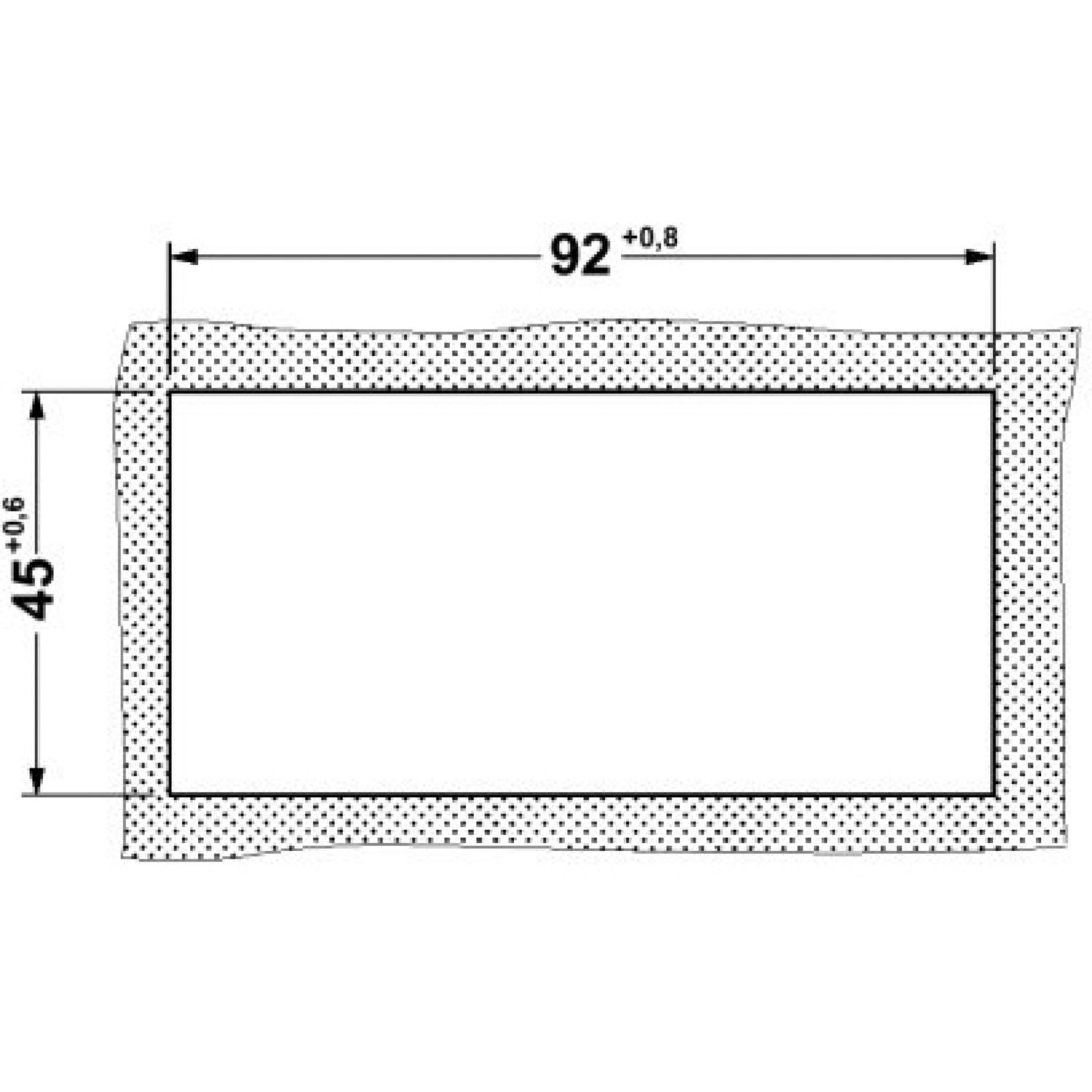

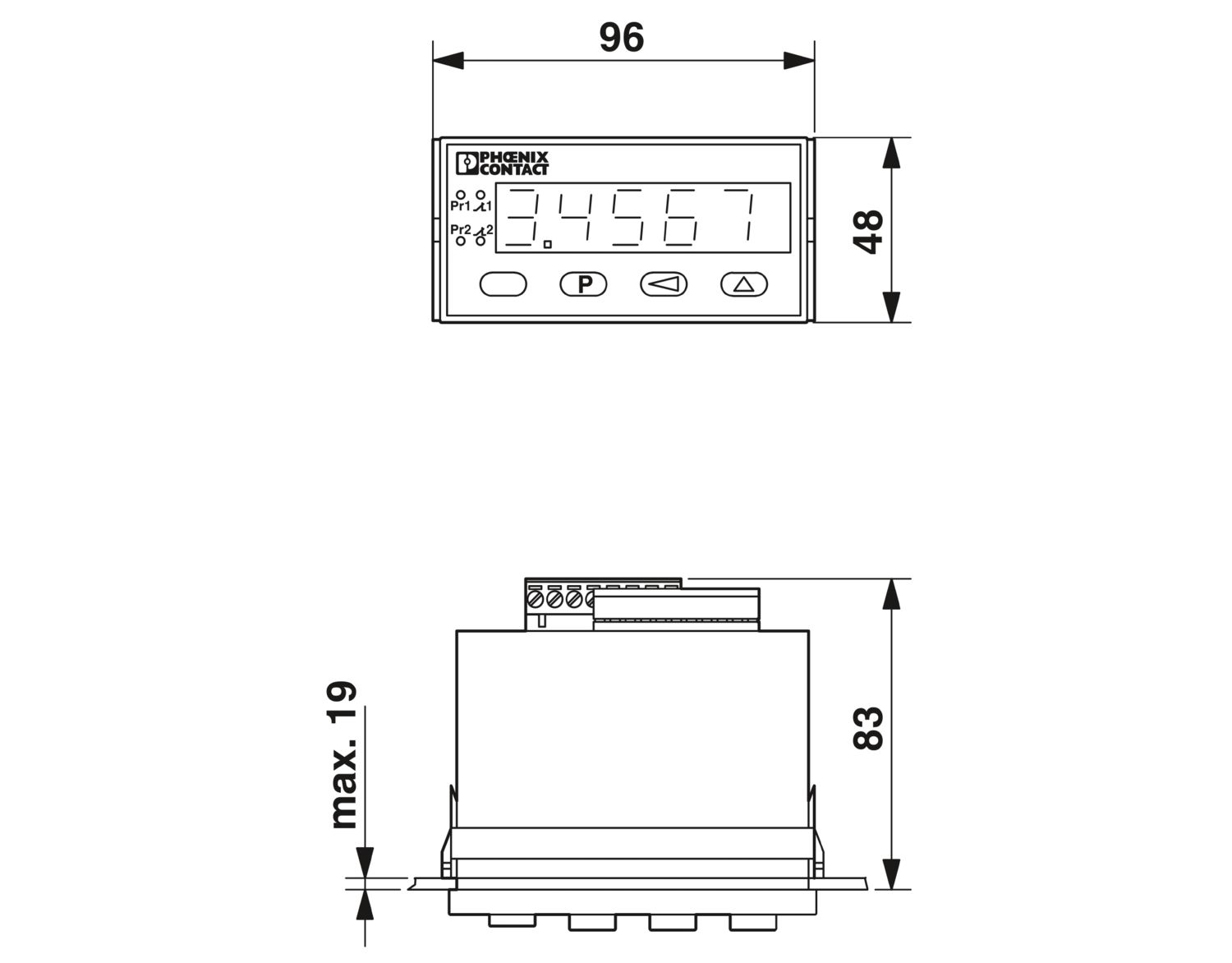

96 x 48 mm display

Electrical isolation

5-digit display

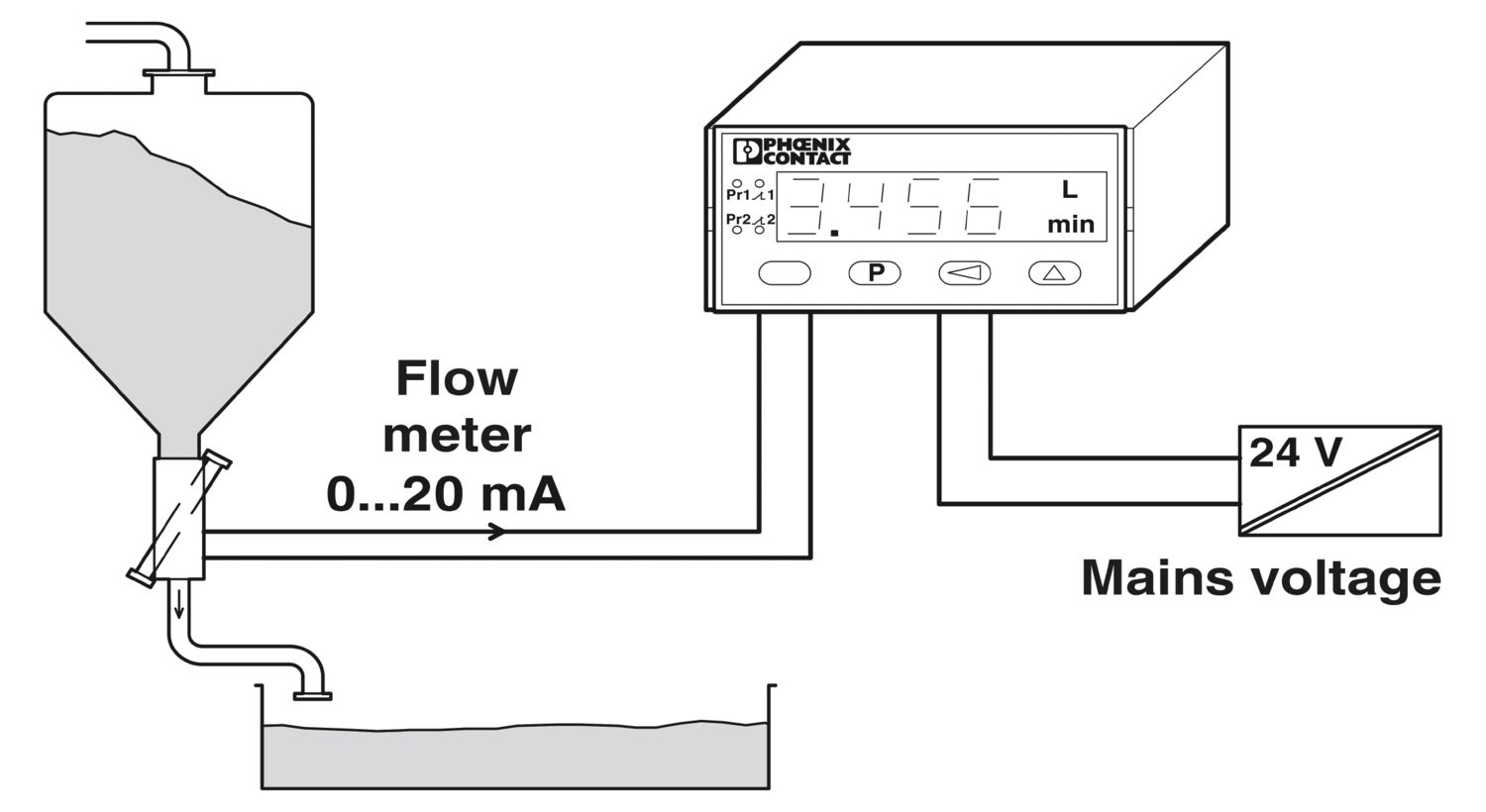

Totalizer

2 relay outputs with freely adjustable limit values

For standard analog signals

Programmable

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
