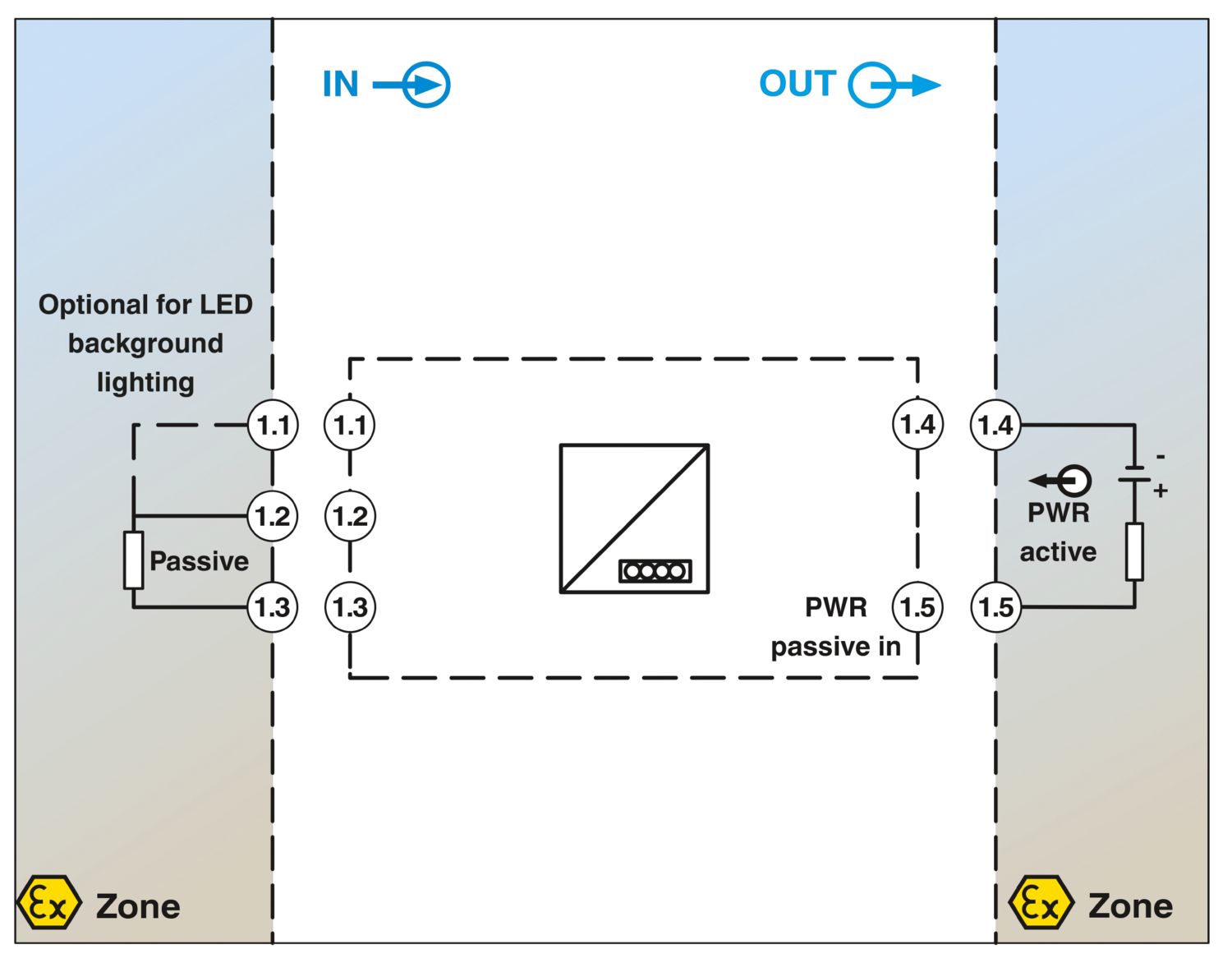

Ex i, Output loop-powered process indicator for installation in the control cabinet. HART
Product details
Product type
Digital displays
Product family
Field Analog
Configuration
Keyboard
Software
Functionality
Configuration
Keyboard
Software
Maximum temperature coefficient
< 0.02 %/K
Maximum transmission error
0.1 % (of final value)
Supply
Supply voltage range
loop-powered, no external supply necessary
Signal: Current
Current input signal
4 mA ... 20 mA
Max. current input signal
200 mA
Voltage drop
≤ 1 V
≤ 3.9 V (with display lighting)
Input impedance
50 Ω
Signal: HART
Current input signal
up to 4x HART process variables
Voltage drop
≤ 1.9 V
≤ 4.8 V (with display lighting)
Input impedance
Rx = 40 Ω/Cx = 2.3 nF
Signal: Current
Current output signal
4 mA ... 20 mA
Number of positions displayed
5
Display
7-segment LC display, with backlight, dot matrix for text/bar graph
Display value
scalable
Signal: HART
Current output signal
up to 4x HART process variables
Connection method
Push-in connection
Stripping length
9 mm
Conductor cross section rigid
0.14 mm² ... 1.5 mm²
Conductor cross section flexible
0.14 mm² ... 1.5 mm²
Conductor cross section AWG
26 ... 16
Ex installation (EPL)
Gb
Div. 1
Ex i circuits (EPL)
Gb
Div. 1
Data communication (bypass)
Protocols supported
HART
Width
96 mm
Height
48 mm
Depth
41.5 mm
Color
light gray (RAL 7035)
Housing material
Aluminum / polycarbonate
Ambient conditions
Degree of protection
IP65 (Front)
IP20 (On the rear)
Ambient temperature (operation)
-40 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
< 5000 m (Above sea level)
Climatic class
according to IEC 60654-1, class B2
CE
Certificate
CE-compliant
ATEX
Identification
II 2G Ex ib IIC T6 Gb
Certificate
PTB 17 ATEX 2025 X
IECEx
Identification
Ex ib IIC T6 Gb
Certificate
IECEx PTB 16.0033X
UKCA Ex (UKEX)
Certificate
CML 21UKEX2993X
CCC / China-Ex
Identification
Ex ib IIC T6 Gb
Certificate
2021322309004298
UL, USA/Canada
Identification
UL 61010 Listed
Shipbuilding approval
Certificate
DNV GL TAA000013C
Shipbuilding data
Temperature
B
Humidity
B
Vibration
A
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Noise emission
Standards/regulations
IEC 61326, class B
GB Standard
Standards/regulations
GB 3836.1
GB 3836.4
Mounting type
Panel mount
Mounting position
Max. viewing angle range +/- 45° from the centre line of the display in every direction
Item number
2908800
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Product key
DK1241
Catalog page
Page 184 (C-5-2019)
GTIN
4055626357225
Weight per piece (including packing)
367.3 g
Weight per piece (excluding packing)
353.5 g
Customs tariff number
90328900
Country of origin
DE
ECLASS
ECLASS-13.0
27210301
ETIM
ETIM 9.0
EC011349
UNSPSC
UNSPSC 21.0
39121000
EAC
Approval ID: RU*DE.*08.B.01522/19
UL Listed
Approval ID: E330267
cUL Listed
Approval ID: FILE E 330267
DNV GL
Approval ID: TAA000013C
CCC
Approval ID: 2021322309004298
DNV
Approval ID: TAA000013C
IECEx
Approval ID: IECEx PTB 16.0033X
ATEX
Approval ID: PTB 17 ATEX 2025 X
CSA
Approval ID: 70106894
FM approved
Approval ID: FM16US0464
CSAus
Approval ID: 70106894
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
