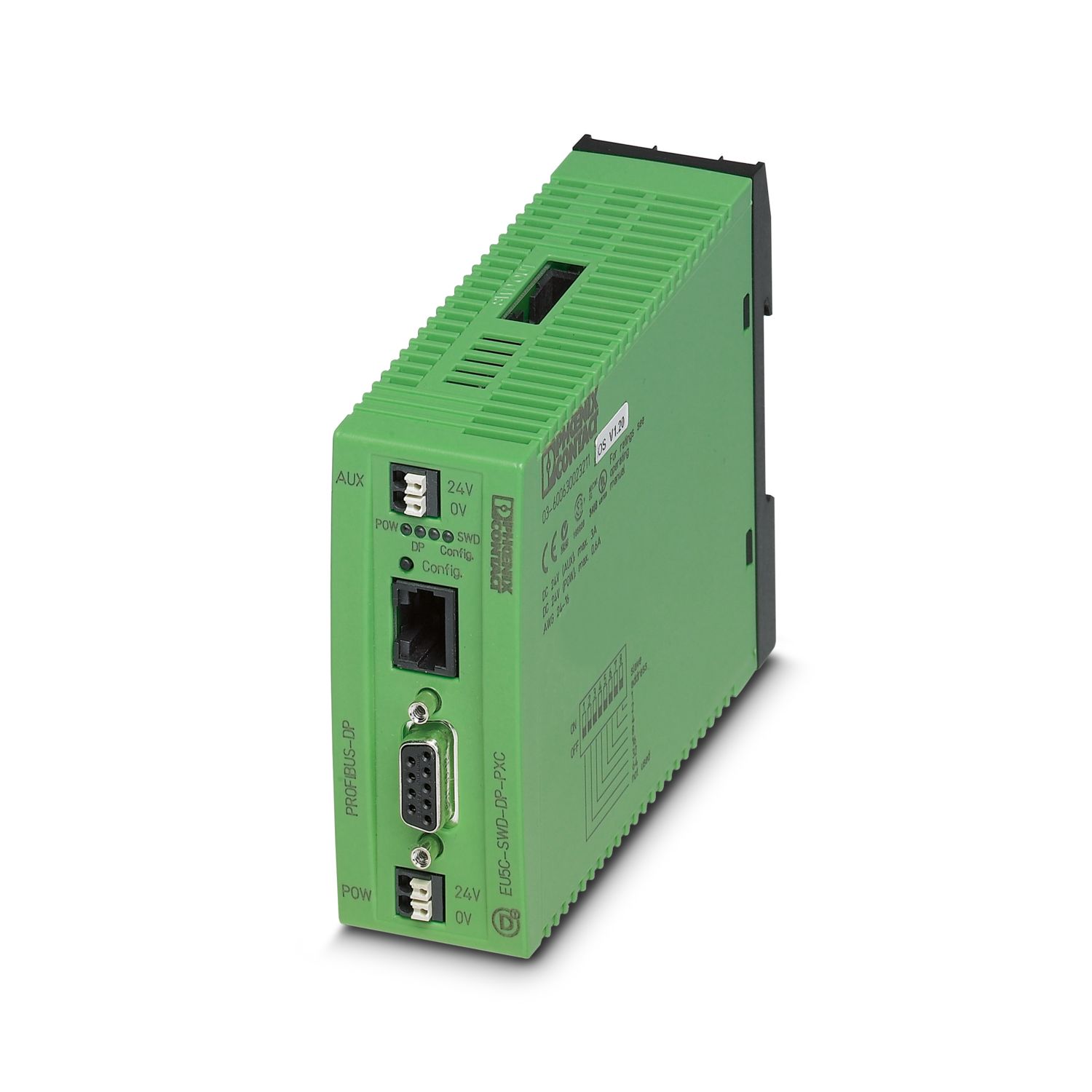

EU5C-SWD-DP PXC - Data interface

EU5C-SWD-DP PXC - Data interface

2903100

SmartWire-DT^™ gateway for connecting to PROFIBUS DP as a slave, automatic baud rate detection: 9.6 kbps to 12 Mbps, connection of up to 58 SmartWire-DT^™ devices.

Free download available. Downloads

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Gateways/Proxies
Insulation characteristics
Overvoltage category	II
Pollution degree	2

Electrical properties

Supply
Supply voltage U_AUX	24 V DC -15 % ... +20 %
Rated current I_AUX	3 A
Supply voltage U_POW	24 V DC -15 % ... +20 %
Rated current I_POW	700 mA

Connection data

Supply
Connection method	Push-in connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16
SmartWire™-DT
Connection method	Pin strip
Number of connections	1
Number of positions	8
Note	for SmartWire™ DT-DT spade connector SWD4-8MF2 PXC

Interfaces

Data: SmartWire™-DT
Data rate	125 kBd / 250 kBd
Connection method	Pin strip, 8-pos.
Data: PROFIBUS DP
Data rate	12 MBit/s
Connection method	D-SUB-9

Dimensions

Width	35 mm
Height	90 mm
Depth	127 mm

Material specifications

Color	green (RAL 6021)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 55 °C
Ambient temperature (storage/transport)	-40 °C ... 70 °C

Standards and regulations

Standards/regulations	EN 50178

Mounting

Mounting type	DIN rail mounting
Mounting position	any

Commercial data

Item number	2903100
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DK7721
GTIN	4046356709736
Weight per piece (including packing)	220.2 g
Weight per piece (excluding packing)	220.2 g
Customs tariff number	85371091
Country of origin	DE

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Not applicable (No electrical and electronic equipment (EEE), cannot be used in EEE)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

EU4A-RJ45-USB-CAB1 PXC - Programming adapter 2903465
