SUBCON 37/M-SH
-
D-SUB bus connector
2300973
D-SUB connector, 37-pos., male connector, one cable entry <35°, universal type for all systems, pin assignment: 1, 2, 3, ..., 36, 37 to screw-connection terminal block
Product details
| Product type | Data plug |
| Pin assignment | All connections are 1:1 on the screw terminal block |
| Nominal voltage UN | 48 V AC/DC |
| Nominal current IN | 1 A |
| D-SUB connection | |
| Connection method | D-SUB connector |
| Signal | Point-to-point |

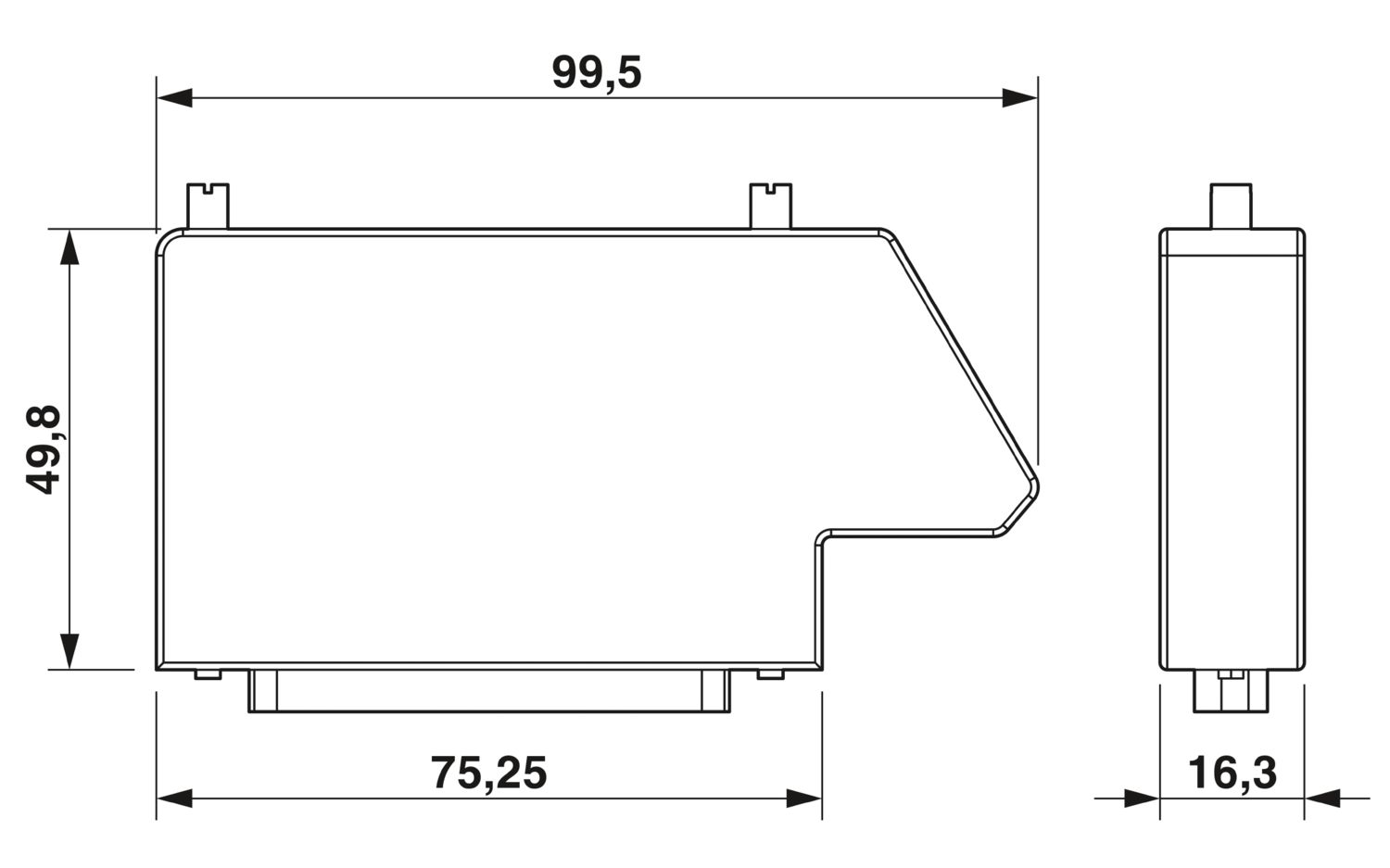

| Dimensional drawing |
|
| Width | 16.3 mm |
| Height | 49.8 mm |
| Length | 99.5 mm |
| External dimensions | |
| External diameter min. | 4 mm |
| External diameter max. | 12.7 mm |
| Housing material | ABS, metal-plated |
| Mechanical data | |
| Insertion/withdrawal cycles | > 50 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 80 °C |
| Altitude | 5000 m (For restrictions see manufacturer's declaration) |
