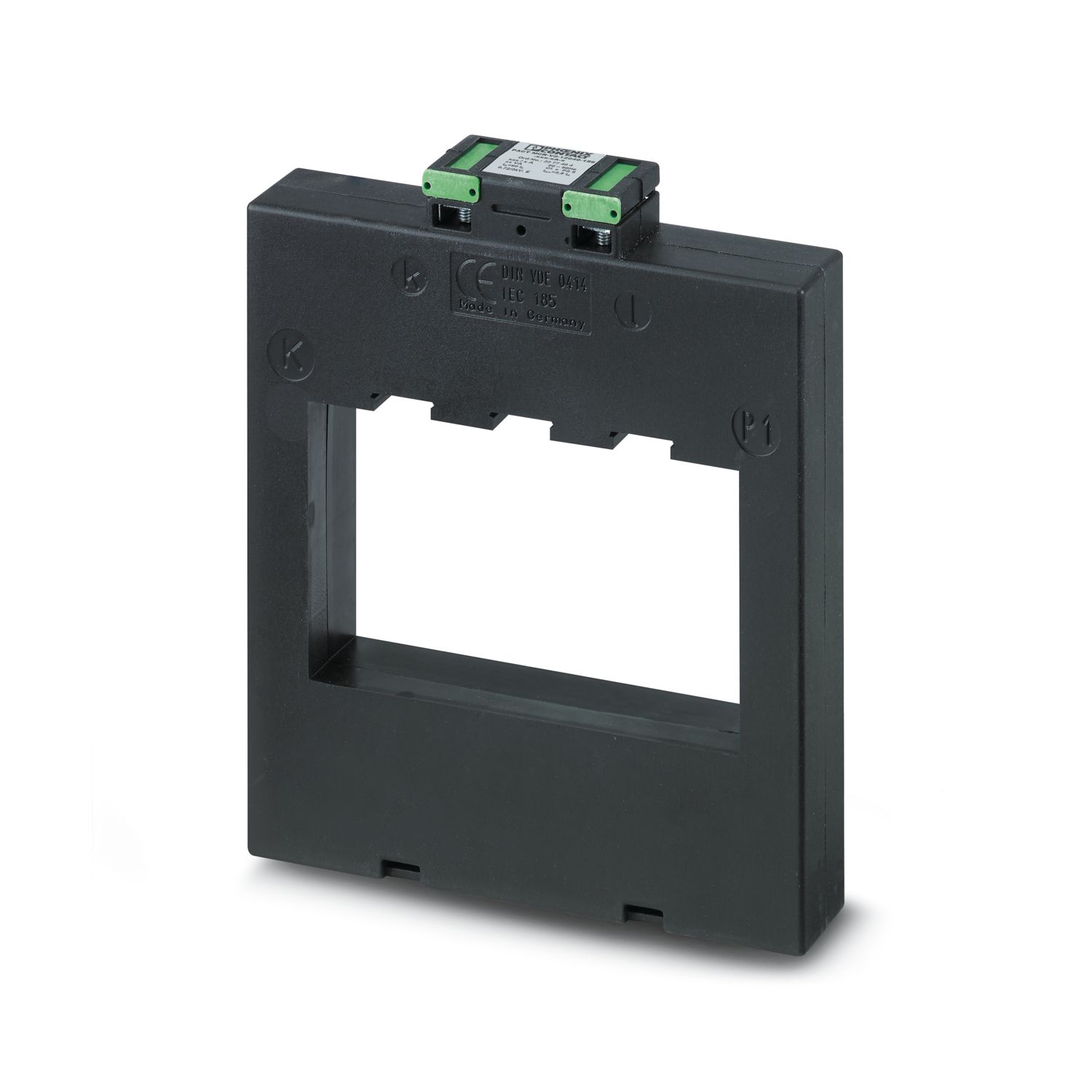

PACT MCR-V2-12040-159
-
Current transformer
2277404
Window-type current transformer, primary current can be selected between 400...4000 A AC; secondary current can be selected as 1 A AC or 5 A AC; accuracy class can be selected as 0.5 or 1; rated power can be selected
Product details
| Product type | Current transformer |
| Rated insulation voltage | 1 kV (Phase/neutral conductor) |
| General | |
| Can be calibrated | no |
| Converter type | Window-type current transformer |
| Current transformer | |
| Rated power | 2.5 VA |
| 5 VA | |
| 10 VA | |
| 15 VA | |
| 30 VA | |
| Thermal rated short-time current | Ith = 60 * In |
| Thermal rated continuous current | Id = 1.2 * In |
| Rated surge current | Idyn = 2.5 * Ith |
| Rated frequency fn | 50 Hz |
| 60 Hz | |
| Primary rated current Ipn | 0 A ... 400 A |
| 0 A ... 500 A | |
| 0 A ... 600 A | |
| 0 A ... 750 A | |
| 0 A ... 800 A | |
| 0 A ... 1000 A | |
| 0 A ... 1250 A | |
| 0 A ... 1500 A | |
| 0 A ... 1600 A | |
| 0 A ... 2000 A | |
| 0 A ... 2500 A | |
| 0 A ... 3000 A | |
| 0 A ... 4000 A | |
| Can be calibrated | no |
| Converter type | Window-type current transformer |
| Signal | |
| Secondary rated current Isn | 1 A AC (depends on type) |
| 5 A AC (depends on type) | |
| Surge current limitation factor | FS 5 |
| Accuracy class | 0.2 (depends on type) |
| 0.5 (depends on type) | |
| 1 (depends on type) | |
| 0.2S (depends on type) | |
| 0.5S (depends on type) | |
| Connection method | Screw connection |
| Conductor cross section flexible | 2x 2.5 mm² ... 4 mm² (Secondary terminals) |
| Width | 30 mm |
| Height | 188 mm |
| Depth | 159 mm |
| Width | 159 mm |
| Height | 188 mm |
| Depth | 30 mm |
| Width | 120 mm |
| Height | 10 mm |

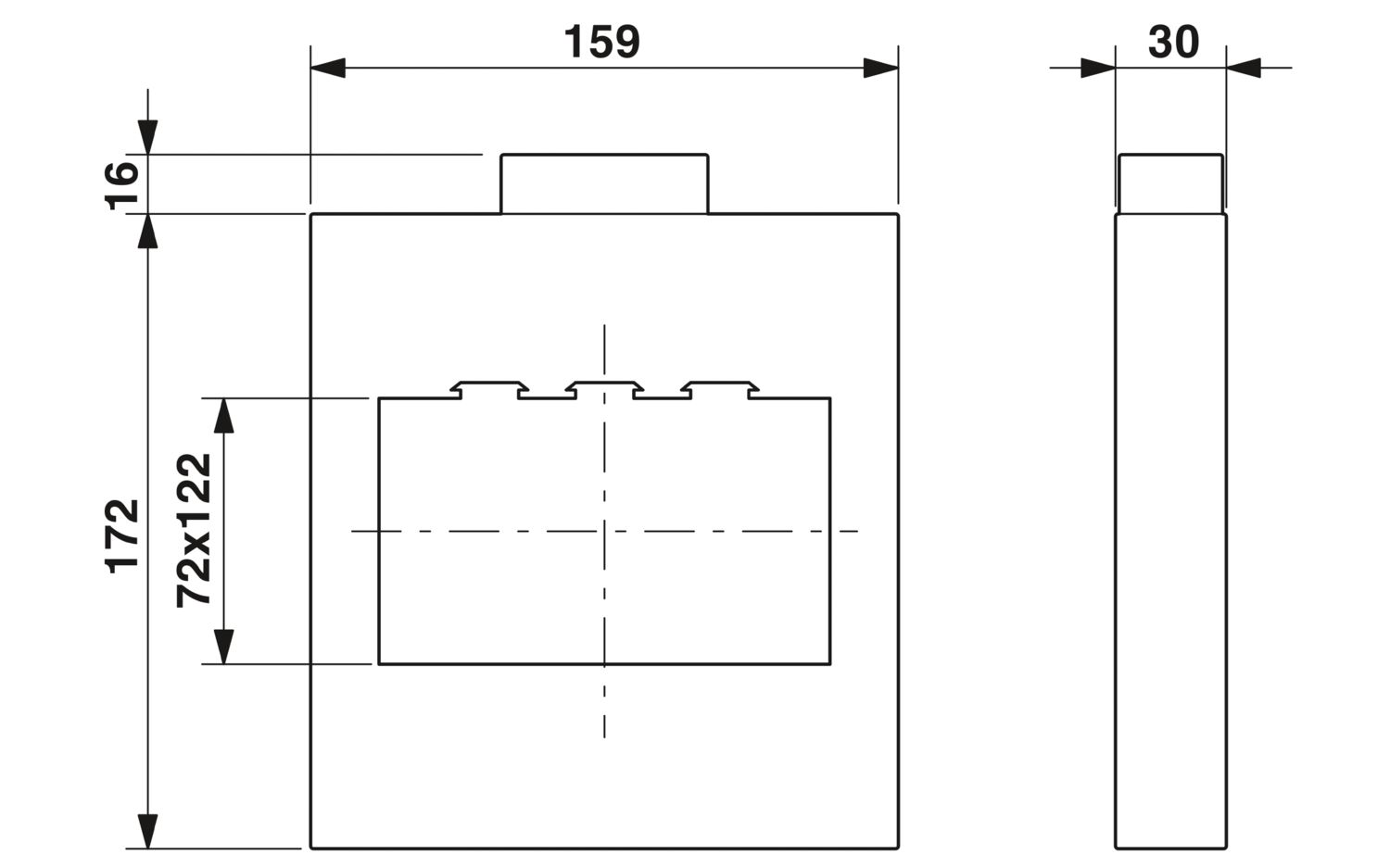

| Dimensional drawing |
|
| Width | 30 mm |
| Height | 188 mm |
| Depth | 159 mm |
| Alternative assembly | |
| Width | 159 mm |
| Height | 188 mm |
| Depth | 30 mm |
| Color | black (RAL 9005) |
| Housing material | PA 6.6 |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 40 °C |
| Ambient temperature (storage/transport) | -25 °C ... 40 °C |
| Permissible humidity (operation) | Use only indoors, non-condensing |
| Insulating material class | E |
| Standards/regulations | EN 50178 |
| EN 61869 |
| Mounting type | DIN rail mounting |
Your advantages
Primary rated current Ipn: 0 ... (400 ... 4000) A
Rail dimensions: 4x 120 x 10 mm
