PSR-SPP- 24UC/URM/5X1/1X2 - Coupling relay - 2981965

Product details

Technical data

Notes

Note on application
Note on application	Only for industrial use

Product properties

Product type	Coupling relay
Product family	PSRclassic
Application	Safe switch off
	High demand
	Low demand
Control	1 and 2 channel
Mechanical service life	10x 10⁶ cycles
Relay type	Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Insulation characteristics
Overvoltage category	III
Degree of pollution	2
Times
Restart time	< 1 s (Boot time)

Electrical properties

Maximum power dissipation for nominal condition	8.56 W (at U_B = 26.4 V DC, U_S = 24 V, I_S = 47 mA, n = 1, I_L² = 72 A², R_contact = 0.1 )
Nominal operating mode	100% operating factor
Rated insulation voltage	250 V
Rated surge voltage/insulation	4 kV / basic isolation (safe isolation, reinforced isolation and 6 kV between A1/A2, 53/54, 71/72 and 13/14, 23/24, 33/34, 43/44.)

Input data

General
Rated control circuit supply voltage U_S	24 V AC/DC -15 % / +10 %
Power consumption at U_S	typ. 1.2 W
Rated control supply current I_S	typ. 47 mA
Input voltage range	20.4 V AC/DC ... 26.4 V AC/DC
Inrush current	typ. 350 mA DC (Δt < 1 µs at U_s)
	typ. 350 mA AC (Δt = 2 ms at U_s)
Typ. starting time with U_s	typ. 20 ms (when controlled via A1)
Typical release time	typ. 20 ms (when controlled via A1)
Recovery time	< 500 ms
Maximum switching frequency	0.5 Hz
Protective circuit	Surge protection; Varistor
Operating voltage display	1 x LED (green)

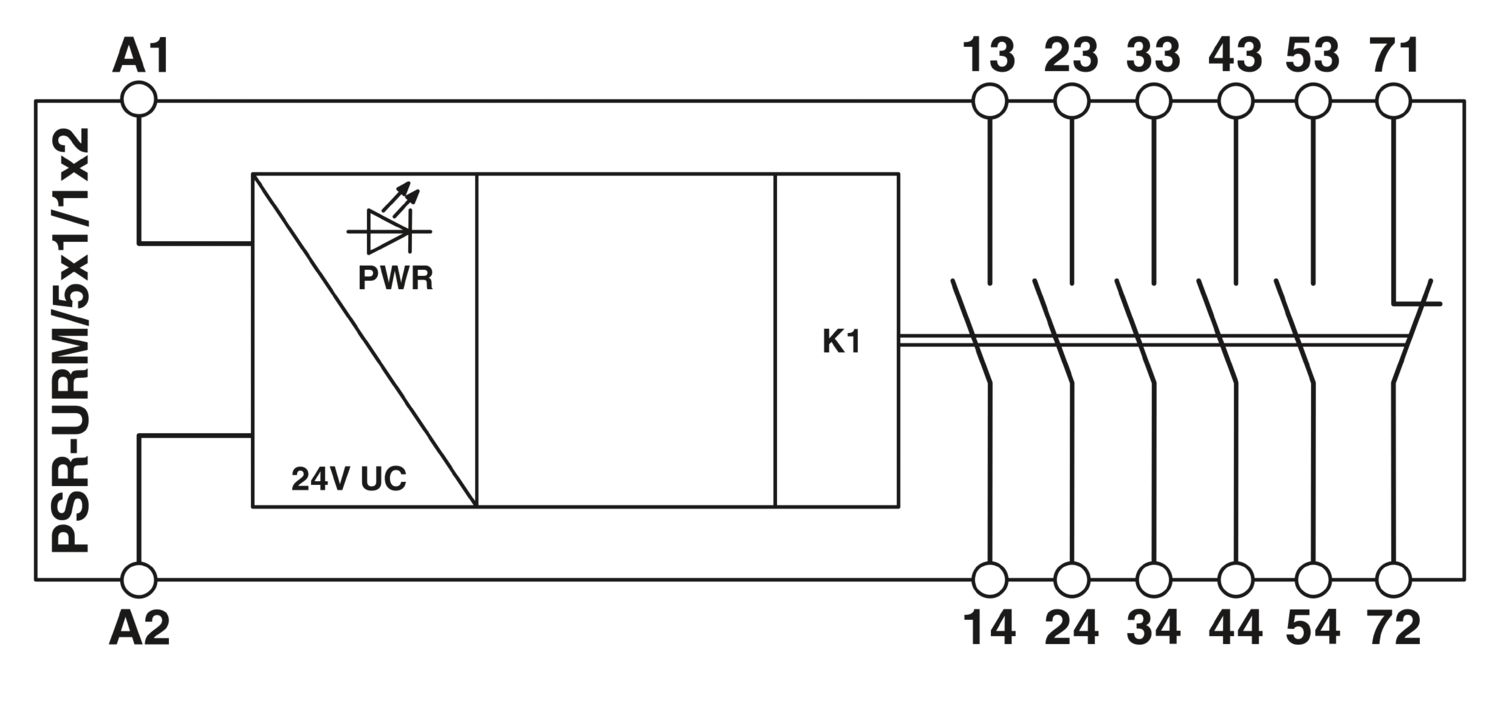

Output data

Contact switching type	5 enabling current paths
Contact switching type		1 confirmation current path
Contact material	AgSnO₂
Maximum switching voltage	230 V AC/DC (Observe the load curve)
Minimum switching voltage	5 V AC/DC
Limiting continuous current	6 A (N/O contact)
Limiting continuous current		6 A (N/C contact)
Maximum inrush current	6 A
Inrush current, minimum	10 mA
Sq. Total current	72 A²
Interrupting rating (ohmic load) max.	144 W (N/O contact, 24 V DC, τ = 0 ms)
		288 W (N/O contact, 48 V DC, τ = 0 ms)
		240 W (N/O contact, 60 V DC, τ = 0 ms)
		110 W (N/O contact, 110 V DC, τ = 0 ms)
		88 W (N/O contact, 220 V DC, τ = 0 ms)
		1380 VA (N/O contact, 230 V AC, τ = 0 ms)
Maximum interrupting rating (inductive load)	42 W (N/O contact, 24 V DC, τ = 40 ms)
		42 W (N/O contact, 48 V DC, τ = 40 ms)
		42 W (N/O contact, 60 V DC, τ = 40 ms)
		42 W (N/O contact, 110 V DC, τ = 40 ms)
		42 W (N/O contact, 220 V DC, τ = 40 ms)
Switching capacity	min. 50 mW
Switching capacity (360/h cycles)	4 A (24 V (DC13))
Switching capacity (360/h cycles)		4 A (230 V (AC15))
Output fuse	10 A gL/gG (N/O contact)
		4 A gL/gG (N/O contact, for low-demand applications)
		6 A gL/gG (N/C contact)

Connection data

Connection technology
pluggable	yes
Conductor connection
Connection method	Push-in connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve	0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross section flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross-section AWG	24 ... 16
Stripping length	8 mm
Tightening torque	0.6 Nm

Dimensions

Width	22.5 mm
Height	114.5 mm
Depth	112 mm

Material specifications

Color (Housing)	yellow (RAL 1018)
Housing material	PA

Characteristics

Safety data
Stop category	0
Safety data: EN ISO 13849
Category	1
Performance level (PL)	c
Safety data: IEC 61508 - High demand
Safety Integrity Level (SIL)	1
Safety data: IEC 61508 - Low demand
Safety Integrity Level (SIL)	1
Safety data
Safety Integrity Level (SIL)	1

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Min. degree of protection of inst. location	IP54
Ambient temperature (operation)	-20 °C ... 55 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Maximum altitude	max. 2000 m (Above sea level)
Max. permissible humidity (storage/transport)	75 % (on average, 85% infrequently, non-condensing)
Max. permissible relative humidity (operation)	75 % (on average, 85% infrequently, non-condensing)
Shock	15g (In the event of stress caused by shock, contact reactions are possible for up to 2 ms.)
Vibration (operation)	10 Hz ... 150 Hz, 2g (In the event of stress caused by vibration, contact reactions are possible for up to 1 ms.)

Approvals

CE
Certificate	CE-compliant

Mounting

Mounting type	DIN rail mounting
Mounting position	vertical or horizontal

Commercial data

Item number	2981965
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DNA162
GTIN	4046356343572
Weight per piece (including packing)	177.6 g
Weight per piece (excluding packing)	140 g
Customs tariff number	85364900
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	ad9e14ba-d94b-4dbf-9e29-59ce6a62d431
