OCS HINGED CORNER SET
-
Corner attachment
1557904

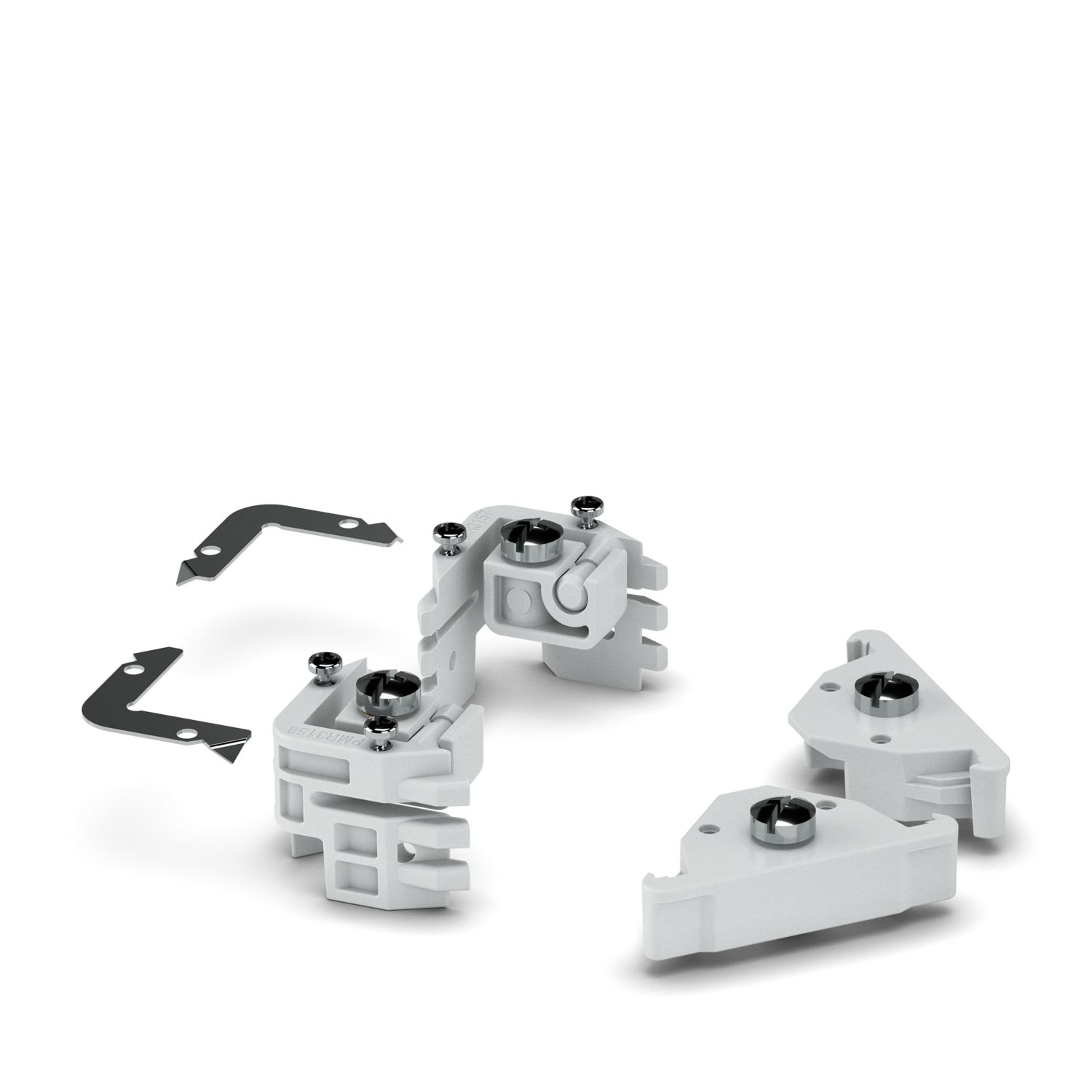

Corner mount, set of 2 + 2 pieces incl. screws for all housing sizes, material: PC-ABS, color: light gray
This product needs further products for operation.
Mandatory accessories
Product details
Recommendation | Further information and detailed dimensions are available in the download area. |
Assembly note | Only use the screws supplied for mounting. |
Product type | Select corner |
Housing type | Outdoor housing |
Housing series | OCS |
Width | 25 mm |
Height | 51 mm |
Depth | 11 mm |
Color | light gray (RAL 7035) |
Material () | Polycarbonate |
Flammability rating according to UL 94 | V2 |
Insulating material | PC |
Surface characteristics | untreated |
Ambient conditions | |
Ambient temperature (operation) | -40 °C ... 80 °C |
Mounting type | Screw mounting |
Type of packaging | PE bag |
Item number | 1557904 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Product key | ACFDBZ |
GTIN | 4067923064362 |
Customs tariff number | 39269097 |
Country of origin | EE |
ECLASS
ECLASS-13.0 | 27190605 |
ETIM
ETIM 9.0 | EC002779 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes |
Exemption | 6(c) |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
Compatible products
-
-
OCS HP 080604 TRANS - Outdoor housing 1471772
-
OCS HP 100806 GY7035 - Outdoor housing 1471773
-
OCS HP 100806 TRANS - Outdoor housing 1471774
-
OCS HP 121006 GY7035 - Outdoor housing 1471775
-
OCS HP 121006 TRANS - Outdoor housing 1471776
-
OCS HP 141206 GY7035 - Outdoor housing 1557790
-
OCS HP 161408 GY7035 - Outdoor housing 1557792
-
OCS HP 181610 GY7035 - Outdoor housing 1557794
-
OCS HP 141206 TRANS - Outdoor housing 1557795
-
OCS HP 161408 TRANS - Outdoor housing 1557796
-
OCS HP 181610 TRANS - Outdoor housing 1557797
-
OCS CORNER SCREW SET - Screw set 1521845
-
OCS PANEL 0806 PC - Mounting panel 1471783
-
OCS PANEL 1008 PC - Mounting panel 1471785
-
OCS PANEL 1210 PC - Mounting panel 1471786
-
OCS PANEL 1412 PC - Mounting panel 1562143
-
OCS PANEL 1614 PC - Mounting panel 1562144
-
OCS PANEL 1816 PC - Mounting panel 1562145
-
OCS POLEFIX 0806 - Mounting material 1476923
-
OCS POLEFIX 1008 - Mounting material 1476924
-
OCS POLEFIX 1210 - Mounting material 1476926
-
OCS POLEFIX 1412 - Mounting material 1562148
-
OCS POLEFIX 1614 - Mounting material 1562151
-
OCS POLEFIX 1816 - Mounting material 1562153
-
OCS MOUNT 0806 SET - Wall bracket 1471778
-
OCS MOUNT 1008 SET - Wall bracket 1471781
-
OCS MOUNT 1210 SET - Wall bracket 1471782
-
OCS MOUNT 1412 SET - Wall bracket 1562129
-
OCS MOUNT 1614 SET - Wall bracket 1562132
-
OCS MOUNT 1816 SET - Wall bracket 1562133
-
OCS FOOT SET - Wall bracket 1471777
-
SF-PH 2-100 - Screwdriver 1212560
-
SF-PHSL 2-100 VDE - Screwdriver 1212288
Your advantages
Internationally certified housing system
Special plastic enables safe continuous operation
Provides protection against the ingress of jet water
Withstands even heavy mechanical strain
