SACB-C-H180-8/16 SCO P
-
Connector hood
1453229
Connector hood with integrated connector, for M12 sensor/actuator boxes with SPEEDCON plastic thread and plug-in screw connection, for 4, 6 or 8 slots
Product details
| Note regarding documentation | For details about the PCB connectors used, refer to the technical data for MC 1,5/10-STF-3,5 (1847204) |
| Assembly note | NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Product type | Connector hood |
| Application | Sensor/actuator box |
| Number of slots | 8 |
| Coding | A |
| LED | no |
| Nominal voltage UN | 120 V AC |
| 120 V DC | |
| Rated current, total | 10 A |
| Max. current carrying capacity per path | 2 A |
| Current carrying capacity per slot | 4 A |
| Conductor connection | |
| Sensor/actuator connection system | M12 socket |
| Connection method | Pluggable screw connection |
| Conductor cross section Flexible signal line | 0.14 mm² ... 1.5 mm² |
| Conductor cross section Flexible power supply | 0.14 mm² ... 1.5 mm² |
| Connection cross section AWG Flexible signal line | 26 ... 16 |
| Connection cross section AWG Flexible power supply | 26 ... 16 |
| Stripping length Signal line | 7 mm |
| Stripping length of the sheath | 50 mm (Master cable) |
| Tightening torque, cover screw | 1 Nm |
| Pin assignment | |
| Slot/position = Wire color or connection | 1 / 4 (A) = 1 / 4 = WH |
| 1 / 2 (B) = 1 / 2 = GYPK | |
| 2 / 4 (A) = 2 / 4 = GN | |
| 2 / 2 (B) = 2 / 2 = RDBU | |
| 3 / 4 (A) = 3 / 4 = YE | |
| 3 / 2 (B) = 3 / 2 = WHGN | |
| 4 / 4 (A) = 4 / 4 = GY | |
| 4 / 2 (B) = 4 / 2 = BNGN | |
| 5 / 4 (A) = 5 / 4 = PK | |
| 5 / 2 (B) = 5 / 2 = WHYE | |
| 6 / 4 (A) = 6 / 4 = RD | |
| 6 / 2 (B) = 6 / 2 = YEBN | |
| 7 / 4 (A) = 7 / 4 = BK | |
| 7 / 2 (B) = 7 / 2 = WHGY | |
| 8 / 4 (A) = 8 / 4 = VT | |
| 8 / 2 (B) = 8 / 2 = GYBN | |
| 1-8 / 1 (+ 120 V) = UN = BN | |
| 1-8 / 3 (0 V) = 0 V = BU | |
| 1-8 / 5 (PE) = PE = GNYE | |
| Status display present | no |

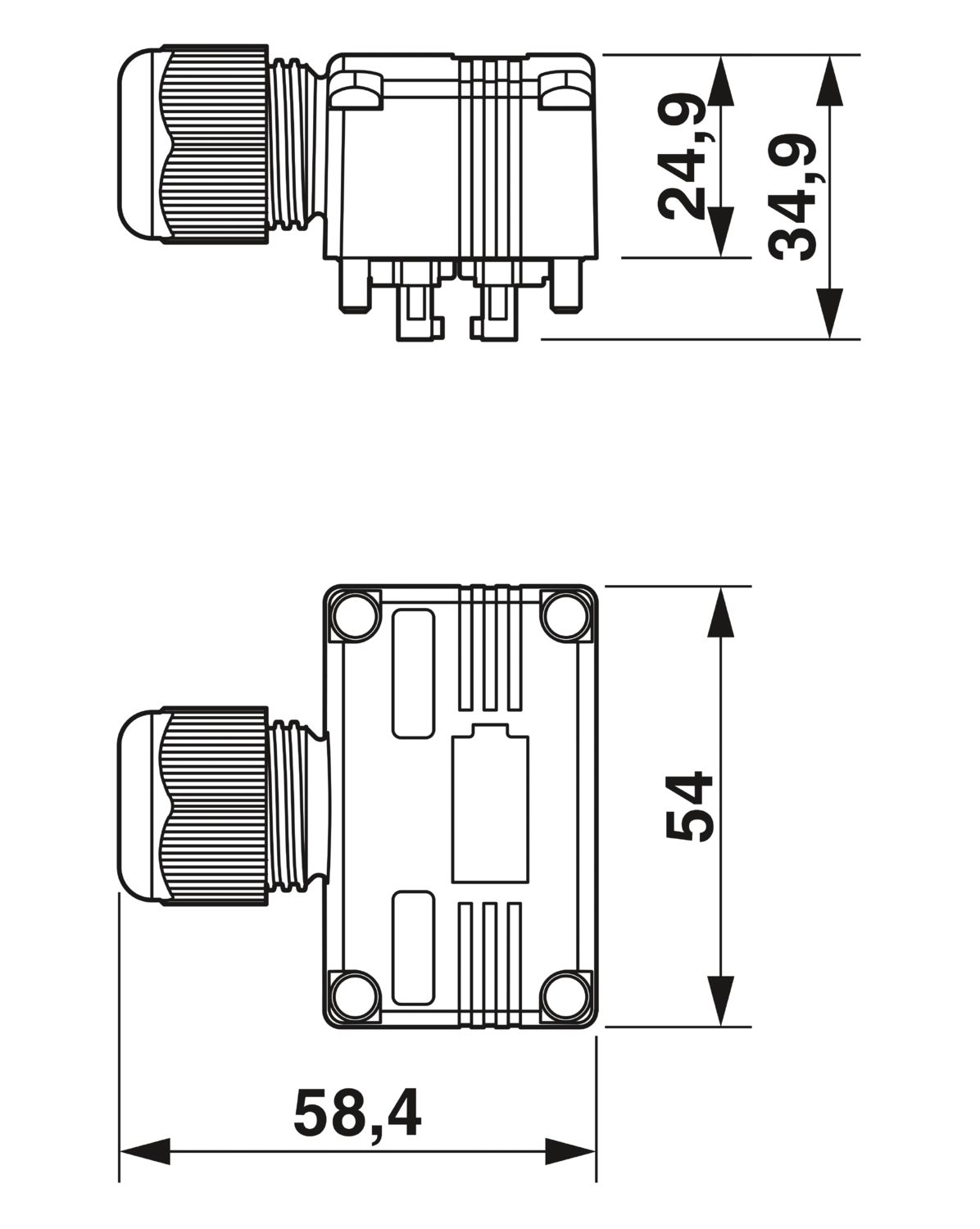

| Dimensional drawing |
|
| Width | 54 mm |
| Height | 25 mm |
| Length | 34 mm |
| Material Housing | PBT |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material of contact, master cable side | CU alloy |
| Material of the contact carrier on the master cable side | PA |
| Material of contact surface, master cable side | Sn |
| External cable diameter | 7 mm ... 12 mm |
| Connection method | Pluggable screw connection |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C |
