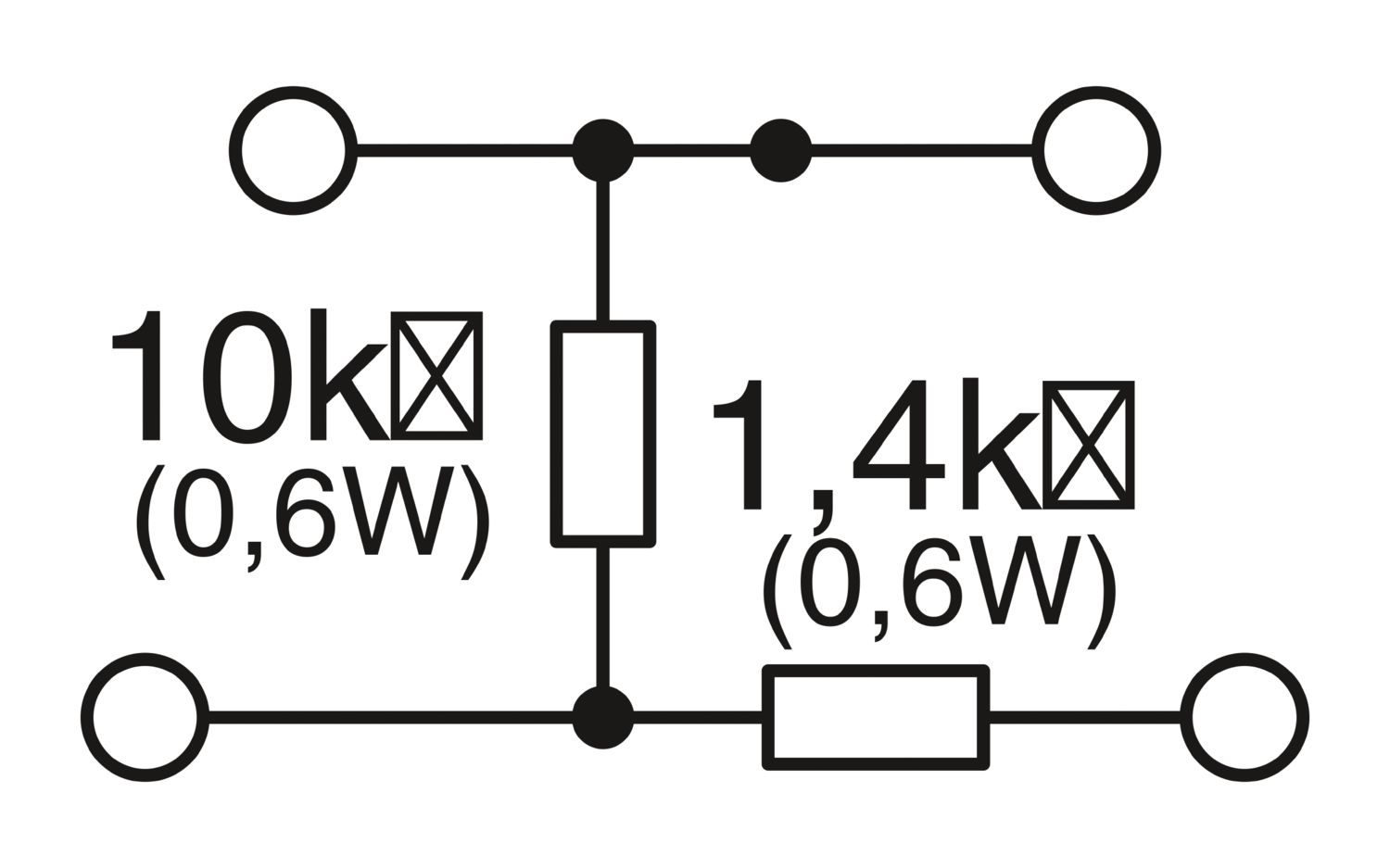

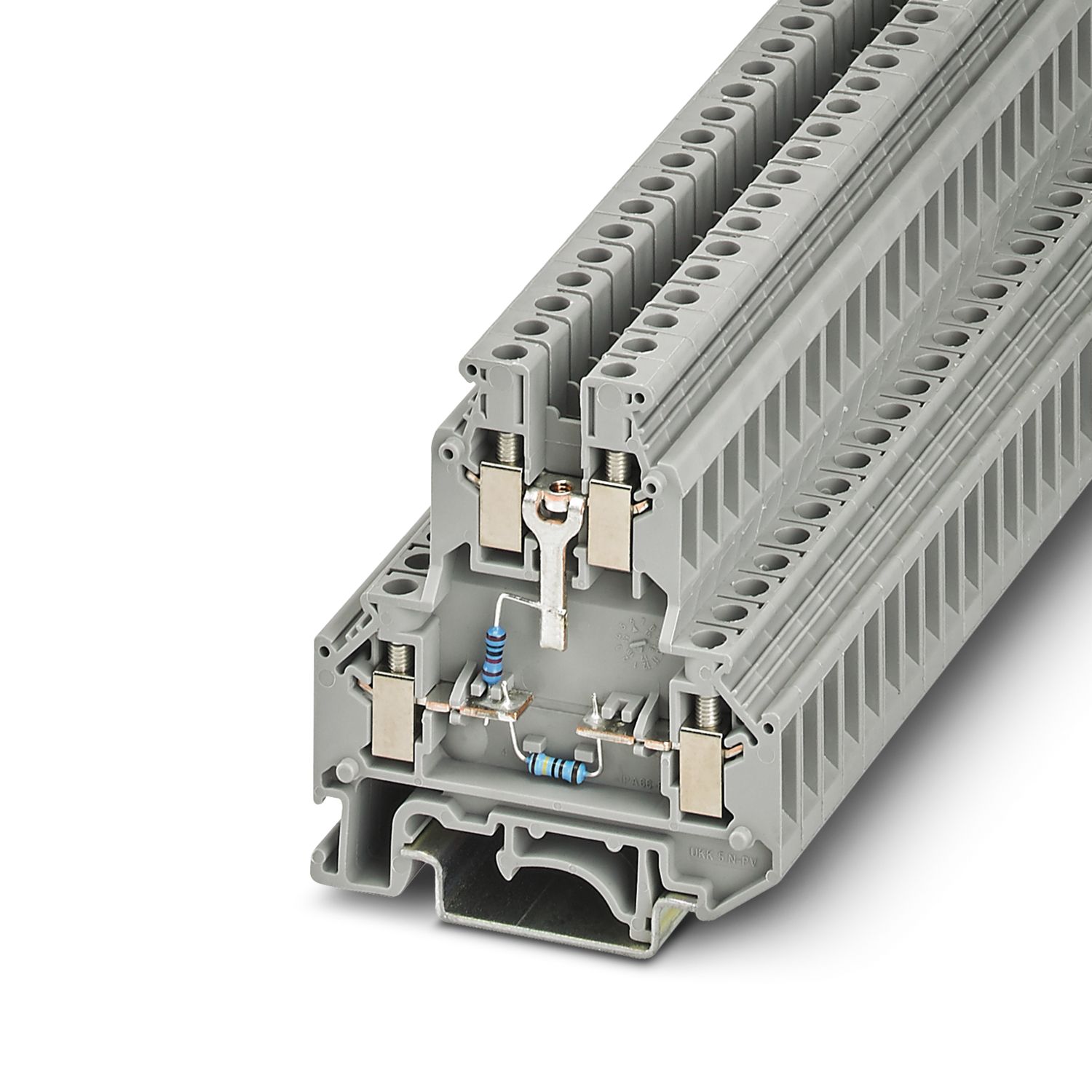

UKK 5-2R/1K4/UL-UR/10K/O-UL - Component terminal block
UKK 5-2R/1K4/UL-UR/10K/O-UL
-
Component terminal block
3070613
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Component terminal block
Number of connections
4
Number of rows
2
Potentials
2
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Electrical properties
Rated surge voltage
6 kV
Connection data
Number of connections per level
2
Nominal cross section
4 mm²
1st and 2nd level
Connection method
Screw connection
Screw thread
M3
Tightening torque
0.6 ... 0.8 Nm
Stripping length
8 mm
Internal cylindrical gage
A4
Connection in acc. with standard
IEC / EN
Conductor cross-section rigid
0.2 mm² ... 4 mm²
Cross section AWG
24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible
0.2 mm² ... 4 mm²
Conductor cross-section, flexible [AWG]
24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.25 mm² ... 4 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)
0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid
0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible
0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 1.5 mm²
Nominal current
32 A
Maximum load current
32 A (with 4 mm² conductor cross-section)
Nominal voltage
500 V (Data is based on the dielectric strength of adjacent terminal blocks or of the DINg rail.)
Nominal cross section
4 mm²
Cross-section with insertion bridge, rigid
4 mm²
Cross-section with insertion bridge, flexible
2.5 mm²
Dimensions
Width
6.2 mm
End cover width
2.5 mm
Height
56 mm
Depth on NS 32
67 mm
Depth on NS 35/7,5
62 mm
Depth on NS 35/15
69.5 mm
Material specifications
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Mechanical properties
Mechanical data
Open side panel
Yes
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)
-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Standards and regulations
Connection in acc. with standard
IEC / EN
Mounting
Mounting type
NS 35/7,5
NS 35/15
NS 32
Commercial data
Item number
3070613
Packing unit
50 pc
Minimum order quantity
50 pc
Product key
BE1273
GTIN
4046356580670
Weight per piece (including packing)
15.69 g
Weight per piece (excluding packing)
15.69 g
Customs tariff number
85369010
Country of origin
CN
Classifications
ECLASS
ECLASS-13.0
27250114
ECLASS-15.0
27250114
ETIM
ETIM 9.0
EC000903
UNSPSC
UNSPSC 21.0
39121400
Approvals
EAC
Approval ID: KZ7500651131219505
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
