Adds CDMA connectivity to Nanoline controller, allowing SMS messaging. Attaches to left-side of base unit.

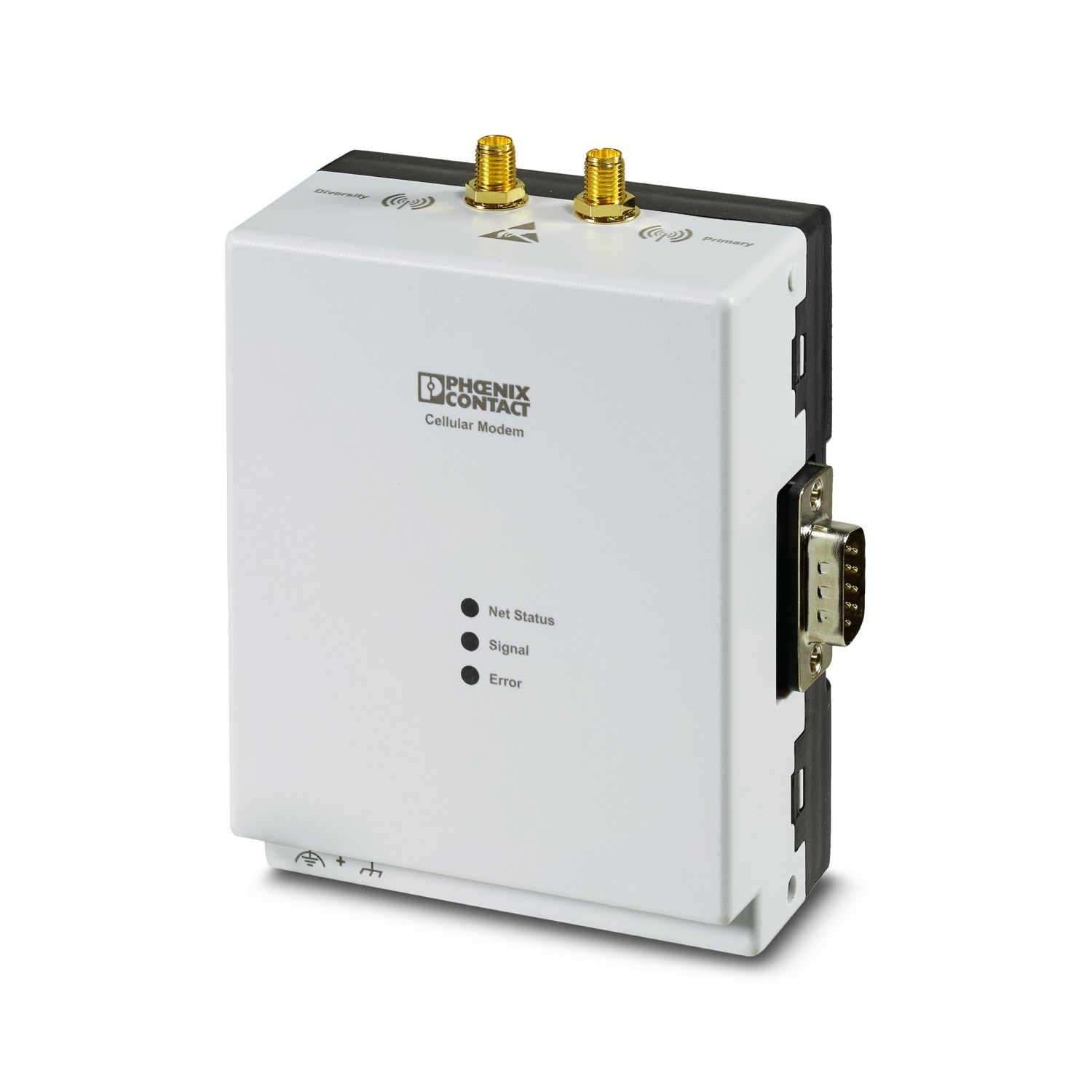

NLC-COM-CELLULAR-CDMA
-
Communication module
2400428
CDMA communication module. Allows SMS messaging to and from the Nanoline controller when connected to the Verizon network.
Free download available.
Downloads
Product details
| Product type | Communication module |
| Product family | Nanoline |
| Supply: Module electronics | |
| Connection method | Screw connection |
| Supply voltage range | 12 V DC ... 24 V DC (9.6 ...28.8 V DC) |
| Wireless | |
| Designation | CDMA |
| Antenna connection method | SMA (female) |
| Frequency band | 800 MHz |
| 1900 MHz | |
| Wireless standard | CDMA-SMS |
| Dimensional drawing |
|
| Width | 80.5 mm |
| Height | 103.5 mm |
| Depth | 43 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 90 % |
Your advantages
Reads inputs
Switches outputs on and off
Password protection for selective access or broadcast to an onboard address book
Sends system faults and warning messages
Allows access to read and write registers, flags, timers, and counters
