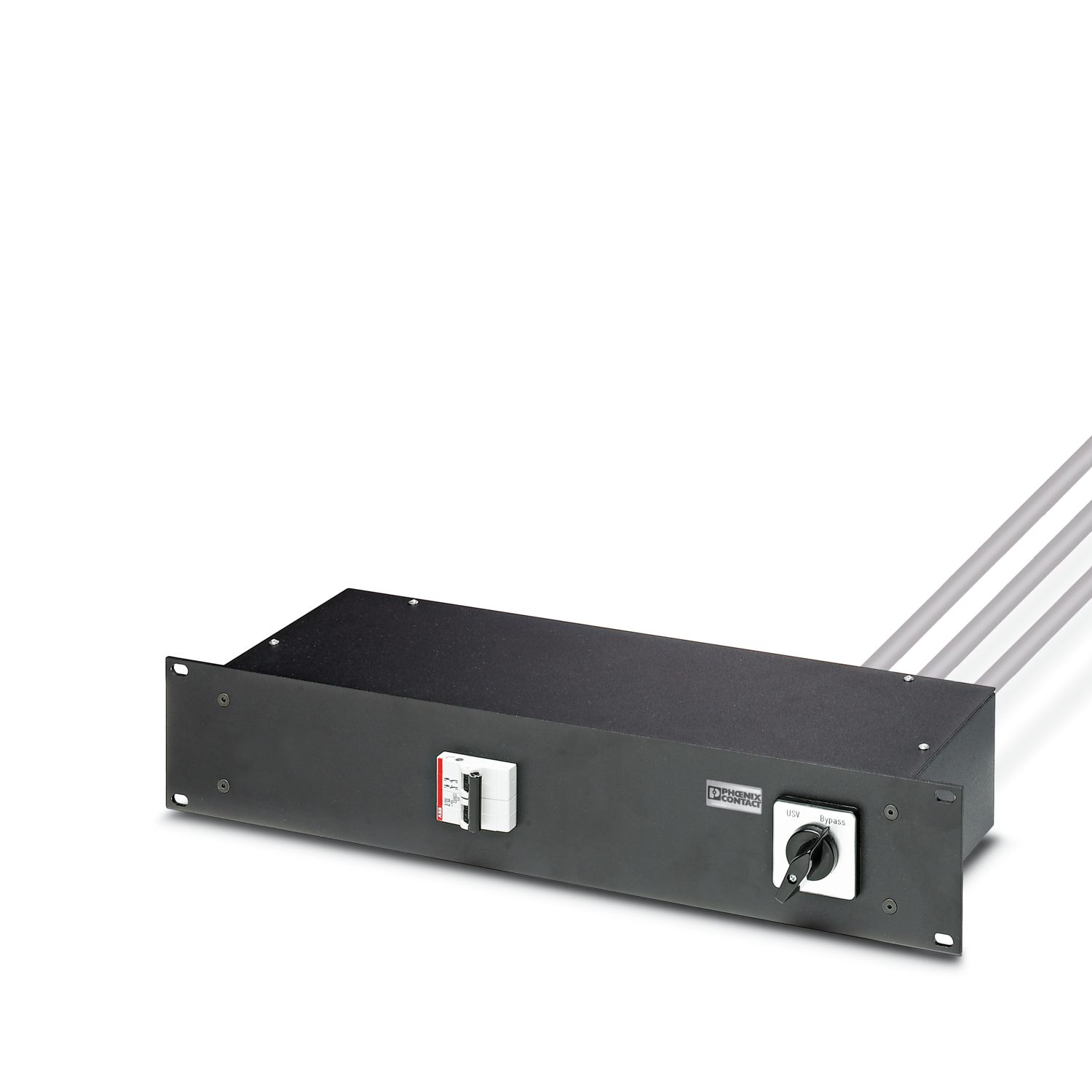

UPS-CP-BP-4.5/6KVA - Bypass module

UPS-CP-BP-4.5/6KVA - Bypass module

2800292

Bypass module with manual bypass for 4.5 kVA and 6 kVA UPS devices.

Product details

Expand all Collapse all

Technical data

Product properties

Type	19" rack patch module

Input data

Nominal voltage	240 V AC
Nominal current	max. 32 A
Power supply connector	L/N/PE cable

Output data

Output voltage range	220 V AC ... 240 V AC
Nominal current	max. 32 A
Nominal voltage	240 V AC
Nominal current	32 A
Connection load	Cable L/N/PE; 2.8 m; open ends

Energy storage

Network management	Yes

Dimensions

Width	483.00 mm
Height	89.00 mm
Rack unit	2 U
Depth	180.00 mm

Material specifications

Color	black

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	0 °C ... 40 °C
Ambient temperature (storage/transport)	0 °C ... 45 °C
Permissible humidity (operation)	0 % ... 90 % (non-condensing)

Standards and regulations

Standards/specifications	IEC 60320

Commercial data

Item number	2800292
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	CMURZ9
Catalog page	Page 249 (C-6-2013)
GTIN	4046356537889
Weight per piece (including packing)	6,300 g
Weight per piece (excluding packing)	6,300 g
Customs tariff number	85049090
Country of origin	DE

Environmental product compliance

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
