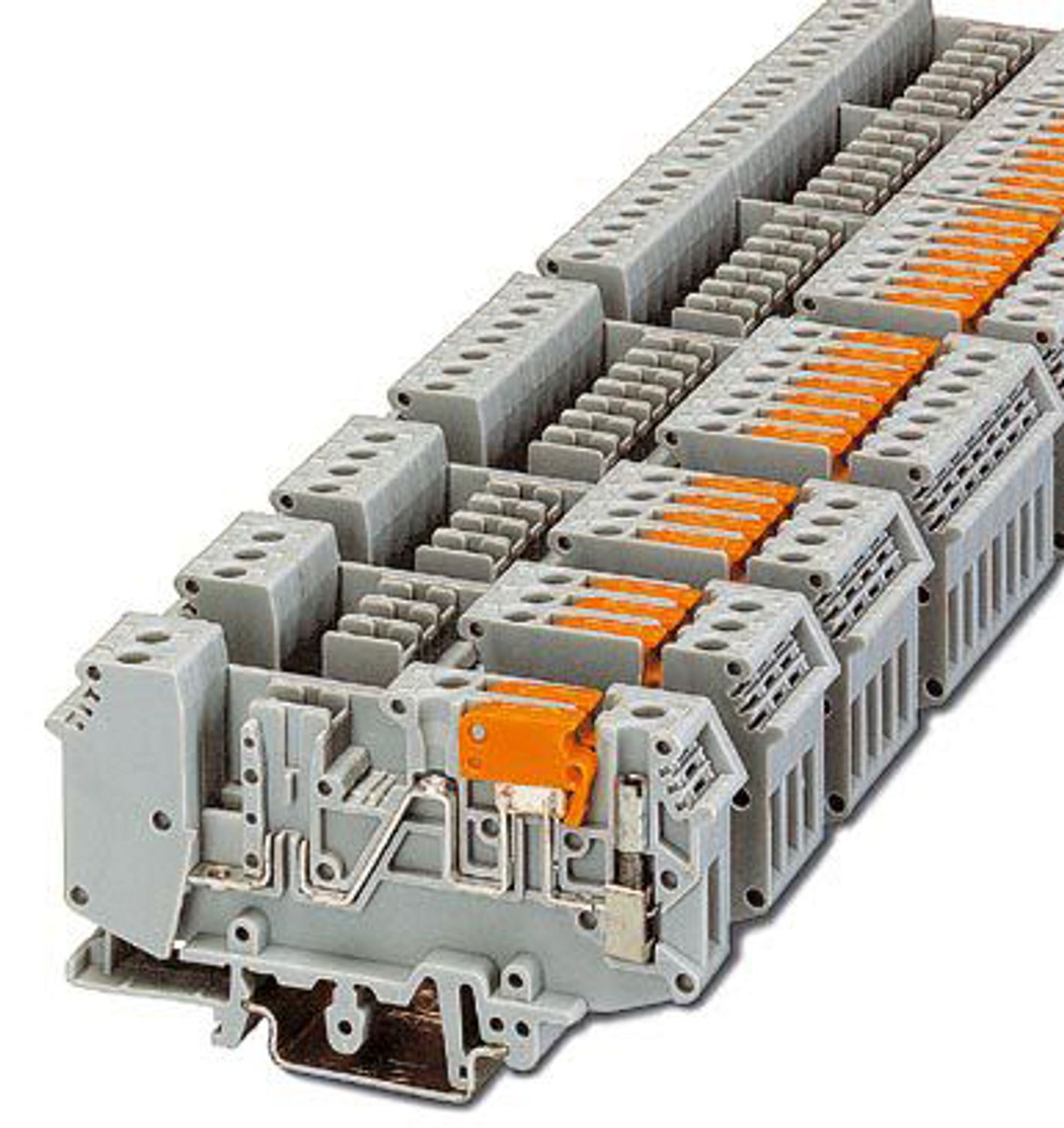

Basic terminal blocks with test pick-off on both sides and knife disconnection for NS 32 and NS 35/7,5 DIN rail, with end cover, for ST-REL..., ST-OV..., and ST-OE... plugs, 2-pos.
| Product type | Relay socket |
| Number of positions | 2 |
| Nominal voltage UN | 400 V (voltage is determined by the coupling connector.) |
| Nominal current IN | 16 A (current is determined by the coupling connector.) |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |

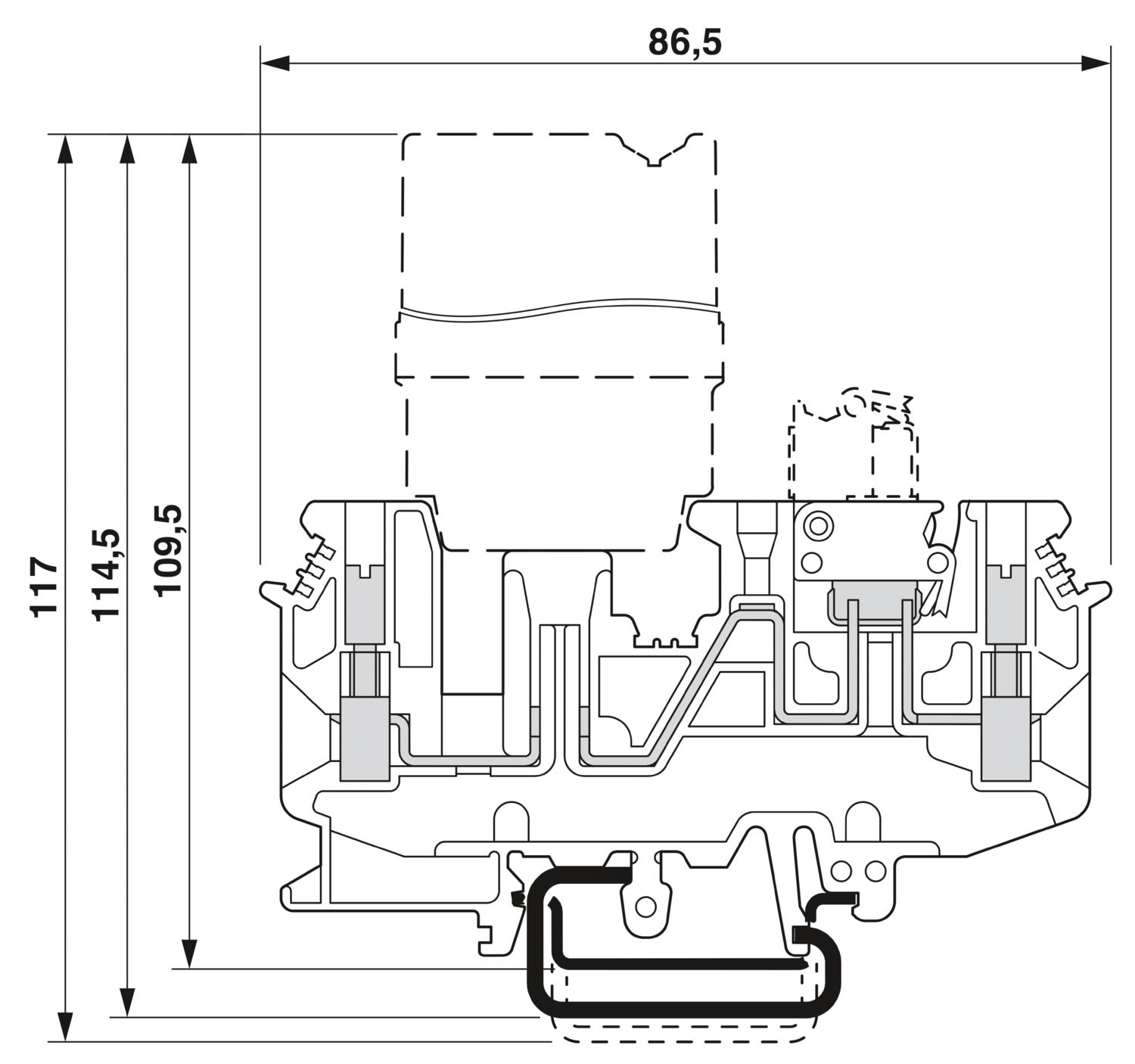

| Dimensional drawing |
|
| Width | 14.6 mm (with cover) |
| Height | 86.5 mm |
| Depth | 109.5 mm |
| 114.5 mm (with NS 32 coupling connector) | |
| 117 mm (with NS 35/15 coupling connector) |
| Color | gray (RAL 7042) |
| Insulating material | PA |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 300 V | 11 A | 28 - 12 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 300 V | 10 A | 30 - 12 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 300 V | 10 A | 30 - 12 |
