MCS-156X127-AP-7035
-

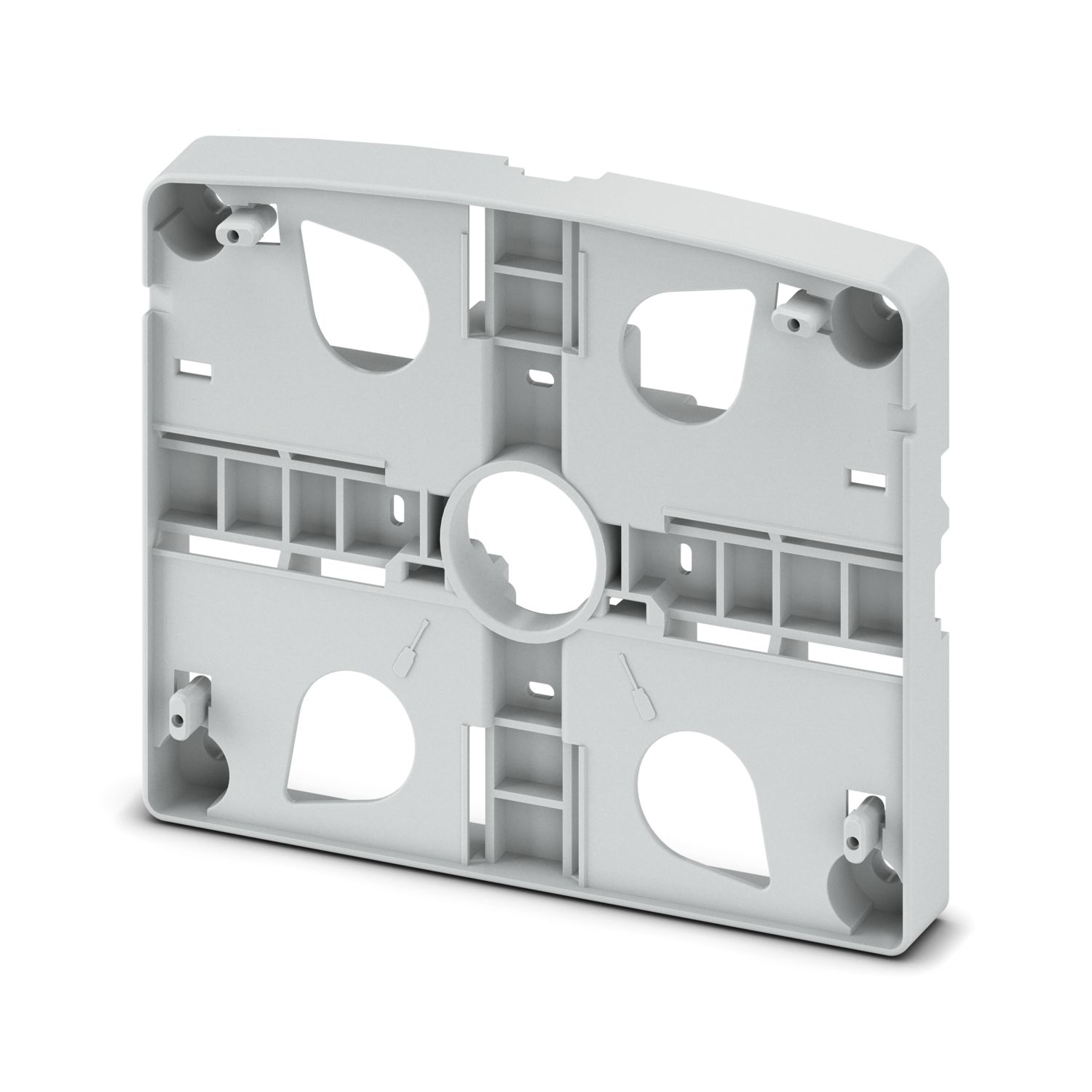

Adapter plate
1524150
Adapter plate, color: light gray (similar RAL 7035), dimensions: 161.2 x 131.8 x 23.2 mm
This product needs further products for operation.
Mandatory accessories
Product details
| Assembly note | Please observe the assembly instructions available in the download area. |
| Assembly note | It is removed using a bladed screwdriver. |
| Recommendation | Further information and detailed dimensions are available in the download area. |
| Product type | Adapter plate |
| Housing type | Field housing |
| Housing series | MCS |
| Product family | MCS-156X127 |

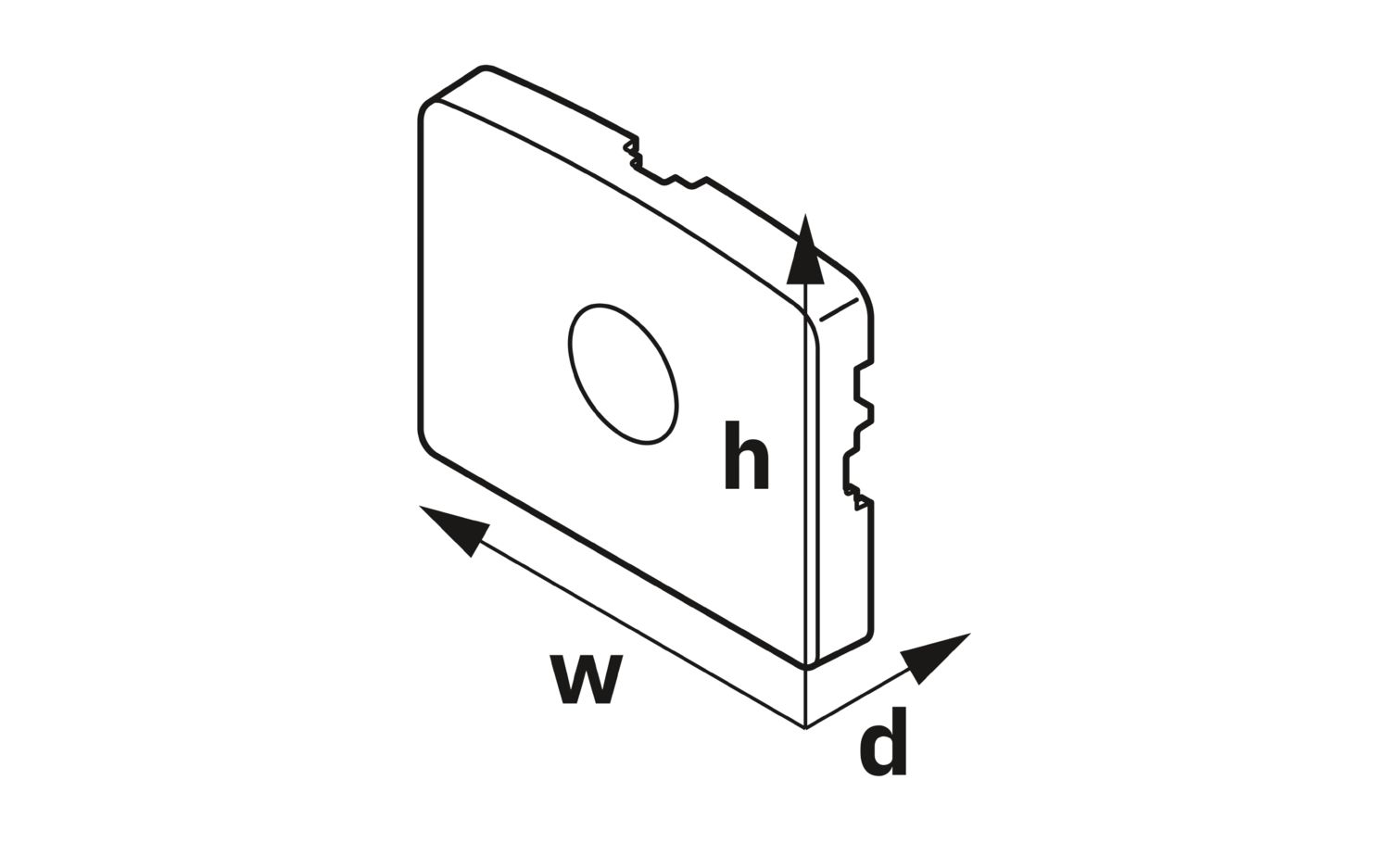

| Dimensional drawing |
|
| Width | 161.2 mm |
| Height | 131.8 mm |
| Depth | 23.2 mm |
| Hole diameter | 6 mm |
| Color (Frame) | light gray (RAL 7035) |
| Material (Frame) | PA-GF |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Glow-wire test | |
| Specification | IEC 60695-2-11:2021-10 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
| Thermal stability / ball thrust test | |
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
| Mechanical strength / tumbling barrel | |
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 10 |
| Shocks | |
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Test for substances that would hinder coating with paint or varnish | |
| Specification | VDMA 24364:2018-05 |
| Result | Test passed |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 85 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 85 °C |
| Relative humidity (storage/transport) | max. 80 % |
| Mounting type | Panel, mast, or DIN rail mounting |
| Mounting position | any |
| Type of packaging | Box packaging |
Your advantages
Convenient operation during device installation and maintenance thanks to optional hinges on the housing cover
Flexible mounting thanks to the optional adapter plate
Safe operation with the right degree of protection
Individualized product selection due to the modular system
Optimized PCB installation: PCB can be installed in a nearly horizontal orientation thanks to the angled housing edge
Frequently asked questions
Where can I mount the housing?
The housing can be mounted on walls, masts, aluminum profiles, or even DIN rails – an optional adapter plate makes this possible.
How is the housing mounted on or removed from the adapter plate?
Mounting is tool-free. The housing is latched onto the adapter plate during mounting. You can also secure the housing with screws (can be ordered separately). To remove the housing, remove the screws (if used) and use a screwdriver or similar to leve... View more
Mounting is tool-free. The housing is latched onto the adapter plate during mounting. You can also secure the housing with screws (can be ordered separately). To remove the housing, remove the screws (if used) and use a screwdriver or similar to lever out the latching mechanisms via the recesses in the adapter plate.
View lessWhat colors and other customization options are there?
You put your custom housing together using the modular system. Several RAL colors are available. Furthermore, different frame versions and additional accessories can be combined in different ways. Please ask us for further customer-specific customizations.
What colors are there, and what colors are possible?
The housing and the adapter plate are available in RAL7035 (light gray). The frames are available in the color versions RAL7035 (light gray), RAL9005 (jet black), RAL5015 (sky blue), and RAL1018 (zinc yellow). Customer-specific color versions can be requested.
What application options are there?
The housings are particularly suitable for use in building technology or industry. However, due to the versatile and robust housing, other areas of application are also possible.
