PSD-S AE V15/1
-
Acoustic element
2700140

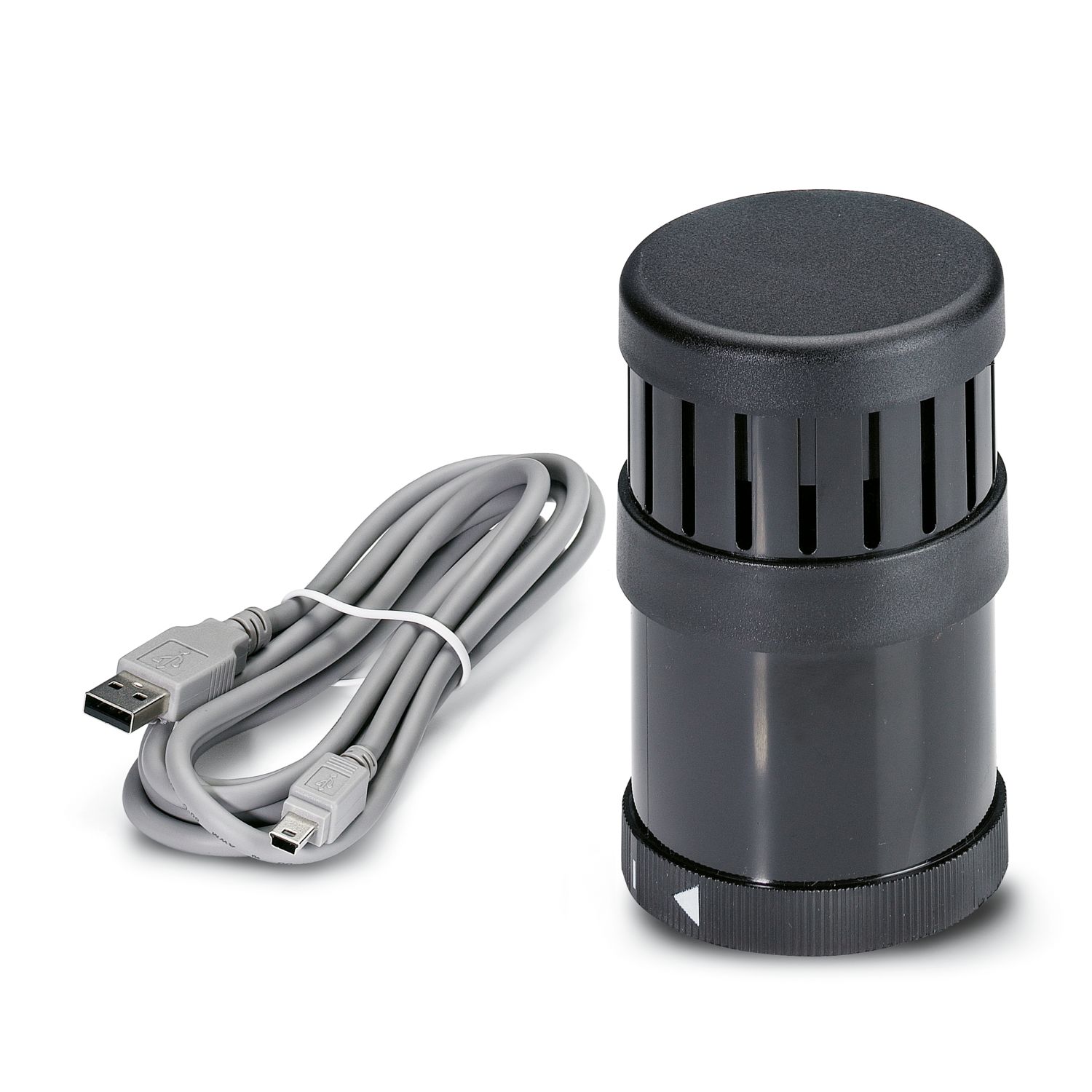

Voice output element, 24 V DC, max. 50 mp3 or wav files can be saved, max. 15 files can be controlled, black
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Product type | Signal element |
| Product family | PSD-S |
| Scope of supply | USB cable, software for configuring the voice output element, and user manual on the element |
| USB cable, software for configuring the voice output element, and user manual on the element |
| General | |
| Input voltage | 24 V DC ±10 % |
| Nominal input voltage range | 21.6 V DC ... 26.4 V DC |
| Maximum inrush current | max. 3 A (for approximately 2 ms) |
| Current consumption | max. 50 mA (in standby mode) |
| max. 400 mA (during playback) | |
| Operating time | 100 % |
| Service life electrical | min. 5,000 h |
| Type of acoustic signal | Voice output (max. 15 files can be controlled) |
| Volume | approx. 88 |
| Dimensional drawing |
|
| Height | 110 mm |
| Diameter | 71.5 mm |
| Color | black |
| Material | Polycarbonate PC |
| Ambient conditions | |
| Degree of protection | IP65, when installed |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Mounting position | any |
Your advantages
Multilingual signaling thanks to voice output
Up to 50 mp3 or wav files can be saved
The volume can be set via configuration software
The volume can be reduced using up to two control cables
Maximum volume of 88 dB(A)
The volume can be set via potentiometer
