LPWAN SCU DOR2 230V EU
-
Wireless module
1427695

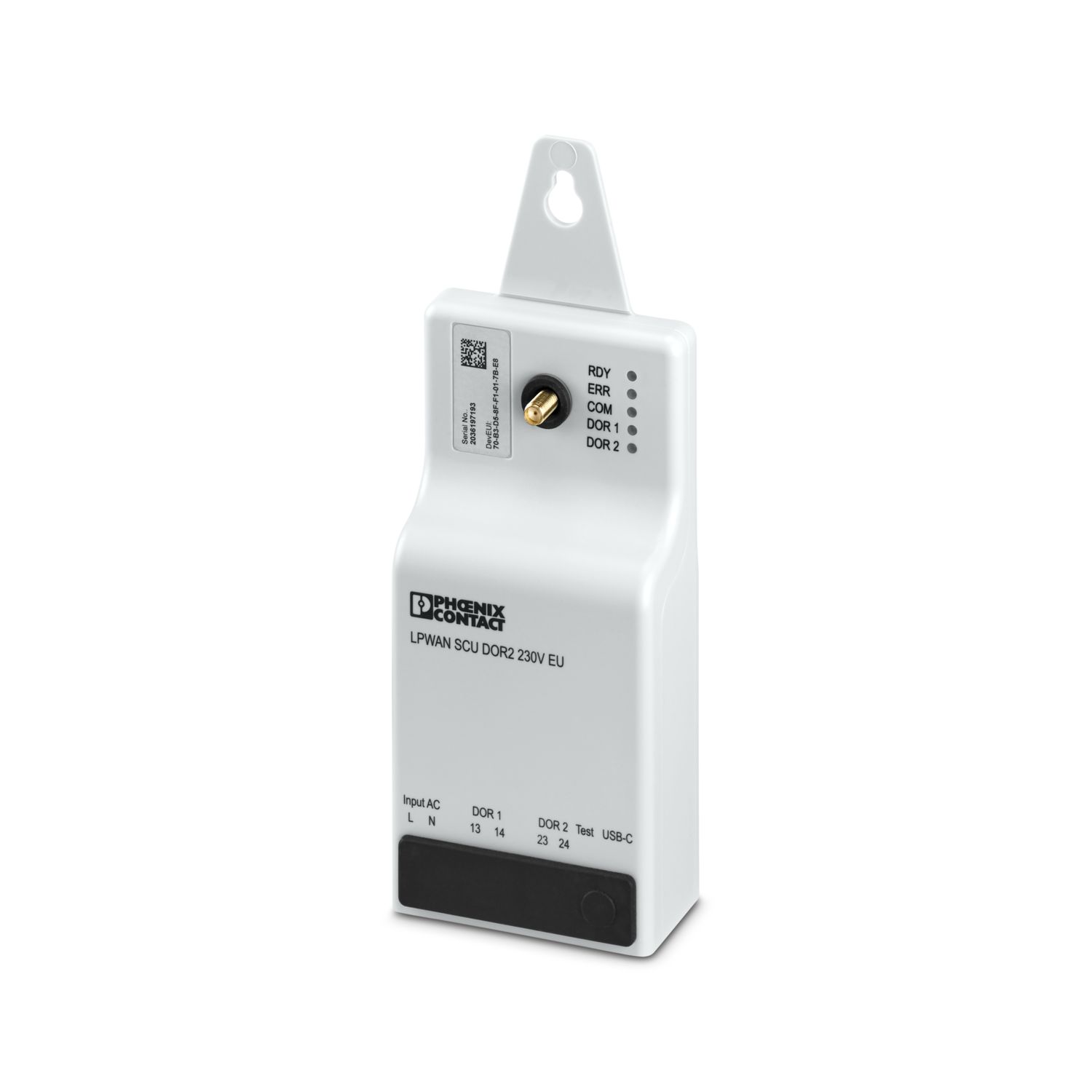

SCU (segment control unit) for lighting control based on astro or event calendar entries, 2 independently switchable relay outputs (electrically isolated, can be loaded up to 10 A), parameterizable via LoRaWAN® and USB-C, 230 V AC power supply.
The device can be used as an alternative to existing ripple control technology (pin compatible).
Product details
Note on application | |
Note on application | Only for industrial use |
Product type | Wireless module |
Insulation characteristics | |
Protection class | II (plastic housing) |
Supply | |
Supply voltage range | 100 V AC ... 240 V AC ±10 % |
Power consumption | 0.3 W |
Digital | |
Output name | Relay output |
Number of outputs | 2 |
Contact switching type | N/O contact |
Contact material | AgNi |
Maximum switching voltage | 230 V +10 % |
Max. switching current | 10 A (at 230 V AC -20% ... +15%) |
Connection method | Screw connection with tension sleeve |
Stripping length | 10 mm |
Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² |
Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 6 mm² |
Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 10 |
Functions | |
Basic functions | Lighting control of streetscapes via relays |
Automatic channel selection | ADR |
Wireless licenses | Europe |
Country support | Egypt |
Albania | |
Andorra | |
Armenia | |
Austria | |
Bahrain | |
Bangladesch | |
Belarus | |
Belgium | |
Burma (Myanmar) | |
Bosnia/Herzegovina | |
Brunei Darussalam | |
Bulgaria | |
Cambodia | |
Croatia | |
Cyprus | |
Czech Republic | |
Denmark | |
Estonia | |
Finland | |
France | |
Germany | |
Greece | |
Iceland | |
Hungary | |
Iran | |
Italy | |
Laos | |
Latvia | |
Lebanon | |
Liechtenstein | |
Lithuania | |
Luxembourg | |
Macedonia | |
Malta | |
Moldavia | |
Montenegro | |
Morocco | |
Netherlands | |
New Zealand | |
Nigeria | |
Norway | |
Oman | |
Pakistan | |
Philippines | |
Poland | |
Qatar | |
Romania | |
Saudi Arabia | |
Serbia | |
Singapore | |
Slovakia | |
Slovenia | |
South Africa | |
Spain | |
Sweden | |
Switzerland | |
Tunisia | |
Turkey | |
Ukraine | |
United Arab Emirates | |
Great Britain | |
Ireland | |
Portugal | |
Vietnam | |
Wireless | |
Designation | LoRaWAN® EU 868 |
Antenna connection method | SMA (female) |
Number | 1 |
Frequency range | 867.1 MHz ... 869.525 MHz |
Frequency band | 868 MHz |
Wireless standard | LoRaWAN® |
Transmission power | < 14 dBm |
Range | up to 15 km |
Transmission physics | LoRa® |
Number of wireless interfaces | 1 |
Dimensional drawing |
|
Width | 79.3 mm |
Height | 207.3 mm |
Depth | 37.4 mm |
Color | light gray (RAL 7035) |
Ambient conditions | |
Degree of protection | IP43 |
Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 0 % ... 95 % |
CE | |
Identification | CE-compliant |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | Immunity test in accordance with EN 301489-1 Electrostatic discharge (ESD) Criterion A, ±4 kV contact discharge, ±8 kV air discharge |
Electromagnetic fields Criterion A, Field intensity: 10 V/m | |
Fast transients (burst) Criterion A, ±2 kV | |
Transient overvoltage (surge) Criterion A, ±1 kV (symmetrical) | |
Conducted disturbance Criterion A, Test voltage 10 V | |
Noise emission test in accordance with EN IEC 55015 |
Mounting type | Panel mounting |
DIN rail mounting |
Item number | 1427695 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Product key | DREDIA |
GTIN | 4063151789015 |
Weight per piece (including packing) | 294 g |
Weight per piece (excluding packing) | 250 g |
Customs tariff number | 85371091 |
Country of origin | CH |
ECLASS
ECLASS-13.0 | 27242608 |
ECLASS-15.0 | 27242608 |
ETIM
ETIM 9.0 | EC001604 |
UNSPSC
UNSPSC 21.0 | 32151600 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes (No exemptions) |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
