PML-W305 (200X100)
-
Warning label
0830480

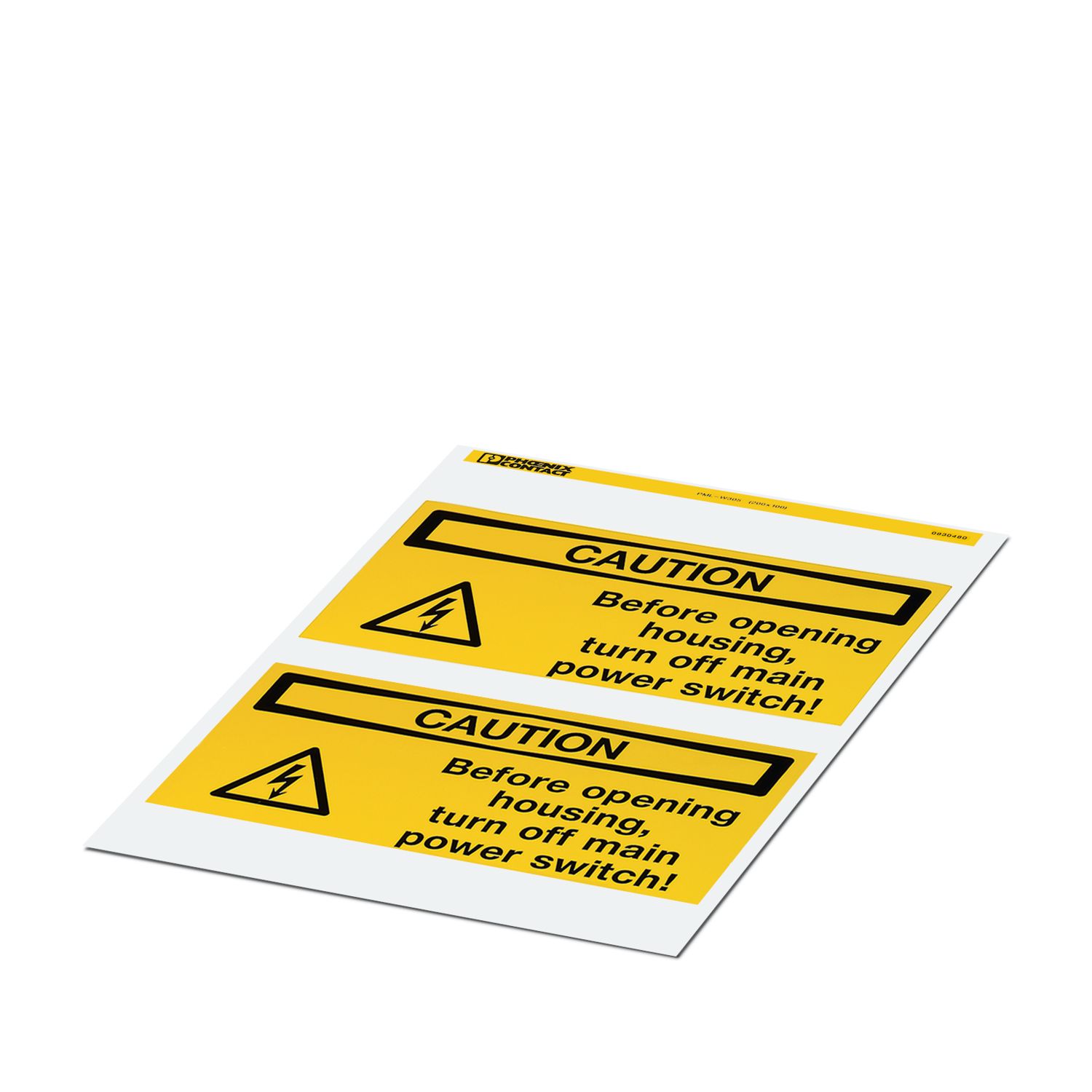

Warning label, Sheet, yellow/black, labeled: Lightning flash and warning in English, mounting type: adhesive, diameter: 0 mm, Number of individual labels: 2
Product details
| Product type | Warning label printed |
| Area of application | Warning labels |
| Warning identification according to ISO 7010 | |
| Type | Rectangle |
| Marking | |
| Number of individual labels | 2 |
| Number of individual labels per row | 1 |
| Printing | Lightning flash and warning in English |
| Identification technology | Office laser printing |
| Width | 200 mm |
| Height | 100 mm |
| Length | 100 mm |
| Diameter | 0.00 mm |
| RoHS compliant | yes |
| Foil strength | 50 µm |
| Adhesive | Acrylic |
| Color | yellow/black |
| Material | PVC |
| Components | Silicone-free |
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Wipe resistance of inscriptions | |
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Isopropyl [CAS No. 67-63-0] |
Test passed |
| n-Hexane [CAS No. 110-54-3] |
Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] |
Test passed |
| Testing in a condensation changing climate in the presence of sulfur dioxide | |
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Salt spray test | |
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 90 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Shelf life | 2 years |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Mounting type | adhesive |
| Item number | 0830480 |
| Packing unit | 5 pc |
| Minimum order quantity | 1 pc |
| Product key | BG2511 |
| Catalog page | Page 325 (C-5-2015) |
| GTIN | 4046356718042 |
| Weight per piece (including packing) | 23.7 g |
| Weight per piece (excluding packing) | 23.7 g |
| Customs tariff number | 39199080 |
| Country of origin | DE |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
