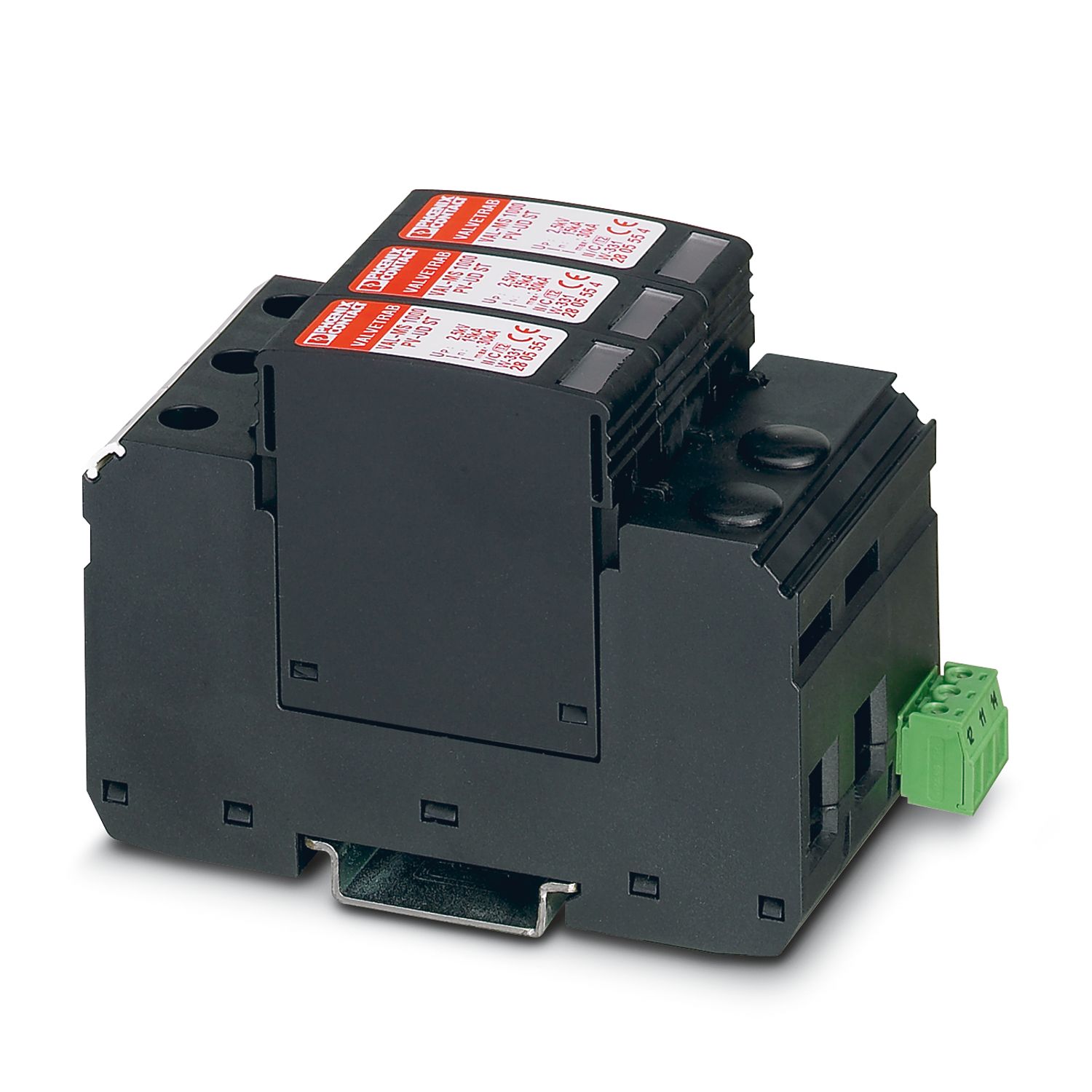

VAL-MS 1000DC/2+V-FM-UD - Type 2 surge protection device - 2805567

Product properties

Product type	PV arrester
Product family	VALVETRAB MS
IEC test classification	II
	T2
EN type	T2
Type	DIN rail module, two-section, divisible
Number of positions	3
Surge protection fault message	Optical, remote indicator contact

Electrical properties

Nominal voltage U_N	1000 V DC (Open-circuit voltage U_OC)
Indicator/remote signaling
Switching function	Changeover contact, 1-pos.
Maximum operating voltage U_max. AC	250 V AC
Max. operating current I_max	1.5 A AC (250 V AC)
	1 A DC (30 V DC)

Connection data

Connection method	Screw connection
Screw thread	M5
Tightening torque, min	4.5 Nm
Stripping length	16 mm
Conductor cross section flexible min.	1.5 mm²
Conductor cross section flexible max.	25 mm²
Conductor cross section, rigid min.	1.5 mm²
Conductor cross section, rigid max.	35 mm²
Connection method	MC 1,5/3
Screw thread	M2
Tightening torque, min	0.25 Nm
Stripping length	7 mm
Conductor cross section flexible min.	0.14 mm²
Conductor cross section flexible max.	1.5 mm²
Conductor cross section, rigid min.	0.14 mm²
Conductor cross section, rigid max.	1.5 mm²

Dimensions

Material specifications

Flammability rating according to UL 94	V0
Housing material	PBT/PA

Mechanical properties

Mechanical data
Open side panel	No

Protective circuit

Direction of action	(L+)-PE & (L-)-PE & (L+)-(L-)
Maximum continuous voltage U_C	1000 V DC
Rated load current I_L	≤ 80 A DC
Protective conductor current I_PE	≤ 20 µA
Standby power consumption P_C	≤ 20 mW
Nominal discharge current I_n (8/20) µs	15 kA
Maximum discharge current I_max (8/20) µs	30 kA
Voltage protection level U_p	≤ 5 kV
Voltage protection level U_p (L+) - (L-)	≤ 5 kV
Voltage protection level U_p (L+/L-) - PE	≤ 5 kV
Response time t_A	≤ 25 ns
Protective circuit DC voltage side (DC)
Maximum discharge current I_max (8/20) µs	30 kA
Response time t_A	≤ 25 ns
Nominal discharge current I_n (8/20) µs	15 kA
Rated load current I_L	≤ 80 A DC
Short-circuit current rating I_SCPV	80 A
Protective conductor current I_PE	≤ 20 µA
Voltage protection level U_p	≤ 5 kV
Voltage protection level U_p (L+) - (L-)	≤ 5 kV
Voltage protection level U_p (L+/L-) - PE	≤ 5 kV
Standby power consumption P_C	≤ 20 mW

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 80 °C

Standards and regulations

Air clearances and creepage distances
Standards/regulations	DIN EN 60664-1 / DIN EN 61643-11
Standards
Standards/regulations	DIN EN 61643-11
	IEC 61643-1
	IEC 60364-7-712
Standards/specifications	DIN EN 61643-11
Note	2002
Standards/specifications	IEC 61643-1
Note	2005
Standards/specifications	IEC 60364-7-712
Note	2002

Mounting

Item number	2805567
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	CL1324
GTIN	4046356465502
Weight per piece (including packing)	368.2 g
Weight per piece (excluding packing)	368.2 g
Customs tariff number	85363010
Country of origin	DE

VAL-MS 1000DC/2+V-FM-UD - Type 2 surge protection device

2805567

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
